USER MANUAL
ALCATEL one touch CF100P
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CF100P and is the answer not in the manual?

Questions and answers

Related Manuals for Alcatel CF100P

Summary of Contents for Alcatel CF100P

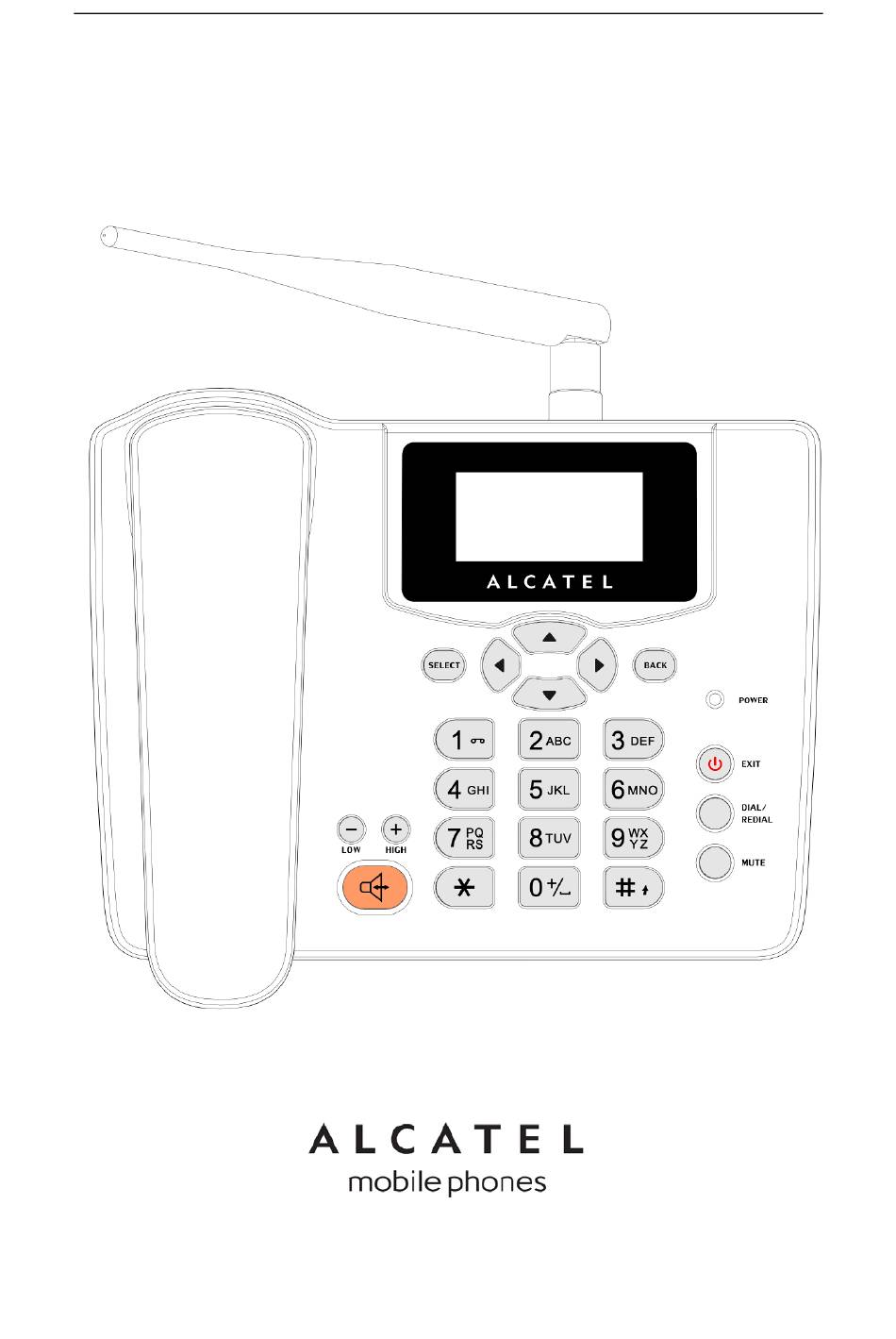

  • Page 1 USER MANUAL ALCATEL one touch CF100P...

  • Page 2: Table Of Contents

    Safety and use .................... 18 Friendly reminder: This user manual applies to the one touch CF100P phone. If there are minor differences in the description or illustrations between the manual and the actual product，the actual product shall take precedence. Customers will not be notified separately of any upgraded model of this phone. Please contact our Customer service.

  • Page 3: Your Mobile

    1. Your mobile 1.1 Basic specifications Item Specifications Size: 200mm[L]×153.8mm[W]×48.7mm[Thickness] Phone Weight: 574g (Battery included) Screen resolution 128*64 pixels Contacts 500 entries Recent calls 60 entries Messages 350 entries Operating temperature -10℃~55℃ Capacity: 1200mAh Talk time: 4 hours(approx.) Battery Ni-MH Standby time: 150 hours (approx.) Charging time: 3 hours (approx.) ...
  • Page 4 Number Item Function SELECT Key Enter menu Confirm an option BACK Key Contacts List In Menu: Back/Delete Navigation Keys  Left: Alarm  Right: Recent Calls  Up: Messages  Down: Create message EXIT Key Power on/Power off End a call Back to the idle screen DIAL/REDIAL Key Recent Call...
  • Page 5 Volume Key Change the volume during the call Speaker Key You can select this key to activate or deactivate handsfree 1 Key When standby, holding [1] Key 2 seconds to call the voice mail number. * Key When input numbers in standby, holding [*] Key 2 seconds to input P after main number and then extension number.

  • Page 6: Getting Started

    Battery power indicator. More bars indicate a higher power level. The more bars, the stronger signal You have received one or more text messages Indicate the message box is full You have received one or more voicemail messages Indicate the phone is making a call You have missed one or more calls Alarm or schedule has been set Indicate the phone have set Voice privacy...

  • Page 7: Basic Functions

    Installing the battery Fixing the battery Closing the back cover 2.3 How to use the Wall Hook 3. Basic functions 3.1 Power on/off When power is sufficient, press and holds the EXIT key to power on. If you have activated a password, you will be prompted to enter it.
  • Page 8 3.2.1 Enter the number directly In the standby mode, use the number key to enter a phone number, and then press the Dial/Redial key to make the call. 3.2.2 Dial a number in the Call Memory In the standby mode, press the Dial/Redial key to access recent calls list, and press send key again to dial the selected number.

  • Page 9: Contacts

    4. Contacts The phone can store up to 500 contacts. From the idle screen press the Back key to display the list of contacts. The contact list can also be accessed through Menu/Contacts. 4.1 Contacts List Select Menu/Contacts/Contacts List to access the contacts list. Press the Select key for the following options: View, Edit, Add New, Send Messages, Send Contacts, Copy/Move to UIM Card (for phone contacts), Copy/Move to Phone (for UIM card contacts) and Delete.
  • Page 10 ring tone. 4.4 Groups Select Menu/Contacts/Groups to access groups list, Contacts are separated by the following groups: All, No Group, UIM Card, VIP, Family, Colleague, Friends, Schoolmates and Business. You can select any group to view all the contacts in that group; you can also rename the group.

  • Page 11: Recent Calls

    phone contacts when you open contacts list, and you can view only UIM card contacts if you select UIM Card. When you select Phone and UIM Card, you can view all the contacts every time you open contacts list. Memory Status: View the number of entries stored and check the memory used up for the contact in the phone memory and UIM card.

  • Page 12: Messages

    5.3 Last Call You can see the details of your last call. 5.4 Delete All Select Recent Calls/Delete All you can clear all Missed Calls, Received Calls, Dialed calls and All Calls. 6. Messages Press down key directly to access the message editing screen. Press upper key or press the Select key to select Messages to access the Messages menu.
  • Page 13 Reply: Send a message to the sender of the current message. Forward: Modify the contents of a message and send it. Delete: Delete a message. Copy to UIM Card/Copy to Phone: Copy a phone message to UIM card or copy a UIM card message to phone.
  • Page 14 6.7 Settings Select Menu/ Messages/Settings to access submenu with below options: Send Option, Priority, Delivery Reports, Callback Number, Save Location, Message Validity and Auto Delete. Send Option: Choose a default send mode when create and send a new message, such as send and save, send only or save only.

  • Page 15: Settings

    7. Settings 7.1 Display You can do some settings following your need. You can customize your phone by setting Brightness and Backlight Time. Brightness: You can choose the brightness as Light Dark or Normal. Backlight Time: Set the backlight time - 10 sec, 30 sec, 50 sec, always on 7.2 Phone Language: English.

  • Page 16: Entertainment

    7.4 Security Select Menu/Settings/Security, then enter the security submenu by inputting the phone code (default phone code: 0000). You can set entry code for your Messages, Contacts, and Recent Calls here. Phone Lock: Including phone code activation and inactivation, and password resetting. If you activate the phone code, you have to enter the phone code every time when the cell phone powers on.

  • Page 17: Tools

    9. Tools 9.1 Stopwatch Press Left soft key to start time keeping, or press Stop function key to pause time keeping, or press continue function key to resume time keeping. You can press record function key to get the time recorded. 9.2 Alarm Your phone has a built-in alarm clock.

  • Page 18: Fm Radio

    9.5 World Time This function allows you to find out the time in different cities around the world. 10. FM Radio You can use the phone as the FM Radio. For FM Radio screen: Left and Right keys: Accommodate the channel frequency by frequency, each time by 0.1MHz.
  • Page 19 Item to be checked The telephone does not Make sure that the charger is correctly connected to the charge properly phone and the power socket. Make sure you are using a charger specifically designed for this phone. The phone does not Check the battery charge level.

  • Page 20: Safety And Use

    Item to be checked When you cannot (1) The network provider does not provide this service or connect to the network you have not subscribed to this service. Please contact normally your provider for details on the subscription and use of these services.
  • Page 21 areas with “turn off two-way radio equipment” signs and places where you are usually recommended to switch off car engines. Safety of use in a vehicle Please observe the relevant local or national regulations related to the use of phones in a vehicle.
  • Page 22 Keep the phone, battery and charger out of the reach of children. Do not let children use the phone, battery or charger without supervision. Do not let a child put a battery in his/her mouth to avoid electrolyte poisoning. Keep children away from small phone accessories to prevent suffocation or blocking of the oesophagus as a result of swallowing.
  • Page 23 Wipe dust off the power plug and keep it dry to avoid risk of fire If the phone or accessories do not work properly, contact your local vendor Do not dismantle the phone or its accessories yourself. Protecting the environment Please observe the local regulations on phone packaging, battery and used phone disposal and bring them to the collection point for proper recycling.
  • Page 24 If the battery leaks, emits smoke or a strange odour, cease use immediately and move it far away from naked flames or people to avoid a fire or injury from explosion. Do not charge the battery in a dusty or damp environment and keep the cable away from heated objects.
  • Page 25 The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device types one touch CF100P (FCC ID: RC5CF100P) has also been tested against this SAR limit. The highest SAR value reported under this standard during product certification when properly worn on the body is 0.107 W/kg.
