Linear Technology DC1698A Demo Manual page 3

High voltage, bidirectional current sense amplifier
Hide thumbs
1
2
3
4
5
6
Table of Contents

Advertisement

QUICK START PROCEDURE
LOAD SUPPLY
(–5V TO 80V)
Arrow.com.
Arrow.com.
Arrow.com.
Downloaded from
Downloaded from
Downloaded from
DEMO MANUAL DC1698A
20V
2.00A
LOAD
10Ω

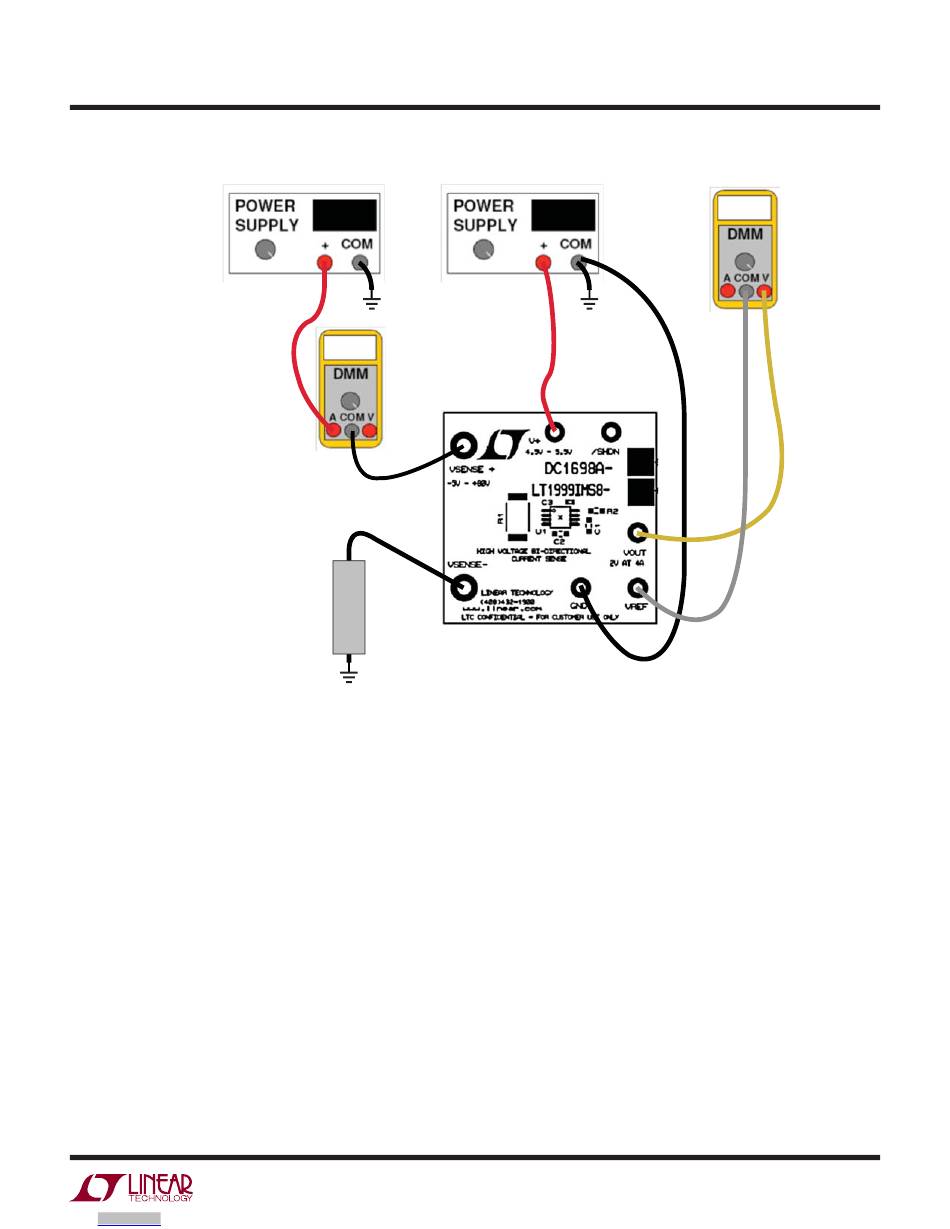

Figure 1. Proper Measurement Equipment Setup
DEVICE SUPPLY
5.00V
(4.5V TO 5.5V)
1.00V
V
OUT
dc1698afa
3
