Transfer Switch Dashboard

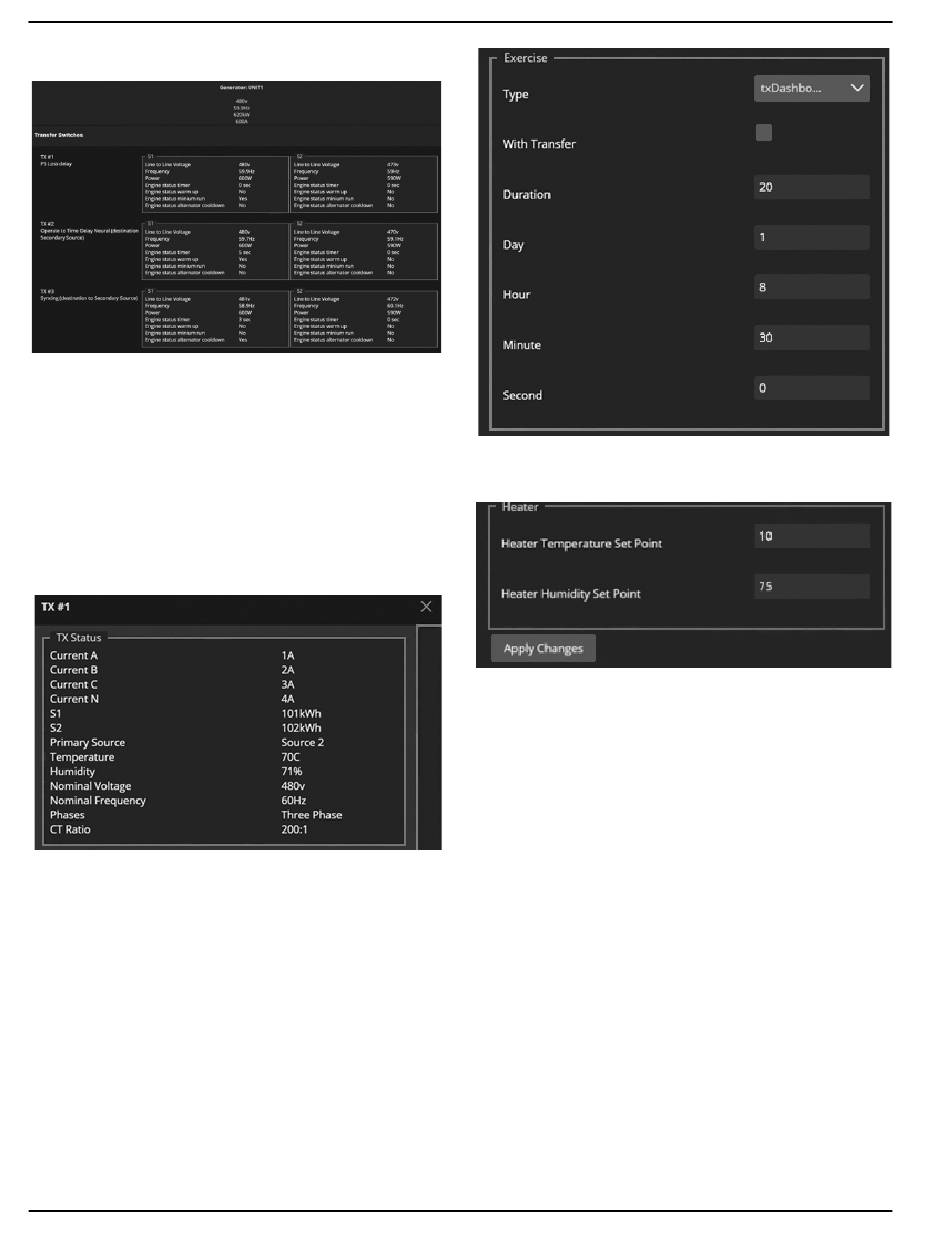

Figure 3-57. Transfer Switch Dashboard
See Figure 3-57. The Transfer Switch Dashboard
Screen shows the current settings and readings retrieved
from the Transfer Switch Controller.
three transfer switches connected and details for each
one. For each transfer switch shown, by clicking in a
transfer switches region in the screen, it's status is shown
along with Exercise and Heater settings that can be
adjusted. See Figure 3-58,
60.
Figure 3-58. Transfer Switch Status
30
015056
Figure 3-57 shows
Figure 3-59, and Figure 3-
015057
Figure 3-59. Transfer Switch Exercise
Figure 3-60. Transfer Switch Heat and Humidity Settings
Owner's Manual for Power Zone Gateway on PZ 410
