Home Screen

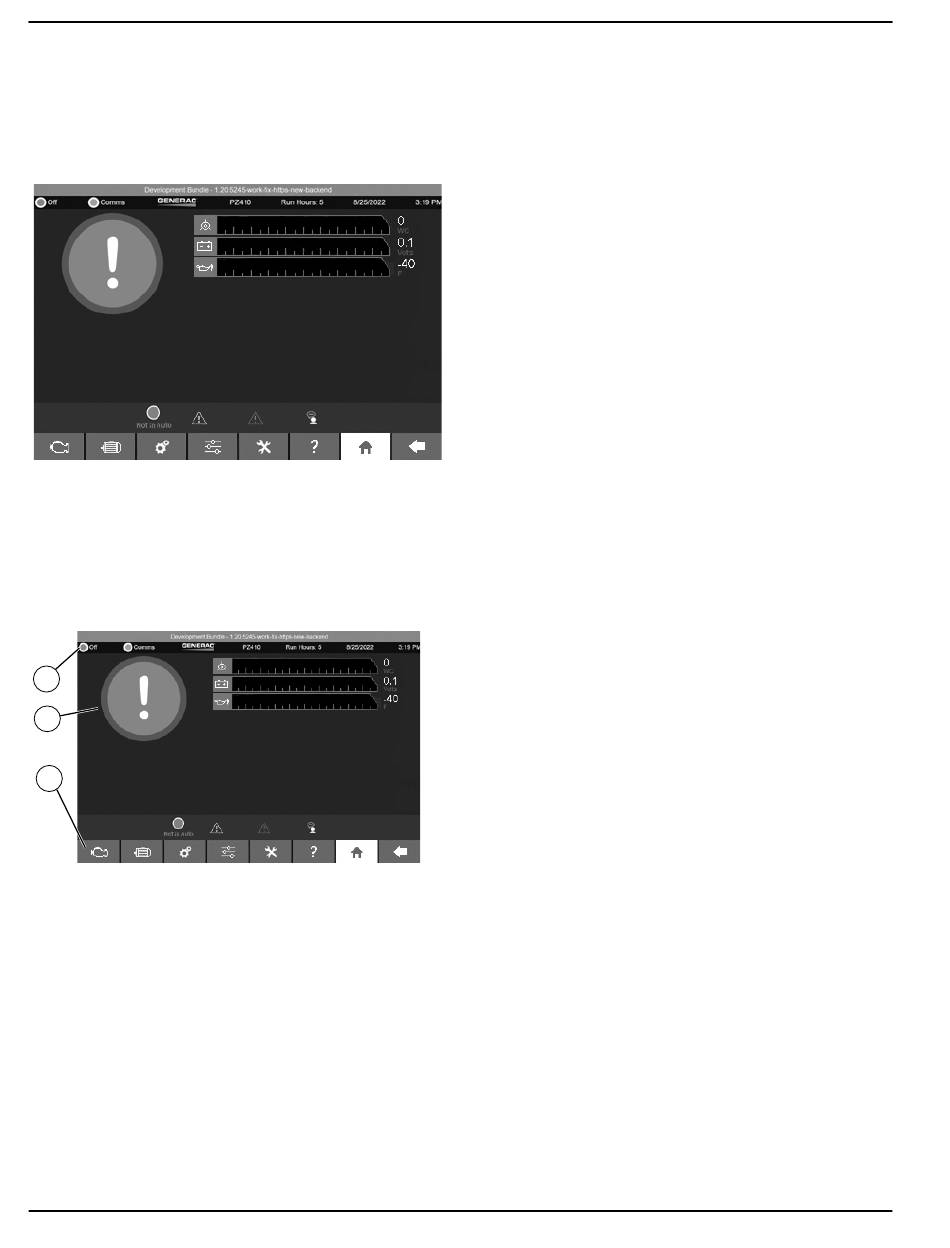

See Figure 3-1. This screen displays bar graphs for the
most common measurements, and an overall health
check for the generator. The number of displayed mea-
surements will change depending on whether or not the
generator is running.
Figure 3-1. Home

Screen Layout

See Figure 3-2. The screen is divided into the
(A), the
ner Bottom Banner
information area in the center (C). The top and bottom
banners are displayed on every screen.
A
C
B
Figure 3-2. Screen Layout
8
014621
Top Ban-
(B), and the main screen
