Installation and Operation

Language

See Figure 3-9. The screen is designed to be multi-lin-
gual. Each remote user can have a different language
displayed without affecting the other remote users or the
Controller Built-in Display. To set the language, go to the
icon (on the bottom banner) choose "User" →
(E) Setup
"Language/Locale". A drop down box for languages will
appear on the right hand side. Select "Apply Changes" to
save the language selection.

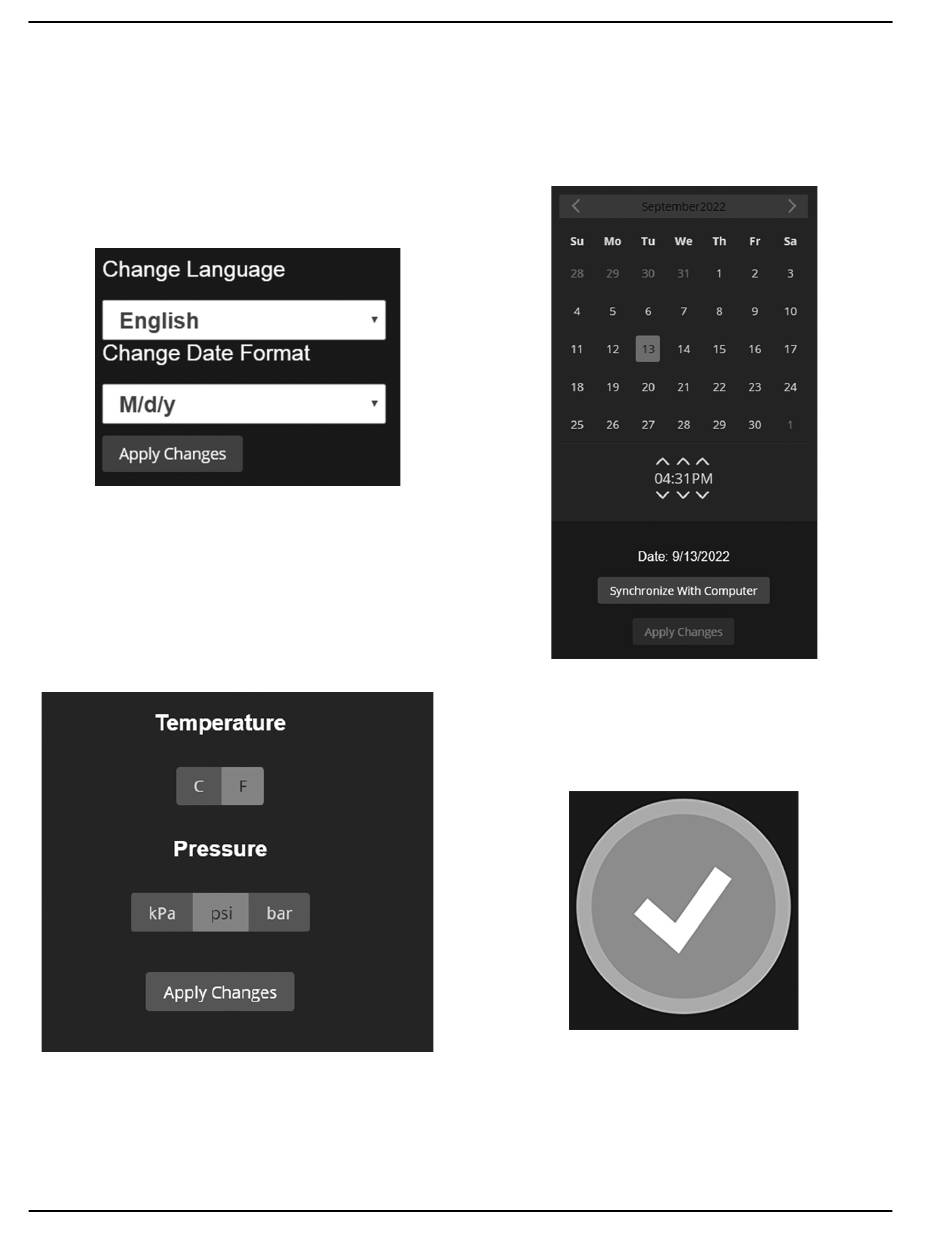

Figure 3-9. Language Selection

Units of Measure

See 3-10. To set the units of measure go to the
Figure
icon (on the bottom banner) and choose
(E) Setup
"User". A selection for "Units of Measure" will appear on
the right side of the screen. Checking the "Save" button
will save the selection.
Figure 3-10. Units of Measure

Date/Time

See Figure 3-11. The system date and time can be set
from the (E) Setup icon (on the bottom banner). Navigate
to Setup → Calendar → Date/Time.
12
Changing the date/time on the Gateway means a change
to the "System Time" and this will eventually change all
other connected equipment (displays and modules) in the
system. This will affect timestamps of data and execution
of calendar based commands.
The default time setting shown on the Gateway is set via
the date format setting on the controller built-in display.
007522

Health Checkmark

See Figure
healthy.
014624
See
Figure 3-13
has an alarm or warning status, the checkmark will
change to indicate the level of fault.
Figure 3-11. Date / Time
3-12. The checkmark indicates the system is
Figure 3-12. System is Healthy (Green)
and 3-14. When the generator
Figure
Owner's Manual for Power Zone Gateway on PZ 410
