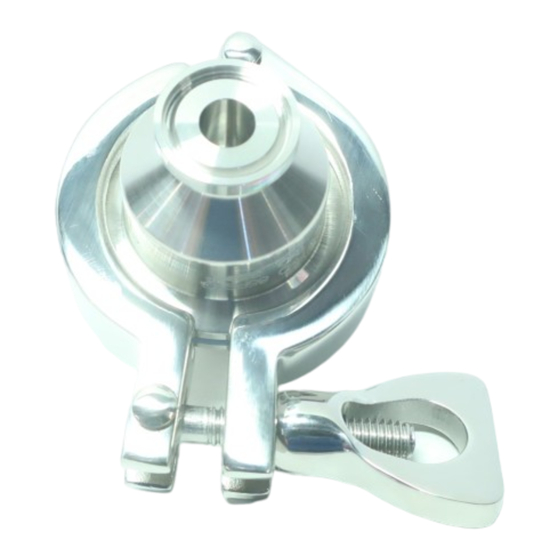

TLV LV6CE Instruction Manual
Clean steam trap
Hide thumbs
Also See for LV6CE:
- Instruction manual (15 pages) ,
- Instruction manual (32 pages) ,
- Instruction manual (17 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for TLV LV6CE
Summary of Contents for TLV LV6CE
- Page 1 172-65230m-02 (LV6 Clean Steam Trap) 19 February 2009 ISO 9001/ ISO 14001 Manufacturer Kakogawa, Japan is approved by LRQA LTD. to ISO 9001/14001 Clean Steam Trap LV6CE / LV6SF / LV6P / LV6EP Copyright © 2009 by TLV CO., LTD. All rights reserved...
-
Page 2: Table Of Contents
Contents Introduction ................ 1 Safety Considerations ............2 Checking the Piping ............3 Operation ................4 Specifications ..............5 Configuration..............5 Installation ................6 Maintenance............... 7 Disassembly / Reassembly ..........8 Troubleshooting ..............9 Product Warranty ............. 10 Option................11 Introduction Thank you for purchasing the clean steam trap. -
Page 3: Safety Considerations
• The three types of cautionary items above are very important for safety: be sure to observe all of them as they relate to installation, use, maintenance and repair. Furthermore, TLV accepts no responsibility for any accidents or damage occurring as a result of failure to observe these precautions. -
Page 4: Checking The Piping
Use only under conditions in which no freeze-up will occur. CAUTION Freezing may damage the product, leading to fluid discharge, which may cause burns or other injury. Use only under conditions in which no water hammer will occur. The impact of water hammer may damage the product, leading to fluid discharge, which may cause burns or other injury. -
Page 5: Operation
Operation Principles of air and condensate discharge: 1. Start-up Air and Cold Condensate Discharge When the system is cold before the supply of steam, the X-element is in its contracted state and the valve is open. This allows for the rapid discharge of large quantities of air and cold Valve condensate through the open valve, thus... -
Page 6: Specifications
* Maximum allowable pressure (PMA) and maximum allowable temperature (TMA) are PRESSURE SHELL DESIGN CONDITIONS, NOT OPERATING CONDITIONS. ** CNo. (Charge / Mill No.) is displayed for products with options. This item is omitted when there are no options. Configuration LV6CE / LV6SF LV6P / LV6EP Name Lower Body Upper Body... -
Page 7: Installation
Installation Take measures to prevent people from coming into direct contact with product outlets. Failure to do so may result in burns or other injury from the discharge of fluids. Install properly and DO NOT use this product outside the recommended operating pressure, temperature and other specification ranges. -
Page 8: Maintenance
Periodically the operation should also be checked by using diagnostic equipment such as a stethoscope, thermometer, TLV Pocket TrapMan or TLV TrapMan. If the trap should fail, it may cause damage to piping and equipment, resulting in faulty or low quality products or losses due to steam leakage. -
Page 9: Disassembly / Reassembly
Disassembly / Reassembly When disassembling or removing the product, wait until the internal pressure equals atmospheric pressure and the surface of the product has cooled to room temperature. Disassembling or removing the product when it is hot or under pressure may lead to discharge of fluids, causing burns, other injuries or damage. -
Page 10: Troubleshooting
Exploded View Upper Body X-element Body Clamp Gasket Lower Body Troubleshooting When disassembling or removing the product, wait until the internal pressure equals atmospheric pressure and the surface of the product has cooled to room temperature. Disassembling or removing the product when it is hot or under pressure may lead to discharge of fluids, causing burns, other injuries or damage. -
Page 11: Product Warranty
One year following product delivery. 2. Warranty Coverage TLV CO., LTD. warrants this product to the original purchaser to be free from defective materials and workmanship. Under this warranty, the product will be repaired or replaced at our option, without charge for parts or labor. - Page 12 Option Configuration Name Lower Body Upper Body X-Element Body Clamp Gasket Clamp Bolt Clamp Nut 172-65230m-02 (LV6 Clean Steam Trap) 19 Feb 2009...
- Page 13 Disassembly / Reassembly When disassembling or removing the product, wait until the internal pressure equals atmospheric pressure and the surface of the product has cooled to room temperature. Disassembling or removing the product when it is hot or under pressure may lead to discharge of fluids, causing burns, other injuries or damage.
- Page 14 Exploded View Upper Body Clamp Bolt X-element Gasket Lower Body Body Clamp Clamp Nut 172-65230m-02 (LV6 Clean Steam Trap) 19 Feb 2009...
