Summary of Contents for TLV JH3S-X

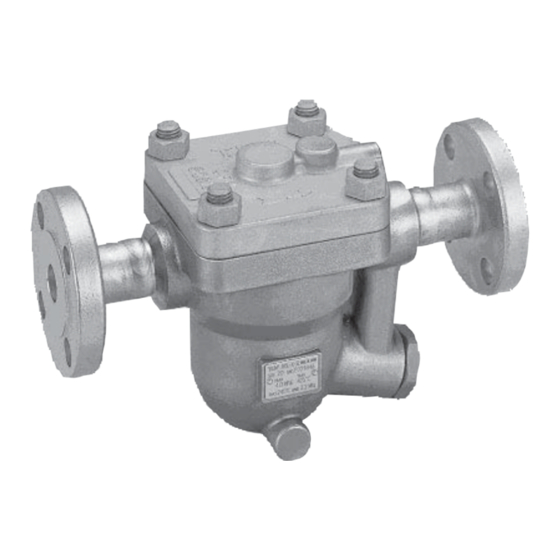

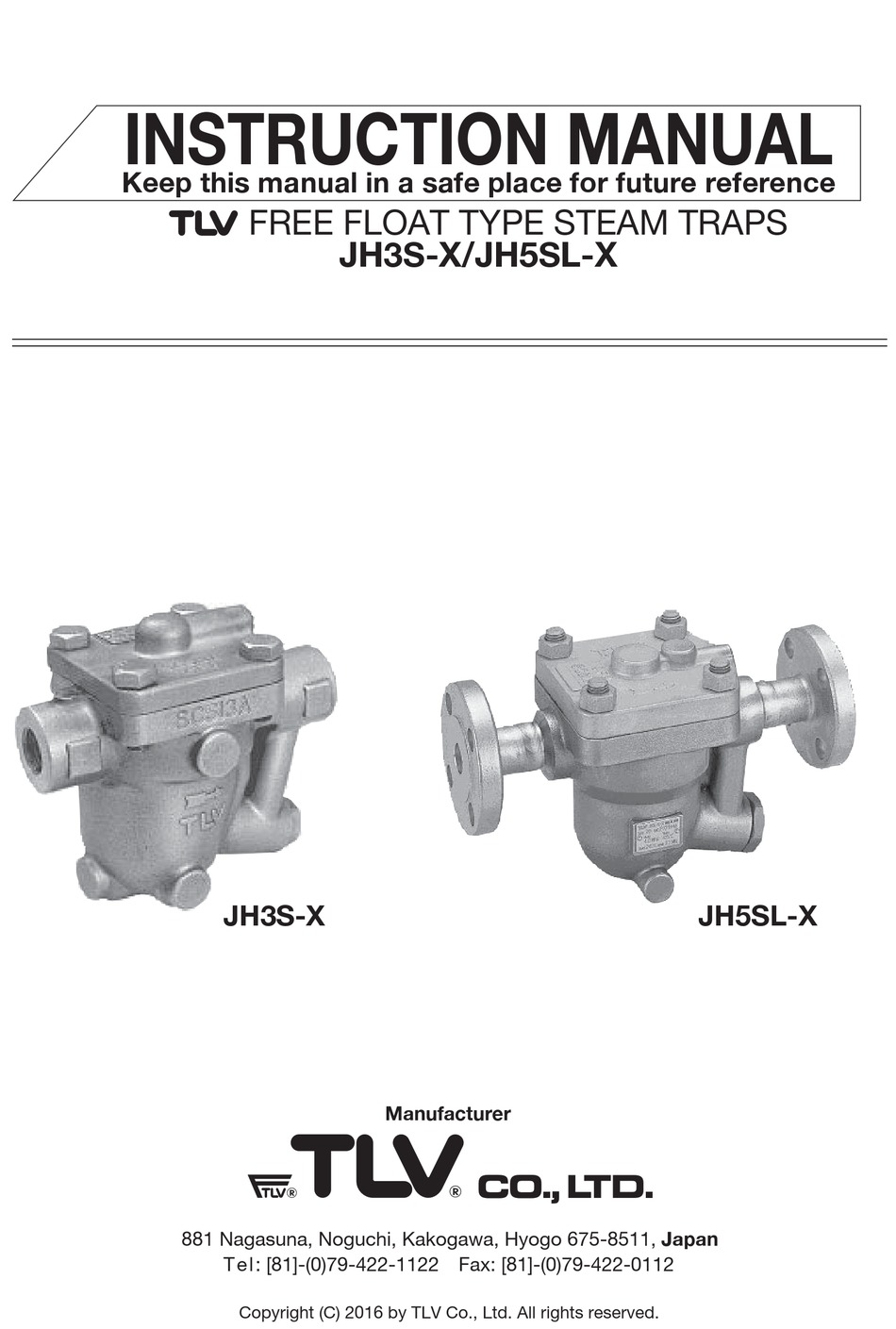

- Page 1 FREE FLOAT TYPE STEAM TRAPS 881 Nagasuna, Noguchi, Kakogawa, Hyogo 675-8511, Te l : [81]-(0)79-422-1122 Fax: [81]-(0)79-422-0112 Copyright (C) 2016 by TLV Co., Ltd. All rights reserved.
- Page 2 1 MPa = 10.197 kg/cm , 1 bar = 0.1 MPa For products with special specifications or with options not included in this manual, contact TLV for instructions. The contents of this manual are subject to change without notice.
-
Page 3: Specifications
Be sure to use only the recommended components when repairing the product, and NEVER attempt to modify the product in any way. Failure to observe these precautions may result in damage to the product or burns or other injury due to malfunction or the discharge of fluids. Use only under conditions in which no freeze-up will occur. - Page 4 3. Configuration JH3S-X JH5SL-X !4 !2 i @1 @2 @1 @2 Screwed Socket Weld Description Description M R F M R F Body X-element Guide Cover Air Vent Valve Seat Float X-element Orifice Connector Orifice Gasket Connector Gasket Orifice Plug...
-
Page 5: Exploded View
4. Exploded View Cover Nut Cover Cover Gasket Connector Connector Gasket Cover Bolt Cover Bolt Cover JH5SL-X Float Cover/Screen Connector Cover Gasket Float X-element Guide Body Air Vent Valve Seat Orifice Gasket X-element Orifice Spring Clip Orifice Plug Gasket JH3S-X Orifice Plug... -
Page 6: Proper Installation
5. Proper Installation • Installation, inspection, maintenance, repairs, disassembly, adjustment CAUTION and valve opening/closing should be carried out only by trained maintenance personnel. • Take measures to prevent people from coming into direct contact with product outlets. • Install for use under conditions in which no freeze-up will occur. •... -
Page 7: Inspection And Maintenance
Check for deformation, damage, oil film or water inside Float Check for rust, scale, oil film, wear or damage Air Vent Valve Seat, Orifice Tightening Torque and Distance across Flats JH3S-X JH5SL-X Part & No. N . m (lbf . ft) N . - Page 8 Disassembly/Reassembly (to reassemble, follow procedures in reverse) Part & No. JH3S-X JH5SL-X During Disassembly During Reassembly Use a wrench to Coat threads with anti-seize Drain Plug 21 remove and tighten to the proper torque Drain Plug Remove gasket and Replace with a new gasket,...
- Page 9 8. Instructions for Plug / Holder Disassembly and Reassembly The seal on the threaded plugs/holders found on TLV products is formed by a flat metal gasket. There are various installation orientations for the gaskets, such as horizontal, diagonal and downward, and the gasket may be pinched in the thread recesses during assembly.
-
Page 10: Operational Check
(When conducting a visual inspection, flash steam is sometimes mistaken for steam leakage. For this reason, the use of a steam trap diagnostic instrument such as TLV TrapMan is highly recommended.) Flash Steam... -
Page 11: Express Limited Warranty
Subject to the limitations set forth below, TLV Corporation, a North Carolina corporation (“TLV”) warrants that products which are sold by it or TLV International, Inc., a Japanese corporation (“TII”), which products (the “Products”) are designed and manufactured by TLV Co., Ltd., a Japanese corporation (“TLVJ”), conform to the specifications published by TLV for the... - Page 12 WARRANTY NOT NEGATED HEREBY, AND ANY IMPLIED WARRANTY NOT NEGATED HEREBY, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, DO NOT COVER, AND NEITHER TLV, TII NOR TLVJ WILL IN ANY EVENT BE LIABLE FOR, INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING, BUT NOT LIMITED TO LOST PROFITS, THE COST OF DISASSEMBLY AND SHIPMENT OF THE DEFECTIVE PRODUCT, INJURY TO OTHER PROPERTY, DAMAGE TO BUYER’S OR THE...
