2-1-1 Explanation of items common to the main
screen.

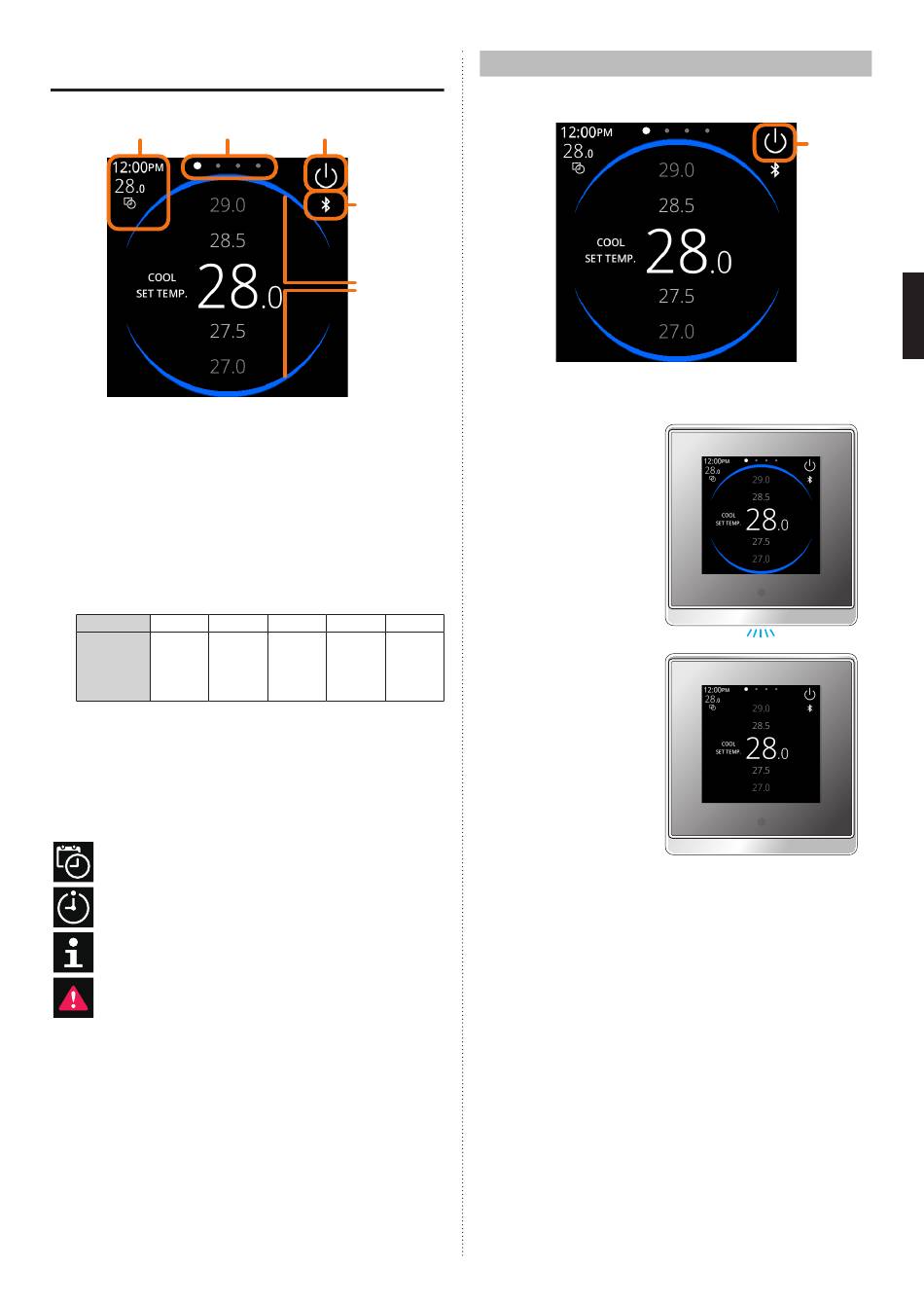

■ Example of temperature setting screen
(e) (a)
(a) Page indicator
Shows the order of pages and the displayed page.
(b) Operation On/Off button
Tap to operation start or stop the air conditioner.
(c) Bluetooth icon
It will be displayed when Bluetooth is enabled.
This display is intended for installers and service person-
nel.
(d) Arc (operation indicator)
It is displayed in a color according to the operation mode
while indoor unit operating. Not displayed while stopped.
Arc color Blue Green
Operation Cool Dry
mode
(e) Information area
The displayed contents differ depending on the screen
and settings.
Tap here to move to the status screen. For details, refer
to "5-4-1-1 Status"
When an error occurs, an error icon is displayed.
■ Status icons
The Weekly Timer is set.
The Auto Off Timer is set.
There are other settings.
The error occurred.
(b)
(c)
(d)
Red Purple White
Heat or Auto or Fan
10°C Custom
(50°F) auto
heat

2-2 Operation On/Off

Tap Operation On/Off button to air conditioner On/Off.
■ Example of temperature screen
(a) Operation On/Off button
Tap to operation start or stop the air conditioner.
Operation on:
An arc appears on the
screen and the operation
lamp lights up. The color of
the arc and operation lamp
depends on the operation
mode.
The operation lamp can
be turned off at all times.
For details, refer to "5-3-8
Operation Lamp".
Operation off:
The arc on the screen dis-
appears and the operation
lamp goes out.
(a)
En-6
