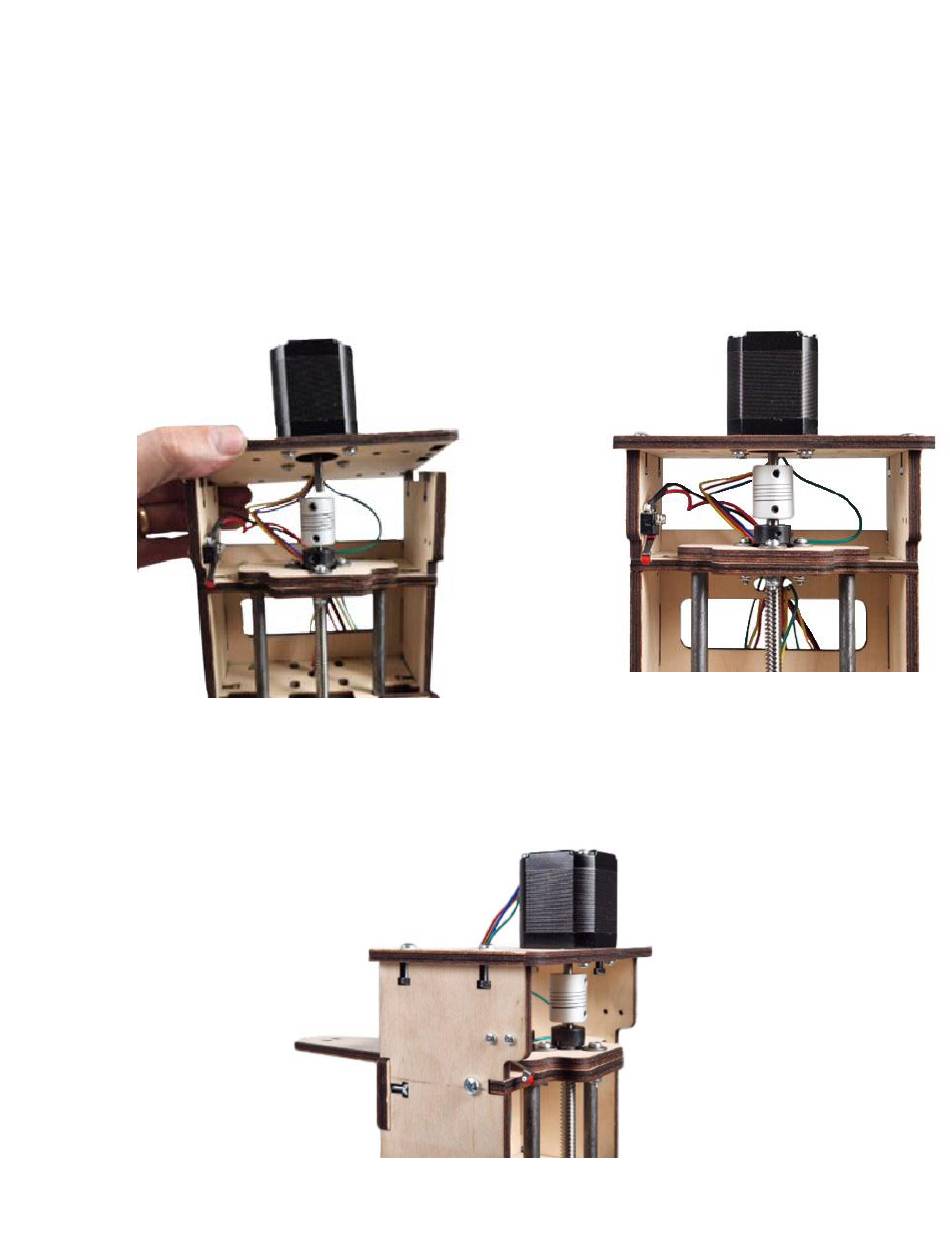

Step 6d
Carefully slide the Stepper Motor Shaft
into the Aluminum Helical Coupler. Then
fit the tabs of the Carriage Frame
Assembly into the slots in the Z Stepper
Motor Mount and secure with four M4 x
16 Machine Screws and Nuts.
Step 6e
Carefully tighten both set screws on the
Aluminum Helical Coupler against the
Stepper Motor Shaft.
89
