CB11
Stepper Motor
3
Illustrated Step by Step Instructions
Step 1
Preparing the Stepper Motors for Mounting
Step 1a

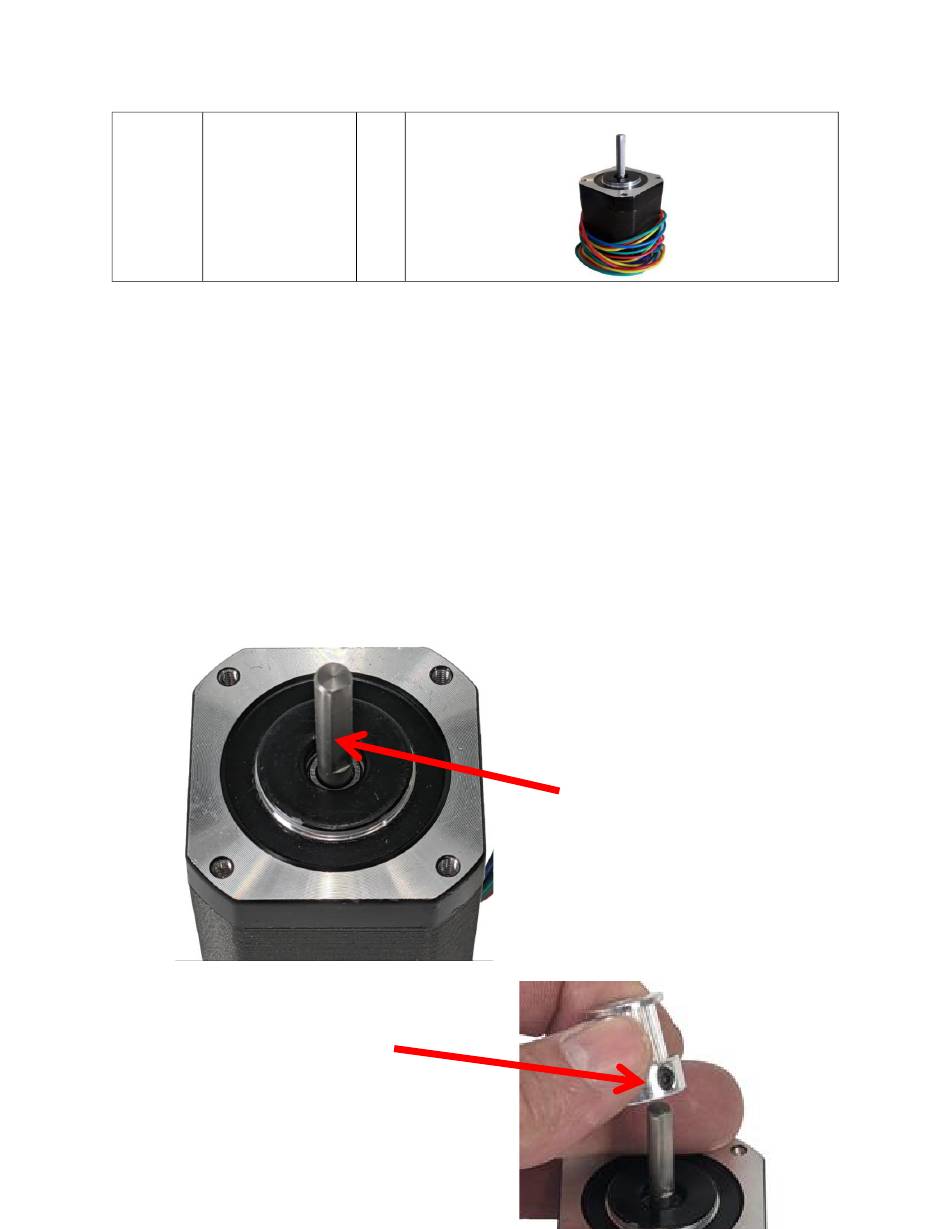

Align one of the Set Screws of the GT2 Pulley
(H84) to the flat surface of the Stepper Motor
Shaft. Snug the Set Screw so that it engages
the shaft but still allows the Drive Pulley to
slide down the shaft.
Flat Surface of Shaft
Set Screw
10
