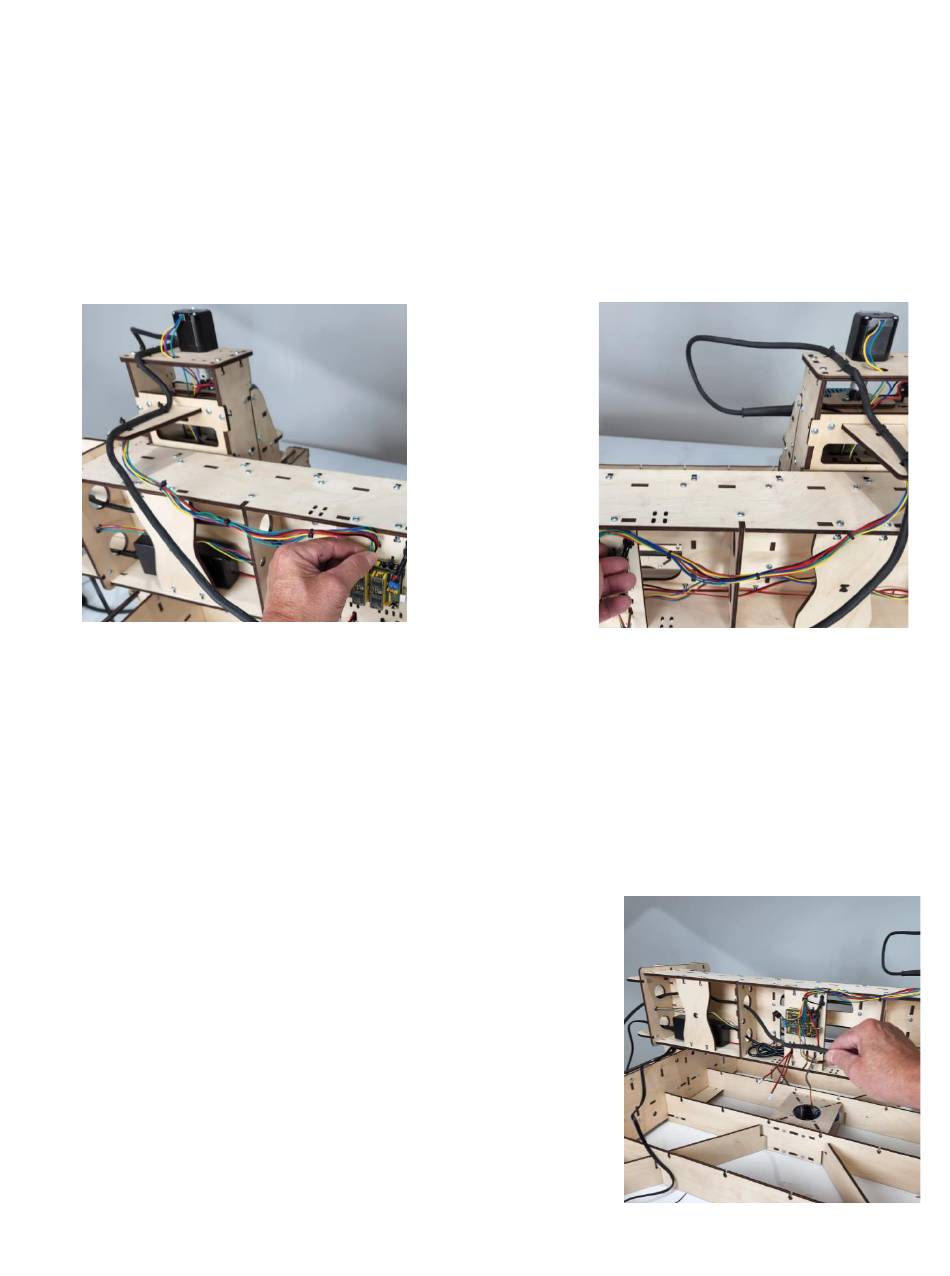

Bundle enough wire so that when
the wires are attached to the
Controller Mount, the Y Carriage
Assembly can travel back and forth
across the Gantry Assembly without
pulling on the wires.
Secure the wires to the Controller.
Mount with a Zip Tie to the "YZ HS"
mounting holes.
Step 9d
Route the Makita
Router cord through
the Gantry Back
Brace and Gantry
Side as shown.
151
