Illustrated Step by Step Instructions
Step 1
Make sure the hole
located between the
Machine Screws in the
Rail Stop is clearly visible
through the rectangular
opening in the Frame
End Support

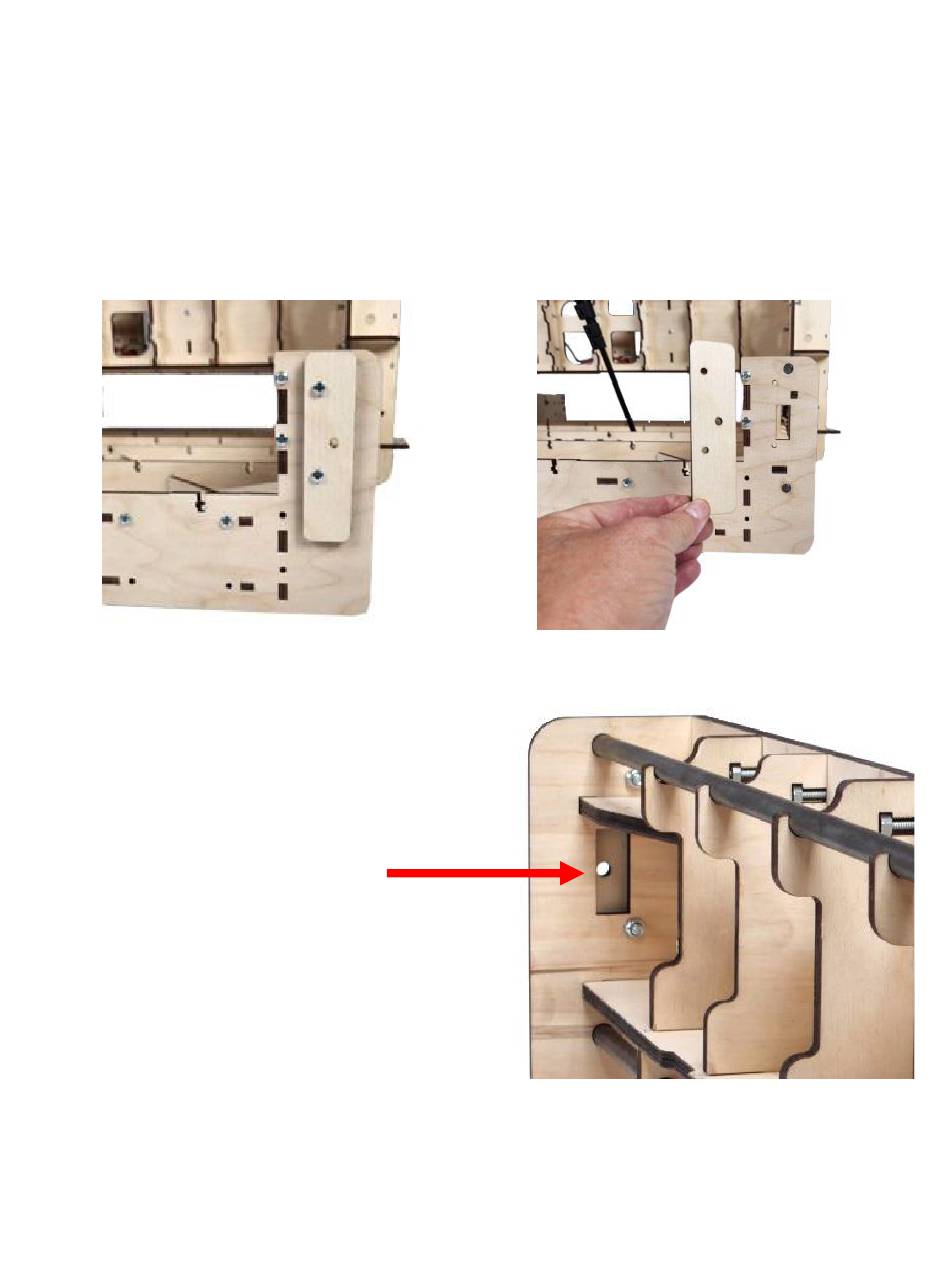

Attach four X Rail Stops (QR1) on the front and back
Frame End Supports and secure each with two M4 x
20 Machine Screws and Lock Nuts as shown.
