Step 7b

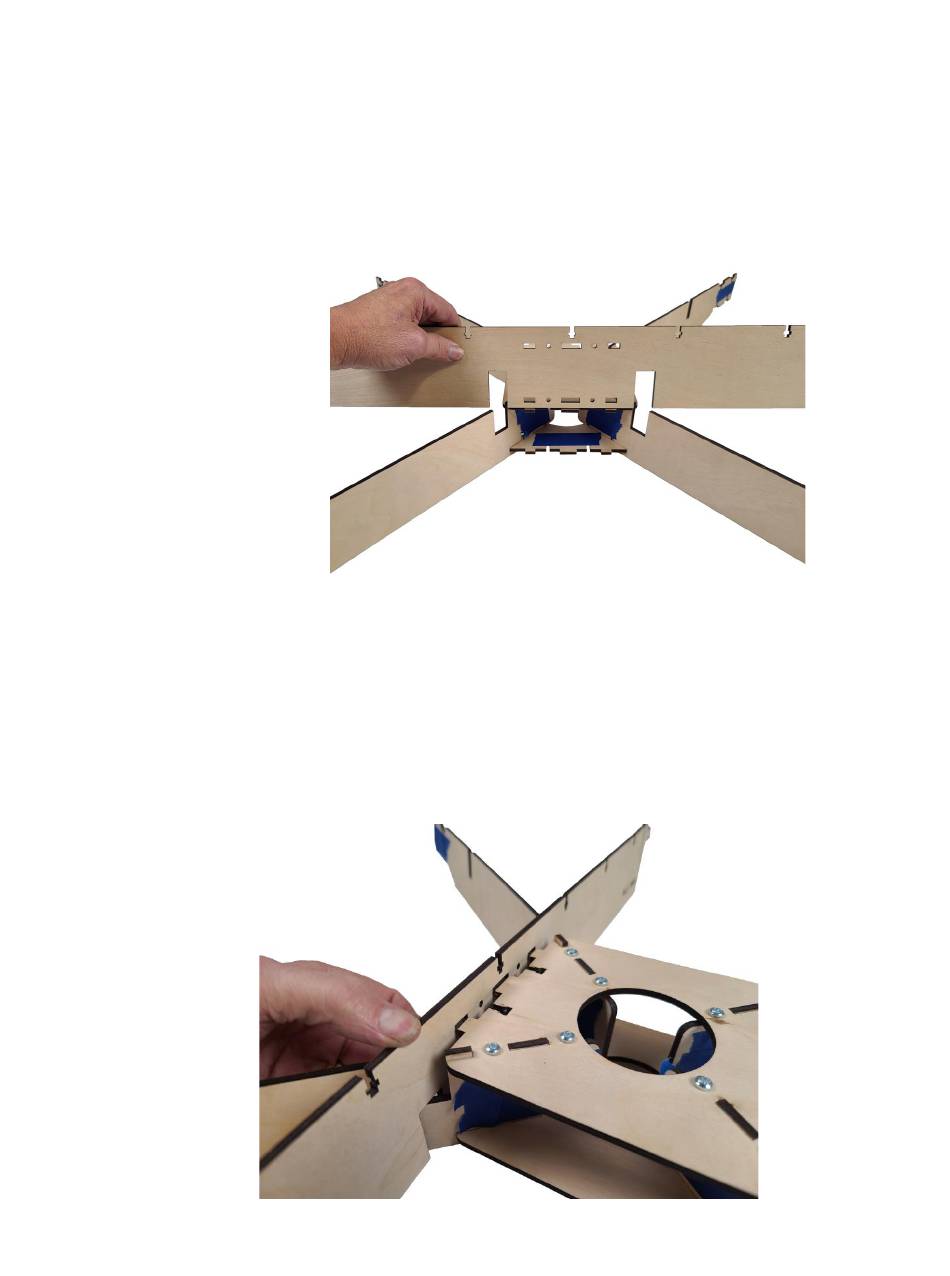

Align the large slots of the Inner Frame Mid
Supports (QX3) with those of the X-Frame
Assembly. Carefully lower the Inner Frame Mid
Support into place as shown.
Align the slots in the Inner Frame Mid Support
(QX3) with the tabs of both Torsion Plates.
When the tabs are fully seated, secure with
four M4 X 16 Machine Screws and Nuts in
each Plate.
42
