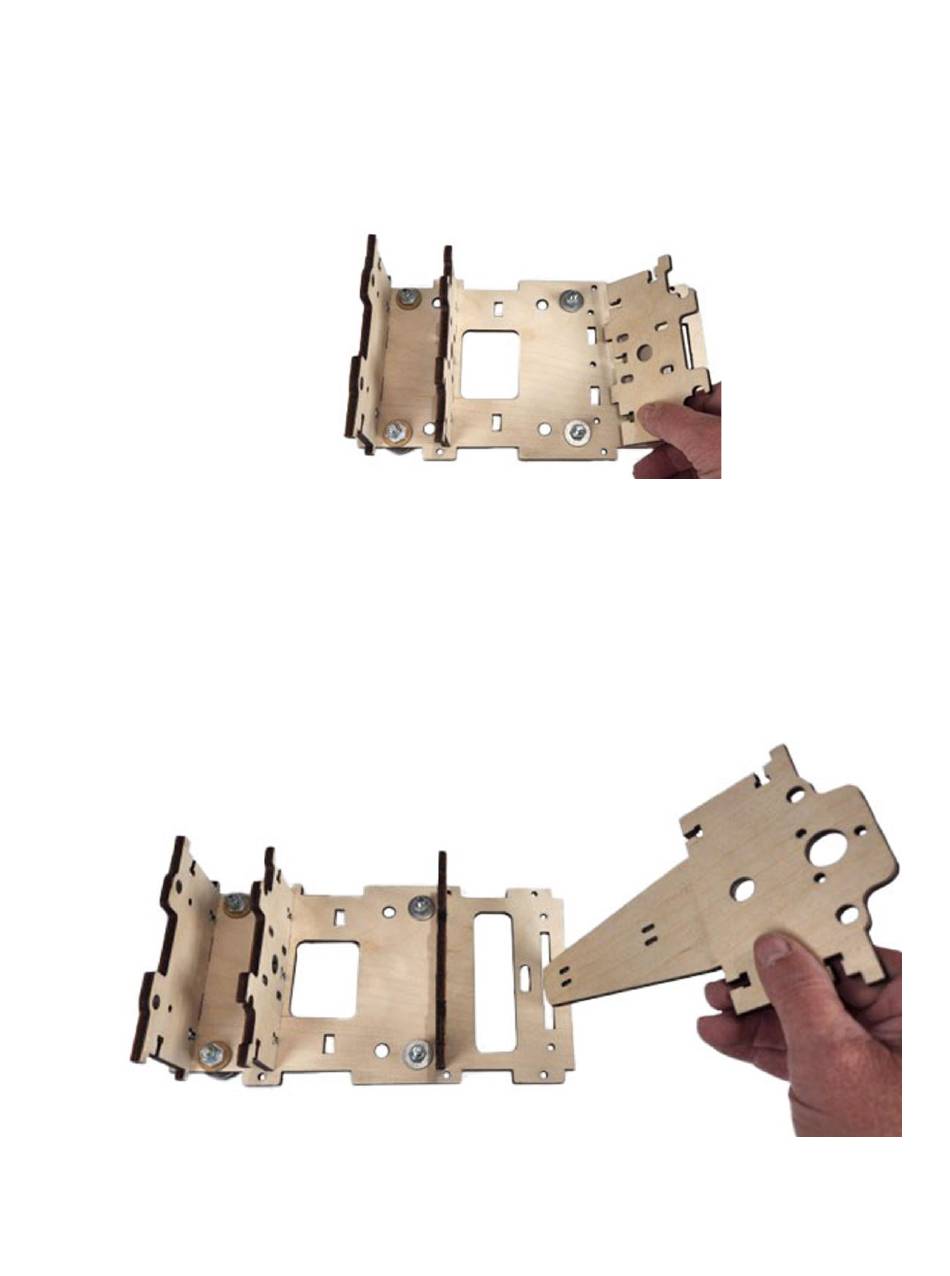

Step 2c
Align the tabs of the remaining Outer Rail
Support (QY8) with the next set of slots above
in the Y Carriage Assembly and secure with
three M4 x 16 Machine Screws and Nuts.
Step 2d
Slide the narrow tongue of the Carriage Top
Support (QY2) through the long narrow slot at
the top of the Y Carriage Assembly as shown.
Secure with two M4 x 16 Machine Screws and
Nuts.
76
