- Page 1 User’s Manual VOX-070-TS-EX2C8-V DMP Vortex86 EX2 Open Frame Panel PC with 7” TFT LCD and Touch Panels (Revision V1.0) VOX-070-TS-EX2C8-V User’s Manual IUMVOX-070-TS-EX2C8-V Ver. 1.0 May, 2023...
- Page 2 REVISION DATE VERSION DESCRIPTION 2023/05/11 Version 1.0 New Release VOX-070-TS-EX2C8-V User’s Manual IUMVOX-070-TS-EX2C8-V Ver. 1.0 May, 2023...
- Page 3 China: www.icop.com.cn For technical support or demo images of operating systems download, please visit our websites at: ICOP Technical Resource: http://tech.icop.com.tw/ Software Support: https://www.icop.com.tw/resource_entrance This Manual is for the VOX-070-TS-EX2C8-V. VOX-070-TS-EX2C8-V User’s Manual IUMVOX-070-TS-EX2C8-V Ver. 1.0 May, 2023...
- Page 4 Operating temperature between 0~50°C / -20~+60°C (Option)/ -30~+80°C (Option). Keep VOX-070-TS-EX2C8-V away from humidity. When the SD Card is the main operating system storage, please turn off power before inserting or removing. Refer to your nearest dealer for qualified personnel servicing.
-
Page 5: Table Of Contents
2.1 CPU Board Outline ....................11 2.2 Connector Summary ..................... 12 2.3 Connector Pin Assignments .................. 14 2.4 External I/O Overview ................... 17 2.5 I/O Mapping ......................18 2.6 Watchdog Timer ....................18 Warranty ......................... 19 VOX-070-TS-EX2C8-V User’s Manual IUMVOX-070-TS-EX2C8-V Ver. 1.0 May, 2023... -
Page 6: 1 General Information
General Information 1.1 Product Description 1.2 Product Specifications 1.3 Inspection standard for TFT-LCD Panel 1.4 Product Dimensions 1.5 Ordering Information VOX-070-TS-EX2C8-V User’s Manual IUMVOX-070-TS-EX2C8-V Ver. 1.0 May, 2023... -
Page 7: Product Description

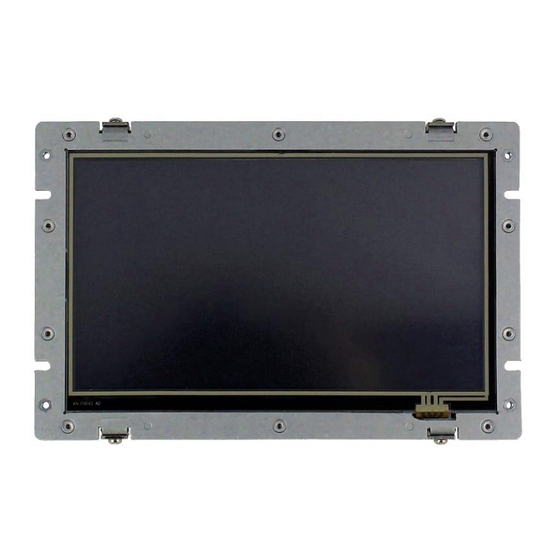

1.1 Product Description ICOP Technology Inc. is proudly going to release a brand new Panel PC, which offers fanless design and low power consumption. The VOX-070-TS-EX2C8-V is powered by DMP’s Vortex86EX2, the x86 SoCs of Vortex86 family, and 1GB DDRIII chipset that handles processing more efficiently and provides faster performance. -
Page 8: Product Specifications
RS-232 x 8 (Full 9pins x 9, RS232/485 x 2) CAN bus (2.0A / 2.0B) x 1 RJ-45 Port x 1 Speaker-out (L) x 1 Speaker-out (R) x 1 Mic-in x 1 I2C x 1 SPI x 1 VOX-070-TS-EX2C8-V User’s Manual IUMVOX-070-TS-EX2C8-V Ver. 1.0 May, 2023... - Page 9 800(W) x 480(H) Brightness (cd/m 400 nits Contrast Ratio 500 : 1 Display Color 16.7M Pixel Pitch (mm) 0.0642 (W) x 0.1790 (H) Viewing Angle Vertical 120 , Horizontal 140 Backlight Lifetime 20,000 hrs VOX-070-TS-EX2C8-V User’s Manual IUMVOX-070-TS-EX2C8-V Ver. 1.0 May, 2023...
-
Page 10: Inspection Standard For Tft-Lcd Panel
(1) One pixel consists of 3 sub-pixels, including R, G, and B dot. (Sub-pixel = Dot) (2) Little bright Dot acceptitable under 6% ND-Filter. (3) If require G0 grand (Total dot N≦0), please contact region sales. VOX-070-TS-EX2C8-V User’s Manual IUMVOX-070-TS-EX2C8-V Ver. 1.0 May, 2023... - Page 11 [ Note 2 ] Bright dot is defined through 6% transmission ND Filter as following. [ Note 3 ] Display area C Area: Center of display area O Area: Outer of display area VOX-070-TS-EX2C8-V User’s Manual IUMVOX-070-TS-EX2C8-V Ver. 1.0 May, 2023...
- Page 12 The defects that are not defined above and considered to be problem shall be reviewed and discussed by both parties. Defects on the Black Matrix, out of Display area, are not considered as a defect or counted. VOX-070-TS-EX2C8-V User’s Manual IUMVOX-070-TS-EX2C8-V Ver. 1.0 May, 2023...
-
Page 13: Product Dimensions
1.4 Product Dimensions VOX-070-TS-EX2C8-V User’s Manual IUMVOX-070-TS-EX2C8-V Ver. 1.0 May, 2023... -
Page 14: Ordering Information
1.5 Ordering Information PART NUMBER DESCRIPTION 7” EX2 OP w/1GB DRAM/8GB eMMC SLC/3U/8S /CAN/GPIO/LAN/I2C/SPI/2MiniPCIe/SPK-OUT/SD VOX-070-TS-EX2C8-V /MIC-IN/GPU-A9160/+12~24Vdc Power Input Cable set for VOX-070-TS-EX2C8-V Series CABLE-400OP-SET VOX-070-TS-EX2C8-V User’s Manual IUMVOX-070-TS-EX2C8-V Ver. 1.0 May, 2023... -
Page 15: 2 System Installation
System Installation 2.1 CPU Board Outline 2.2 Connector Summary 2.3 Connector Pin Assignments 2.4 External I/O Overview 2.5 External I/O Pin Assignment 2.6 Watchdog Timer VOX-070-TS-EX2C8-V User’s Manual IUMVOX-070-TS-EX2C8-V Ver. 1.0 May, 2023... -
Page 16: Cpu Board Outline
2.1 CPU Board Outline CPU Board VOX-070-TS-EX2C8-V User’s Manual IUMVOX-070-TS-EX2C8-V Ver. 1.0 May, 2023... -
Page 17: Connector Summary
USB3 1.25mm 5-pin wafer 5-pin Power & LAN LEDs 1.25mm 5-pin wafer 5-pin Ethernet 1.25mm 8-pin wafer 8-pin 1.25mm 5-pin wafer 5-pin SPK-L 1.25mm 2-pin wafer 2-pin SPK-R 1.25mm 2-pin wafer 2-pin VOX-070-TS-EX2C8-V User’s Manual IUMVOX-070-TS-EX2C8-V Ver. 1.0 May, 2023... - Page 18 2.54mm 2-pin header 2-pin GPIO 1.25mm 10-pin wafer 10-pin SD Card Slot #2 External SD Card Socket #2 13-pin SPI Bus 1.25mm 7-pin wafer 7-pin Power Input Connector 2.00mm 3-pin wafer 3-pin VOX-070-TS-EX2C8-V User’s Manual IUMVOX-070-TS-EX2C8-V Ver. 1.0 May, 2023...
-
Page 19: Connector Pin Assignments
Pin # Signal Name Reserved / DCD Open RS232 Reserved / CTS Reserved / DSR Close RS485 Reserved / RTS Reserved / RXD Reserved / TXD +3.3V J13: Micro SIM Card Holder VOX-070-TS-EX2C8-V User’s Manual IUMVOX-070-TS-EX2C8-V Ver. 1.0 May, 2023... - Page 20 LOUT+ LOUT- USB_D+ J29: SPK-R +3.3V +3.3V Pin # Signal Name Pin # Signal Name ROUT+ ROUT- J30: MIC-IN Pin # Signal Name Pin # Signal Name +3.3V MIC-IN_R GND_AUD GND_AUD MIC-IN_L VOX-070-TS-EX2C8-V User’s Manual IUMVOX-070-TS-EX2C8-V Ver. 1.0 May, 2023...
- Page 21 Pin # Signal Name Pin # Signal Name DAT3 DAT0 DAT1 DAT2 Card Detect Write Protect J36: SPI Bus Pin # Signal Name Pin # Signal Name SPI_CS1 SPI_CS2 SPI_CLK SPI_DO SPI_DI VOX-070-TS-EX2C8-V User’s Manual IUMVOX-070-TS-EX2C8-V Ver. 1.0 May, 2023...
-
Page 22: External I/O Overview
MiniPCIe1 Socket supports USB signals only. MiniPCIe2 Socket supports PCIe and USB signals. Micro SIM Card Holder is only for MiniPCI1 slot. The RS232/485 functions of COM1 and COM2 are selected by J3 & J5 headers. VOX-070-TS-EX2C8-V User’s Manual IUMVOX-070-TS-EX2C8-V Ver. 1.0 May, 2023... -
Page 23: I/O Mapping
2.5 I/O Mapping VOX-070-TS-EX2C8-V series comes with 8 COM ports, GPIO and CAN0. Please refer the IO mapping as below table. Function Connector Address Multi-Function Port of EX2 COM1 3F8h Port 2 COM2 2F8h Port 6 COM3 3E8h Port 8... -
Page 24: Warranty
Merchandise Authorization (RMA) number. Returned goods should always be accompanied by a clear problem description. All Trademarks appearing in this manuscript are registered trademark of their respective owners. All Specifications are subject to change without notice. ©ICOP Technology Inc. 2023 VOX-070-TS-EX2C8-V User’s Manual IUMVOX-070-TS-EX2C8-V Ver. 1.0 May, 2023...
