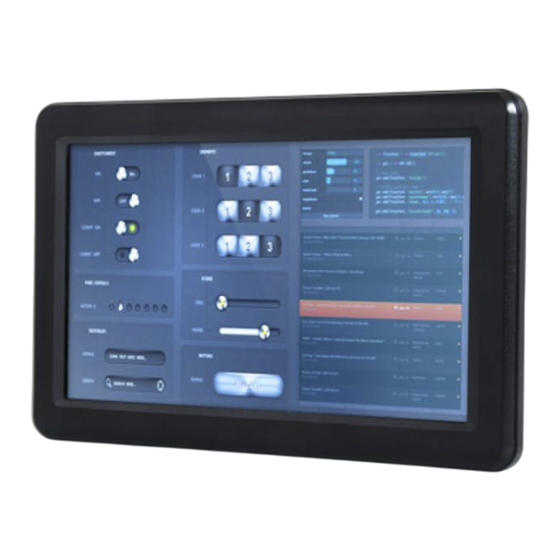

User’s Manual PPC-090T DMP Vortex86 DX2 / DX3 Processor Compact Panel PC with 9” Touchscreen PPC-090T-D2 Series with DX2 processor PPC-090T-D3 Series with DX3 processor (Revision 1.10A) PPC-090T User’s Manual IUMPPC090T-01 Ver.1.10A Jun, 2018...
Page 2
REVISION DATE VERSION DESCRIPTION 2014/1/22 Version 1.0A New Release 2014/3/11 Version 1.1A 4.3 Serial Ports Setting (RS232/422/485) 2015/9/15 Version 1.2A Change the SPEC of Section 3.1 Add the type with 2GB DRAM solution Correct LED backlight lifetime 2016/1/6 Version 1.3A Doesn't support DOS Touch Driver Change J33~J36 connectors as optional 2016/4/28...
Page 3
DATE VERSION DESCRIPTION 2018/06/08 Version 1.10A Correct the PoE+ pinout on section 5.2 PPC-090T User’s Manual IUMPPC090T-01 Ver.1.10A Jun, 2018...
Page 4
COPYRIGHT The information in this manual is subject to change without notice for continuous improvement in the product. All rights are reserved. The manufacturer assumes no responsibility for any inaccuracies that may be contained in this document, and makes no commitment to update or to keep current the information contained in this manual.
Page 5
SAFETY INFORMATION Read these Safety instructions carefully. Please carry the unit with both hands, handle carefully. Make sure the voltage of the power source is correct before connecting the equipment to the power outlet. Do not expose your Panel PC to rain or moisture in order to prevent shock and fire hazard.
1.1 Product Description We are proudly going to release a brand new Panel PC, which offers fanless design, low power consumption, and IP65 front panel. The PPC-090T is powered by DMP’s Vortex86DX2 and DX3 SoCs, the 3 generation SoCs of Vortex86 family, and dual- channel 1GB / 2GB DDRII (DDDRIII) chipset that handles processing more efficiently and provides faster performance.
1.3 Inspection standard for TFT-LCD Panel DEFECT TYPE LIMIT Note φ<0.15mm Ignore 0.15mm≦φ≦0.5mm N≦4 SPOT Note1 0.5mm<φ 0.03mm<W≦0.1mm, L≦5mm N≦3 FIBER Note1 VISUAL 1.0mm<W, 1.5mm<L INTERNAL DEFECT φ<0.15mm Ignore POLARIZER 0.15mm≦φ≦0.5mm N≦2 Note1 BUBBLE 0.5mm<φ It’ OK if mura is slight visible through 6%ND filter Mura A Grade B Grade...
Page 12
W: Width[mm]; L: Length[mm]; N: Number; φ: Average Diameter. [ Note 1 ] (a) White / Black Spot (b) Polarizer Bubble [ Note 2 ] Bright dot is defined through 6% transmission ND Filter as following. [ Note 3 ] Display area C Area: Center of display area O Area: Outer of display area...
Page 13
[ Note 4 ] Judge the defect dot and the adjacent dot as following. Allow below (as A, B, C and D status) adjacent defect dots, including bright and dark adjacent dot. And they will be counted 2 defect dots in total quantity. R Defect Dot Adjacent Dot The defects that are not defined above and considered to be problem shall be reviewed...
1.5 Panel Mounting Instruction Cut a mounting hole in the panel. (Refer to PPC‐090T Dimensions on page 11~12.) (Note 1) Check and remove the twelve M3 screws in a diagonal pattern as image below if necessary. Place PPC‐090T face‐down on a clean, flat surface. Slide the panel cutout around the back of PPC‐090T, until the panel rests directly on the gasket.
Page 17
Note 1: It is strongly recommended that a professional machine shop cut the mounting hole in the panel. Note 2: The length for all twelve M3 screws will be according to the thickness of mounting panel. For example: The length of standard M3 screws for PPC-090T is 6mm. If the thickness of your mounting panel is 3mm and washer thickness is 1mm, you have to use 10mm M3 screw.
1.6 Ordering Information Product CPU Type CPU Clock Flash onboard Code Size 090T D2 (DX2) W(800MH) 3(512B) N (No Flash) GE (GigaLAN) 104T D3 (DX3) N(933MHz) 4 (1GB) A (256MB) G7C (GigaLAN + 7 COMs) 150T G (1GHz) 5 (2GB) B (512MB) G7CP (GigaLAN + 7 COMs + PoE) D (1GHz with...
Page 19
PART NUMBER DESCRIPTION 9” Panel PC w/DX2/1GB Memory PPC-090T-D2N4N 3USB/AUDIO/LAN/2COM/DC12~24V 9” Panel PC w/DX2/1GB Memory 3USB/AUDIO/LAN/GIGA LAN/2COM/ PPC-090T-D2N4N-GE DC12~24V 9” Panel PC w/DX2/1GB Memory PPC-090T-D2N4N-G7CP 3USB/AUDIO/LAN/GIGA LAN/7COM/ PoE 9” Panel PC w/DX2-800MHz/1GB Memory/3USB/AUDIO/LAN/GIGA PPC-090T-D2W4N-GE LAN/2COM/DC12~24V/Wide Temp 9” Panel PC w/DX3/1GB Memory PPC-090T-D3G4N 3USB/AUDIO/LAN/2COM/DC12~24V 9”...
2.2 Connector Summary Description Type of Connections Pin # Power Terminal Connector External Power Plug 3-pin COM1 (RS232/422/485) External D-Sub Male Connector 9-pin External USB Connector 6-pin External USB Connector 6-pin PS/2Keyboard External Mini DIN Socket 6-pin External USB Connector 6-pin Internal USB Connector 5-pin...
2.3 Connector Pin J7: USB Assignments Pin # Signal Name Pin # Signal Name USBD4- J1: Power Terminal Connector USBD4+ Pin # Signal Name +12~24V J8: USB (WLAN Optional) Pin # Signal Name Pin # Signal Name USBD1- J3 & J14: COM1 & 2 (RS232/422/485) USBD1+ Pin # Signal Name...
Page 24
J33/J34/J35/J36: GPIO 180-pin (Optional for I/O extension board on Ch.5) Signal Signal Signal Signal Signal Signal Signal Signal Pin# Pin# Pin# Pin# Pin# Pin# Pin# Pin# Name Name Name Name Name Name Name Name SBHE GP34 GP35 RSTDRV IRQ3 GP36 GP37 GP90 GP91...
J4/J5/J7: USB 2.5 External I/O Pin Pin # Signal Name Assignment USB0- USB0+ Power Switch Pin # Status GGND GGND RJ45 Signal Signal Power Connector DC-IN +12~24V Name Name Pin # Signal Name FTXD+ FTXD- +12~24V FRXIN+ FRXIN- PS/2 Keyboard Pin # Signal Name KBCLK...
2.6 Watchdog Timer There are two watchdog timers in PPC-090T, we also provide DOS, Linux and WinCE example for your reference. For more technical support, please visit: dmp.com.tw/tech PPC-090T User’s Manual IUMPPC090T-01 Ver.1.10A Jun, 2018...
Hardware Installation PPC-090T supports various kinds of storages for industrial application, divided into SATA Slim, CompactFlash or SD card (optional). 3.1 Installing the SATA Slim 3.2 Installing the Compact Flash PPC-090T User’s Manual IUMPPC090T-01 Ver.1.10A Jun, 2018...
3.1 Installing the SATA Slim [SPEC] JEDEC SFF-8156 standard form factor 53 x 32 x 4.0 mm [SATA SLIM MLC LIST] Operating Temperature 0℃ ~ +70℃ SDM-SST-SLIM(M)-4G 0℃ ~ +70℃ SDM-SST-SLIM(M)-8G 0℃ ~ +70℃ SDM-SST-SLIM(M)-16G 0℃ ~ +70℃ SDM-SST-SLIM(M)-32G 0℃ ~ +70℃ ISATA-SLIM(M)-8G 0℃...
Page 30
Place the SATA slim horizontally aligned and gently put into the socket until you feel a click. Insert all eight screws into the screw holes. PPC-090T User’s Manual IUMPPC090T-01 Ver.1.10A Jun, 2018...
3.2 Installing the Compact Flash [STEP] Remove the nine screws in a diagonal pattern as the image below. Gently insert the CF card along the track. Caution: Please watch out for the direction which the CF card has to be face up. Insert all nine screws into the screw holes.
Page 33
The Vortex86DX2 / DX3 processor is integrated RDC Display chip which is an ultra-low powered graphics chipset with total power consumption at around 1-1.5 The Vortex86DX2 / DX3 processor is integrated 10/100Mbps Ethernet controller that supports both 10/100BASE-T and allows direct connection to your 10/100Mbps Ethernet based Local Area Network for full interaction with local servers, wide area networks such as the Internet.
4.1 PPC-090T Development Note < WINDOWS DEVELOPMENT GUIDE > Windows Embedded CE 6.0 BSP, Windows Embedded Compact 7 BSP, and Windows Embedded Standard 2009 trial image with development notes, please visit technical website. < LINUX INSTALLATION NOTE> Please visit Linux technical website to get more information at ftp://ftp.dmp.com.tw/Linux_DEMO/Vortex86_Linux_Support_List.htm.
4.2 BIOS Default Setting If the system cannot be booted after BIOS changes are made, Please follow below procedures in order to restore the CMOS as default setting. Press < End > Key, when the power on Press < Del > to enter the AMI BIOS setup Press <...
4.3 Serial Ports Setting (RS232/422/485) For DX2 processor: Please press <Del> to get into the BIOS settings after booting the machine, and follow the steps below: [Step 1] Use the arrow key to select the category “Chipset” on the top of the menu, then select SouthBridge Configuration in the sub menu and press <Enter>...
Page 37
Configuration” and press <ENTER> [Step 3] Choose the port you would like to change. For example, choose TXDEN1 for COM1 and press <Enter>. You will then see three options; select the desired type and press <Enter> to finish the setting. The Serial Ports setting is finished PPC-090T User’s Manual IUMPPC090T-01 Ver.1.10A Jun, 2018...
Page 38
[Step 4] Press <Esc> twice to get back to the T op Menu. Use the arrow key to the category “Exit”, and select the option “Save Changes and Exit”. Press <Enter> and choose [OK] to keep your changes, then the device will reboot automatically.
Page 40
Please press <Del> to get into the BIOS settings after booting the machine, and follow the steps below: [Step 1] Use the arrow key to select the category “Advanced” on the top of the menu, then select "Serial/Parallel Port Configuration" in the sub menu and press <Enter>...
Page 41
[Step 3] Press <Esc> twice to get back to the T op Menu. Use the arrow key to the category “Exit”, and select the option “Save Changes and Exit”. Press <Enter> and choose [OK] to keep your changes, then the device will PPC-090T User’s Manual IUMPPC090T-01 Ver.1.10A Jun, 2018...
5.1 Extension I/O Overview (Optional) NOTE: Those COM ports are only for RS232 signals. DSub-25pin only can be set to be either one of COM5 & COM6 16-bit GPIO by hardware settings, and user can't change hardware setting there. Thus, please contact your region sales person to order correct part number in advance.
5.2 Extension I/O Pin Assignment (Optional) COM3, 4 and 9 (RS232) (Change setting by BIOS) Pin # Signal Name Pin # Signal Name DCD1 RXD1 TXD1 DTR1 DSR1 RTS1 CTS1 COM5 & 6 (RS232) / 16-bit GPIO Pin # Signal Name Pin # Signal Name VCC (+5V_Output)
Warranty This product is warranted to be in good working order for a period of one year from the date of purchase. Should this product fail to be in good working order at any time during this period, we will, at our option, replace or repair it at no additional charge except as set forth in the following terms.
