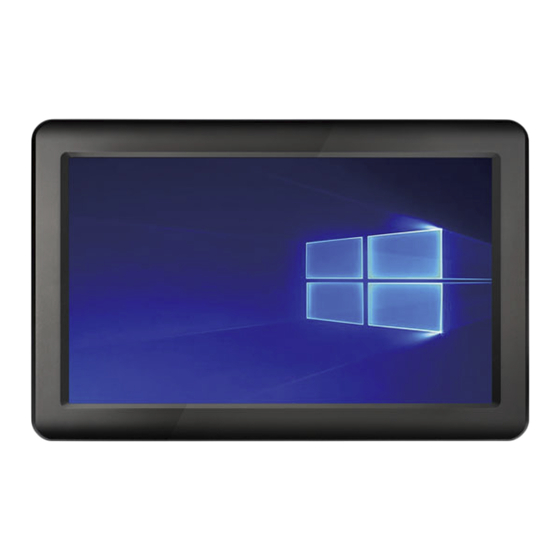

Dmp vortex86 dx2 / dx3 processor compact panel pc with 9” touchscreen
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User's Manual
PPC-090T
DMP Vortex86 DX2 / DX3 Processor
Compact Panel PC with 9" Touchscreen
PPC-090T User's Manual
PPC-090T-D2 Series with DX2 processor
PPC-090T-D3 Series with DX3 processor
(Revision 1.12A)
IUMPPC090T-01 Ver.1.12A Au g , 2021
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PPC-090T-PD2N5NG5CGP and is the answer not in the manual?

Questions and answers

Related Manuals for ICOP Technology PPC-090T-PD2N5NG5CGP

Summary of Contents for ICOP Technology PPC-090T-PD2N5NG5CGP

  • Page 1 User’s Manual PPC-090T DMP Vortex86 DX2 / DX3 Processor Compact Panel PC with 9” Touchscreen PPC-090T-D2 Series with DX2 processor PPC-090T-D3 Series with DX3 processor (Revision 1.12A) PPC-090T User’s Manual IUMPPC090T-01 Ver.1.12A Au g , 2021...
  • Page 2 REVISION DATE VERSION DESCRIPTION 2014/1/22 Version 1.0A New Release 2014/3/11 Version 1.1A 4.3 Serial Ports Setting (RS232/422/485) 2015/9/15 Version 1.2A Change the SPEC of Section 3.1 Add the type with 2GB DRAM solution 2016/1/6 Version 1.3A Correct LED backlight lifetime Doesn't support DOS Touch Driver Change J33~J36 connectors as optional 2016/4/28...
  • Page 3 DATE VERSION DESCRIPTION 2018/06/08 Version 1.10A Correct the PoE+ pinout on section 5.2 2019/07/30 Version 1.11A Add section 1.3 [Note 5] instruction 2021/08/31 Version 1.12A Add Projected Capacitive Touch Solution PPC-090T User’s Manual IUMPPC090T-01 Ver.1.12A Au g , 2021...
  • Page 4 No part of this manual may be reproduced, copied, translated or transmitted, in whole or in part, in any form or by any means without the prior written permission of the ICOP Technology Inc. Copyright 2021 ICOP Technology Inc. Manual # IUMPPC090T-01 Ver.1.12A Aug, 2021 TRADEMARKS ACKNOWLEDGMENT Vortex86DX2...
  • Page 5 SAFETY INFORMATION  Read these Safety instructions carefully.  Please carry the unit with both hands, handle carefully.  Make sure the voltage of the power source is correct before connecting the equipment to the power outlet.  Do not expose your Panel PC to rain or moisture in order to prevent shock and fire hazard.

  • Page 6: Table Of Contents

    Content Content ....................... iii Ch. 1 General Information ................1 1.1 Product Description ................2 1.2 Product Specifications ................ 3 1.3 Inspection standard for TFT-LCD Panel ..........6 1.4 Product Dimensions ................10 1.5 Panel Mounting Instruction ............... 12 1.6 Ordering Information ................. 14 Ch.

  • Page 7: 1 General Information

    General Information 1.1 Product Description 1.2 Product Specifications 1.3 Inspection standard for TFT-LCD Panel 1.4 Product Dimensions 1.5 Mounting Instruction 1.6 Ordering Information PPC-090T User’s Manual IUMPPC090T-01 Ver.1.12A Au g , 2021...

  • Page 8: Product Description

    1.1 Product Description ICOP Technology Inc. is proudly going to release a brand new Panel PC, which offers fanless design, low power consumption, and IP65 front panel. The PPC-090T is powered by DMP’s Vortex86DX2 and DX3 SoCs, the 3 generation SoCs of Vortex86 family, and dual-channel 1GB / 2GB DDRII (DDDRIII) chipset that handles processing more efficiently and provides faster performance.

  • Page 9: Product Specifications

    1.2 Product Specifications CPU BOARD SPECIFICATIONS DM&P Vortex86DX2- 933MHz / DX3-1GHz DX2: L1:16KB I-Cache, 16KB D-Cache L2: 256KB Cache Cache DX3: L1:32KB I-Cache, 32KB D-Cache L2: 512KB Cache BIOS AMI BIOS Memory 512MB/1GB/2GB DDR2(DDR3) onboard Software Programmable from Watchdog Timer 30.5u to 512 seconds x 2 sets Integrated 10/100M Ethernet X1 Giga Ethernet (Optional) X1...
  • Page 10 -20~+60°C (-4~+140°F; DX2 with 800MHz) Storage Temperature -30~+70°C (-22~ +158°F) Operating Humidity 0% ~ 90% Relative Humidity, Non-Condensing Dimensions 242x156.5x44mm (9.68"x6.26"x1.76") Weight 1.36 Kg Protection IP65 Front Panel Certification CE / FCC / VCCI / Vibration / Shock LCD SPECIFICATIONS Display Type 9”...
  • Page 11 Type2 Projected Capacitive Touch Screen (Optional) Resolution 25ppi (Min.) Transparency 86% ± 2% Accuracy Within 2.5mm each target ≧ 7H (Pressure：0.5N/45°) Surface Hardness PPC-090T User’s Manual IUMPPC090T-01 Ver.1.12A Au g , 2021...

  • Page 12: Inspection Standard For Tft-Lcd Panel

    1.3 Inspection standard for TFT-LCD Panel DEFECT TYPE LIMIT Note φ＜0.15mm Ignore SPOT 0.15mm≦φ≦0.5mm N≦4 Note1 0.5mm＜φ 0.03mm<W≦0.1mm, L≦5mm N≦3 FIBER Note1 VISUAL 1.0mm＜W, 1.5mm＜L INTERNAL DEFECT φ＜0.15mm Ignore POLARIZER 0.15mm≦φ≦0.5mm N≦2 Note1 BUBBLE 0.5mm＜φ Mura It’ OK if mura is slight visible through 6%ND filter A Grade B Grade BRIGHT DOT...
  • Page 13 W: Width[mm]; L: Length[mm]; N: Number; φ: Average Diameter. [ Note 1 ] (a) White / Black Spot (b) Polarizer Bubble [ Note 2 ] Bright dot is defined through 6% transmission ND Filter as following. [ Note 3 ] Display area C Area: Center of display area O Area: Outer of display area...
  • Page 14 [ Note 4 ] Judge the defect dot and the adjacent dot as following. Allow below (as A, B, C and D status) adjacent defect dots, including bright and dark adjacent dot. And they will be counted 2 defect dots in total quantity. Ｂ...
  • Page 15 Note 5-1 1. Condition of Image Sticking test：25 ℃± 2 ℃. 2. Operation with test pattern sustained for 4 hrs, then change to gray pattern immediately. 3. After 5 mins, the mura must be disappeared completely. PPC-090T User’s Manual IUMPPC090T-01 Ver.1.12A Au g , 2021...

  • Page 16: Product Dimensions

    1.4 Product Dimensions PPC-090T User’s Manual IUMPPC090T-01 Ver.1.12A Au g , 2021...
  • Page 17 PPC-090T User’s Manual IUMPPC090T-01 Ver.1.12A Au g , 2021...

  • Page 18: Panel Mounting Instruction

    1.5 Panel Mounting Instruction Cut a mounting hole in the panel. (Refer to PPC‐090T Dimensions on page 11~12.) (Note 1) Check and remove the twelve M3 screws in a diagonal pattern as image below if necessary. Place PPC‐090T face‐down on a clean, flat surface. Slide the panel cutout around the back of PPC‐090T, until the panel rests directly on the gasket.
  • Page 19 Note 1: It is strongly recommended that a professional machine shop cut the mounting hole in the panel. Note 2: The length for all twelve M3 screws will be according to the thickness of mounting panel. For example: The length of standard M3 screws for PPC-090T is 6mm. If the thickness of your mounting panel is 3mm and washer thickness is 1mm, you have to use 10mm M3 screw.

  • Page 20: Ordering Information

    1.6 Ordering Information Product CPU Type CPU Clock Flash Code Size onboard 090T D2 (DX2) W(800MH) 3 (512B) N (No Flash) GE (GigaLAN) D3 (DX3) N(933MHz) 4 (1GB) A (256MB) G7C (GigaLAN + 7 COMs) PD2 (DX2 + 9” PCAP) G (1GHz) 5 (2GB) B (512MB)
  • Page 21 PART NUMBER DESCRIPTION 9” Panel PC w/DX2/1GB Memory PPC-090T-D2N4N 3USB/AUDIO/LAN/2COM/RTP/DC12~24V 9” Panel PC w/DX2/1GB Memory PPC-090T-D2N4N-GE 3USB/AUDIO/LAN/GbE/2COM/RTP/DC12~24V 9” Panel PC w/DX2/1GB Memory PPC-090T-D2N4N-G7CP 3USB/AUDIO/LAN/GbE/7COM/RTP/PoE 9” Panel PC w/DX2-800MHz/1GB PPC-090T-D2W4N-GE Memory/3USB/AUDIO/LAN/GbE/2COM/RTP/ DC12~24V/Wide Temp 9” Panel PC w/DX3/1GB Memory PPC-090T-D3G4N 3USB/AUDIO/LAN/2COM/RTP/DC12~24V 9” Panel PC w/DX3/1GB Memory PPC-090T-D3G4N-GE 3USB/AUDIO/LAN/GbE/2COM/RTP/DC12~24V 9”...

  • Page 22: 2 System Installation

    System Installation 2.1 CPU Board Outline 2.2 Connector Summary 2.3 Connector Pin Assignments 2.4 External I/O Overview 2.5 External I/O Pin Assignment 2.6 Watchdog Timer PPC-090T User’s Manual IUMPPC090T-01 Ver.1.12A Au g , 2021...

  • Page 23: Cpu Board Outline

    2.1 CPU Board Outline CPU Board PPC-090T User’s Manual IUMPPC090T-01 Ver.1.12A Au g , 2021...

  • Page 24: Connector Summary

    2.2 Connector Summary Description Type of Connections Pin # Power Terminal Connector External Power Plug 3-pin COM1 (RS232/422/485) External D-Sub Male Connector 9-pin External USB Connector 6-pin External USB Connector 6-pin PS/2Keyboard External Mini DIN Socket 6-pin External USB Connector 6-pin (For WLAN Optional) Internal USB Connector...

  • Page 25: Connector Pin Assignments

    2.3 Connector Pin J7: USB Assignments Pin # Signal Name Pin # Signal Name USBD4- J1: Power Terminal Connector USBD4+ Pin # Signal Name +12~24V J8: USB (WLAN Optional) Pin # Signal Name Pin # Signal Name USBD1- J3 & J14: COM1 & 2 (RS232/422/485) USBD1+ Pin # Signal Name...
  • Page 26 J33/J34/J35/J36: GPIO 180-pin (Optional for I/O extension board on Ch.5) Signal Signal Signal Signal Signal Signal Signal Signal Pin# Pin# Pin# Pin# Pin# Pin# Pin# Pin# Name Name Name Name Name Name Name Name SBHE GP34 GP35 RSTDRV 4 IRQ3 GP36 GP37 GP90...

  • Page 27: External I/O Overview

    2.4 External I/O Overview Power Switch PS/2 KB USB 2.0 PORT Audio-Out 10/100Mbps GIGA Ethernet +12 ~ 24VDC RS-232/422/485 Ethernet (Optional) NOTE GIGA LAN is optional WLAN is optional for RTP type, but not support for PCAP type. RS232/422/485 is selected by BIOS setting MicroSD socket is optional (Either one for CF or MicroSD) PPC-090T User’s Manual IUMPPC090T-01 Ver.1.12A Au g , 2021...

  • Page 28: External I/O Pin Assignment

    J4/J5/J7: USB 2.5 External I/O Pin Pin # Signal Name Assignment USB0- USB0+ Power Switch Pin # Status GGND GGND RJ45 Signal Signal Power Connector DC-IN +12~24V Name Name Pin # Signal Name FTXD+ FTXD- +12~24V FRXIN+ FRXIN- PS/2 Keyboard Pin # Signal Name KBCLK...

  • Page 29: Watchdog Timer

    2.6 Watchdog Timer There are two watchdog timers in PPC-090T, we also provide DOS, Linux and WinCE example for your reference. For more technical support, please visit: http://tech.icop.com.tw or download the PDF file: dmp.com.tw/tech PPC-090T User’s Manual IUMPPC090T-01 Ver.1.12A Au g , 2021...

  • Page 30: 3 Hardware Installation

    Hardware Installation PPC-090T supports various kinds of storages for industrial application, divided into SATA Slim, CompactFlash or SD card (optional). 3.1 Installing the SATA Slim 3.2 Installing the Compact Flash PPC-090T User’s Manual IUMPPC090T-01 Ver.1.12A Au g , 2021...

  • Page 31: Installing The Sata Slim

    3.1 Installing the SATA Slim [SPEC] JEDEC SFF-8156 standard form factor 53 x 32 x 4.0 mm [SATA SLIM MLC LIST] Operating Temperature 0℃ ~ +70℃ SDM-SST-SLIM(M)-4G 0℃ ~ +70℃ SDM-SST-SLIM(M)-8G 0℃ ~ +70℃ SDM-SST-SLIM(M)-16G 0℃ ~ +70℃ SDM-SST-SLIM(M)-32G 0℃ ~ +70℃ ISATA-SLIM(M)-8G 0℃...
  • Page 32 Place the SATA slim horizontally aligned and gently put into the socket until you feel a click. Insert all eight screws into the screw holes. PPC-090T User’s Manual IUMPPC090T-01 Ver.1.12A Au g , 2021...

  • Page 33: Installing The Compact Flash

    3.2 Installing the Compact Flash [STEP] Remove the nine screws in a diagonal pattern as the image below. Gently insert the CF card along the track. Caution: Please watch out for the direction which the CF card has to be face up. Insert all nine screws into the screw holes.

  • Page 34: 4 Driver Installation

    Driver Installation 4.1 PPC-090T Development Note 4.2 BIOS Default Setting 4.3 Serial Ports Setting (RS232/RS422/RS485) PPC-090T User’s Manual IUMPPC090T-01 Ver.1.12A Au g , 2021...
  • Page 35 The Vortex86DX2 / DX3 processor is integrated RDC Display chip which is an ultra-low powered graphics chipset with total power consumption at around 1-1.5 The Vortex86DX2 / DX3 processor is integrated 10/100Mbps Ethernet controller that supports both 10/100BASE-T and allows direct connection to your 10/100Mbps Ethernet based Local Area Network for full interaction with local servers, wide area networks such as the Internet.

  • Page 36: Ppc-090T Development Note

    4.1 PPC-090T Development Note < WINDOWS DEVELOPMENT GUIDE > Windows Embedded CE 6.0 BSP, Windows Embedded Compact 7 BSP, and Windows Embedded Standard 2009 trial image with development notes, please visit technical website to get more information at http://tech.icop.com.tw/. < LINUX INSTALLATION NOTE> Please visit Linux technical website to get more information at ftp://ftp.dmp.com.tw/Linux_DEMO/Vortex86_Linux_Support_List.htm.

  • Page 37: Bios Default Setting

    4.2 BIOS Default Setting If the system cannot be booted after BIOS changes are made, Please follow below procedures in order to restore the CMOS as default setting. Press < End > Key, when the power on Press < Del > to enter the AMI BIOS setup Press <...

  • Page 38: Serial Ports Setting (Rs232/422/485)

    4.3 Serial Ports Setting (RS232/422/485) For DX2 processor: Please press <Del> to get into the BIOS settings after booting the machine, and follow the steps below: [Step 1] Use the arrow key to select the category “Chipset” on the top of the menu, then select SouthBridge Configuration in the sub menu and press <Enter>...
  • Page 39 Configuration” and press <ENTER> [Step 3] Choose the port you would like to change. For example, choose TXDEN1 for COM1 and press <Enter>. You will then see three options; select the desired type and press <Enter> to finish the setting. The Serial Ports setting is finished PPC-090T User’s Manual IUMPPC090T-01 Ver.1.12A Au g , 2021...
  • Page 40 [Step 4] Press <Esc> twice to get back to the T op Menu. Use the arrow key to the category “Exit”, and select the option “Save Changes and Exit”. Press <Enter> and choose [OK] to keep your changes, then the device will reboot automatically.
  • Page 41 For DX3 processor: PPC-090T User’s Manual IUMPPC090T-01 Ver.1.12A Au g , 2021...
  • Page 42 Please press <Del> to get into the BIOS settings after booting the machine, and follow the steps below: [Step 1] Use the arrow key to select the category “Advanced” on the top of the menu, then select "Serial/Parallel Port Configuration" in the sub menu and press <Enter>...
  • Page 43 [Step 3] Press <Esc> twice to get back to the T op Menu. Use the arrow key to the category “Exit”, and select the option “Save Changes and Exit”. Press <Enter> and choose [OK] to keep your changes, then the device will PPC-090T User’s Manual IUMPPC090T-01 Ver.1.12A Au g , 2021...
  • Page 44 reboot automatically. PPC-090T User’s Manual IUMPPC090T-01 Ver.1.12A Au g , 2021...

  • Page 45: 5 Extension I/O (Optional)

    (Optional) Extension I/O 5.1 Extension I/O Overview 5.2 External I/O Pin Assignment PPC-090T User’s Manual IUMPPC090T-01 Ver.1.12A Au g , 2021...

  • Page 46: Extension I/O Overview (Optional)

    5.1 Extension I/O Overview (Optional) NOTE: Those COM ports are only for RS232 signals. DSub-25pin only can be set to be either one of COM5 & COM6 16-bit GPIO by hardware settings, and user can't change hardware setting there. Thus, please contact your region sales person to order correct part number in advance.

  • Page 47: Extension I/O Pin Assignment (Optional)

    5.2 Extension I/O Pin Assignment (Optional) COM3, 4 and 9 (RS232) (Change setting by BIOS) Pin # Signal Name Pin # Signal Name DCD1 RXD1 TXD1 DTR1 DSR1 RTS1 CTS1 COM5 & 6 (RS232) / 16-bit GPIO Pin # Signal Name Pin # Signal Name VCC (+5V_Output)

  • Page 48: Warranty

    (RMA) number. Returned goods should always be accompanied by a clear problem description. All Trademarks appearing in this manuscript are registered trademark of their respective owners. All Specifications are subject to change without notice. ©ICOP Technology Inc. 2021 PPC-090T User’s Manual IUMPPC090T-01 Ver.1.12A Au g , 2021...
