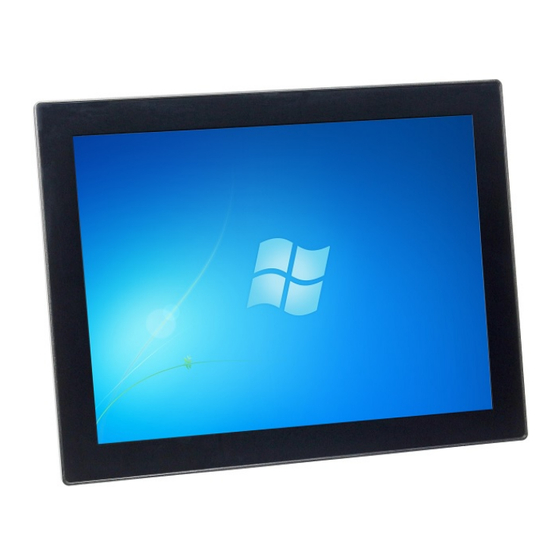

ICOP Technology PPC-150P-APL Series User Manual

Intel apollo lake processor, compact panel pc with 15” pcap touch screen
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User's Manual
PPC-150P-APL
Intel® Apollo Lake Processor
Compact Panel PC with 15" PCAP Touch Screen
PPC-150P-APL User's Manual
PPC-150P-APL-N4-4G
PPC-150P-APL-N4-8G
PPC-150P-APL-N3-4G (Build to order)
PPC-150P-APL-N3-8G (Build to order)
(Revision 1.0A)
IUMPPC150PAPL-01 Ver.1.0A Jun, 2019
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PPC-150P-APL Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ICOP Technology PPC-150P-APL Series

Summary of Contents for ICOP Technology PPC-150P-APL Series

  • Page 1 User’s Manual PPC-150P-APL Intel® Apollo Lake Processor Compact Panel PC with 15” PCAP Touch Screen PPC-150P-APL-N4-4G PPC-150P-APL-N4-8G PPC-150P-APL-N3-4G (Build to order) PPC-150P-APL-N3-8G (Build to order) (Revision 1.0A) PPC-150P-APL User’s Manual IUMPPC150PAPL-01 Ver.1.0A Jun, 2019...
  • Page 2 REVISION DATE VERSION DESCRIPTION 2019/6/28 Version 1.0A New Release PPC-150P-APL User’s Manual IUMPPC150PAPL-01 Ver.1.0A Jun, 2019...
  • Page 3  USA: www.icoptech.com  Japan: www.icop.co.jp  Europe: www.icoptech.eu  China: www.icop.com.cn For technical support or drivers download, please visit our websites at:  https://www.icop.com.tw/download_resource/PPC-150P-N4200?tags=18,81,34,35,38,39,64,65 &selected=35 This Manual is for the PPC-150P-APL series. PPC-150P-APL User’s Manual IUMPPC150PAPL-01 Ver.1.0A Jun, 2019...
  • Page 4 SAFETY INFORMATION  Read these Safety instructions carefully.  Please carry the unit with both hands, handle carefully.  Make sure the voltage of the power source is correct before connecting the equipment to the power outlet.  Do not expose your Panel PC to rain or moisture in order to prevent shock and fire hazard.

  • Page 5: Table Of Contents

    Content Content ........................... iv Ch. 1 General Information ....................1 1.1 Product Description ....................2 1.2 Product Specifications .................... 3 1.3 Inspection standard for TFT-LCD Panel..............5 1.4 Product Dimensions ....................8 1.5 Mounting Instruction ....................9 1.6 Ordering Information ..................... 11 Ch.

  • Page 6: 1 General Information

    General Information 1.1 Product Description 1.2 Product Specifications 1.3 Inspection standard for TFT-LCD Panel 1.4 Product Dimensions 1.5 Mounting Instruction 1.6 Ordering Information PPC-150P-APL User’s Manual IUMPPC150PAPL-01 Ver.1.0A Jun, 2019...

  • Page 7: Product Description

    1.1 Product Description ICOP Technology Inc. is proudly going to release a brand new Panel PC, which offers fanless design, low power consumption, and IP65 front panel. The PPC-150P-APL is powered by Intel® Apollo Lake N4200/N3350 processor, and 4GB / 8GB SO-DIMM DDR3L module that handles processing more efficiently and provides faster performance.

  • Page 8: Product Specifications

    1.2 Product Specifications CPU BOARD SPECIFICATIONS Intel® Apollo Lake N4200 (Quad core) Intel® Apollo Lake N3350 (Dual core; Optional) Cache L2: 2MB Cache BIOS AMI BIOS Memory 4GB / 8GB DDR3L Display Intel® HD Graphics, HDMI 1.4 (As Dual Display) Integrated 10/100/1000Mbps Ethernet x 1 Audio HD Audio-Realtek ALC662VD CODEC...
  • Page 9 Dimensions 359.63x282.98x57.9mm (14.16"x11.14"x2.28") Weight 4.11 Kg Protection IP65 Front Panel Certification CE / FCC / VCCI / Vibration/ Shock LCD SPECIFICATIONS Display Type 15” XGA TFT LCD Backlight Unit Display Resolution 1024(W) x 768(H) Brightness (cd/m 250 nits Contrast Ratio 600 : 1 Display Color 262,144...

  • Page 10: Inspection Standard For Tft-Lcd Panel

    1.3 Inspection standard for TFT-LCD Panel DEFECT TYPE LIMIT Note Ignore φ＜0.15mm 0.15mm≦φ≦0.5mm N≦4 SPOT Note1 0.5mm＜φ 0.03mm<W≦0.1mm, L≦5mm N≦3 FIBER Note1 VISUAL 1.0mm＜W, 1.5mm＜L INTERNAL DEFECT Ignore φ＜0.15mm POLARIZER 0.15mm≦φ≦0.5mm N≦2 Note1 BUBBLE 0.5mm＜φ Mura It’ OK if mura is slight visible through 6%ND filter A Grade B Grade BRIGHT DOT...
  • Page 11 [ Note 1 ] W: Width[mm]; L: Length[mm]; N: Number; φ: Average Diameter. (a) White / Black Spot (b) Polarizer Bubble [ Note 2 ] Bright dot is defined through 6% transmission ND Filter as following. [ Note 3 ] Display area C Area: Center of display area O Area: Outer of display area...
  • Page 12 [ Note 4 ] Judge the defect dot and the adjacent dot as following. Allow below (as A, B, C and D status) adjacent defect dots, including bright and dark adjacent dot. And they will be counted 2 defect dots in total quantity. The defects that are not defined above and considered to be problem shall be reviewed and discussed by both parties.

  • Page 13: Product Dimensions

    1.4 Product Dimensions PPC-150P-APL User’s Manual IUMPPC150PAPL-01 Ver.1.0A Jun, 2019...

  • Page 14: Mounting Instruction

    1.5 Mounting Instruction  1.5.1 VESA Mounting PPC-150P-APL series support VESA Mount that is an optional for ordering. Please contact your region sales for ordering. Ordering part number: VESA-MT-PPC-APL-SET 1. Place VESA bracket and VESA-MT-PPC-APL-SET together. 2. Lock 4 screws and nuts on both of VESA bracket and VESA-MT-PPC-APL-SET.
  • Page 15  1.5.2 Panel Mounting PPC-150P-APL series support clamp mount that is an optional for ordering. Please contact your region sales for ordering. Ordering part number: PANEL-MT-PPC-APL-SET Please refer the Section 1.4 to make a cutout hole on your mechanical or frame.

  • Page 16: Ordering Information

    1.6 Ordering Information Product Code LCD Size CPU Type 104T 150T 150P (PCAP) 1. Product Code：Code 1~3. PPC：Panel PC Series. 2. LCD Size：Code 4~7。 104T：10.4” LCD with Resistive touch screen. 150T：15” LCD with Resistive touch screen. 150P：15” LCD with PCAP touch screen.
  • Page 17 PART NUMBER DESCRIPTION PPC-150P-APL-N4-4G 15" Panel PC w/Intel Apollo Lake N4200/4GB DRAM /3U/Giga LAN/2S/PCAP Touch/DC12V Power Input PPC-150P-APL-N4-8G 15" Panel PC w/Intel Apollo Lake N4200/8GB DRAM /3U/Giga LAN/2S/PCAP Touch/DC12V Power Input PPC-150P-APL-N3-4G (BTO) 15" Panel PC w/Intel Apollo Lake N3350/4GB DRAM /3U/Giga LAN/2S/PCAP Touch/DC12V Power Input PPC-150P-APL-N3-8G (BTO)

  • Page 18: 2 System Installation

    System Installation 2.1 CPU Board Outline 2.2 Connector Summary 2.3 Connector Pin Assignments 2.4 External I/O Overview 2.5 External I/O Pin Assignment PPC-150P-APL User’s Manual IUMPPC150PAPL-01 Ver.1.0A Jun, 2019...

  • Page 19: Cpu Board Outline

    2.1 CPU Board Outline PPC APL CPU Board PPC-150P-APL User’s Manual IUMPPC150PAPL-01 Ver.1.0A Jun, 2019...

  • Page 20: Connector Summary

    2.2 Connector Summary Description Type of Connections Pin # DDR3L SO-DIMM Slot External SO-DIMM Slot 204-pin Power DC Jack External Power DC Jack Connector 2-pin USB3.0 x 2 External Dual USB3.0 Connector 18-pin HDMI External HDMI Connector 19-pin GIGA Ethernet External RJ45 Connector 8-pin M.2 SATA (M-Key)

  • Page 21: Connector Pin Assignments

    J10: Front Panel Header 2.3 Connector Pin Pin # Signal Name Pin # Signal Name Assignments HDDLED+ PWRLED+ HDDLED- PWRLED- PWRBT J2: Power DC Jack RSTSW Pin # Signal Name +12V Power Input J11: USB2.0 x 2 Pin # Signal Name Pin # Signal Name J7: COM1 (RS232/422/485)
  • Page 22 J14: SATA Power Output J18: RTC Battery Header Pin # Signal Name Pin # Signal Name VBAT +12V J15: Audio Header Pin # Signal Name Pin # Signal Name MIC_L AUDIO_GND MIC_R AUDIO_JD LINEOUT2_R MIC_JD SENSE_FB LINEOUT2_L LINE2_JD J16: GPIO (Reserved) Pin # Signal Name Pin #...

  • Page 23: External I/O Overview

    2.4 External I/O Overview NOTE: COM1 RS232/422/485 is selected by BIOS setting. Please refer the section, 4.6 to set the function in the BIOS setup. PPC-150P-APL User’s Manual IUMPPC150PAPL-01 Ver.1.0A Jun, 2019...
  • Page 24 PPC-150P-APL User’s Manual IUMPPC150PAPL-01 Ver.1.0A Jun, 2019...

  • Page 25: External I/O Pin Assignment

    External Assignment HDMI Pin # Signal Name Power DC Jack (12Vdc Input) TMDS_Data2+ Pin # Signal Name TMDS_Data2_Shield +12Vdc TMDS_Data2- TMDS_Data1+ TMDS_Data1_Shield COM1 (RS232/422/485) TMDS_Data1- (Change mode by BIOS Setup) TMDS_Data0+ Signal Signal Pin # Pin # TMDS_Data0_Shield Name Name TMDS_Data0- DCD1 RXD1...
  • Page 26 Line-Out Signal Name LINEOUT2-L LINEOUT2-R AUDIO_GND Mic-in Signal Pin # Name MIC-L MIC-R AUDIO_GND PPC-150P-APL User’s Manual IUMPPC150PAPL-01 Ver.1.0A Jun, 2019...

  • Page 27: 3 Hardware Installation

    Hardware Installation PPC-150P-APL supports various kinds of storages for industrial application, divided into M.2 2242 SATA (M-Key) and 2.5” SATAIII HDD/SSD. 3.1 Installing the M.2 2242 SATA 3.2 Installing the 2.5” SATA HDD/SSD 3.3 Installing the Mini-PCIe Module 3.4 Installing the Micro SIM Card (Must include 3G/4G Mini-PCIe Module in advance) PPC-150P-APL User’s Manual IUMPPC150PAPL-01 Ver.1.0A Jun, 2019...

  • Page 28: Installing The M.2 2242 Sata

    3.1 Installing the M.2 2242 SATA [SPEC] Standard M.2 2242 form factor 22 x 42 x 3.2 mm [M.2 2242 SATA LIST] Operating Temperature 0℃ ~ +70℃ IM242S-8G-M 0℃ ~ +70℃ IM242S-16G-M IM242S-32G-M 0℃ ~ +70℃ 0℃ ~ +70℃ IM242S-64G-M 0℃...
  • Page 29 Pull up rear cover carefully, which LCD, Backlight and Touch cables inside the rear cover and please be careful to open it. Remove the screw of M.2 Slot. PPC-150P-APL User’s Manual IUMPPC150PAPL-01 Ver.1.0A Jun, 2019...
  • Page 30 Plug M.2 2242 Storage on M.2 Slot and lock the screw. Take the rear cover back and lock 16 screws. PPC-150P-APL User’s Manual IUMPPC150PAPL-01 Ver.1.0A Jun, 2019...

  • Page 31: Installing The 2.5" Sata Hdd/Sdd

    3.2 Installing the 2.5” SATA HDD/SDD [STEP] Find the bag of screws from inside of the package box, and prepare those 4 screws in advance. Remove the 16 screws in a diagonal pattern as the image below. PPC-150P-APL User’s Manual IUMPPC150PAPL-01 Ver.1.0A Jun, 2019...
  • Page 32 Pull up rear cover carefully, which LCD, Backlight and Touch cables inside the rear cover and please be careful to open it. Plug SATA cable upon 2.5” SATA HDD/SSD and take it in the box. PPC-150P-APL User’s Manual IUMPPC150PAPL-01 Ver.1.0A Jun, 2019...
  • Page 33 Lock the screws on the both of rear cover and 2.5” HDD/SSD. Take the rear cover back and lock 16 screws. PPC-150P-APL User’s Manual IUMPPC150PAPL-01 Ver.1.0A Jun, 2019...

  • Page 34: Installing The Mini-Pcie Module

    3.3 Installing the Mini-PCIe Module [STEP] Remove the 16 screws in a diagonal pattern as the image below. Pull up rear cover carefully, which LCD, Backlight and Touch cables inside the rear cover and please be careful to open it. PPC-150P-APL User’s Manual IUMPPC150PAPL-01 Ver.1.0A Jun, 2019...
  • Page 35 Remove the screw of Mini-PCIe Slot. Plug Mini-PCIe Module upon the slot and lock the screws. Take the rear cover back and lock 16 screws. PPC-150P-APL User’s Manual IUMPPC150PAPL-01 Ver.1.0A Jun, 2019...

  • Page 36: Installing The Micro Sim Card (Must Include 3G/4G Mini-Pcie Module In Advance)

    3.4 Installing the Micro SIM Card (Must include 3G/4G Mini-PCIe Module in advance) [STEP] Please refer the section, 3.3 to install 3G/4G Mini-PCIe Module in advance. Plug Micro SIM Card on the slot. PPC-150P-APL User’s Manual IUMPPC150PAPL-01 Ver.1.0A Jun, 2019...

  • Page 37: 4 Drivers And Bios Instruction

    Drivers and BIOS Instruction 4.1 Operating System Support and Drivers 4.2 BIOS Hot Key 4.3 BIOS COM1 Setting (RS232/RS422/RS485) 4.4 BIOS COM2 Setting (Change Settings) 4.5 BIOS AT Mode Setting (Support Auto-Power On Function) 4.6 BIOS Serial Port Console Redirection 4.7 BIOS Load Default Setting PPC-150P-APL User’s Manual IUMPPC150PAPL-01 Ver.1.0A Jun, 2019...

  • Page 38: Operating System Support And Drivers

    4.1 Operating System Support and Drivers The PPC-150P-APL provides the Win10 drivers for Normal Win10 and Win10 IoT Enterprise. Please get the drivers from ICOP technical support URL: https://www.icop.com.tw/download_resource/PPC-150P-N4200?tags=18,81,34,35,38, 39,64,65&selected=35 For Linux, most Linux distributions support Intel® Apollo Lake Processor and user can install Linux upon PPC-150P-APL directly.

  • Page 39: Bios Hot Key

    4.2 BIOS Hot Key After power on, it supports BIOS hot key as below. Press < Del > to enter the AMI BIOS setup Press < F7 > to enter Popup Menu PPC-150P-APL User’s Manual IUMPPC150PAPL-01 Ver.1.0A Jun, 2019...

  • Page 40: Bios Com1 Setting (Rs232/422/485)

    4.3 BIOS COM1 Setting (RS232/422/485) COM1 can be set to be RS232/422/485 function. Please refer the instruction as below. (1) In the BIOS Setup, please go to “Advanced” and “Super IO Configuration”. (2) Go to “Serial Port 1 Configuration”. PPC-150P-APL User’s Manual IUMPPC150PAPL-01 Ver.1.0A Jun, 2019...
  • Page 41 (3) Go to Transmission Mode and set RS232/422/485 function. (4) After setting, please press “F4” key to save & exit. PPC-150P-APL User’s Manual IUMPPC150PAPL-01 Ver.1.0A Jun, 2019...

  • Page 42: Bios Com2 Setting (Change Settings)

    4.4 BIOS COM2 Setting (Change Settings) COM2 can be changed settings as below. (1) In the BIOS Setup, please go to “Advanced” and “Super IO Configuration”. (2) Go to “Serial Port 2 Configuration”. PPC-150P-APL User’s Manual IUMPPC150PAPL-01 Ver.1.0A Jun, 2019...
  • Page 43 (3) Go to “Change Settings” and set IO address and IRQ if you want to have the default, IO=2F8h and IRQ=3. (4) After setting, please press “F4” key to save & exit. PPC-150P-APL User’s Manual IUMPPC150PAPL-01 Ver.1.0A Jun, 2019...

  • Page 44: Bios At Mode Setting (Support Auto-Power On Function)

    4.5 BIOS AT Mode Setting (Support Auto-Power On Function) PPC-150P-APL supports “Auto-Power On function”, user doesn’t need to press “power button” for system power on and just needs to plug power source input and system will be power on automatically. (1) In the BIOS Setup, please go to “Chipset”...
  • Page 45 (3) After setting, please press “F4” key to save & exit. Note: After system shut down by operating system, PPC-150P-APL will be power-off. For next booting up, user just needs to re-plug power adapter or power reset again, while system will be boot-up automatically. PPC-150P-APL User’s Manual IUMPPC150PAPL-01 Ver.1.0A Jun, 2019...

  • Page 46: Bios Serial Port Console Redirection

    4.6 BIOS Serial Port Console Redirection PPC-150P-APL supports Serial Port Console Redirection as below. (1) Go to “Advanced” and “Serial Port Console Redirection”. (2) Set “Console Redirection” to be “Enabled”. PPC-150P-APL User’s Manual IUMPPC150PAPL-01 Ver.1.0A Jun, 2019...
  • Page 47 (3) Set “Terminal Type” to “VT100+”. Emulation: [ANSI]: Extended ASCII char set; [VT100]: ASCII char set; [VT100+]: Extended VT100 to support color, function keys, etc.; [VT-UTF8]: Uses UTF8 encoding to map Unicode chars onto 1 or more Bytes. (4) After setting, please press “F4” key to save & exit. PPC-150P-APL User’s Manual IUMPPC150PAPL-01 Ver.1.0A Jun, 2019...

  • Page 48: Bios Load Default Setting

    4.7 BIOS Load Default Setting (1) Press “F3” key to load optimized defaults. (2) After setting, please press “F4” key to save & exit. PPC-150P-APL User’s Manual IUMPPC150PAPL-01 Ver.1.0A Jun, 2019...

  • Page 49: Warranty

    Merchandise Authorization (RMA) number. Returned goods should always be accompanied by a clear problem description. All Trademarks appearing in this manuscript are registered trademark of their respective owners. All Specifications are subject to change without notice. ©ICOP Technology Inc. 2019 PPC-150P-APL User’s Manual IUMPPC150PAPL-01 Ver.1.0A Jun, 2019...

This manual is also suitable for:

Ppc-150p-apl-n4-4gPpc-150p-apl-n4-8gPpc-150p-apl-n3-4gPpc-150p-apl-n3-8g
