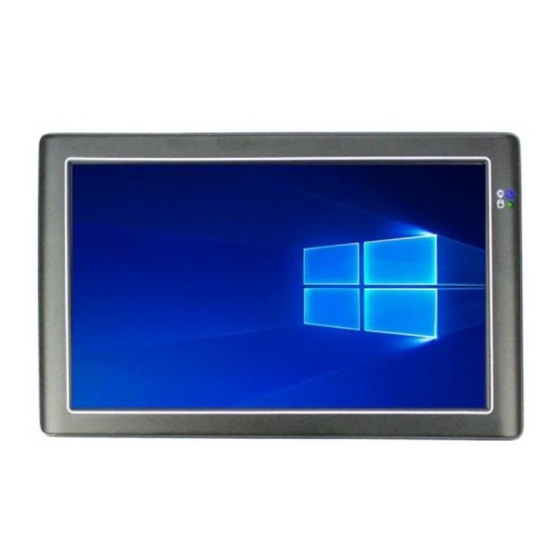

Compact panel pc with 9” resistive touch screen
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User's Manual
PBSW-090T
Intel® Braswell Processor
Compact Panel PC with 9" Resistive Touch Screen
PBSW-090T User's Manual
PBSW-090T-5A-E8-4G
PBSW-090T-8A-E8-4G
PBSW-090T-5A-N7-4G (Build To Order)
PBSW-090T-8A-N7-4G (Build To Order)
PBSW-090T-5A-N6-4G (Build To Order)
PBSW-090T-5A-N6-4G (Build To Order)
(Revision 1.0A)
IUMPBSW090T-01 Ver.1.0A July, 2020
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PBSW-090T-5A-E8-4G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ICOP Technology PBSW-090T-5A-E8-4G

Summary of Contents for ICOP Technology PBSW-090T-5A-E8-4G

  • Page 1 User’s Manual PBSW-090T Intel® Braswell Processor Compact Panel PC with 9” Resistive Touch Screen PBSW-090T-5A-E8-4G PBSW-090T-8A-E8-4G PBSW-090T-5A-N7-4G (Build To Order) PBSW-090T-8A-N7-4G (Build To Order) PBSW-090T-5A-N6-4G (Build To Order) PBSW-090T-5A-N6-4G (Build To Order) (Revision 1.0A) PBSW-090T User’s Manual IUMPBSW090T-01 Ver.1.0A July, 2020...
  • Page 2 REVISION DATE VERSION DESCRIPTION 2020/07/24 Version 1.0A New Release PBSW-090T User’s Manual IUMPBSW090T-01 Ver.1.0A July, 2020...
  • Page 3 No part of this manual may be reproduced, copied, translated or transmitted, in whole or in part, in any form or by any means without the prior written permission of the ICOP Technology Inc. Copyright 2020 ICOP Technology Inc. Manual # IUMPBSW090T-01 Ver.1.0A July, 2020 TRADEMARKS ACKNOWLEDGMENT Intel®...
  • Page 4 SAFETY INFORMATION  Read these Safety instructions carefully.  Please carry the unit with both hands, handle carefully.  Make sure the voltage of the power source is correct before connecting the equipment to the power outlet.  Do not expose your Panel PC to rain or moisture in order to prevent shock and fire hazard.

  • Page 5: Table Of Contents

    Content Content ........................... iv Ch. 1 General Information ....................1 1.1 Product Description ....................2 1.2 Product Specifications .................... 3 1.3 Inspection standard for TFT-LCD Panel ..............5 1.4 Product Dimensions ....................9 1.5 Mounting Instruction ..................... 11 1.6 Ordering Information ..................... 13 Ch.

  • Page 6: 1 General Information

    General Information 1.1 Product Description 1.2 Product Specifications 1.3 Inspection standard for TFT-LCD Panel 1.4 Product Dimensions 1.5 Mounting Instruction 1.6 Ordering Information PBSW-090T User’s Manual IUMPBSW090T-01 Ver.1.0A July, 2020...

  • Page 7: Product Description

    1.1 Product Description ICOP Technology Inc. is proudly going to release a brand new Panel PC, which offers fanless design, low power consumption, and IP65 front panel. The PBSW-090T is powered by Intel® Braswell Atom x5-E8000 / Pentium N3710 / Celeron N3160 processor, and 4GB DDR3L onboard that handles processing more efficiently and provides faster performance.

  • Page 8: Product Specifications

    1.2 Product Specifications CPU BOARD SPECIFICATIONS Intel® x5-E8000 ( Quad core 1.04GHz; Burst 2.00GHz Intel® N3710 ( Quad core 1.60GHz; Burst 2.56GHz Intel® N3160 ( Quad core 1.60GHz; Burst 2.24GHz Cache L2: 2MB Cache BIOS AMI BIOS Memory 4GB DDR3L Onboard Display Intel®...
  • Page 9 Weight 880g Protection IP65 Front Panel Certification CE / FCC / VCCI / Vibration/ Shock LCD SPECIFICATIONS Display Type 9” WSVGA TFT LCD Backlight Unit Display Resolution 1024(W) x 600(H) Brightness (cd/m 300 nits Contrast Ratio 500 : 1 Display Color 262,144 Active Area (mm) 196.61 (W) x 114.15 (H)

  • Page 10: Inspection Standard For Tft-Lcd Panel

    1.3 Inspection standard for TFT-LCD Panel DEFECT TYPE LIMIT Note φ＜0.15mm Ignore 0.15mm≦φ≦0.5mm N≦4 SPOT Note1 0.5mm＜φ 0.03mm<W≦0.1mm, L≦5mm N≦3 FIBER Note1 VISUAL 1.0mm＜W, 1.5mm＜L INTERNAL DEFECT φ＜0.15mm Ignore POLARIZER 0.15mm≦φ≦0.5mm N≦2 Note1 BUBBLE 0.5mm＜φ It’ OK if mura is slight visible through 6%ND filter Mura A Grade B Grade...
  • Page 11 W: Width[mm]; L: Length[mm]; N: Number; φ: Average Diameter. [ Note 1 ] (a) White / Black Spot (b) Polarizer Bubble [ Note 2 ] Bright dot is defined through 6% transmission ND Filter as following. [ Note 3 ] Display area C Area: Center of display area O Area: Outer of display area...
  • Page 12 [ Note 4 ] Judge the defect dot and the adjacent dot as following. Allow below (as A, B, C and D status) adjacent defect dots, including bright and dark adjacent dot. And they will be counted 2 defect dots in total quantity. R Defect Dot Adjacent Dot The defects that are not defined above and considered to be problem shall be reviewed...
  • Page 13 Note 5-1 1. Condition of Image Sticking test：25 ℃± 2 ℃. 2. Operation with test pattern sustained for 4 hrs, then change to gray pattern immediately. 3. After 5 mins, the mura must be disappeared completely. PBSW-090T User’s Manual IUMPBSW090T-01 Ver.1.0A July, 2020...

  • Page 14: Product Dimensions

    1.4 Product Dimensions PBSW-090T User’s Manual IUMPBSW090T-01 Ver.1.0A July, 2020...
  • Page 15 PBSW-090T User’s Manual IUMPBSW090T-01 Ver.1.0A July, 2020...

  • Page 16: Mounting Instruction

    1.5 Mounting Instruction  Panel Mounting  Cut a mounting hole in the panel. (Refer to PBSW‐ 090T Dimensions on page 10) (Note 1)  Check and remove the twelve M3 screws in a diagonal pattern as image below if necessary. ...
  • Page 17 Note 1: It is strongly recommended that a professional machine shop cut the mounting hole in the panel. Note 2: The length for all twelve M3 screws will be according to the thickness of mounting panel. For example: The length of standard M3 screws for PBSW‐ 090T is 6mm. If the thickness of your mounting panel is 3mm and washer thickness is 1mm, you have to use 10mm M3 screw.

  • Page 18: Ordering Information

    1.6 Ordering Information Product DC-Input Type Wide Temp. Code Size Type PBSW 090T 8A (DC12~36V) I (Wide Temp.) 1. Product Code：Code 1~4。 PBSW：PBSW Series。 2. LCD Size：Code 5~8。 090T：9” LCD with Resistive touchscreen。 3. DC-Input Type : Code 9~10。 8A：Audio Line-out and Support DC12~36V Power Input。 4.
  • Page 19 PART NUMBER DESCRIPTION 9" Panel PC w/Intel Braswell x5-E8000/4GB DRAM PBSW-090T-5A-E8-4G /2U/Giga LAN/1S/Touch/DC5V Power Adapter 9" Panel PC w/Intel Braswell x5-E8000/4GB DRAM PBSW-090T-8A-E8-4G /2U/Giga LAN/1S/Touch/DC12~36V Power Input PBSW-090T-5A-N7-4G 9" Panel PC w/Intel Braswell N3710/4GB DRAM /2U/Giga LAN/1S/Touch/DC5V Power Adapter PBSW-090T-8A-N7-4G 9"...

  • Page 20: 2 System Installation

    System Installation 2.1 CPU Board Outline 2.2 Connector Summary 2.3 Connector Pin Assignments 2.4 External I/O Overview 2.5 External I/O Pin Assignment PBSW-090T User’s Manual IUMPBSW090T-01 Ver.1.0A July, 2020...

  • Page 21: Cpu Board Outline

    2.1 CPU Board Outline PBSW CPU Board PBSW-090T User’s Manual IUMPBSW090T-01 Ver.1.0A July, 2020...

  • Page 22: Connector Summary

    2.2 Connector Summary Description Type of Connections Pin # USB2.0 2.0mm 5-pin wafer 5-pin LPC Bus (Reserved) 2.0mm 14-pin pin header 14-pin 2.0mm 8-pin pin header 8-pin SPIO (Reversed) HDMI (Reversed) 1.0mm 20-pin wafer 20-pin Mini-PCIe External Mini-PCIe Connector 52-pin Micro SIM card for Mini-PCIe External Micro SIM card 6-pin...

  • Page 23: Connector Pin Assignments

    J5: HDMI (Reserved) Connector Pin # Signal Name Pin # Signal Name Assignments HDMI_D2+ HDMI_D2- HDMI_CLK+ J2: USB2.0 HDMI_D1+ HDMI_CLK- Pin # Signal Name Pin # Signal Name HDMI_D1- USBD2- HDMI_SCL USBD2+ HDMI_D0+ HDMI_SDA HDMI_D0- HDMI_HPD J3: LPC Bus (Reserved) Pin # Signal Name Pin #...
  • Page 24 J21: COM1 VCC1.5 Pin # Signal Name Pin # Signal Name VCC3 J7: Micro SIM card for Mini-PCIe Pin # Signal Name Pin # Signal Name SIM-VCC SIM-RST J22: COM1 Pin Header SIM_CLK SIM-VPP SIM-IO (Reserved for Mini-PCIe RS232 Module) J8 &...

  • Page 25: External I/O Overview

    2.4 External I/O Overview { PBSW-090T-5A } { PBSW-090T-8A } {Note} 1. WLAN is optional 2. COM1 is RS232 signals only PBSW-090T User’s Manual IUMPBSW090T-01 Ver.1.0A July, 2020...

  • Page 26: External I/O Pin Assignment

    External Assignment GIGA LAN Power Switch Signal Signal Pin # Status Pin # Pin # Name Name TP0+ TP0- TP1+ TP2+ Power Connector (5A) TP2- TP1- Pin # Signal Name TP3+ TP3- USB 3.0 Port Pin # Signal Name Power Connector (8A) Pin # Signal Name +12 ~ 36V...

  • Page 27: 3 Hardware Installation

    Hardware Installation PBSW-090T supports various kinds of storages for industrial application, divided into M.2 2242 SATA (M-Key) and 2.5” SATAIII HDD/SSD. 3.1 Installing the M.2 2242 SATA 3.2 Installing the Mini-PCIe Module 3.3 Installing the Micro SIM Card (Must include 3G/4G Mini-PCIe Module in advance) PBSW-090T User’s Manual IUMPBSW090T-01 Ver.1.0A July, 2020...

  • Page 28: Installing The M.2 2242 Sata

    3.1 Installing the M.2 2242 SATA [SPEC] Standard M.2 2242 form factor 22 x 42 x 3.2 mm [M.2 2242 SATA LIST] Operating Temperature 0℃ ~ +70℃ IM242S-8G-M 0℃ ~ +70℃ IM242S-16G-M 0℃ ~ +70℃ IM242S-32G-M 0℃ ~ +70℃ IM242S-64G-M 0℃...
  • Page 29 Remove the 2 screws and 2 Hex Head Bolts as the image below. Pull out the I/O bracket carefully. Pull up and remove the rear cover. PBSW-090T User’s Manual IUMPBSW090T-01 Ver.1.0A July, 2020...
  • Page 30 Remove the screw of M.2 Slot. Plug M.2 2242 Storage on M.2 Slot and lock the screw back. Put the rear cover back, and lock back 2 screws and 2 Hex Head Bolts. PBSW-090T User’s Manual IUMPBSW090T-01 Ver.1.0A July, 2020...
  • Page 31 Lock the 16 screws back. PBSW-090T User’s Manual IUMPBSW090T-01 Ver.1.0A July, 2020...

  • Page 32: Installing The Mini-Pcie Module

    3.2 Installing the Mini-PCIe Module [STEP] Remove the 16 screws as the image below. Remove the 2 screws and 2 Hex Head Bolts as the image below. PBSW-090T User’s Manual IUMPBSW090T-01 Ver.1.0A July, 2020...
  • Page 33 Pull out the I/O bracket carefully. Pull up and remove the rear cover. Remove the screw of Mini-PCIe Slot. Plug Mini-PCIe Module in the slot and lock the screws. PBSW-090T User’s Manual IUMPBSW090T-01 Ver.1.0A July, 2020...
  • Page 34 Put the rear cover back, and lock back 2 screws and 2 Hex Head Bolts. Lock the 16 screws back. PBSW-090T User’s Manual IUMPBSW090T-01 Ver.1.0A July, 2020...

  • Page 35: Installing The Micro Sim Card (Must Have 3G/4G Mini-Pcie Module In Advance)

    3.3 Installing the Micro SIM Card (Must have 3G/4G Mini-PCIe Module in advance) [STEP] Remove the 16 screws as the image below. Remove the 2 screws and 2 Hex Head Bolts as the image below. PBSW-090T User’s Manual IUMPBSW090T-01 Ver.1.0A July, 2020...
  • Page 36 Pull out the I/O bracket carefully. Pull up and remove the rear cover. Pull Micro SIM Card on the slot. Please refer the section, 3.2 to install 3G/4G Mini-PCIe Module. PBSW-090T User’s Manual IUMPBSW090T-01 Ver.1.0A July, 2020...
  • Page 37 Put the rear cover back, and lock back 2 screws and 2 Hex Head Bolts. Lock the 16 screws back. PBSW-090T User’s Manual IUMPBSW090T-01 Ver.1.0A July, 2020...

  • Page 38: 4 Drivers And Bios Instruction

    Drivers and BIOS Instruction 4.1 Operating System Support and Drivers 4.2 BIOS Hot Key 4.3 BIOS Boot Mode Select 4.4 PCI COM1 Setup in BIOS and Driver Install in Windows 4.5 BIOS Load Default Setting PBSW-090T User’s Manual IUMPBSW090T-01 Ver.1.0A July, 2020...

  • Page 39: Operating System Support And Drivers

    4.1 Operating System Support and Drivers The PBSW-090T support Legacy and UEFI operating system. For Windows, the driver support Win7, Win10 and Win10 IoT Enterprise. Please get the drivers from ICOP technical support URL: https://www.icop.com.tw/download_resource/PBSW-090T?tags=18,81,34,35,38,39,64 ,65&selected=35 For Linux, most Linux distributions support Intel® Braswell Processor and user can install Linux upon PBSW-090T directly.

  • Page 40: Bios Hot Key

    4.2 BIOS Hot Key After power on, it supports BIOS hot key as below. Press < Del > to enter the AMI BIOS setup Press < F11 > to enter boot device selection Menu PBSW-090T User’s Manual IUMPBSW090T-01 Ver.1.0A July, 2020...

  • Page 41: Bios Boot Mode Select

    4.3 BIOS Boot Mode Select PBSW supports Legacy and UEFI mode for different operating systems. Please refer the settings as below. (1) Power on and press “Del” key In the BIOS Setup, and go to “Boot” and set “Boot mode select” to be “LEGACY”, “UEFI” or “DUAL”. (“LEGACY”...

  • Page 42: Pci Com1 Setup In Bios And Driver Install In Windows

    4.4 PCI COM1 Setup in BIOS and Driver Install in Windows (1) Power on and press “Del” key in the BIOS Setup, please go to “Advanced” and “LPSS & SCC Configuration”. (2) Make sure that LPSS DMA #1 (D30:F0) and LPSS HSUART #1 (D30:F3) are set to be “ACPI Mode”.
  • Page 43 (4) In Win10, disable driver signature enforcement permanently: (A) Search "cmd" and right click mouse to choose "Run as administrator". (B) Type "bcdedit.exe /set testsigning on". (C) Reboot system. PBSW-090T User’s Manual IUMPBSW090T-01 Ver.1.0A July, 2020...
  • Page 44 (5) Download and extract the driver of Win10_BSW_SerialIO+HSUART.ZIP by https://www.icop.com.tw/download_resource/PBSW-090T?tags=18,81,34,35,38,39 ,64,65&selected=35. (6) Install the driver of Win10_BSW_SerialIO. PBSW-090T User’s Manual IUMPBSW090T-01 Ver.1.0A July, 2020...
  • Page 45 (7) Right-click windows icon on the bottom-left corner of desktop and select Device Manager. (8) Right-click on the unknown devices, and select “Update Driver Software” to install the driver . PBSW-090T User’s Manual IUMPBSW090T-01 Ver.1.0A July, 2020...
  • Page 46 (9) Choose “Browse my computer for driver software”. Choose the driver and go “Next”. (10) Windows Security message will pop out; click “Install this driver software (11) anyway. PBSW-090T User’s Manual IUMPBSW090T-01 Ver.1.0A July, 2020...
  • Page 47 (12) After installed, RS-232 port TX/ RX can be used. Additional information: 1. To use RS-232 port in Win 10 or Win 10 IoT, disable flow control for TX/ RX function is necessary. 2. Win 10 or Win 10 IoT users must follow steps to install the driver and use RS-232 ports on PBSW-090T.

  • Page 48: Bios Load Default Setting

    4.5 BIOS Load Default Setting (1) Power on and press “Del” key in the BIOS setup, and then press “F9” key to load optimized defaults. (2) After setting, please press “F10” key to save configuration and exit. PBSW-090T User’s Manual IUMPBSW090T-01 Ver.1.0A July, 2020...

  • Page 49: Warranty

    Merchandise Authorization (RMA) number. Returned goods should always be accompanied by a clear problem description. All Trademarks appearing in this manuscript are registered trademark of their respective owners. All Specifications are subject to change without notice. © ICOP Technology Inc. 2020 PBSW-090T User’s Manual IUMPBSW090T-01 Ver.1.0A July, 2020...
