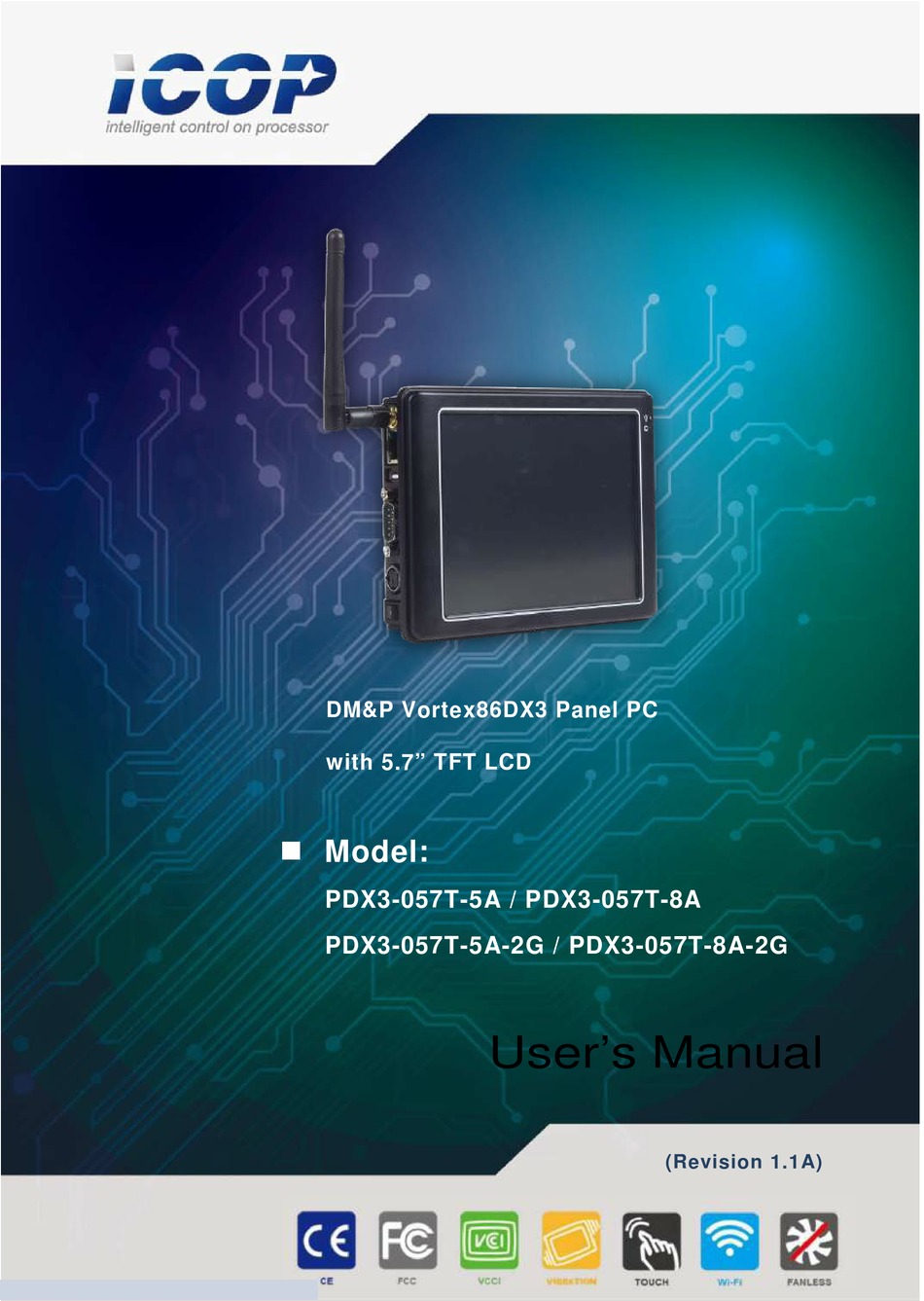

- Page 1 DM&P Vortex86DX3 Panel PC with 5.7” TFT LCD Model: PDX3-057T-5A / PDX3-057T-8A PDX3-057T-5A-2G / PDX3-057T-8A-2G User’s Manual (Revision 1.1A)
- Page 2 Revision Date Version Description 2016/11/18 Version 1.0 Initial Release 2017/01/10 Version 1.1 Specification correction...
-
Page 3: Trademarks Acknowledgment
No part of this manual may be reproduced, copied, translated or transmitted, in whole or in part, in any form or by any means without the prior written permission of the ICOP Technology Inc. Copyright 2017 ICOP Technology Inc. Manual No. IUMPDX3057-01 Ver.1.1A Jan, 2017 Trademarks Acknowledgment Vortex86DX3... -
Page 4: Table Of Contents
Table of Contents Table of Contents ..................... iii .General Information ................1 Product Description ............1 Product Specification ............2 Inspection standard for TFT-LCD Panel ......4 Product Dimension ............. 7 Ordering Information ............8 Packing List ................. 9 .System Installation ................10 CPU Board Outline ............ -
Page 5: General Information
1 .General Information 1.1 Product Description PDX3-057T is an ultra-compact platform for the present demanding embedded and productive applications. It has new Vortex86DX3 SoC CPU which consumes only minimum power requirement when running at 1GHz, and DDR3 memory provides faster data transfer rate. By using 5.7” TFT LCD, PDX3-057T becomes the perfect choice for a limited budget. -
Page 6: Product Specification
Micro SD slot (Optional) 1GB or 2GB Flash Memory onboard (Optional) RS-232/422/485 x 1 USB ports (Ver2.0) x 2 RJ-45 Port x 1 Mechanical & Environment Single Voltage +5VDC (PDX3-057T-5A) Power Requirement Multi Voltage +8~+35VDC (PDX3-057T-8A) Power Consumption 20W (Max.) Operating 0 ~ +50℃... - Page 7 Operating Humidity 0% ~ 90% relative humidity, non-condensing Dimensions 152 x 112 x 33mm (5.98 x 4.41 x 1.3 inches) Weight 500g Certification CE / FCC / VCCI / Vibration / Shock LCD Specifications Display Type 5.7” TFT LCD Backlight Unit Display Resolution 640(W) x 480(H) Brightness (cd/m...
-
Page 8: Inspection Standard For Tft-Lcd Panel
1.3 Inspection standard for TFT-LCD Panel Table 1-2 Inspection Standard DEFECT TYPE LIMIT Note φ＜0.15mm Ignore 0.15mm≦φ≦0.5mm N≦4 Note1 SPOT 0.5mm＜φ 0.03mm<W≦0.1mm, L≦ N≦3 FIBER Note1 VISUAL INTER 1.0mm＜W, 1.5mm＜L DEFECT φ＜0.15mm Ignore POLARIZER 0.15mm≦φ≦0.5mm N≦2 Note1 BUBBLE 0.5mm＜φ Mura It’... - Page 9 [Note 1] W : Width[mm], L : Length[mm], N : Number, φ: Average Diameter. White / Black Spot Polarizer Bubble Fig 1-1 Fig 1-2 [Note 2] Bright dot is defined through 6% transmission ND Filter as following. Fig 1-3 PDX3-057T DM&P Vortex86DX3 Panel PC with 5.7”...
- Page 10 [Note 3] C Area: Center of display area O Area: Outer of display area [Note 4] Judge defect dot and adjacent dot as following. Allow below (as A, B, C and D status) adjacent defect dots, including bright and dart adjacent dot. And they will be counted 2 defect dots in total quantity.
-
Page 11: Product Dimension
1.4 Product Dimension Fig 1-4 Product Dimension PDX3-057T DM&P Vortex86DX3 Panel PC with 5.7” VGA TFT LCD... -
Page 12: Ordering Information
1.5 Ordering Information Table 1-3 Ordering Information PART NUMBER DESCRIPTION PDX3-057T-5A 5.7” Panel PC w/1GB DDR3 / 2USB / Line-Out / LAN / COM / CF / MicroSD / Power Adapter PDX3-057T-8A 5.7” Panel PC w/1GB DDR3 / 2USB / Line-Out / LAN / COM / CF / MicroSD /... -
Page 13: Packing List
1.6 Packing List Table 1-4 Packing List PART NUMBER PACKAGE PDX3-057T-5A PDX3-057T-5A Power-20W-3PIN PDX3-057T-8A PDX3-057T-8A PDX3-057T-5A-2G PDX3-057T-5A-2G Power-20W-3PIN PDX3-057T-8A-2G PDX3-057T-8A-2G PDX3-057T-5A-I PDX3-057T-5A-I Power-20W-3PIN PDX3-057T-8A-I PDX3-057T-8A-I PDX3-057T-5A-2G-I PDX3-057T-5A-2G-I Power-20W-3PIN PDX3-057T-8A-2G-I PDX3-057T-8A-2G-I WLAN KIT USB-WLAN-IPEX-KIT (Optional) WIRELESS-ANTENNA-157 WIRELESS-CABLE-150MM PDX3-057T DM&P Vortex86DX3 Panel PC with 5.7” VGA TFT LCD... -
Page 14: System Installation
2 .System Installation 2.1 CPU Board Outline Fig 2-1 PDX3 CPU Board PDX3-057T DM&P Vortex86DX3 Panel PC with 5.7” VGA TFT LCD... -
Page 15: Connector Summary
2.2 Connector Summary Table 2-1 Summary Table Description Type of Connections Pin nbrs. CF Master/Slave Switch Slide Switch ON/OFF External USB Connector 6-pin External USB Connector 6-pin USB (Optional) 2.0mm 5-pin wafer 5-pin PS/2 Keyboard 2.54mm 5-pin box header 5-pin PS/2Keyboard External Mini DIN Socket 6-pin... -
Page 16: Connector Pin Assignments
J8: PS/2 Keyboard J1: CF Master/Slave Switch 2.3 Connector Pin Assignments Pin # Signal Name Pin # Signal Name KBCLK KBDAT Pin # Signal Name Master Slave J3: USB J9: PS/2 Keyboard Pin # Signal Name Pin # Signal Name Pin # Signal Name Pin #... - Page 17 J14: VGA J31: 4-Wires Touch connector Pin # Signal Name Pin # Signal Name Pin # Signal Name R OUT G OUT B OUT HSYNC J32: USB (WLAN Optional) VSYNCD J24: MIC-IN Pin # Signal Name Pin # Signal Name USBD2- Pin # Signal Name...
-
Page 18: External I/O Overview
{ PDX3-057T-8A / PDX3-057T-8A-2G } 2.4 External I/O Overview { PDX3-057T-5A / PDX3-057T-5A-2G } Fig 2-2 PDX3-057T-8A I/O overview Fig 2-3 PDX3-057T-5A I/O overview {Note} 1. WLAN is optional 2. COM1 RS232/422/485 is selected by BIOS setting 3. Micro SD Socket is optional (Either one of CF or Micro SD) PDX3-057T DM&P Vortex86DX3 Panel PC with 5.7”... -
Page 19: External I/O Pin Assignment
Power Switch 2.5 External I/O Pin Assignment USB Port Pin # Status Pin # Signal Name Power Connector (5A) USB0- USB0+ Pin # Signal Name GGND GGND PS/2 Keyboard Power Connector (8A) Pin # Signal Name Pin # Signal Name KBCLK +8 ~ 35V PMCLK... - Page 20 J10: COM1 RS232/422/485 (Change setting by BIOS) Pin # Signal Name Pin # Signal Name DCD1/422TX-/RS485- RXD1/422TX+/RS485+ TXD1 / 422RX+ DTR1 / 422RX- DSR1 RTS1 CTS1 RJ45 Pin # Signal Name Pin # Signal Name FTXD+ FTXD- FRXIN+ FRXIN- PDX3-057T DM&P Vortex86DX3 Panel PC with 5.7”...
-
Page 21: System Mapping
2.6 System Mapping Table 2-2 Technical Data Sheet System Mapping Memory Mapping Address Description Usage 00000000-0009FFFF System RAM 000A0000-000AFFFF EGA/VGA Video Memory 000B0000-000B7FFF MDA RAM, Hercules Graphics Display RAM 000B8000-000BFFFF CGA Display RAM 000C0000-000C7FFF EGA/VGA BIOS ROM 000C8000-000CFFFF Boot ROM Enable 000CC000-000CFFFF Console Redirection Enable 000D0000-000DFFFF... - Page 22 0061h Port B + NMI Control Port 0062h - 0063h 8051 download 4K Address Counter 0064h Keyboard / Mouse Status / Command Port 0065h WatchDog0 Reload Counter 0070h - 0071h CMOS RAM Port 0072h - 0075h MTBF Control Register 0078h - 007Ch GPIO Port 0,1,2,3,4 Default Setup 0080h - 008Fh DMA Page Register...
- Page 23 IRQ Mapping IRQ# Description Usage IRQ0 System Timer IRQ1 Keyboard Controller IRQ2 Cascade for IRQ8 - 15 IRQ3 IRQ4 Serial Port 1 IRQ5 IRQ6 Unassigned IRQ7 IRQ8 Real Time Clock IRQ9 Audio IRQ10 IRQ11 Ethernet 10/100M LAN IRQ12 Mouse IRQ13 Math Coprocessor IRQ14 Hard Disk Controller#1...
-
Page 24: Watchdog Timer
2.7 Watchdog Timer There are two watchdog timers in PDX3-057T, we also provide DOS, Linux and WinCE example for your reference. For more technical support, please visit: http://tech.icop.com.tw or download the PDF file: dmp.com.tw/tech PDX3-057T DM&P Vortex86DX3 Panel PC with 5.7” VGA TFT LCD... -
Page 25: Driver Installation
3 .Driver Installation The Vortex86DX3 processor is integrated RDC Display chip which is an ultra low powered graphics chipset with total power consumption at around 1-1.5 W. The Vortex86DX3 processor is integrated 10/100Mbps Ethernet controller that supports both 10/100BASE-T and allows direct connection to your 10/100Mbps Ethernet based Local Area Network for full interaction with local servers, wide area networks such as the Internet. -
Page 26: Pdx3-057T Development Note
Operating system support The PDX3-057T provides the VGA and LAN drivers for Linux, Windows CE, Windows XP Professional, Windows 7, and Windows Embedded standard (WES2009 / WES7). Please get the drivers from ICOP official website: tech.icop.com.tw PDX3-057T also supports most of the popular Linux distributions, for more detail information, please visit DMP official website: dmp.com.tw/tech/ 3.1 PDX3-057T Development Note... - Page 27 <Linux installation note> Please forced the IDE setting in BIOS to PIO mode before install Linux on PDX3-057T as follows: Go to the advanced BIOS setting and make the “Onboard IDE Operate Mode” is “Legacy Mode” < Windows XP and Windows 7 installation note > Please visit technical website to get more information: tech.icop.com.tw PDX3-057T DM&P Vortex86DX3 Panel PC with 5.7”...
-
Page 28: Bios Default Setting
3.2 BIOS Default setting If the system cannot be booted after BIOS changes are made, Please follow below procedures in order to restore the CMOS as default setting. Press < End > Key, when the power on Press < Del > to enter the AMI BIOS setup Press <... -
Page 29: Warranty
Returned goods should always be accompanied by a clear problem description. All Trademarks appearing in this manuscript are registered trademark of their respective owners. All Specifications are subject to change without notice. ©ICOP Technology Inc. 2017 PDX3-057T DM&P Vortex86DX3 Panel PC with 5.7” VGA TFT LCD...
