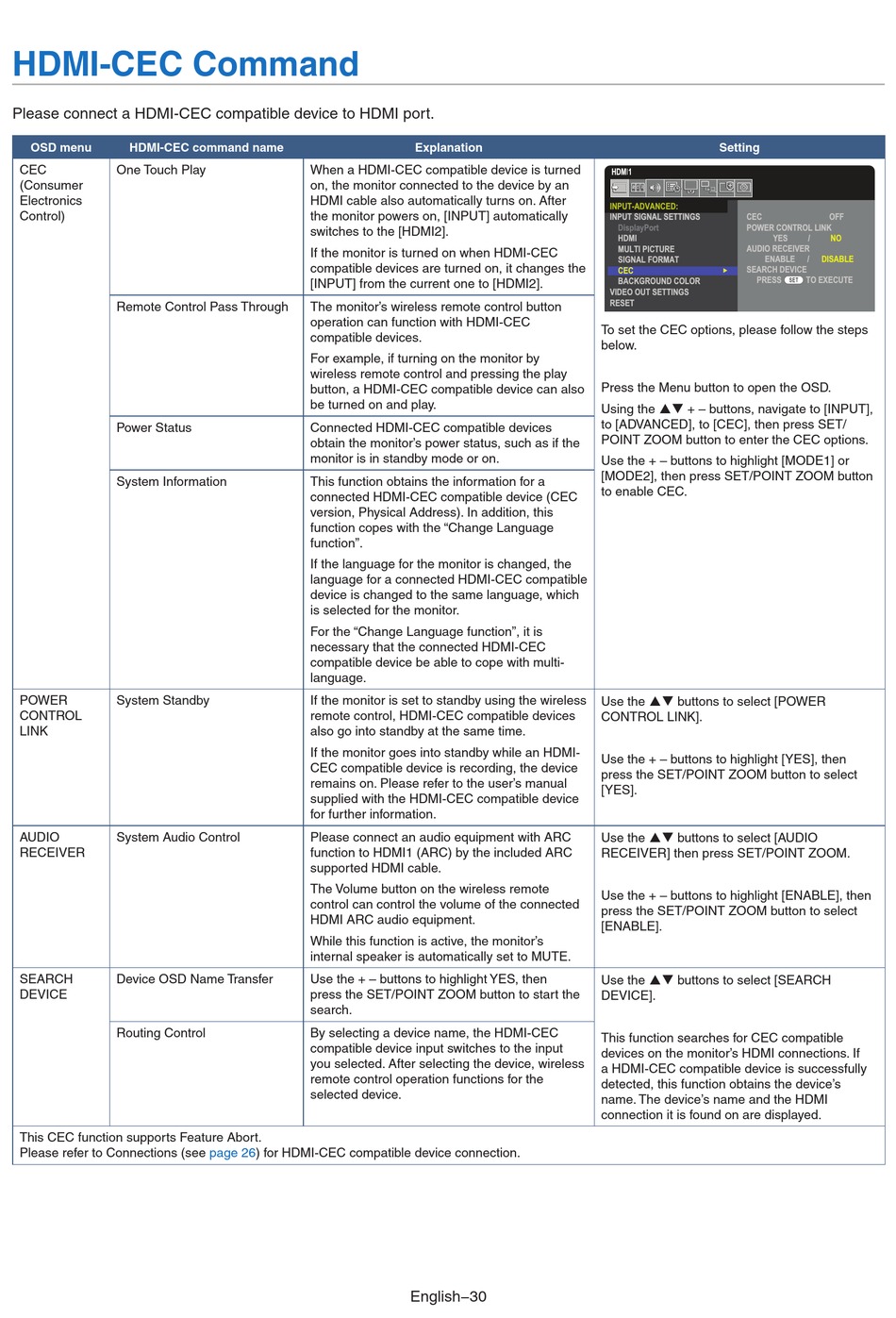

HDMI-CEC Command

Please connect a HDMI-CEC compatible device to HDMI port.
OSD menu HDMI-CEC command name
CEC One Touch Play
(Consumer
Electronics
Control)
Remote Control Pass Through
Power Status
System Information
POWER System Standby
CONTROL
LINK
AUDIO System Audio Control
RECEIVER
SEARCH Device OSD Name Transfer
DEVICE
Routing Control
This CEC function supports Feature Abort.
Please refer to Connections (see
When a HDMI-CEC compatible device is turned
on, the monitor connected to the device by an
HDMI cable also automatically turns on. After
the monitor powers on, [INPUT] automatically
switches to the [HDMI2].
If the monitor is turned on when HDMI-CEC
compatible devices are turned on, it changes the
[INPUT] from the current one to [HDMI2].
The monitor's wireless remote control button
operation can function with HDMI-CEC
compatible devices.
For example, if turning on the monitor by
wireless remote control and pressing the play
button, a HDMI-CEC compatible device can also
be turned on and play.
Connected HDMI-CEC compatible devices
obtain the monitor's power status, such as if the
monitor is in standby mode or on.
This function obtains the information for a
connected HDMI-CEC compatible device (CEC
version, Physical Address). In addition, this
function copes with the "Change Language
function".
If the language for the monitor is changed, the
language for a connected HDMI-CEC compatible
device is changed to the same language, which
is selected for the monitor.
For the "Change Language function", it is
necessary that the connected HDMI-CEC
compatible device be able to cope with multi-
language.
If the monitor is set to standby using the wireless
remote control, HDMI-CEC compatible devices
also go into standby at the same time.
If the monitor goes into standby while an HDMI-
CEC compatible device is recording, the device
remains on. Please refer to the user's manual
supplied with the HDMI-CEC compatible device
for further information.
Please connect an audio equipment with ARC
function to HDMI1 (ARC) by the included ARC
supported HDMI cable.
The Volume button on the wireless remote
control can control the volume of the connected
HDMI ARC audio equipment.
While this function is active, the monitor's
internal speaker is automatically set to MUTE.
Use the + – buttons to highlight YES, then
press the SET/POINT ZOOM button to start the
search.
By selecting a device name, the HDMI-CEC
compatible device input switches to the input
you selected. After selecting the device, wireless
remote control operation functions for the
selected device.
page 26) for HDMI-CEC compatible device connection.
Explanation
English−30
Setting
INPUT-ADVANCED:
INPUT SIGNAL SETTINGS CEC
DisplayPort POWER CONTROL LINK
HDMI
AUDIO RECEIVER
MULTI PICTURE
ENABLE
SIGNAL FORMAT
SEARCH DEVICE
CEC
PRESS
BACKGROUND COLOR
VIDEO OUT SETTINGS
RESET
To set the CEC options, please follow the steps
below.
Press the Menu button to open the OSD.
Using the  + – buttons, navigate to [INPUT],
to [ADVANCED], to [CEC], then press SET/
POINT ZOOM button to enter the CEC options.
Use the + – buttons to highlight [MODE1] or
[MODE2], then press SET/POINT ZOOM button
to enable CEC.
Use the  buttons to select [POWER
CONTROL LINK].
Use the + – buttons to highlight [YES], then
press the SET/POINT ZOOM button to select
[YES].
Use the  buttons to select [AUDIO
RECEIVER] then press SET/POINT ZOOM.
Use the + – buttons to highlight [ENABLE], then
press the SET/POINT ZOOM button to select
[ENABLE].
Use the  buttons to select [SEARCH
DEVICE].
This function searches for CEC compatible
devices on the monitor's HDMI connections. If
a HDMI-CEC compatible device is successfully
detected, this function obtains the device's
name. The device's name and the HDMI
connection it is found on are displayed.
OFF
YES / NO
/ DISABLE
TO EXECUTE
