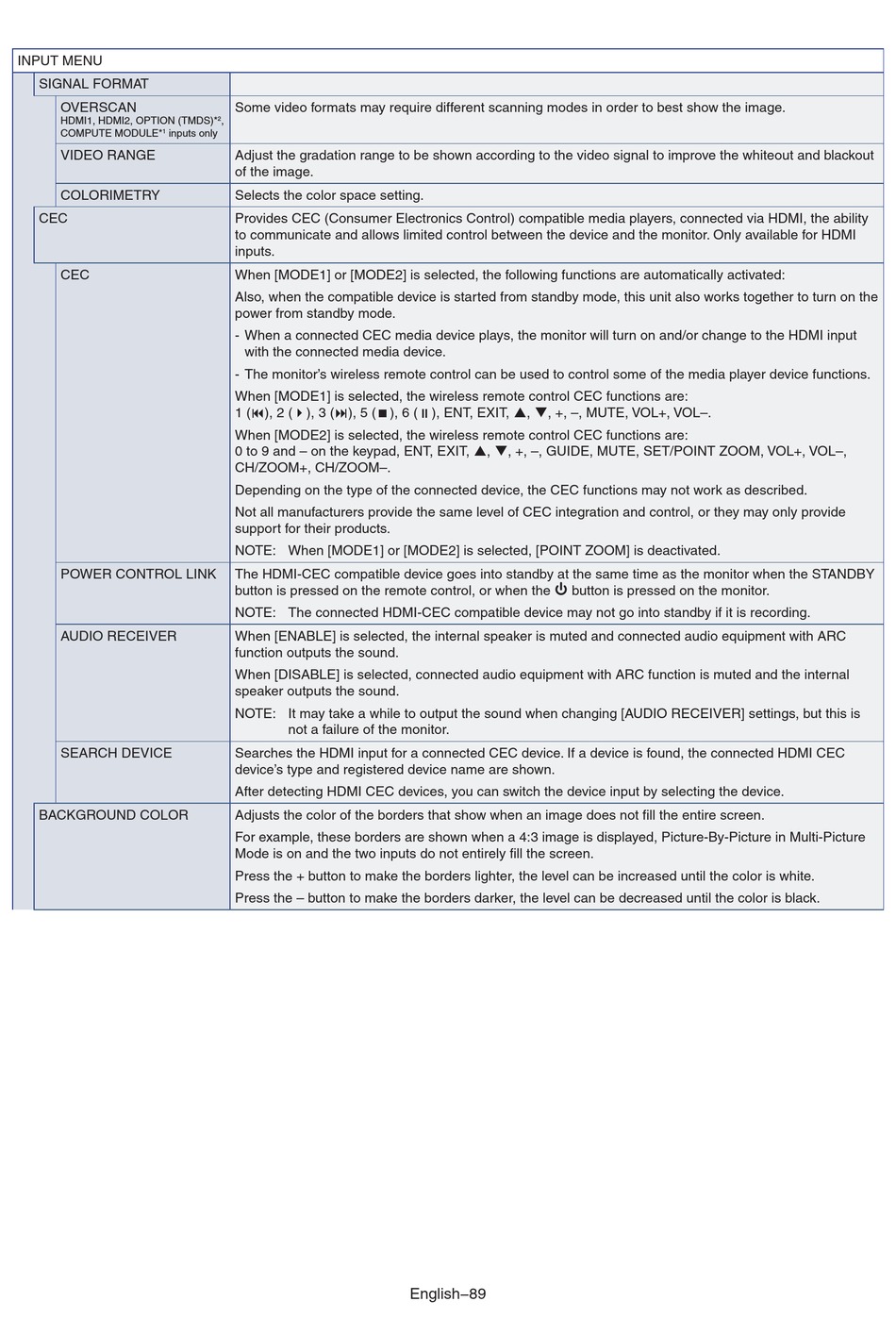

NEC MultiSync P495 User Manual page 93

INPUT MENU
SIGNAL FORMAT
OVERSCAN
HDMI1, HDMI2, OPTION (TMDS)*
COMPUTE MODULE* 1 inputs only
VIDEO RANGE
COLORIMETRY
CEC
CEC
POWER CONTROL LINK
AUDIO RECEIVER
SEARCH DEVICE
BACKGROUND COLOR
Some video formats may require different scanning modes in order to best show the image.
2 ,
Adjust the gradation range to be shown according to the video signal to improve the whiteout and blackout
of the image.
Selects the color space setting.
Provides CEC (Consumer Electronics Control) compatible media players, connected via HDMI, the ability
to communicate and allows limited control between the device and the monitor. Only available for HDMI
inputs.
When [MODE1] or [MODE2] is selected, the following functions are automatically activated:
Also, when the compatible device is started from standby mode, this unit also works together to turn on the
power from standby mode.
- When a connected CEC media device plays, the monitor will turn on and/or change to the HDMI input
with the connected media device.
- The monitor's wireless remote control can be used to control some of the media player device functions.
When [MODE1] is selected, the wireless remote control CEC functions are:
1 (9), 2 (4), 3 (:), 5 (<), 6 (;), ENT, EXIT, , , +, –, MUTE, VOL+, VOL–.
When [MODE2] is selected, the wireless remote control CEC functions are:
0 to 9 and – on the keypad, ENT, EXIT, , , +, –, GUIDE, MUTE, SET/POINT ZOOM, VOL+, VOL–,
CH/ZOOM+, CH/ZOOM–.
Depending on the type of the connected device, the CEC functions may not work as described.
Not all manufacturers provide the same level of CEC integration and control, or they may only provide
support for their products.


NOTE: When [MODE1] or [MODE2] is selected, [POINT ZOOM] is deactivated.
The HDMI-CEC compatible device goes into standby at the same time as the monitor when the STANDBY
button is pressed on the remote control, or when the ⏻ button is pressed on the monitor.


NOTE: The connected HDMI-CEC compatible device may not go into standby if it is recording.
When [ENABLE] is selected, the internal speaker is muted and connected audio equipment with ARC
function outputs the sound.
When [DISABLE] is selected, connected audio equipment with ARC function is muted and the internal
speaker outputs the sound.


NOTE: It may take a while to output the sound when changing [AUDIO RECEIVER] settings, but this is
not a failure of the monitor.
Searches the HDMI input for a connected CEC device. If a device is found, the connected HDMI CEC
device's type and registered device name are shown.
After detecting HDMI CEC devices, you can switch the device input by selecting the device.
Adjusts the color of the borders that show when an image does not fill the entire screen.
For example, these borders are shown when a 4:3 image is displayed, Picture-By-Picture in Multi-Picture
Mode is on and the two inputs do not entirely fill the screen.
Press the + button to make the borders lighter, the level can be increased until the color is white.
Press the – button to make the borders darker, the level can be decreased until the color is black.
English−89
