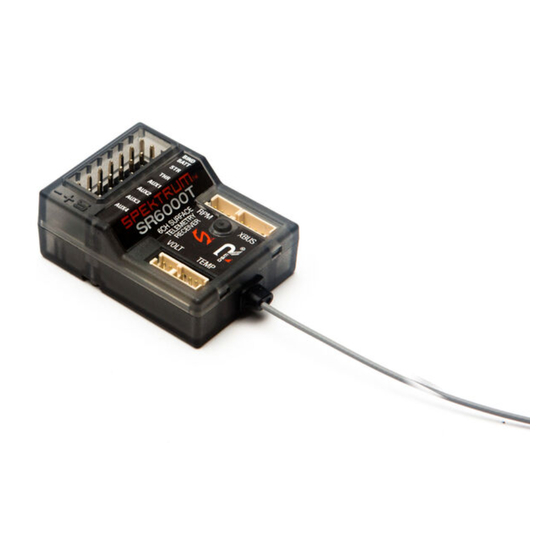

- Page 1 SR4000T/SR6000T Telemetry Receiver Instruction Manual Telemetrie Empfänger Récepteur avec télémétrie intégrée Ricevente con Telemetria...
-
Page 2: Warranty Registration
NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit horizonhobby.com and click on the support tab for this product. Meaning of Special Language The following terms are used throughout the product literature to indicate... -
Page 3: Specifications
Water-Resistant Component Your new Horizon Hobby SR4000T/SR6000T Telemetry Receiver has a special water-resistant coating on the electronics to ensure reliable performance in higher than average moisture conditions. This conformal coating can offer mild protection from light drops of water. •... - Page 4 Receiver Installation and Setup Install the Receiver in your vehicle using double-sided foam servo tape. Foam servo tape will hold the receiver in place and help isolate it from vibrations. Mount the antenna up and away from the vehicle. The higher up the antenna is, the better signal it will receive.
-
Page 5: Aux Channels
Binding Receiver to Transmitter In order to operate, the receiver must be bound to the transmitter. Binding is the process of programming the receiver to recognize the GUID (Globally Unique Identifier) code of a single specific transmitter. When a receiver is bound to a transmitter/model memory, the receiver will only respond to that specific transmitter/model memory. -
Page 6: Voltage Sensor
Telemetry The Spektrum SR4000T/SR6000T Telemetry Receiver features 4 integrated telemetry ports that are compatible with Spektrum telemetry capable transmitters. The Telemetry ports include: • Voltage • Temperature • • XBus Port (Connect additonal telemetry sensors) The Spektrum SR4000T/SR6000T Telemetry Receiver has the Voltage Sensor and the Temperature Sensors included in the box. - Page 7 2.4GHz Troubleshooting Guide Problem Possible Cause Solution The system will Your transmitter and re- Move transmitter 8 to 12 not connect ceiver are too close together feet away from receiver You are near metal objects Move to an area with less metal The receiver is bound to a Make sure the correct model...
-
Page 8: Year Limited Warranty
1-Year Limited Warranty What this Warranty Covers - Horizon Hobby, LLC, (Horizon) warrants to the original purchaser that the product purchased (the “Product”) will be free from defects in materials and workmanship for a period of 1 year from the date of purchase. ... -
Page 9: Warranty Services
These terms are governed by Illinois law (without regard to conflict of law principals). This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Horizon reserves the right to change or modify this warranty at any time without notice. - Page 10 Essex, CM18 7NS Limited +44 (0) 1279 641 097 United Kingdom Horizon Technischer Christian-Junge- service@horizonhobby.de Service Straße 1 Germany Sales: Horizon Hobby 25337 Elmshorn, +49 (0) 4121 2655 100 GmbH Germany 11 Rue Georges infofrance@horizonhobby.com Service/Parts/Sales: France Charpak Horizon Hobby SAS...
-
Page 11: Compliance Information For The European Union
(2) this device must accept any interference, Including interference that may cause undesired operation of the device. Compliance Information for the European Union Horizon Hobby, LLC hereby declares that this product is in compliance with the essential requirements and other relevant provisions of the RED Directive.
