External Power LED
COMMON
Connector
Manual Switching
LED
DIP switch settings (located on the side of
the switch):
SW1: Mode Switch
OFF 4 PCs share 1 device
ON 1 PC selects between 4 devices
SW2 and SW3: TimeOut Setting
TimeOut is the amount of time the switch remains locked on a PC port after
data transfer. Use a longer TimeOut when connecting to scanners, mass
storage devices and for large print jobs.
SW2
ON
ON
OFF
OFF
4/28/00 1:06 PM

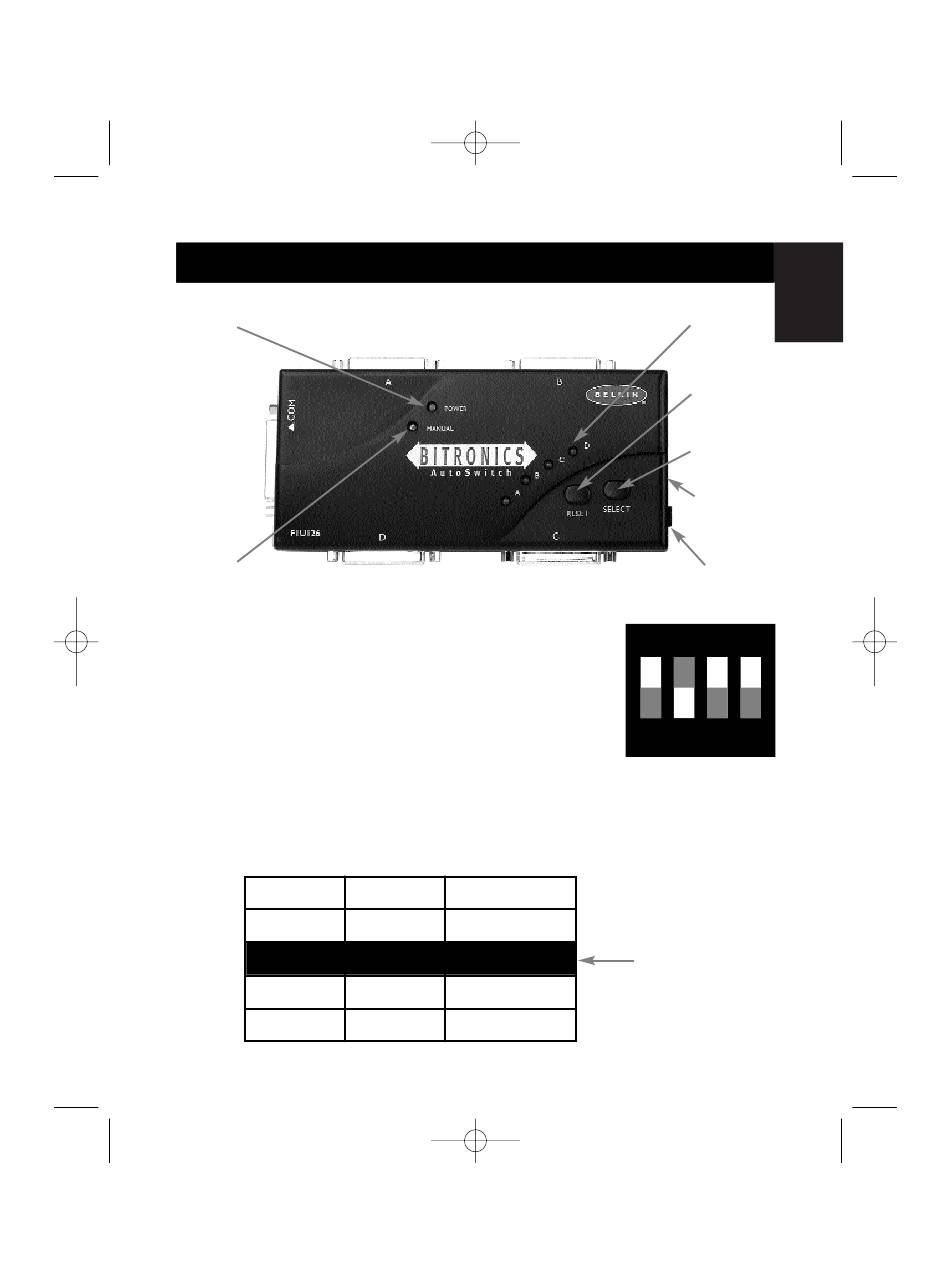

Product Detail

Port A Connector Port B Connector
Port D Connector
Port C Connector
ON is DOWN. SW4 is not used.
SW3 TimeOut
ON 5 seconds
OFF 10 seconds
ON 20 seconds
OFF 40 seconds
3
Page 3
Port activity LEDs
RESET
button
SELECT
button
DIP switches
(side)
DC power
jack (side)
ON DIP
1 2 3 4
Recommended
