Summary of Contents for Belkin F1U126-KIT

  • Page 2 Bitronics AutoSwitch Kit User Manual Guide de l’utilisateur du kit de l’autocommutateur Bitronics Bitronics AutoSwitch Set Benutzerhandbuch Handleiding Bitronics AutoSwitch Kit Manuale utente Kit AutoSwitch Bitronics F1U126-KIT P73121...
  • Page 4 Table of Contents English ......... 1 Français .
  • Page 6 ® User manual Other Parts Needed • IEEE 1284 printer cable, Belkin Part# F2A046-XX. You will need this cable to connect a printer to the AutoSwitch. Your current printer cables may work, but IEEE-compliant cables are recommended. • IEEE 1284 device cable, Belkin Part# F2A046-XX. You will need this cable to connect a computer to the AutoSwitch.
  • Page 7: Technical Specifications

    Technical Specifications Compatible Standards: IEEE 1284 Parallel Port Communication Standard Electrical: Input Voltage: Max Input Current: Max Power Consumption: Max Heat Dissipation: Environmental: Storage Temperature: Working Temperature: Relative Humidity: Unit Dimensions: Width: Height: Depth: Weight: 9VDC 600mA 5.4W 0.31 BTU/min -10ºC to 50ºC 0ºC to 40ºC 0 to 95%, Non-condensing...
  • Page 8: Product Detail

    1 PC selects between 4 devices SW2 and SW3: TimeOut Setting TimeOut is the amount of time the switch remains locked on a PC port after data transfer. Use a longer TimeOut when connecting to scanners, mass storage devices and for large print jobs.
  • Page 9: Hardware Installation

    IEEE DB25 M/M cable, such as the one included in the package. For connecting a printer to the AutoSwitch, use an IEEE printer cable, such as Belkin Part# F2A046-XX, where XX is the length in feet. One PC using four devices...
  • Page 10 Please consult your computer manufacturer’s manual, tech support, or website for information regarding how to do this. Please do not call Belkin Tech Support regarding this because each computer’s BIOS setup routine is different.

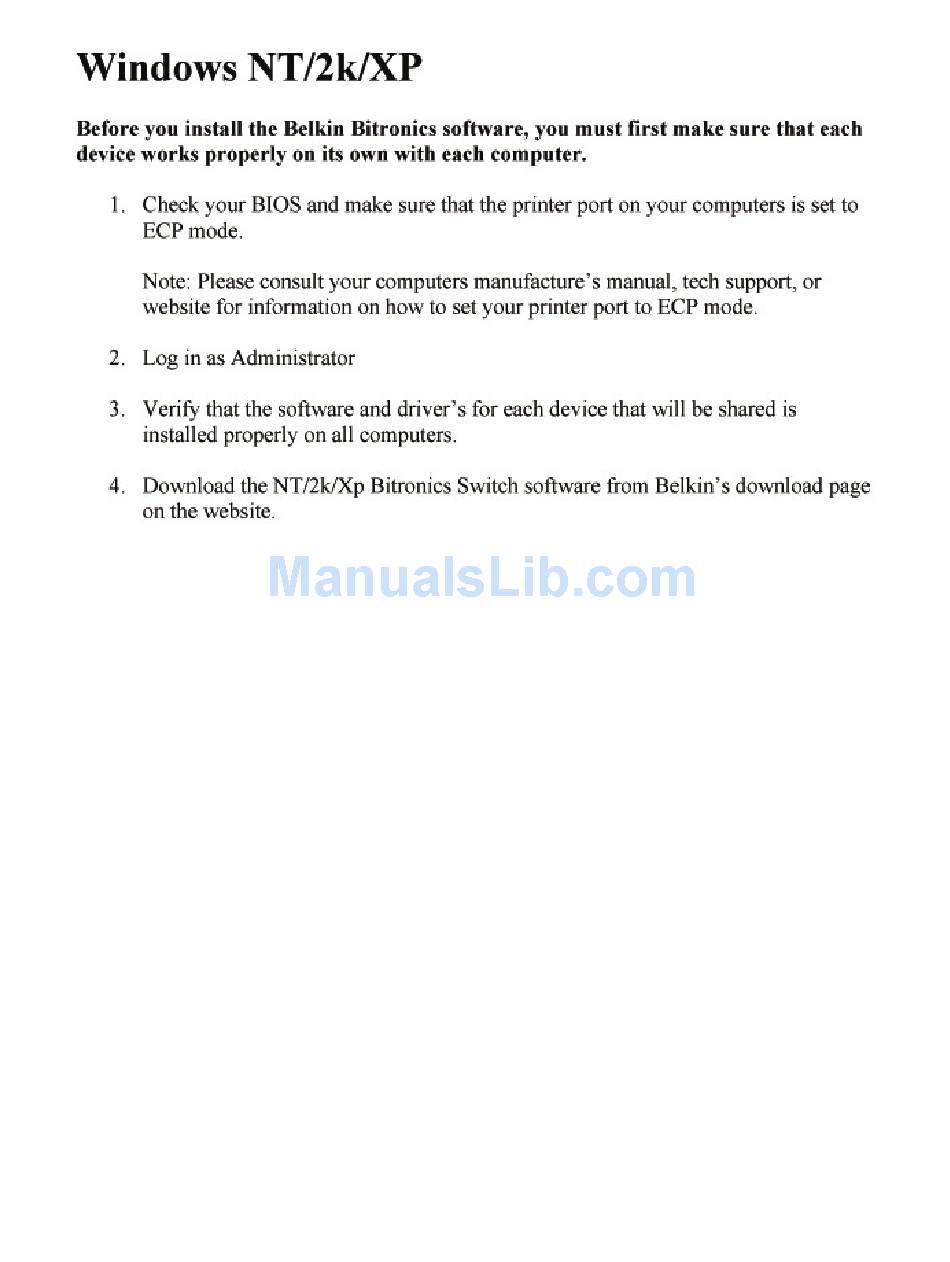

  • Page 11: Software Installation

    There are two driver disks included with the package. Make sure you put in the correct disk in your computer depending on your operating system. When the setup program asks you what model switch you have, make sure you select F1U126.
  • Page 12: File Transfer Function

    The Bitronics Software will pop-up: • Click on the pull-down menu on the upper right side if the Bitronics switch is connected to LPT2 or LPT3. The default and most common setting is LPT1. • Click on “Multiple PCs sharing 1 Device”.
  • Page 13 Windows 95 / 98 and NT ® ® B. Windows ® 3.x: • Click on “File Transfer”. C. MS-DOS: • At the command prompt, enter “SWPORT f”. You will see the LED of the port you are connected to on the Bitronics AutoSwitch turn GREEN.
  • Page 14 Through the use of the Bitronics software, the AutoSwitch receives commands from the computer, instructing it to switch to a particular port. Double-click on the Bitronics icon in the system tray:...
  • Page 15 If you are using a printer, use the printer driver used for that particular printer on that port of the Bitronics switch. If it does not show up in this menu, that means the printer drivers have not been installed. (In that case, reinstall the printer drivers and repeat this step after rebooting your computer.) If you have more than one printer installed, make sure...
  • Page 16 Windows ® In this example, we have a Zip Device” for Port A. And in Port B, we have the Epson printer installed, so we chose that driver in the Device Type for Port B. “Display Name” is a free text field. You can enter any description here for the attached devices.
  • Page 17 17. • Click on “Start”, select “Settings”, and double-click on “Printers”. • Right-click on the printer installed on the Bitronics switch, and click on “Properties”: 95 / 98 and NT ®...
  • Page 18 LPx1 – PB (autoswitch) – Select this if the printer is connected to Port B of the Bitronics switch. The same occurs for Ports C and D. In the image above, the printer is connected to Port B of the Bitronics switch.
  • Page 19 Windows ® 95 / 98 and NT ® (continued) Click on “Spool Settings” and then click on “Start printing after last page is spooled”. If NOT grayed out, click on “Disable bi-directional support for this printer”. Otherwise, ignore. Click “OK” in the “Spool Settings” window. Click “OK” again in the main properties window.
  • Page 20: Windows Nt

    PORTS tab. To find the correct ports to be used with the Bitronics switch, you must scroll down the list until the LPT1: PB (autoswitch) comes up. Put a checkmark on the port that connects to the printer.
  • Page 21 Windows NT ® (continued) To set the spool settings correctly, click on the “Scheduling” tab. Make sure “Start printing after last page is spooled” is selected. Also, set “Priority” to “Highest”: Click “OK” when finished.
  • Page 22: How Does It Work

    In the example below, the Epson Printer is connected to Port B, as described in the “Where:” line. When printing, the Bitronics software tells the Bitronics switch to switch to Port B first, then allows the print job to go through the switch, out to Port B, and to the Epson printer.
  • Page 23 Here, this printer is ™ connected to Port A of the AutoSwitch. When the print job is sent, the Bitronics software tells the Bitronics switch to switch to Port A, then lets the print job go through to the LaserJet ™...
  • Page 24 When dealing with a mass storage device (devices that add a drive letter to your system like E:) such as a Zip tray must be configured so that the Bitronics switch is defaulted to the Port attached to the Zip ®...
  • Page 25 Then, when you print to the InkJet printer on Port B (as shown above), the Bitronics switch will switch to Port B temporarily to send the print job, then switch back to Port A to keep communication with the Zip Drive on Port A.
  • Page 26 InkJet printer, the software will again automatically switch to the port that has the printer and send the print job. However, the switch will remain connected to the printer - it will not change back to the Scanner, unlike the mass storage device mentioned previously.
  • Page 27 Bitronics switch to connect to another device. Just be sure that the printer driver has its Port set to the correct device port. For...
  • Page 28 Do this on all the computers connected to the switch. If your computer is not listed here, please check their website, or call their technical support. Please do not call Belkin Tech Support regarding this particular issue. ACER While the computer is booting, follow the directions on the screen: To enter “Setup”, press CTRL+ALT+ESC.
  • Page 29: Hewlett-Packard

    Appendix Select “Advanced” from the menu bar. Select “Integrated Peripherals”. Following the legend directions, select “ECP” as the parallel port mode. Follow the legend directions to save the setting and exit “Setup”. Hewlett-Packard Steps for HP Pavillion PC Models At the HP Blue Screen, press F1 to enter “Setup”. Select “Advanced”...
  • Page 30 Appendix While the computer is booting, follow the directions on the screen: Press F1 to enter “Setup”. Follow the legend on how to scroll through the “Setup” options until you reach “Input/Output Ports”. Choose the mode with the highest performance (e.g. “ECP”). Follow the legend directions to save and exit “Setup”.
  • Page 31 Appendix Configuration” on some models). Choose the parallel port mode with the highest performance (e.g. “ECP”). Follow the legend directions to save the setting and exit “Setup”. Steps for the Force 443 CD, AMBIOS BIOS v 1.00.12.1313oe While the computer is booting, follow the directions on the screen: Press F1 to Enter “Setup”.
  • Page 32 Appendix Select either “ECP”. Press ENTER. Scroll to “Parallel Port” and press ENTER. Select “Enabled” and press ENTER. 10. Press F10 to save these changes, confirm and exit. The system will restart into Windows ® Sony PCG-705/707/717/719 Notebooks: In Windows 95, open the “Start Menu”.
  • Page 33: Fcc Statement

    Belkin Components warrants this product against defects in materials and workmanship for one year. If a defect is discovered, Belkin will, at its option, repair or replace the product at no charge provided it is returned during the warranty period, with transportation charges prepaid, to the authorized Belkin dealer from whom you purchased the product.
  • Page 34: Caractéristiques

    Les câbles actuels de votre imprimante fonctionneront peut-être mais nous vous conseillons d’utiliser des câbles compatibles IEEE. • Câble de périphérique IEEE 1284, pièce Belkin n° F2A046fXX. Vous aurez besoin de ce câble pour raccorder un ordinateur à l’autocommutateur. REMARQUE : «...
  • Page 35: Spécifications Techniques

    Spécifications techniques Normes compatibles Norme de communication port parallèle IEEE 1284-1994 Électrique : Tension électrique à l’entrée : Courant maximum à l’entrée : Consommation maximale de courant : Dissipation maximale de chaleur : Environmental : Température de stockage : Température de travail : Humidité...
  • Page 36 Détails relatifs au produit DEL d’alimentation externe Connecteur du port A Connecteur COMMUN DEL de Connecteur commutation du port C manuelle Paramètres des interrupteurs DIP (situés sur le côté du commutateur) : SW1 : Interrupteur du mode 2 PC partagent 1 périphérique 1 PC choisit entre 2 périphériques SW2 and SW3 : Fixation du délai Le délai (TimeOut) correspond au laps de temps durant lequel le commutateur...
  • Page 37: Installation Du Matériel

    DB25 mâle/mâle IEEE tel que celui qui est inclus dans l’emballage. Pour raccorder une imprimante à l’autocommutateur, utilisez un câble d’imprimante IEEE tel que le câble Belkin F2A046fXX, où XX indique la longueur en pieds. Il s’agit du mode « 1-4 »...
  • Page 38 Veuillez consulter le manuel, le support technique ou le site web du fabricant de votre ordinateur pour savoir comment procéder. Nous vous remercions de ne pas appeler le support technique de Belkin à ce sujet car le programme d’initialisation BIOS diffère selon les ordinateurs.
  • Page 39: Installation Du Logiciel

    Installation du logiciel Cet emballage contient deux disquettes de pilotes. Veillez à insérer dans votre ordinateur la disquette convenant à votre système d’exploitation. Lorsque le programme d’installation vous demande quel modèle de commutateur vous possédez, sélectionnez bien F1U125f. • Pour Windows ®...
  • Page 40 Fonction de transfert de fichiers Lorsque deux PC sont reliés à l’autocommutateur, ils peuvent échanger des fichiers grâce à n’importe quel programme de transfert de fichiers tel que Windows Direct Cable Connection, Interlink ® REMARQUE : Le port A ne peut transférer de fichiers qu’au port B et le port C qu’au port D.
  • Page 41 Windows 95 / 98 and NT ® ® B. Windows ® 3.x : • Cliquez sur « File Transfer ». C. MS-DOS: • A l’invite, tapez « SWPORT f ». Le voyant DEL du port auquel vous êtes raccordé (sur l’autocommutateur Bitronics) deviendra VERT.
  • Page 42 Windows Installation du logiciel Bitronics pour utiliser l’autocommutateur en raccordant 1 PC à 4 périphériques Vérifiez avant tout que les pilotes des quatre périphériques sont déjà installés sur l’ordinateur et que chaque périphérique a été testé et fonctionne indépendamment. Lorsqu’un ordinateur commute entre quatre périphériques, l’autocommutateur communique uniquement avec un périphérique à...
  • Page 43 Windows Cliquez sur le bouton « Settings » et configurez le port comme indiqué ci-dessous : « Device Type » (type de périphérique) fait apparaître un menu déroulant précisant les types d’imprimantes installées sur votre ordinateur ainsi que d’autres types de périphériques parallèles possibles. Vous devez ici sélectionner le type de périphérique approprié...
  • Page 44 Windows Dans cet exemple, comme nous avons un lecteur Zip choisissons « Mass Storage Device » pour le port A. L’imprimante Epson est installée sur le port B et nous avons donc choisi ce pilote dans le type de périphérique correspondant au port B. Cliquez sur OK lorsque vous avez terminé.
  • Page 45 Windows Changez le port de l’imprimante en remplaçant LPT1 par AutoSwitch : (uniquement sous Windows veuillez vous référer à la page 43) ® Si l’un des quatre périphériques partagés est une imprimante, vous devez suivre la procédure qui suit afin de reconfigurer le port raccordé à l’imprimante.
  • Page 46 Windows Cliquez sur l’onglet « Details ». Dans le menu déroulant « Print to the following port : » (Imprimer vers :), sélectionnez le port auquel est reliée cette imprimante sur le commutateur Bitronics : • LPx1 – PA (autoswitch) — Sélectionnez cette option si l’imprimante est reliée au port A du commutateur Bitronics.
  • Page 47 Windows ® 95 / 98 and NT ® (suite) Cliquez sur « Spool Settings » (Paramètres du spouler) et sur « Start printing after last page is spooled » (Commencer l’impression après la dernière page). Cliquez sur « Disable bi-directional support for this printer » (Désactiver le support bidirectionnel pour cette imprimante) si cette option N’EST PAS déjà...
  • Page 48: Windows Nt

    Changez le port de l’imprimante en remplaçant LPT1 par AutoSwitch (uniquement sous Windows NT Les propriétés de l’imprimante diffèrent légèrement sous Windows NT Après avoir installé le logiciel et redémarré l’ordinateur, allez aux propriétés de l’imprimante et sélectionnez l’onglet « Ports ». Pour trouver les ports appropriés qu’il convient d’utiliser avec le commutateur Bitronics, vous devez faire défiler la liste jusqu’à...
  • Page 49 Windows NT ® (suite) Pour configurer correctement les paramètres du spouleur, cliquez sur l’onglet « Scheduling ». Vérifiez que l’option « Start printing after last page is spooled » (Commencer l’impression après la dernière page) est sélectionnée. Optez pour la plus haute priorité : Cliquez sur «...
  • Page 50 Utilisation du logiciel Bitronics Exemple : Un ordinateur utilise imprimantes. quatre Le logiciel Bitronics se charge automatiquement de l’impression en envoyant vos travaux d’impression au port approprié du commutateur Bitronics, et ce en fonction des paramètres que vous avez définis dans la fenêtre des propriétés de l’imprimante et des paramètres expliqués dans les 6 pages précédentes.
  • Page 51 Utilisation du logiciel Bitronics (suite) Ensuite, si vous voulez imprimer sur la deuxième imprimante (une imprimante LaserJet ™ par exemple), il vous suffit de sélectionner cette imprimante dans la boîte de dialogue « Print » relative à l’impression. Cliquez sur « OK » et le travail d’impression est automatiquement envoyé...
  • Page 52 Utilisation du logiciel Bitronics EXEMPLE : Partage d’une imprimante et d’un lecteur Zip autre unité de stockage à grande capacité) Lorsqu’il s’agit d’une unité de stockage à grande capacité (périphériques ajoutant une lettre de lecteur à votre système, E: par exemple) comme un lecteur Zip ®...
  • Page 53 Utilisation du logiciel Bitronics Cliquez sur le port auquel est raccordé le « Mass Storage Device ». Dans ce cas, il s’agit d’un lecteur Zip pouvez le constater, le « Display Name » indiqué plus haut apparaît au dessous tel que vous l’aviez saisi. Cliquez sur « OK ». Le commutateur Bitronics fera en sorte que votre ordinateur reste toujours connecté...
  • Page 54 Utilisation du logiciel Bitronics Utilisation de tout autre périphérique parallèle (ni imp- rimante ni unité de stockage à grande capacité) avec une imprimante. Lorsque vous utilisez d’autres périphériques sur port parallèle, ils sont considérés comme les « Scanners » dans les paramètres (cf. p.11). Il s’agit par exemple des scanners, des caméras sur port parallèle et des dérouleurs de bande.
  • Page 55 « OUI » à l’invite. • Pour réinsérer l’icône sur l’écran système, cliquez sur « Start » (Démarrer), « Programs » (Programmes), sélectionnez « Belkin Bitronics Switch » (Commutateur Bitronics de Belkin) et « AutoSwitch-Multi PCs ». ASTUCE POUR USAGER EXPERIMENTE : Si vous utilisez des périphériques avec des ports pass-through (comme les...
  • Page 56 Nous vous remercions de ne pas appeler le support technique de Belkin à ce sujet. Nous vous remercions de ne pas appeler le support technique de Belkin à ce sujet.
  • Page 57: Hewlett-Packard

    Appendix l’écran : « To enter Setup, press DEL. » (Pour accéder à l’écran d’initialisation, appuyez sur DEL). (Si vous possédez un ordinateur 486, peut-être serez vous invité à appuyer sur F2). Appuyez sur ALT+P et choisissez « Parallel Mode ». Vous devriez voir apparaître la liste des modes disponibles.
  • Page 58 Appendix l’écran : « Press F2 to "Enter" Setup. » (Appuyez sur F2 pour accéder à l’écran d’initialisation). Ceci apparaît au bas de l’écran de test de matériel système d’Hewlett Packard. Utilisez les touches flèches pour sélectionner « Parallel Port Mode ». Suivez les instructions pour modifier les options.
  • Page 59 Appendix Appuyez deux fois sur ESC (Echap). Appuyez sur « Enter » (Entrée) pour enregistrer les paramètres et quitter l’écran d’initialisation. Micron Instructions générales Lors du démarrage de votre ordinateur, suivez les instructions qui s’affichent à l’écran : « Press F2 to enter Setup » (Appuyez sur F2 pour accéder à l’écran d’initialisation).
  • Page 60 Appendix Dans la barre de menu, sélectionnez « Advanced ». Utilisez la touche flèche bas pour sélectionner « Peripheral Config »et appuyez sur « Enter » (Entrée). Utilisez la touche flèche bas pour sélectionner « Parallel Port Mode » et appuyez ensuite sur «...
  • Page 61 Appendix Models PCV-200/210/220/230/240: Redémarrez votre ordinateur. Lorsqu’apparaît le premier écran Sony noir et blanc, appuyez sur F3 pour accéder à l’écran d’initialisation. Appuyez sur F1 pour accéder à l’écran BIOS. Utilisez la flèche de droite pour arriver au menu « Advanced ». Faites défiler, sélectionnez «...
  • Page 62 Appendix 1. « Normal » (Sortie uniquement) 2. « Bi-directional » (valeur par défaut) 3. « ECP » (nécessite un câble imprimante/parallèle IEEE 1284) Sélectionnez « ECP » et cliquez sur OK pour enregistrer les modifications et fermer la fenêtre. Cliquez sur «...
  • Page 63: Déclaration De Conformité Ce

    La présente garantie est caduque si le produit a été endommagé par accident, abus, usage impropre ou mauvaise application, si le produit a été modifié sans autorisation écrite de Belkin, ou si un numéro de série Belkin a été sup- primé...
  • Page 64 Vielen Dank für den Kauf des Bitronics AutoSwitch Sets von Belkin Components! Mit diesem Datenumschalter können Sie von Ihrem Desktop aus vier verschiedene parallele Geräte ansteuern oder sich ein Gerät mit vier Computern teilen. Darüber hinaus können Sie unter Windows Windows NT ®...
  • Page 65: Technische Daten

    Kompatible Standards IEEE 1284-Kommunikationsstandard für Parallelschnittstellen Elektrische Daten Eingangsspannung: Max. Eingangsstrom: Max. Leistungsaufnahme: Max. Wärmeableitung: Umgebungsbedingungen Lagertemperatur: Betriebstemperatur: Relative Luftfeuchtigkeit: Abmessungen Breite: Höhe: Tiefe: Gewicht: Technische Daten 9 VDC 600 mA 5,4 W 0,31 BTU/Min. -10ºC bis 50ºC 0ºC bis 40ºC 0 bis 95%, nicht-kondensierend 18,42 cm 10,8 cm...
  • Page 66 Externe Netzanzeige Anschluß für Port A Gemeinsamer Anschluß (COMMON) LED für manuelle Anschluß für Umschaltung Port C Einstellung der DIP-Schalter (an der Seite des Datenumschalters): SW1: Modusumschalter 2 PCs teilen sich ein Gerät 1 PC wählt zwischen 2 Geräten EIN (ON) ist OBEN. SW4 wird nicht verwendet. SW2 und SW3: TimeOut-Einstellung Die TimeOut-Einstellung gibt vor, wie lange der Datenumschalter nach der Datenübertragung auf einem PC-Anschluß...
  • Page 67 Verbindung eines Computers mit dem AutoSwitch z.B. das in der Packung enthaltene IEEE DB25-Kabel (Stecker auf Stecker). Für den Anschluß eines Druckers an den AutoSwitch verwenden Sie ein IEEE-Druckerkabel (z.B. Belkin Artikel-Nr. F2A046gXX, wobei „XX" die Kabellänge in Fuß angibt).
  • Page 68 Ihrem PC oder auf der Website des Computerherstellers nach, oder wenden Sie sich an den Kundendienst des Herstellers. Rufen Sie wegen dieser Frage bitte nicht den Technischen Support von Belkin an, denn die BIOS Setup Routine sieht bei jedem Computer anders aus. Anleitungen zu einigen Computertypen finden Sie im Anhang zu diesem Handbuch.
  • Page 69 Software-Installation In der Packung befinden sich zwei Treiberdisketten. Stellen Sie sicher, daß Sie die richtige Diskette für Ihr Betriebssystem in Ihren Computer einlegen. Wenn das „Setup"-Programm Sie nach dem Modell des Datenumschalters fragt, wählen Sie „F1U125g". • Bei Windows 95/98/NT (Diskette P72735) klicken Sie auf „START" ®...
  • Page 70 File Transfer-Funktion Wenn zwei PCs mit dem AutoSwitch verbunden sind, können sie Dateien über Dateitransferprogramme wie Windows Interlink oder LapLink austauschen. ™ ® HINWEIS: Port A kann nur Dateien an Port B und Port C nur an Port D übertragen. Wenn der FileTransfer-Modus zwischen zwei Computern aktiviert ist (Beispiel: von A nach B), können die Computer C und D nach wie vor auf das gemeinsam verwendete Gerät zugreifen.
  • Page 71 Windows 95/98/NT ® B. Windows ® 3.x: • Klicken Sie auf „File Transfer". C. MS-DOS: • Geben Sie bei der Eingabeaufforderung „SWPORT f" ein. Die LED des entsprechenden Computeranschlusses am Bitronics AutoSwitch leuchtet daraufhin GRÜN. Diese LED zeigt an, daß der Computer, an dem Sie arbeiten, für den File Transfer-Modus eingestellt ist.
  • Page 72 Windows Konfigurieren der Bitronics Software für den 1:4 Modus Vor Installation der Bitronics Software ist sicherzustellen, daß die Treiber der beiden Geräte bereits auf dem Computer installiert sind und jedes Gerät ordnungsgemäß arbeitet. Wenn ein Computer vier Geräte abwechselnd nutzt, kommuniziert der AutoSwitch immer nur mit jeweils einem Gerät und erhält die Information, mit welchem Gerät eine Verbindung hergestellt werden soll, durch den Benutzer.
  • Page 73 Windows Klicken Sie auf die Schaltfläche „SETTINGS" (Einstellungen), und konfigurieren Sie die Ports wie nachstehend gezeigt: Für DEVICE TYPE erscheint ein Pulldown-Menü, in dem die auf Ihrem Computer installierten Druckertypen und eventuell auch weitere parallele Geräte aufgeführt sind. Wählen Sie hier den richtigen Gerätetyp aus, der mit diesem Anschluß verbunden ist.
  • Page 74 Windows In diesem Beispiel befindet sich ein Zip daher wird MASS STORAGE DEVICE (Massenspeichergerät) für Port A ausgewählt. An Port B wurde ein Epson-Drucker installiert; daher wird als Device Type (Gerätetyp) für Port B der betreffende Treiber ausgewählt. Klicken Sie auf OK, wenn Sie fertig sind. DISPLAY NAME ist ein Feld für wahlfreien Text.
  • Page 75 Windows Druckeranschluß von LPT1 in AutoSwitch Port ändern (nur Windows 95/98, für Windows ® Ist eines der vier gemeinsam genutzten Geräte ein Drucker, folgen Sie den nachstehenden Anweisungen, um den für diesen Drucker eingestellten Port umzukonfigurieren. Ist keines der Geräte ein Drucker, können Sie diesen Abschnitt überspringen und mit Seite 76 fortfahren.
  • Page 76 Klicken Sie auf die Registerkarte DETAILS. Wählen Sie im Pulldown-Menü „Anschluß für die Druckerausgabe" den Anschluß, mit dem dieser Drucker am Bitronics-Datenumschalter verbunden ist: LPx1 – PA (auto switch) ¡ Wählen Sie diesen Anschluß aus, wenn der • Drucker an Port A des Bitronics-Datenumschalters installiert ist.
  • Page 77 Windows ® 95/98/NT (Fortsetzung) Klicken Sie auf „Bidirektionale Unterstützung deaktivieren", falls diese Option NICHT ausgeblendet ist; andernfalls brauchen Sie diesen Punkt nicht zu beachten. Klicken Sie im Fenster „Spool-Einstellungen" auf OK und dann im Fenster „Eigenschaften" noch einmal auf OK. Weiter mit Seite 76.
  • Page 78: Windows Nt

    Druckeranschluß von LPT1 in AutoSwitch Port ändern (nur Windows NT): ® Bei den Druckereigenschaften unter Windows Unterschiede. Rufen Sie nach Installation der Software und Neustart des Computers die Druckereigenschaften auf, und klicken Sie auf die Registerkarte „Anschlüsse" (Ports). Um die Anschlüsse zu finden, die in Verbindung mit dem Bitronics-Datenumschalter zu verwenden sind, müssen Sie in der Liste nach unten rollen, bis „LPx1: PB (autoswitch)"...
  • Page 79 Windows NT ® (Fortsetzung) Zur Festlegung der Spool-Eigenschaften klicken Sie auf die Registerkarte „Zeitplanung der Druckaufträge" (SCHEDULING). Stellen Sie sicher, daß „Drucken beginnen, nachdem letzte Seite gespoolt wurde" ausgewählt ist. Außerdem muß die höchste Priorität eingestellt sein: Klicken Sie auf OK, wenn Sie fertig sind.
  • Page 80: Funktionsweise

    Verwendung der Bitronics Software Beispiel: Gemeinsame Nutzung von zwei Druckern durch einen Computer Die Bitronics Software wickelt Druckaufgaben automatisch ab, indem Druckaufträge an den Port des Bitronics-Datenumschalters geleitet werden, den Sie unter den Eigenschaften des Druckers und in den Einstellungen in den Schritten auf den letzten 6 Seiten festgelegt haben.
  • Page 81 Verwendung der Bitronics Software (Fortsetzung) Wenn Sie anschließend den zweiten Drucker verwenden möchten, z.B. einen LaserJet ™ , so müssen Sie diesen nur im Dialogfeld DRUCKEN auswählen und auf OK klicken. Der Druckauftrag wird dann automatisch zum LaserJet ™ Drucker an Port A des Bitronics-Datenumschalters gesendet. Sie müssen also nur den Drucker auswählen, und die Software erledigt den Rest.
  • Page 82 Verwendung der Bitronics Software BEISPIEL: Gemeinsame Nutzung eines Druckers und eines Zip Laufwerks (oder anderen Massenspeichergeräts) Massenspeichergeräte sind Laufwerke, die dem System einen Laufwerkbuchstaben wie „E" hinzufügen. Beim Anschluß von Massenspeichergeräten wie z.B. einem Zip Software über die Task-Leiste so konfiguriert werden, daß der Bitronics- Datenumschalter standardmäßig auf dem Port steht, an dem das Zip Laufwerk angeschlossen ist.
  • Page 83 Verwendung der Bitronics Software Klicken Sie auf den Port, an dem das Massenspeichergerät angeschlossen ist. In diesem Fall befindet sich ein Zip Port A. Wie Sie sehen, erscheint als Name die oben als „Display Name" eingegebene Bezeichnung. Klicken Sie auf OK. Der Bitronics-Datenumschalter hält nun stets die Verbindung zwischen Ihrem PC und dem Zip ®...
  • Page 84 Verwendung der Bitronics Software Verwendung eines anderen parallelen Geräts (weder Drucker noch Massenspeichergerät) in Verbindung mit einem Drucker Andere parallele Geräte werden unter SETTINGS (siehe Seite 11) als SCANNERS (Scanner) eingestellt (dies können neben Scannern z.B. auch parallele Kameras oder Bandlaufwerke sein). Wenn Sie auf ein Gerät dieser Art zugreifen möchten, klicken Sie einmal auf das Bitronics-Symbol auf der Task-Leiste und wählen dann das gewünschte Gerät aus.
  • Page 85 „Mass Storage Device" zu setzen und Port B auf „Scanner". Dann ist unter Eigenschaften/Details (Drucker) als „Anschluß für die Druckausgabe" für den ersten Drucker „LPx1- PA (auto switch)" und für den zweiten Drucker „LPx1- PB (auto switch)" einzustellen. Im allgemeinen können an die Durchleitungsports nur Drucker angeschlossen werden.
  • Page 86 Sie bitte auf der Website des Herstellers nach oder wenden Sie sich an dessen Technischen Support. Bitte rufen Sie wegen dieser speziellen Frage nicht den Technischen Support von Belkin an. ACER Während der Computer hochfährt, erscheint am Bildschirm die Aufforderung „To enter Setup, press CTRL+ALT+ESC".
  • Page 87: Hewlett-Packard

    Anhang Drücken Sie ENTER (Eingabetaste), um das Fenster mit den BIOS-Einstellungen zu schließen. Dell Während der Computer hochfährt, erscheint am Bildschirm die Aufforderung „To enter Setup, press DEL" (bei einem 486-Prozessor können Sie auch zum Drücken von F2 aufgefordert werden). Drücken Sie die angegebene Taste. Drücken Sie ALT+P, und wählen Sie „Parallel Mode"...
  • Page 88 Anhang HP Vectra 500 PCs Während der Computer hochfährt, erscheint unten im Bild „Hewlett Packard System Hardware Test" die Aufforderung „Press F2 to Enter Setup". Drücken Sie F2. Markieren Sie mit Hilfe der Pfeiltasten „Parallel Port Mode". Folgen Sie den Anleitungen zur Änderung der Optionen. Stellen Sie den leistungsstärksten Modus für den Port ein (d.h.
  • Page 89 Anhang Micron Allgemeine Schritte Während der Computer hochfährt, erscheint am Bildschirm die Aufforderung „Press F2 to enter Setup". Drücken Sie F2. Wählen Sie „Advanced" aus der Menüleiste aus. Wählen Sie gemäß den vorgegebenen Anleitungen „Integrated Peripherals" aus. Markieren Sie mit Hilfe der Pfeil-nach-unten-Taste „LPT Mode". Wählen Sie den leistungsstärksten Parallelport-Modus aus (d.h.
  • Page 90 Anhang Sony PCV-70/90/100/120: Starten Sie den Computer neu. Drücken Sie auf der ersten schwarzweißen Sony-Bildschirmanzeige F3, um die Start-Bildschirmanzeige („Boot Screen") aufzurufen. Drücken Sie F1, um das BIOS Setup aufzurufen. Gehen Sie mit der Pfeil-nach-rechts-Taste zum Menü „Advanced". Rollen Sie nach unten, markieren Sie „Peripheral Configuration", und drücken Sie ENTER (Eingabetaste).
  • Page 91 Anhang Rollen Sie nach unten, und markieren Sie „Mode". Die vorgegebene Einstellung ist „ECP". Drücken Sie ENTER (Eingabetaste). Wählen Sie „ECP" aus, und drücken Sie ENTER (Eingabetaste). Rollen Sie zu „Parallel Port", und drücken Sie ENTER (Eingabetaste). Wählen Sie „Enabled" aus, und drücken Sie ENTER (Eingabetaste). 10.
  • Page 92: Ce-Konformitätserklärung

    FCC-Erklärung ERKLÄRUNG ZUR EINHALTUNG DER FCC-VORSCHRIFTEN BEZÜGLICH ELEKTROMAGNETISCHER UND HOCHFREQUENTER STÖRUNGEN Wir, Belkin Components, 501 West Walnut Street, USA - Compton CA 90220, erklären hiermit in alleiniger Verantwortung, daß unser Produkt: folgende Voraussetzungen erfüllt: Dieses Gerät entspricht Teil 15 der FCC-Vorschriften. Der Betrieb unterliegt den folgenden Bedingungen: (1) das Gerät darf keine nachteiligen Störungen verursachen und (2) muß...
  • Page 93 Belkin Components dankt u hartelijk voor de aankoop van de Bitronics AutoSwitch Kit! U kunt nu vanaf uw werkplek kiezen tussen vier verschillende parallelle apparaten of één apparaat met vier computers delen. Als gebruiker van Windows profiteren van Bitronics Software waarmee u automatisch kunt printen, zelfs als u meer dan één printer hebt!
  • Page 94: Technische Specificaties

    Technische specificaties Industriestandaarden: Communicatiestandaard voor parallel geschakelde poorten IEEE 1284-1994 Elektrisch: Voeding: Ingangsstroom max.: Opgenomen vermogen max.: Warmtedissipatie: Omgevingscondities: Opslagtemperatuur: Bedrijfstemperatuur: Relatieve vochtigheid: Afmetingen apparaat: Breedte: Hoogte: Diepte: Gewicht: 600 mA 5,4 W 0,31 BTU/min -10°C tot 50°C 0°C tot 40°C 0 tot 95% Niet-condenserend 184 mm 108 mm...
  • Page 95 COMMON aansluiting Led-indicator voor Aansluiting poort C handomschakeling Instelling dipschakelaars (aan de zijkant van de switch): SW1: Positieschakelaar Vier PC’s delen één apparaat Eén PC kiest uit vier apparaten SW2 en SW3: Instelling time-out Time-out is de tijdwaarde waarbinnen de schakelmodule na datatransmissie op een PC-poort vergrendeld blijft.
  • Page 96 AutoSwitch een IEEE DB25 M/M kabel, zoals de kabel in deze verpakking. Gebruik voor de verbinding van een printer met de AutoSwitch een IEEE printerkabel zoals Belkin type F2A046nXX (hierin is XX de lengte in voet).
  • Page 97 Omdat de BIOS setuproutine voor elke computer verschillend is, heeft het geen zin hiervoor de Belkin helpdesk te bellen. Zie het aanhangsel aan het slot van deze handleiding voor informatie over verschillende typen computers.
  • Page 98: Software Installeren

    Software installeren De verpakking van uw Belkin AutoSwitch bevat vier disks met stuurprogramma’s. Plaats de juiste disk in uw computer, afhankelijk van uw besturingssysteem. Als het setup-programma u vraagt welk type switch(box) u bezit, kies dan ‘F1U125n’. • Voor Windows ®...
  • Page 99 Hiervoor klikt u op het Bitronics pictogram op de systeemwerkbalk: Het Bitronics softwaremenu wordt geopend: • Klik rechts boven op het afrolmenu als de Bitronics switch op LTP2 of LTP3 aangesloten is. De standaardinstelling die ook het meest gebruikt wordt, is LPT1.
  • Page 100 Windows 95/98/NT ® (vervolg) B. Windows ® 3.x: • Klik op ‘File Transfer’ (Gegevensoverdracht). C. MS-DOS: • Typ bij de opdrachtaanwijzing de volgende tekst: SWPORT f U ziet dat de led-indicator van de poort waarmee u op de Bitronics AutoSwitch verbonden bent, GROEN oplicht. Dit betekent dat uw computer klaar is voor ‘File Transfer’...
  • Page 101 Dubbelklik op het Bitronics pictogram op de systeembalk. Het Bitronics softwaremenu wordt geopend: 95/98/NT ® (vervolg) Selecteer de juiste poort waarop de Bitronics switch aangesloten is. Als u slechts één parallelle poort hebt (meestal is dat het geval), laat deze dan in LPT1.
  • Page 102 • Gebruikt u een printer, kies dan het printerstuurprogramma dat bestemd is voor die printer op die poort van de Bitronics switch. Staat dit niet in dit menu, dan zijn de printerstuurprogramma’s niet geïnstalleerd. (Installeer in dit geval de printerstuurprogramma’s opnieuw en herhaal deze stap nadat u uw computer opnieuw opgestart hebt.) Hebt u meer...
  • Page 103 Windows In dit voorbeeld hebben wij een Zip we voor poort A ‘MASS STORAGE DEVICE’ (Massaopslagapparaat) gekozen. Op poort B hebben we de Epson printer geïnstalleerd en daarom hebben dat stuurprogramma in de DEVICE TYPE voor poort B gekozen. Klik op OK als u klaar bent.
  • Page 104 Is geen van de apparaten een printer, ga dan door naar pagina 106. • Klik op ‘START’, ‘SETTINGS’ (instellingen), ‘PRINTERS’. • Klik met de rechter muisknop op de printer die op de Bitronics switch geïnstalleerd is en klik vervolgens op ‘PROPERTIES’ (Eigenschappen). 95/98/NT ®...
  • Page 105 Bitronics switch is aangesloten. • LPx1 – PA (auto switch) – Kies dit als de printer verbonden is met poort A van de Bitronics switch. • LPx1 – PB (auto switch) – Kies dit als de printer verbonden is met poort B van de Bitronics switch.
  • Page 106 Windows 95/98/NT ® (vervolg) Klik op ‘SPOOL SETTINGS’ (Wachtrij instellingen) en klik vervolgens op ‘Start printing after last page is spooled’ (Met printen beginnen nadat de laatste pagina in wachtrij geplaatst is). Klik op ‘Disable bi-directional support for this printer’ (Bi-directionele ondersteuning voor deze printer uitschakelen) als het keuzevakje NIET grijs is.
  • Page 107: Windows Nt

    ‘Printer Properties’ en kies het tabblad ‘Ports’ (Poorten). Om de juiste poorten die gebruikt moeten worden met de Bitronics switch te vinden, doorloopt u de lijst met poorten totdat de optie ‘LPT1: PB (autoswitch)’ verschijnt. Zet een vinkje bij de poort die met de printer verbonden is.
  • Page 108 Windows NT ® (vervolg) Klik op het tabblad SCHEDULING (Planning) voor een correcte instelling van de wachtrij-instellingen. Kies ‘Start printing after last page is spooled’ (Met printen beginnen nadat de laatste pagina in wachtrij geplaatst is). Zet ‘Priority’ (Prioriteit) op ‘Highest’ (Maximaal). Klik op OK als u klaar bent.
  • Page 109 ‘Where:’. Bij de uitvoering van een afdruktaak geeft de Bitronics software eerst opdracht aan de Bitronics switch over te schakelen naar poort B en laat dan de afdruktaak de switch passeren op weg naar poort B en de Epson printer.
  • Page 110 De printer is hier verbonden met poort A van de AutoSwitch. Wanneer de afdruktaak wordt verzonden, geeft de Bitronics software de Bitronics switch opdracht over te schakelen naar poort A en de afdruktaak vervolgens door te laten naar de LaserJet...
  • Page 111 Drive (ofwel alle apparaten die een stationsnaam als ‘E:’ aan uw systeem toevoegen), moet de Bitronics software op de systeemwerkbalk zo geconfigureerd worden dat de Bitronics switch in principe geschakeld staat op de poort die met de Zip de Zip ®...
  • Page 112 Drive. Wilt u nu gebruik maken van de InkJet printer op poort B (zie ® boven), dan schakelt de Bitronics switch tijdelijk over naar poort B om de afdruktaak door te sturen en vervolgens terug naar poort A om verbinding te houden met de Zip ®...
  • Page 113 InkJet printer gebruik maken, dan schakelt de software automatisch over naar de poort waarop de printer staat en verstuurt de afdruktaak. De switch blijft echter met de printer verbonden; anders dan het hiervoor besproken apparaat voor massaopslag schakelt hij niet naar de Scanner terug.
  • Page 114 ‘YES’ (Ja). • Pictogram weer toevoegen: klik op ‘START’, ‘PROGRAMS’ (Programma’s), ‘BELKIN BITRONICS SWITCH’, ‘AutoSwitch-Multi PCs’. TIP VOOR ERVAREN GEBRUIKERS: Wanneer u apparaten met passthrough-poorten gebruikt (zoals Zip scanners), kunt u op deze passthrough-poort een printer aansluiten en de andere apparaatpoort op de Bitronics switch gebruiken voor aansluiting van een ander apparaat.
  • Page 115 Geadviseerd wordt deze stappen te volgen voor alle computers die op de switch worden aangesloten. Raadpleeg de betreffende website of bel de helpdesk van de leverancier van uw computer(s). De Belkin Helpdesk kan u hierbij helaas niet van dienst zijn.
  • Page 116: Hewlett-Packard

    Druk op ‘ALT+P’ en kies ‘Parallel Mode'. U moet nu een lijst met beschikbare modi te zien krijgen. Kies de modus met de hoogste snelheid (bijv. ‘ECP'). Volg de aanwijzingen in de legenda om de instelling op te slaan en verlaat het setup-programma.
  • Page 117 Stappen voor PC-serie HP OmniBook 5000 en 5500 Volg de aanwijzingen op het scherm terwijl de computer opstart. Druk op ‘F2’ om het setup-programma te activeren. Dit wordt weergegeven onder in het testscherm van de Hewlett Packard System Hardware. Gebruik de pijltoetsen om ‘Parallel Port Mode’ te markeren. Volg de aanwijzingen in de legenda om de opties te wijzigen en kies vervolgens de modus met de hoogste snelheid (bijv.
  • Page 118 Volg de aanwijzingen in de legenda om de instelling op te slaan en verlaat het setup-programma. Stappen voor de Millennium, Phoenix BIOS v 4.05 OPMERKING: De stappen voor deze computer zijn niet opgenomen in het document dat in de verpakking is meegeleverd. Volg de aanwijzingen op het scherm terwijl de computer opstart.
  • Page 119 Doorloop het afrolmenu naar beneden en markeer ‘Paralel Port Type'. De standaardinstelling is ‘Compatible’. Druk op ‘ENTER'. Kies ‘ECP’ en druk op ‘ENTER'. Druk tweemaal op ‘ESC’ om het ‘Exit’ scherm te bereiken. Druk tweemaal op ‘ENTER’ om de wijzigingen op te slaan en het scherm te verlaten.
  • Page 120 Kies het tabblad ‘Printer/FDD'. Zorg dat ‘Use as printer connector’ gekozen is en kies de gewenste poortmodus die de printer vereist. In dit scherm zijn drie opties beschikbaar: 1. ‘Normal’ (alleen uitvoer) 2. ‘Bi-directional’ (standaard) 3. ‘ECP’ (vereist IEEE 1284 printer/parallelkabel) Kies ‘ECP’...
  • Page 121: Fcc* Verklaring

    Belkin Components garandeert dit product gedurende zijn gehele gebruiksduur op materiaal- en fabricagefouten. In geval van een defect zal Belkin Components het product naar eigen inzicht repareren of gratis vervangen mits het binnen de garantieperiode en met vooruitbetaling van verzendkosten wordt geretourneerd aan de geautoriseerde Belkin leverancier waarvan u het product gekocht hebt.
  • Page 122 IEEE conformi. • Cavo dispositivo IEEE 1284, pezzo Belkin n. F2A046iXX. Questo cavo è necessario per collegare un computer all’autoswitch. Nota: "XX" sta ad indicare la lunghezza in piedi.
  • Page 123: Specifiche Tecniche

    Specifiche tecniche Standard compatibili: Standard di comunicazione IEEE 1284-1994 Porta Parallela Elettrico: Tensione di ingresso: Corrente di ingresso max: Consumo massimo tensione: 5.4 W Dissipazione massima calore: 0.31 BTU/min Ambiente: Temperatura di stoccaggio: Temperatura di esercizio: Umidità relativa: Dimensioni dell’unità: Larghezza: Altezza: Profondità:...
  • Page 124 SW2 e SW3: Impostazione Sospensione L’Intervallo di Sospensione corrisponde all’intervallo di tempo durante il quale lo switch rimane bloccato su di una porta del PC dopo il trasferimento dei dati. Utilizzare un Intervallo di Sospensione maggiore nel caso vengano collegati scanner, memoria di massa e grossi lavori di stampa.
  • Page 125: Installazione Hardware

    Da un computer all’AutoSwitch utilizzare un cavo IEEE DB25 M/M come quello fornito nel pacchetto. Per collegare una stampante all’AutoSwitch, utilizzare un cavo per stampante IEEE, quale il pezzo Belkin F2A046iXX, dove XX indica la lunghezza in piedi.
  • Page 126 Web per maggiori informazioni. Si prega di non chiedere informazioni in merito all’Assistenza Tecnica Belkin, in quanto la procedura di "Setup" BIOS varia a seconda dei casi. Per maggiori informazioni sui diversi modelli di computer ai vedano le Appendici alla fine di questo manuale.
  • Page 127: Installazione Software

    Installazione Software Il pacchetto comprende due dischetti di driver. Accertarsi di inserire il dischetto corretto nel computer, in base al tipo di sistema operativo utilizzato. Quando il programma di "Setup" richiede quale tipo di switch avete, accertatevi di selezionare "F1U125i". •...
  • Page 128 Per farlo, cliccare due volte sull’icona Bitronics nel system tray: Il Software Bitronics compare: • Cliccare sul menu a tendina sul lato destro in alto se lo switch Bitronics è collegato a LPT2 o LPT3. L’impostazione di default e più comune è LPT1. •...
  • Page 129 Windows 95 / 98 e NT ® ® B. Windows ® 3.x: • Cliccare su "File Transfer". C. MS-DOS: • Al prompt di comando, digitare "SWPORT f" Il LED della porta alla quale siete collegati sull’AutoSwitch Bitronics diventa VERDE. Questo significa che il computer è impostato sulla modalità di Trasferimento File.
  • Page 130 Cliccare due volte sull’icona Bitronics del system tray. Compare il Software Bitronics 95 / 98 e NT ® ® (continua) Selezionare la porta LPT corretta a cui è collegato lo switch Bitronics. Se avete soltanto UNA porta parallela (di solito è così), lasciarla in LPT1.
  • Page 131 • Se state utilizzando una stampante, usate il driver stampante utilizzato per quella particolare stampante su quella porta dello switch Bitronics. Se non si trova nel menu, significa che i driver della stampante in questione non sono stati installati. (In tal caso, reinstallare i driver stampante e ripetere questa operazione dopo aver riavviato il computer).
  • Page 132 Windows In questo esempio avete un drive Zip "MEMORIA DI MASSA" per la Porta A. E nella Porta B avete installato la stampante Epson, quindi scegliete il rispettivo driver nel Tipo di Dispositivo per la Porta B. VISUALIZZA NOME è un campo di testo libero. In esso è...
  • Page 133 Cliccate "Start" (Avvio), selezionate "Settings" (Impostazioni), cliccate due volte su "Printers" (Stampanti). • Cliccare con il tasto destro del mouse sulla stampante installata sullo switch Bitronics e quindi su PROPRIETÀ: 95 / 98 e NT ® 95/98, per Windows NT si veda pagina 133) ®...
  • Page 134 è collegata sullo switch Bitronics: • LPx1 – PA (auto switch) - Selezionare se la stampante è collegata alla Porta A dello switch Bitronics. • LPx1 – PB (auto switch) - Selezionare se la stampante è collegata alla Porta B dello switch Bitronics.
  • Page 135 Windows 95 / 98 e NT ® ® (continua) Cliccare su SPOOL "SETTINGS" e quindi su "Start printing after last page is spooled". Se NON è di colore grigio, cliccare su "Disable bi-directional support for this printer". Altrimenti, ignorare. Cliccare su OK nella finestra di Impostazione Spool. Cliccare su OK di nuovo nella finestra proprietà...
  • Page 136: Windows Nt

    Dopo avere installato il software e riavviato il computer, andare nelle proprietà stampante e selezionare la linguetta PORTE. Per trovare le porte giuste da utilizzare con lo switch Bitronics, scorrere l’elenco fino a quando compare "LPT1: PB (autoswitch)". Mettere un segno di spunta in corrispondenza della porta che collega alla stampante.
  • Page 137 Windows NT ® (continua) Per impostare i dati di spool in modo corretto, cliccare sulla linguetta PROGRAMMAZIONE. Accertarsi che sia selezionato "Start printing after last page is spooled". Quindi, impostare "Priority" sul valore massimo: Infine cliccare su OK.
  • Page 138: Come Funziona

    Esempio: Due Stampanti Utilizzate da Un Computer Il Software Bitronics gestisce automaticamente i comandi di stampa indirizzando i vostri lavori di stampa alla porta corretta dello switch Bitronics in base alle impostazioni dati nelle Proprietà Stampanti e nelle Impostazioni nelle fasi riportate nelle ultime sei pagine.
  • Page 139 . In questo caso la stampante è collegata alla Porta A dell’AutoSwich. Quando il comando di stampa viene inviato, il software Bitronics comanda allo switch Bitronics di commutare nella Porta A e consente al comando di stampa di passare alla LaserJet...
  • Page 140 Zip ® il Software Bitronics nel system tray deve essere configurato in modo tale che lo switch Bitronics venga rilevato di default dalla Porta collegata al drive Zip sempre collegato al drive Zip tale drive, siate sempre collegati e non riceviate i messaggi di errore: Accertarsi che la porta che collega il drive Zip "MEMORIA DI MASSA "...
  • Page 141 . In questo modo ogni volta che vi accedete non ricevete nessuno strano messaggio di errore. Quando stampate dalla Stampante a Getto d’Inchiostro sulla Porta B (come sopra riportato), lo switch Bitronics passa alla Porta B temporaneamente per inviare il comando di stampa, ritorna poi alla Porta A per mantenere la comunicazione con il drive Zip ®...
  • Page 142 Getto d’Inchiostro, il software anche in questo caso commuta automaticamente alla porta che ha la stampante ed invia il comando di stampa. Tuttavia, lo switch rimane collegato alla stampante, non cambia per tornare allo Scanner, a differenza della memoria di massa prima menzionata.
  • Page 143 Scanner). Potete collegare una stampante alla porta di accesso ® diretto ed utilizzare l’altra porta del dispositivo sullo switch Bitronics per collegarlo ad un altro dispositivo. E’ sufficiente accertarsi che il driver della stampante abbia la propria Porta impostata con la porta dispositivo corretta.
  • Page 144 Cambiando la modalità del computer della porta parallela in ECP si aumenta la velocità e l’affidabilità dei trasferimenti dati con gli Switch Bitronics. Di seguito sono riportati i passaggi per modificare le impostazioni di alcuni computer. Lo si deve fare per tutti i computer collegati allo switch.
  • Page 145 Appendice Gateway 2000 Durante il caricamento del computer seguire le istruzioni sullo schermo: "To enter setup press F1". Selezionare "Advanced" dalla barra menu. Selezionare "Integrated Peripherals". Seguendo le istruzioni in legenda, selezionare "ECP" come modalità di porta parallela. Seguire le istruzioni della legenda per salvare l’impostazione ed uscire dal "Setup". Hewlett-Packard Passaggi per i modelli PC HP Pavillion Quando compare la videata blu HP, premere F1 per accedere al "Setup".
  • Page 146 Appendice IBM Aptiva Passaggi generali Mentre il computer sta caricando, seguire le istruzioni sul video: "Premere F1 per accedere al Setup". Seguire la legenda su come scorrere attraverso le opzioni di "Setup" fino a raggiungere "Input / Output Ports". Selezionare la modalità con le migliori prestazioni (ad es. ECP). Seguire le istruzioni in legenda per salvare ed uscire.
  • Page 147 Appendice Seguire le istruzioni in legenda per selezionare "Integrated Peripherals" (o "Peripheral Configuration" su alcuni modelli). Selezionare la modalità della porta parallela con le migliori prestazioni (es. ECP). Seguire le istruzioni in legenda per salvare le impostazioni ed uscire. Passaggi per il Force 443 CD, AMBIOS BIOS v 1.00.12.1313oe Mentre il computer sta caricando, seguire le istruzioni sullo schermo: "Press F1 to "Enter"...
  • Page 148 Appendice Modelli PCV-200/210/220/230/240: Riavviare il computer Nel corso della prima videata in bianco e nero Sony premere F3 per accedere alla videata di caricamento del computer. Premere F1 per accedere al "BIOS Setup". Utilizzare il tasto cursore destro per raggiungere il menu "Advanced". Scorrere verso il basso ed evidenziare "Peripheral Configuration"...
  • Page 149: Dichiarazione Fcc

    Questa garanzia non viene applicata se il prodotto è stato danneggiato involontariamente o in seguito ad un utilizzo eccessivo, scorretto o errato; se il prodotto è stato modificato senza l’autorizzazione scritta della Belkin, o se un qualsiasi numero di serie Belkin sia stato rimosso o cancellato.
