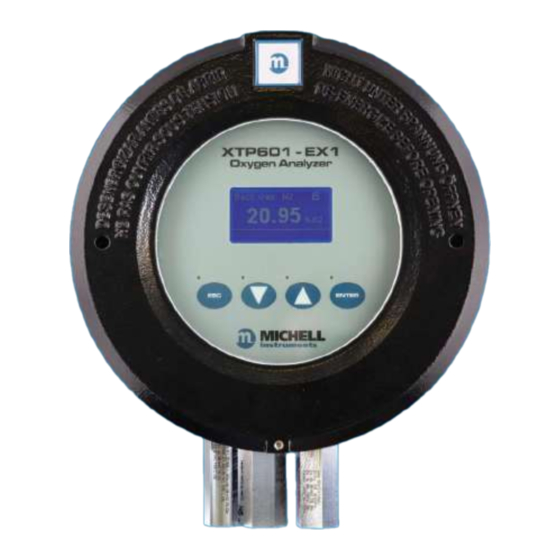

INTRODUCTION XTP601 User Manual Features need for increased safety risk assessment when using potentially intended for use in Hazardous Areas. The -GP2 version is provided explosive gases, and it is the sole responsibility of the end user to ensure suitable additional safety considerations (e.g. leak checking, amongst others) are implemented prior to use.
Page 11
INTRODUCTION XTP601 User Manual Applications • • • • O-Ring Selection NOTE: Silicone O-ring is not suitable for oxygen-enriched samples, i.e. O > 21%. 1.800.561.8187 information@itm.com www. .com...
Page 12
XTP601 User Manual OPERATION OPERATION ambient oxygen levels that are enriched (i.e. over 21% O Preparation please ensure that the system has been properly installed following the instructions in Section 4. Check that the wiring has been completed correctly. Sample Pressure: Sample Flow Rate: 1.800.561.8187 information@itm.com...
Page 13
XTP601 User Manual OPERATION Powering up the Analyzer After all the preparation work is done and the installation and wiring have been checked, turn on the analyzer and wait for at least 30 minutes (or until message disappears). This will allow the analyzer to reach its operating temperature.
Page 14
XTP601 User Manual OPERATION User Interface 2.3.1 Interface Controls Backlit LCD Blue LEDs ENTER Up/Down ENTER Arrow Button Button Buttons Figure 4 Figure 5 1.800.561.8187 information@itm.com www. .com...
Page 16
XTP601 User Manual OPERATION Menu Structure The User Passcode is: 2.4.1 Changing the Passcode 1.800.561.8187 information@itm.com www. .com...
Page 17
XTP601 User Manual OPERATION 2.4.2 Menu Map Figure 9 Front Pages (No passcode Required) NOTE: These are for display of information only and there is no way of adjusting any settings on these pages. 1.800.561.8187 information@itm.com www. .com...
Page 18
XTP601 User Manual OPERATION 2.5.1 Front Page Figure 10 Parameter Description Status Message Table Message Light Guide (Trigger Condition) (if fitted) 1.800.561.8187 information@itm.com www. .com...
Page 19
XTP601 User Manual OPERATION 2.5.2 Chart Page Figure 11 NOTE: This data is not available via the Modbus • • • • • • • • 1.800.561.8187 information@itm.com www. .com...
Page 20
XTP601 User Manual OPERATION 2.5.3 Secondary Parameters Page Figure 12 Parameter Description 2.5.4 Figure 13 NOTE: This data is not saved in NV memory and is not available via serial communications or in the blind unit. 1.800.561.8187 information@itm.com www. .com...
Page 30
XTP601 User Manual OPERATION 2.7.8 Field Cal Page Figure 26 Setting 2.7.9 Light Guide Option • • • 1.800.561.8187 information@itm.com www. .com...
Page 31
XTP601 User Manual CALIBRATION CALIBRATION Factory Calibration NOTE: Analyzers are calibrated in background gas suitable for the specific For range 0...25% the analyzer will have calibration points between 0 to 21% and will retain specification up to 23% O . Concentrations between 23% and 25% O are extrapolated values, unless the operator Field Calibrates (adjusts) the unit with a calibration gas of 25%.
Page 32
XTP601 User Manual CALIBRATION 1-Point Calibration Figure 27 NOTE: This value only needs to be set when using a new gas cylinder. reading is stabilizing. When the ~ symbol disappears the reading will be stable and the next change can be made. 1.800.561.8187 information@itm.com www.
Page 33
XTP601 User Manual CALIBRATION 2-Point Calibration Figure 28 NOTE: This value only needs to be set when using a new gas cylinder. reading is stabilizing. When the ~ symbol disappears the reading will be stable and the next change can be made. NOTE: This value only needs to be set when using a new gas cylinder.
Page 34
XTP601 User Manual CALIBRATION NOTE: The analyzers leave the factory with the field calibration function turned off. When first calibrating the analyzer go to the settings page and turn Field Calibration on. This can be done either just before or just after the field calibration procedure.
Page 35
XTP601 User Manual INSTALLATION INSTALLATION The XTP601-EX versions must only be installed by instructions provided and the terms of the applicable Maintenance and servicing of the product must only be carried out by suitably trained personnel or returned to an approved Michell Instruments’...
Page 37
XTP601 User Manual INSTALLATION System Components Figure 30 1.800.561.8187 information@itm.com www. .com...
Page 38
INSTALLATION XTP601 User Manual Set-Up • WARNING: This unit is 24 V DC powered only! Do not attempt to loop-power this instrument via the 4...20 mA output as this will irreversibly damage the main pcb. • • • • Figure 31 •...
Page 39
XTP601 User Manual INSTALLATION Mechanical Installation Figure 32 4.4.1 Gas Connection For applications where the oxygen concentration is 90% or above, any PTFE tape used must be unsintered. This is to prevent an explosion due to conventional PTFE tape acting as a potential fuel source. 4.4.2 Sample Gas Requirements NOTE: There is NO...
Page 40
INSTALLATION XTP601 User Manual 4.4.3 Calibration Gases Electrical Installation 4.5.1 NOTE: The terminal blocks are color co-ordinated to match the connectors – make sure this color coding is adhered to. Figure 33 1.800.561.8187 information@itm.com www. .com...
Page 41
XTP601 User Manual INSTALLATION 4.5.2 Power Supply (PL9 – Green) PIN 3 PIN 2 PIN 1 4.5.3 Signal Output NOTE: When the instrument is warming up (cell temperature not stabilized) these outputs are factory set to 3.2 mA to indicate that the instrument is not ready.
Page 42
INSTALLATION XTP601 User Manual 4.5.5 Analog (4...20 mA) Outputs and Communications (PL5 – Green) Warning: Do not attempt to loop-power this instrument via the 4...20 mA output as this will irreversibly damage the main PCB. PIN 7 PIN 6 PIN 5 PIN 4 PIN 3 PIN 2...
Page 43
XTP601 User Manual INSTALLATION 4.5.7 Analog (4...20 mA) Inputs and Sensor Excitation Voltage (PL4 – Green) PIN 6 PIN 5 PIN 4 PIN 3 PIN 2 PIN 1 NOTE 1: Channel 1 is External Compensation input and Channel 2 is External Sensor input.
Page 44
XTP601 User Manual APPENDIX A 1.800.561.8187 information@itm.com www. .com...
Page 45
APPENDIX A XTP601 User Manual Appendix A Performance 1.800.561.8187 information@itm.com www. .com...
Page 46
XTP601 User Manual APPENDIX A Operating Conditions The XTP601 process oxygen analyzer meets or exceeds all relevant clauses in BS EN 50104 : 2010 “Electrical apparatus for the detection and measurement of oxygen”. 1.800.561.8187 information@itm.com www. .com...
Page 47
APPENDIX A XTP601 User Manual Dimensions Ex version 234 mm 9.21" 9 mm 195 mm 0.35" TYP 7.68" 172 mm 6.77" 11.5 mm 172 mm 0.45" 6.77" 15 mm 0.59" 12 mm 171 mm 0.47" 6.73" 30 mm 1.18" BREATHER (EX VERSION ONLY) 1/8"...
Page 48
APPENDIX B XTP601 User Manual 1.800.561.8187 information@itm.com www. .com...
Page 49
APPENDIX B XTP601 User Manual Appendix B Modbus Register Map Addr Function Access Type 1.800.561.8187 information@itm.com www. .com...
Page 50
APPENDIX B XTP601 User Manual Addr Function Access Type Register Type A: Unsigned Integer Background Gas list: Register Type B: Settings Meaning 1.800.561.8187 information@itm.com www. .com...
Page 51
APPENDIX B XTP601 User Manual Register Type C: Display Parameters Register Type D: Units Bits Meaning (binary) Register Type F: -2000.0 to +2000.0 For external sensor values Register Type G: -200.00 to +200.00 1.800.561.8187 information@itm.com www. .com...
Page 52
APPENDIX B XTP601 User Manual Meaning Namur LED Register Type J 1.800.561.8187 information@itm.com www. .com...
Page 53
APPENDIX B XTP601 User Manual Register Type K: -32767 to +32767 Bits Meaning 1.800.561.8187 information@itm.com www. .com...
Page 54
APPENDIX C XTP601 User Manual 1.800.561.8187 information@itm.com www. .com...
Page 55
XTP601 User Manual APPENDIX C Appendix C IECEx North American (cQPSus) 1.800.561.8187 information@itm.com www. .com...
Page 56
APPENDIX C XTP601 User Manual Special Conditions Maintenance and Installation 1.800.561.8187 information@itm.com www. .com...
Page 57
XTP601 User Manual APPENDIX D 1.800.561.8187 information@itm.com www. .com...
Page 58
APPENDIX D XTP601 User Manual Appendix D Quality, Recycling, Compliance & Warranty Information • • • • • • • • • • • • • 1.800.561.8187 information@itm.com www. .com...
Page 59
APPENDIX E XTP601 User Manual 1.800.561.8187 information@itm.com www. .com...
Page 60
APPENDIX E XTP601 User Manual Appendix E Analyzer Return Document & Decontamination Declaration IMPORTANT NOTE: Please complete this form prior to this instrument, or any components, leaving your site and being returned to us, or, where applicable, prior to any work being carried out by a Michell engineer at your site.
Page 61
XTP601 User Manual NOTES 1.800.561.8187 information@itm.com www. .com...
