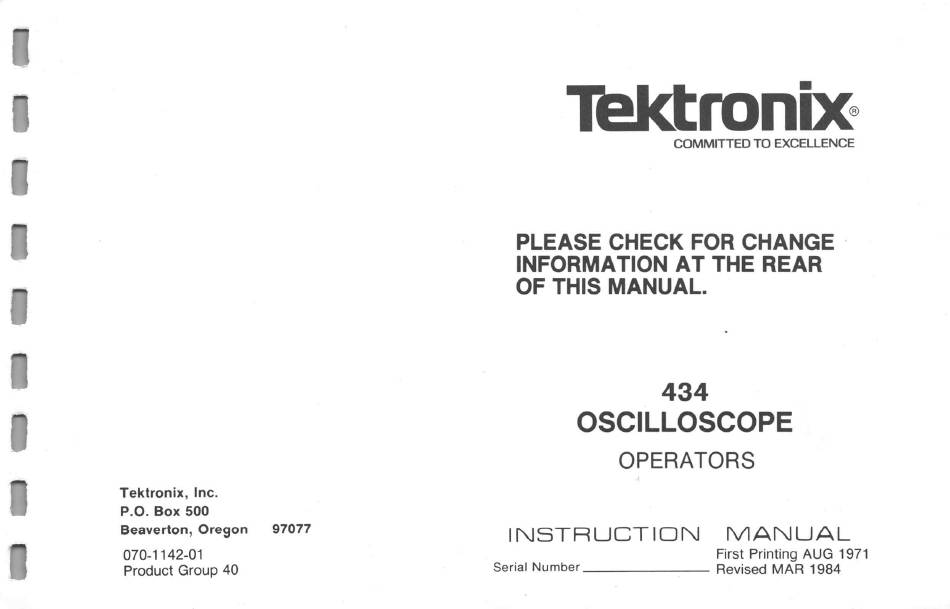

Tektronix , Inc.
P.O. Box 500
Beaverton , Oregon
97077
070-1142-01
Product Group 40
Tektronix
COMMITTED TO EXCELLENCE
PLEASE CHECK FOR CHANGE
INFORMATION AT THE REAR
OF THIS MANUAL .
434
OSCILLOSCOPE
OPERATORS
INSTRUCTION
Serial Number
MANUAL
First Printing AUG 1971
Revised MAR 1984
