Epson PowerLite 97, 98, 99W, 955W, 965 - Multimedia Projecto Quick Setup Guide

Connect the projector

Choose from the following connections. See the sections below.

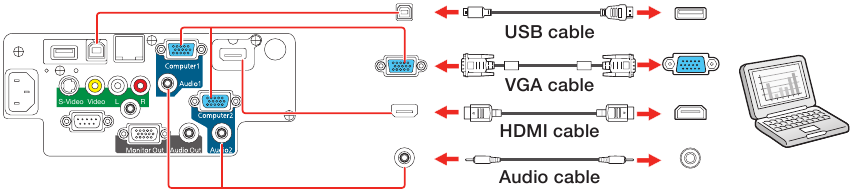

Computer

USB port
Connect the square end of a USB cable to the projector's USB-B (square) port. Connect the flat end of the cable to any USB port on your computer.
Windows^® XP or later: After turning on the projector, follow the on-screen instructions to install the Epson^® USB Display software (EMP_UDSE.EXE; only on first connection). If the software screen does not display automatically, open My Computer or Computer, then double-click EPSON_PJ_UD.
Mac OS X 10.5.1 or higher: After turning on the projector, the setup folder for USB Display appears in the Finder. Double-click USB Display Installer and follow the on-screen instructions to install the Epson USB Display software (only on first connection).

Computer port
Connect one end of a VGA cable to the projector's Computer1 or Computer2 port, and the other end to your computer's monitor port. If you are using a laptop, switch it to external display (see "Troubleshooting"). You can also connect an audio cable.

HDMI port
Connect one end of an HDMI cable to the projector's HDMI port and the other end to an HDMI port on your computer.

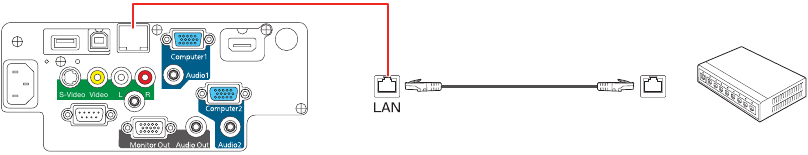

Wired network

You can connect the projector to your network using an Ethernet cable.

See "Project over a wired network" for instructions.

Video device

Connect up to 5 video devices and use the Source Search button on the projector or remote control to switch between them.

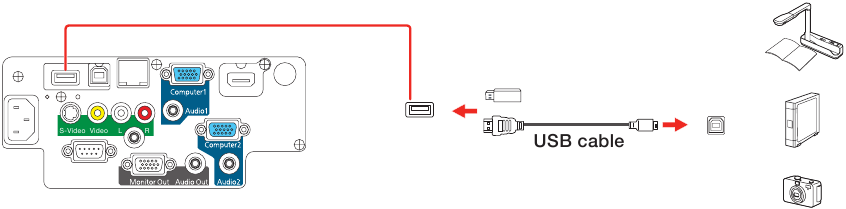

Camera, USB device, or Epson DC-06 document camera

Connect a digital camera, USB flash drive, USB storage device, or Epson DC-06 document camera to the projector's USB-A (flat) port.

If you connect a digital camera, USB flash drive, or USB storage device, you can use the projector's PC Free feature.

External monitor, external speakers, and microphone

You can also connect an external monitor, external speakers, or a microphone to your projector to enhance your presentations.

Turn on your equipment

1. Turn on your computer or video source.

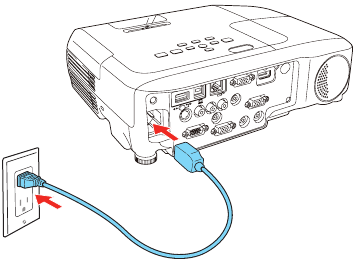

2. Plug in the projector. The power light on the projector turns blue.

3. Open the A/V Mute slide all the way.

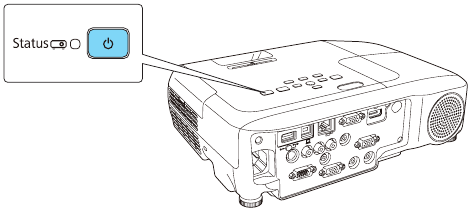

4. Press the power button on the projector or remote control. The projector beeps, and the Status light flashes blue and then stays on.

   Note: To shut down the projector, press the power button twice, then unplug it. You don't have to wait for the projector to cool down.
5. The default language of the menu system is English. To select another language, press the Menu button on the projector or remote control. Select Extended and press . Select Language and press . Select your language and press . Press the Menu button to exit the menu system.

Adjust the image

1. If you don't see an image, press the Source Search button on the projector or the remote control to select the image source.
   Note: If you still see a blank screen or have other display problems, see the troubleshooting tips on the back of this sheet.

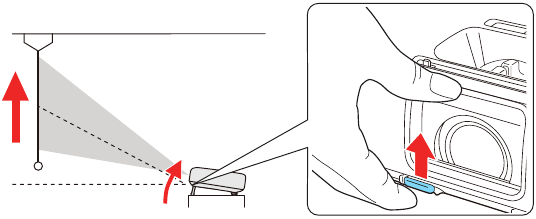

2. To raise the image, press the foot release button and lift the front of the projector. Release the button to lock the foot in position.

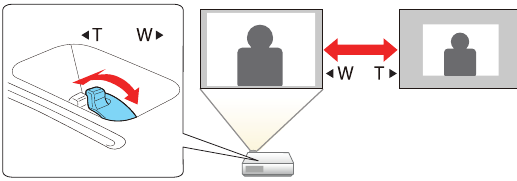

3. Turn the zoom ring to enlarge or reduce the image.

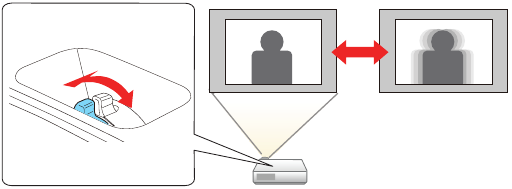

4. Turn the focus ring to sharpen the image.

5. If your image looks like or , you may have placed the projector off to one side of the screen at an angle. Place the projector directly in front of the center of the screen, facing the screen squarely. If you can't move the projector, use the horizontal keystone slider to correct the image.
6. Your projector automatically adjusts images that look like or but if necessary you can press the or button on the projector to correct it.

Using the remote control

Make sure the batteries are installed as shown (two AA batteries).

Project wirelessly

Follow the steps here to connect the projector over a wireless network. You will need the optional wireless LAN module (part number V12H418P12).

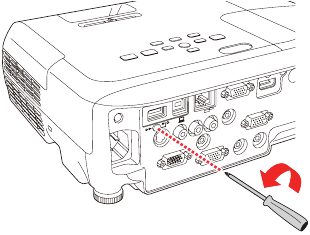

1. To install the wireless LAN module, first remove the screw as shown.

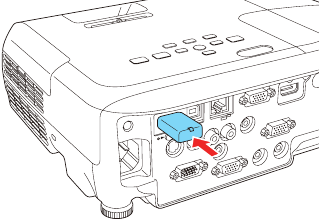

2. Connect the wireless LAN module to the USB-A (flat) port.

3. To configure your projector for wireless projection, do one of the following:
   • If you're using the optional Quick Wireless Connection USB key (Windows only, part number V12H005M09), press the LAN button on the remote control. When you see SSID and IP address information on the screen, remove the wireless LAN module and connect the key to the projector's USB-A port. Look for the displayed message, remove the key, and connect it to a USB port on your computer. Follow the on-screen instructions to install the driver, then reconnect the wireless LAN module to the projector's USB-A port.
   • If you are not using the key, follow the steps below.
4. Attach the wireless LAN module cover and secure it using the screw you removed.

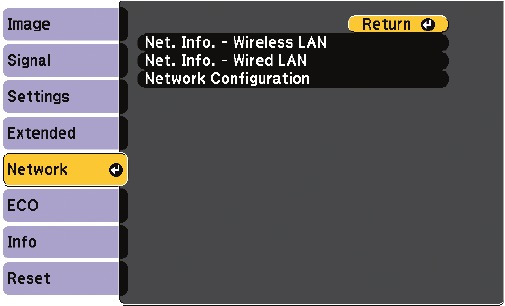

5. Press the Menu button on the remote control, select the Network menu, and press .

6. Choose Network Configuration and press .

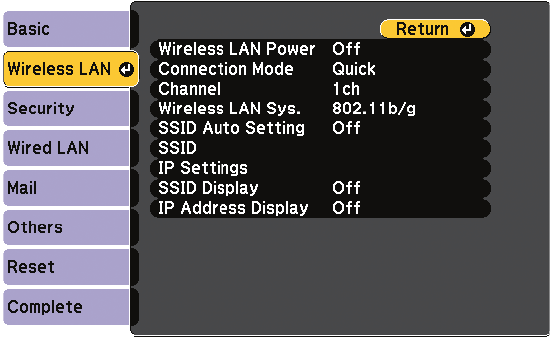

7. Select the Wireless LAN menu and press .

8. Choose Connection Mode, press , select Quick (for a direct connection to a computer, tablet, or smartphone) or Advanced (for a connection to a router or access point), then press again. When you're finished, press Esc to return to the Wireless LAN menu.
9. If you chose the Advanced connection mode, select SSID, press enter your network name (SSID) on the screen that appears.

   • To select a number or character, use the arrow buttons on the remote control to highlight it, then press .
   • To switch between uppercase and lowercase letters, select CAPS and press .
   • To change the displayed symbols, select SYM1 or SYM2 and press .
10. If you chose the Advanced connection mode, select IP settings and press .
    If your network assigns addresses automatically, turn on DHCP. If not, turn off DHCP and enter the projector's IP Address, Subnet Mask, and Gateway Address, as needed.
    To enter numbers, use the arrow buttons on the remote control to highlight a number, then press the button. When you're finished entering an address, highlight Finish, then press . Press Esc.
11. To prevent the SSID and IP address from appearing on the network standby screen, set the SSID Display and IP Address Display settings to Off.
12. When you're finished selecting settings in the Wireless LAN menu, press Esc.
13. If you are connecting the projector to a secure network, select the Security menu and press . Then select settings and press Esc when you're finished.
14. Select Complete and press , then select Yes and press again to save your settings.
15. See "Install network software" for additional instructions.

Project over a wired network

Follow the steps here to configure your projector for your wired network using the projector's menu system.

1. Plug in and turn on the projector.
2. Press the Menu button on the remote control, select the Network menu, and press .

3. Select Network Configuration and press .

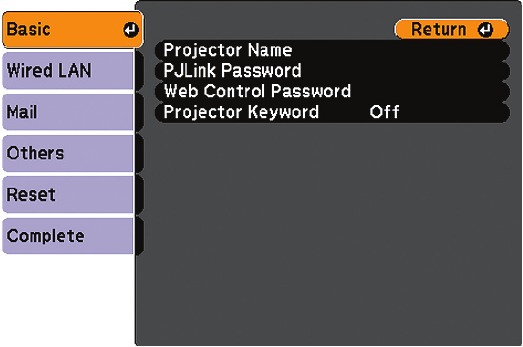

4. Select the Basic menu and press .

5. Select the Projector Name setting and enter a name (up to 16 characters long) to identify your projector over the network.

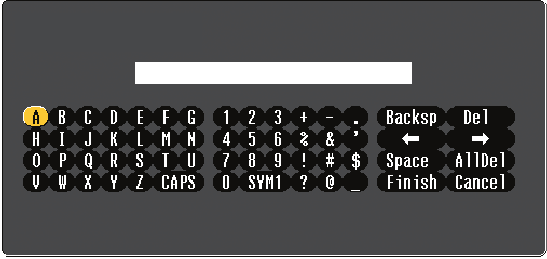

   Use the displayed keyboard to enter characters. Press the arrow buttons on the remote control to highlight the characters and press to select them.

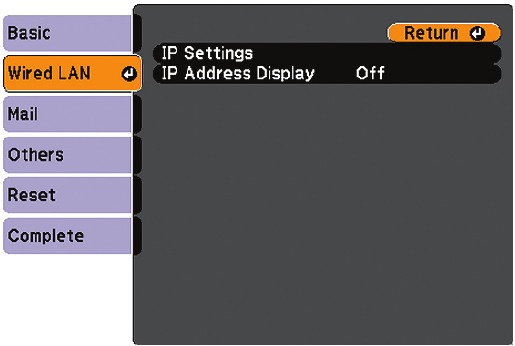

6. Select the Wired LAN menu and press .

7. Choose IP Settings and press .
8. If your network assigns addresses automatically, turn on the DHCP setting. If not, turn off the DHCP setting and enter the projector's IP Address, Subnet Mask, and Gateway Address, as needed. Then press Esc.
9. To prevent the IP address from appearing on the network standby screen, set the IP Address Display setting to Off.
10. When you are finished, select Complete and press , then press again to save your settings.
11. Press the Menu button to exit the menu system.
12. See "Install network software" for additional instructions.

Install network software

Computer

Install the EasyMP^® Network Projection software on each computer that will project over the network. Use the CD labeled Epson Projector Software to install the program.
For instructions on installing and using your network software, click the icon on your desktop to access the online EasyMP Network Projection Operation Guide (requires an Internet connection). If you don't see the EasyMP Network Projection Guide icon, you can install it from the projector CD or go to the Epson website, as described on the right.
To monitor and control your projector over the network, download and install the EasyMP Monitor software and manual from the Epson support web site. You can install a link to the downloads page from the projector CD or go to the Epson website, as described on the right.

Mobile device

To project from an iOS or Android™ device, download and install the Epson iProjection™ app.
Visit www.epson.com/projectorapp (U.S.) or www.epson.ca/projectorapp (Canada) for more information.

Troubleshooting

If you see a blank screen or the No signal message after turning on your computer or video device, check the following:

• Make sure the Status light on the projector is blue and not flashing, and the A/V Mute slide is open.
• Press the Source Search button on the projector or the remote control to switch to the correct image source, if necessary.
• If you're using a Windows laptop, press the function key on your keyboard that lets you display on an external monitor. It may be labeled CRT/LCD or have an icon such as . You may have to hold down the Fn key while pressing it (such as Fn + F7). Wait a moment for the display to appear.
• If you're using a Mac laptop, open System Preferences and select Displays. Select the Display or Color LCD option if necessary, then click the Arrange or Arrangement tab, and select the Mirror Displays checkbox.
