Epson PowerLite 85, 825, 826W - XGA 3LCD Projector Quick Setup Guide

Connect the device

Choose from the following connections:

Computer Monitor Port

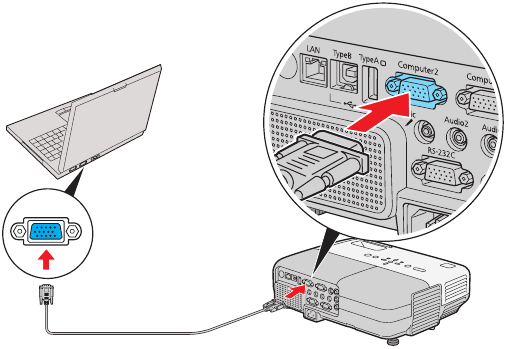

Connect a computer using the VGA cable that came with the projector.
Connect one end to the projector's Computer1 or Computer2 port, and the other end to your computer's monitor port. If you are using a notebook, switch it to external display. You can also connect an audio cable or microphone.

Computer USB Port

Connect a computer (Windows 2000 or later only) using the USB cable that came with the projector.
Connect the square end of the USB cable to the projector's Type B (square) USB port. Connect the flat end of the cable to any USB port on your computer. You can also connect an audio cable or microphone.

Follow the on-screen instructions to install the Epson USB Display software. Then press the USB button on the remote control.

Network (LAN)

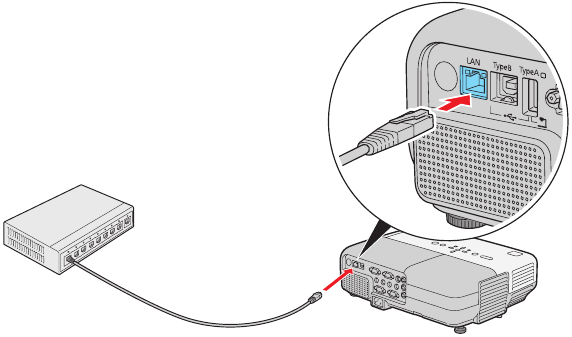

Connect the projector to your network using an Ethernet cable. See "Project Over the Network" on the back of this sheet for more information.

Microphone

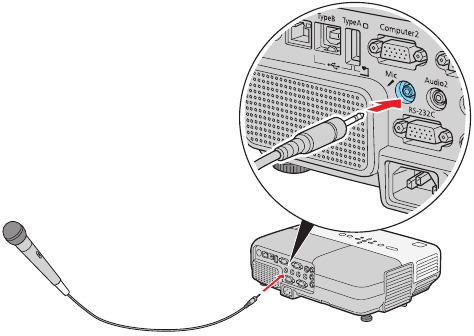

Connect a dynamic microphone to the Mic port, using a 3.5 mm mini-jack cable.

Video Player

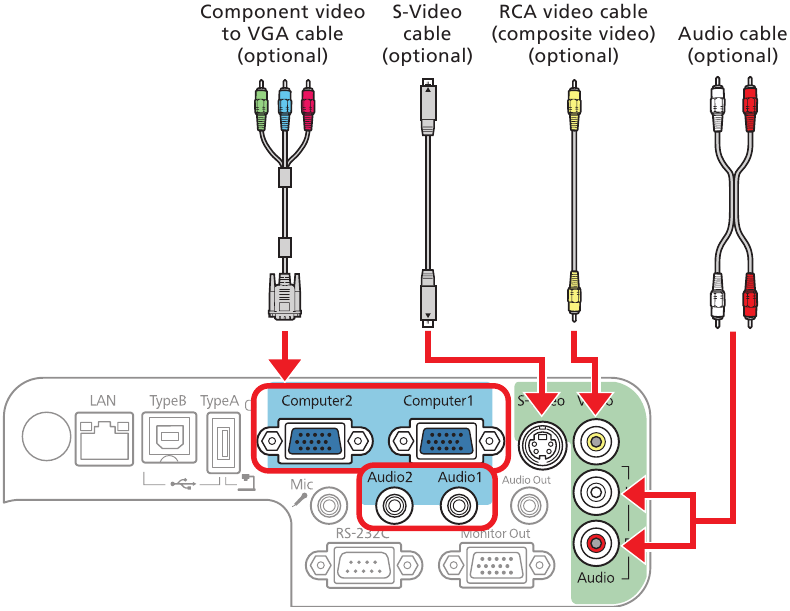

Connect up to 4 video devices and use the remote control to switch between them.

Camera or USB Device

Connect a digital camera, document camera, or other USB device to the projector's Type A (flat) USB port.

If you connect a digital camera or USB storage device, you can use the projector's Slideshow feature.

Turn on your equipment

1. Turn on your computer or video source.
2. Plug in the projector.

3. Open the A/V Mute slide all the way.

4. Press the power button on the projector or remote control.
   The power light flashes green, then stays on.


NOTE: To shut down the projector, press the power button twice, then unplug it. You don't have to wait for the projector to cool down.

Adjust the image

1. If you don't see an image, press the Source Search button on the projector or the Search button on the remote control to select the image source.
   NOTE: If you still see a blank screen or have other display problems, see the troubleshooting tips on the back of this sheet.

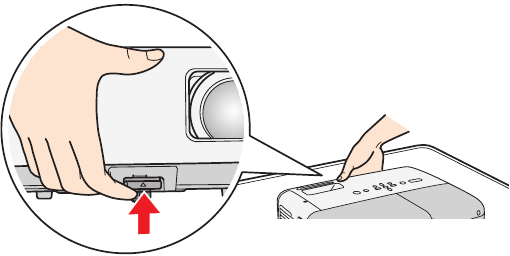

2. To raise the image, press the blue foot release button and lift the front of the projector. Release the button to lock the foot in position.

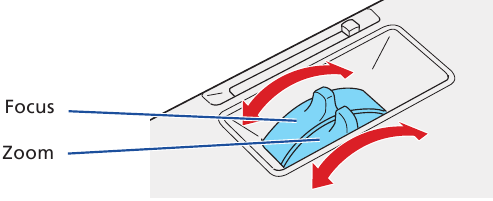

3. Turn the focus ring to sharpen the image.
   Turn the zoom ring to reduce or enlarge the image.

4. If your image looks like or , you've placed the projector off to one side of the screen at an angle. Place it directly in front of the center of the screen, facing the screen squarely.
5. If your image looks like or , press the or buttons on the projector to correct it.

Using the remote control

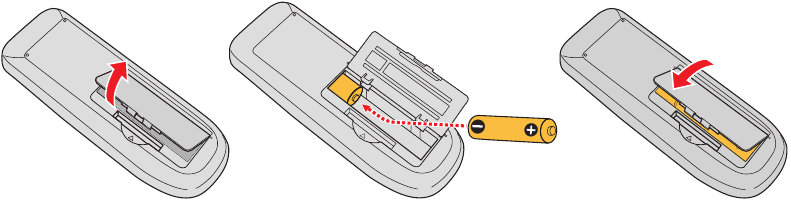

Make sure the batteries are installed as shown (two AA batteries).

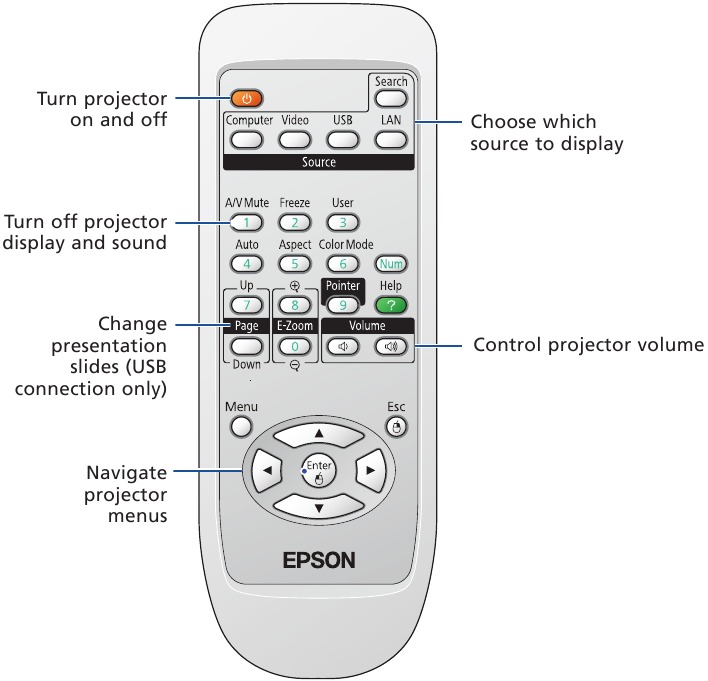

You can use the remote control to operate the projector. With the USB cable, you can use the remote as a wireless mouse.

Project over the network

Install EMP NS Connection on each computer that will project over the network. Use the CD labeled Epson Projector Software for Meeting & Monitoring to install EMP NS Connection. If you need to configure the projector for your network, see "Network Configuration."

1. Press the LAN button on the remote control.

2. Start EMP NS Connection on your computer.
   Windows: Select Start > Programs or All Programs > EPSON Projector > EMP NS Connection.
   Mac OS X: Double-click the EMP NS Connection icon in your Applications folder.

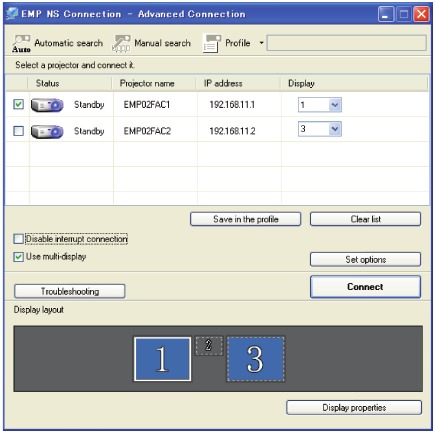

3. Select Advanced Connection Mode and click OK.

4. Select the projector you want to connect to, then click Connect.
   If you don't see the projector you want, click the Automatic search button.
5. If you see a message asking for a keyword, enter the four digits that appear on the LAN standby screen and click OK.
   Your computer image is projected, with a floating toolbar:

   When you're done presenting, click Disconnect on the toolbar.

NOTE: Using the optional Wireless LAN module, you can project wirelessly. To purchase the Wireless LAN module or other accessories, see "Optional Accessories."

Network configuration

If you need to configure the projector for your network, you can use the projector's menu system.

1. Press the Menu button on the remote control, select the Network menu, then press Enter.

2. Choose Network Configuration and press Enter.
3. Select the Wired LAN menu and press Enter.
4. Choose IP Settings and press Enter. You see a screen like the following:

5. Do one of the following:

• If your network assigns addresses automatically, turn on the DHCP setting.
• If your network does not assign addresses automatically, turn off DHCP and enter the projector's IP Address, Subnet Mask, and Gateway Address, as needed.

To enter numbers, use the buttons on the remote control to highlight the number you want to input, then press the Enter button. When you're finished entering an address in the network menu, highlight Return, then press the Enter button.

6. To prevent the IP address from appearing on the standby screen, set the IP Address Display setting to Off.
7. When you're done making all necessary changes, select Complete and press the Enter button to save your settings. Then press Enter again to confirm.
8. Press the Menu button to exit the menu system.

Troubleshooting

If you see a blank screen

If you see a blank screen or the No signal message after turning on your computer, check the following:

• Make sure the power light on the projector is green and not flashing, and the A/V Mute slide is open.
• Press the Source Search button on the projector or the Search button on the remote control to select the computer as the image source.
• If you're using a Windows notebook, press the function key on your keyboard that lets you display on an external monitor. It may be labelled CRT/LCD or have an icon such as . You may have to hold down the Fn key while pressing it.

If the projector and notebook don't display the same image
Windows
Try using the CRT/LCD or key as described above. On most systems, this key lets you toggle between the LCD screen and the projector, or display on both at the same time.
If that doesn't work, check your monitor settings to make sure both the LCD screen and the external monitor port are enabled.

1. From the Windows Control Panel, open the Display utility. In Windows Vista, right-click on the desktop and select Personalize, then select Display Settings.
2. Click Settings, then click Advanced. In Windows Vista, click Advanced Settings.

3. The method for adjusting the setting varies; you may have to click a Monitor tab, then make sure the external Monitor port is set as your primary display and/or enabled.

Mac OS X

1. From the Apple menu, select System Preferences, then select Display or Displays.
2. Click Detect Displays.
3. Make sure the VGA Display or Color LCD dialog box is selected.
4. Click Arrangement or Arrange, then make sure Mirror Displays is selected.


Where to get help

Telephone Support Services

To use the Epson PrivateLine Support service, call (800) 637-7661 and enter the PIN on the Epson PrivateLine Support card included with your projector. This service is available 6 AM to 6 PM, Pacific Time, Monday through Friday, for the duration of your warranty period. You may also speak with a projector support specialist by dialing one of these numbers:
U.S.: (562) 276-4394, 6 AM to 6 PM, Pacific Time, Monday through Friday
Canada: (905) 709-3839, 6 AM to 6 PM, Pacific Time, Monday through Friday

Days and hours of support are subject to change without notice. Toll or long distance charges may apply.

Internet Support

Visit Epson's support website at epson.com/support and select your product for solutions to common problems. You can download utilities and documentation, get FAQs and troubleshooting advice, or e-mail Epson with your questions.

Registration

Register today to get product updates, special promotions, and customer-only offers. You can use the registration card or CD included with your projector, or register online at www.epson.com/webreg.

Optional accessories

You can purchase screens, carrying cases, or other accessories from an Epson authorized reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766). Or you can purchase online at www.epsonstore.com (U.S. sales) or www.epson.ca (Canadian sales).

Epson is a registered trademark and Epson Exceed Your Vision is a registered logomark of Seiko Epson Corporation. PrivateLine is a registered trademark of Epson America, Inc.
General Notice: Other product names used herein are for identification purposes only and may be trademarks of their respective owners. Epson disclaims any and all rights in those marks.
This information is subject to change without notice.

© 2009 Epson America, Inc. 2/09
