Marshall Stockwell - Portable Stereo Loudspeaker Manual

IMPORTANT SAFETY INSTRUCTIONS

• Read these instructions – All the safety and operating instructions should be read before this product is operated.
• Keep these instructions – The safety and operating instructions should be retained for future reference.
• Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to.
• Follow all instructions – All operating and use instructions should be followed.

•
  Do not expose the batteries (battery pack or batteries installed) to excessive heat such as sunshine, fire or the like for a long time.
•
  To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not be exposed to dripping or splashing and that objects filled with liquids, such as vases, shall not be placed on apparatus.
•
  do not cover.
•
  only use attachments/accessories specified by the manufacturer (such as the exclusive supply adapter, battery etc).
•
  the plug is the main disconnect device and should be used as such. The disconnect device should remain readily accessible.
•
  this active loudspeaker may emit high sound pressure levels.
•
  do not listen too close to the active loudspeaker.
•
  do not listen for an extended period of time at a high sound pressure level.
•
  do not attempt to remove the active loudspeaker chassis, there are no user serviceable parts.
•
  do not plug a guitar into the Stockwell.
•
  do not insert body parts or objects into the bass port for risk of injury.
•
  of dropping the product.
•
  of sharp corners.

MOISTURE AND HUMIDITY

• The active loudspeaker should be located in a place free from moisture and water.
• Do not use this apparatus near water. Do not expose it to rain or dripping water. Do not splash water on it.

INSTALLATION

• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
• No naked flame sources, such as lit candles, should be placed on the active loudspeaker.
• Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

CONNECTION

• Connect the active loudspeaker according to the instructions in the manual.
• Connect the active loudspeaker only to the correct mains voltage as shown on the equipment.
• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit the apparatus.
• Use only power cables of the type specified in the operating instructions or as marked on the active loudspeaker. Do not substitute the separate power cable included with this active loudspeaker with any other power supply – use only the power cable provided by the manufacturer.
• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
• Do not install in an area that impedes access to the power plug. Disconnecting the power plug is the only way to completely remove power to the product and the plug must be readily accessible at all times.

CLEANING

Clean only with dry cloth.

MAINTENANCE

• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
• The internal battery is user replaceable according to the instructions in this manual. Only use batteries recommended by Zound Industries and intended for the Stockwell active loudspeaker.
•
  These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing unless you are qualified to do so.

BOX CONTENTS

1. POWER ADAPTER WITH A CORD AND REGION SPECIFIC PLUGS
2. QUICK START USER MANUAL AND SAFETY INFORMATION

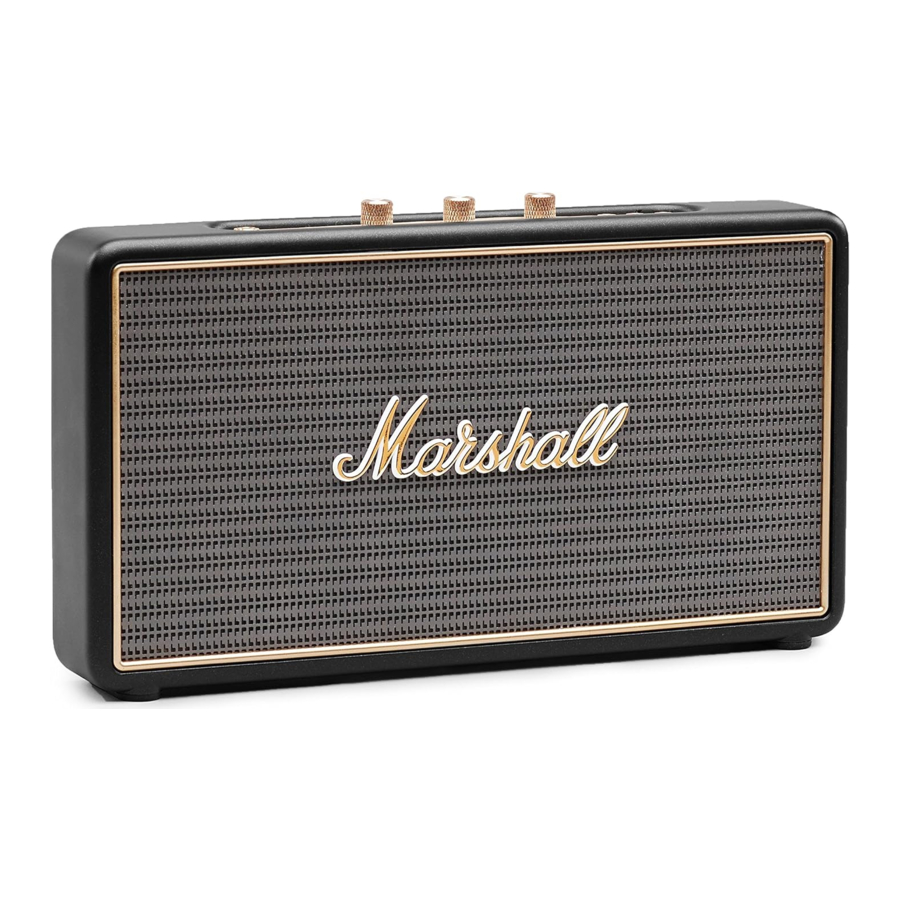

3. MARSHALL STOCKWELL ACTIVE STEREO LOUDSPEAKER
4. MARSHALL FOLDABLE FLIP COVER (INCLUDED OR SOLD SEPARATELY DEPENDING ON MODEL)

DEVICE LAYOUT

1. INPUT FOR 3.5MM STEREO PLUG
2. SOURCE BUTTON
3. SOURCE INDICATORS
4. VOLUME KNOB
5. BASS KNOB
6. TREBLE KNOB
7. PHONE BUTTON
8. PAIR BUTTON
9. POWER BUTTON
10. ON/OFF INDICATOR

CHANGING THE POWER ADAPTER PLUG

THE INCLUDED 15V POWER ADAPTER COMES WITH INTERCHANGEABLE PLUGS (US/EU OR UK). BEFORE USING THE STOCKWELL, ENSURE THAT THE CORRECT PLUG FOR YOUR REGION IS INSTALLED.

1. PUSH AND HOLD THE BUTTON NEXT TO THE PLUG WHILE TURNING THE PLUG SLIGHTLY ANTICLOCKWISE.
2. REMOVE THE PLUG.
3. INSTALL THE CORRECT PLUG BY INSERTING IT SLIGHTLY TURNED CLOCKWISE.
4. TURN THE PLUG CLOCKWISE UNTIL YOU HEAR A CLICK.

PLUGGING IN AND CHARGING THE STOCKWELL

THE STOCKWELL IS EQUIPPED WITH AN INTERNAL BATTERY SUPPORTING A PLAYING TIME FOR UP TO 25 HOURS AT MID VOLUME. THE BATTERY IS RECHARGEABLE AND CAN BE FULLY CHARGED IN 3 HOURS, WHEN COMPLETELY DISCHARGED.
IF THE RED ON/OFF INDICATOR STARTS TO FLASH WHEN THE STOCKWELL IS ON BATTERY POWER, THE BATTERY HAS LESS THAN 25% CHARGE LEFT.

1. INSERT THE POWER CORD INTO THE 15V POWER SOCKET ON THE LEFT HAND SIDE OF THE STOCKWELL.
2. CONNECT THE POWER ADAPTER TO THE WALL SOCKET.

NOTE: THE SPEAKER CAN BE USED WHILE CHARGING THE BATTERY.

1. THE RED ON/OFF INDICATOR FLASHES WHEN THE BATTERY IS CHARGING.
2. THE RED ON/OFF INDICATOR STAYS LIT WHEN CHARGING IS DONE.

TURNING THE POWER ON/OFF

NOTE: THE SPEAKER AUTOMATICALLY TURNS OFF AFTER 20 MINUTES OF INACTIVITY.

1. PUSH AND HOLD POWER BUTTON FOR 1 SECOND TO TURN ON THE SPEAKER.
2. THE RED ON/OFF INDICATOR ON TOP PANEL LIGHTS UP.
3. PUSH AND HOLD THE POWER BUTTON FOR 3 SECONDS TO TURN OFF THE SPEAKER.
4. THE RED ON/OFF INDICATOR ON TOP PANEL GOES OFF.

CONNECTING VIA BLUETOOTH (PAIRING)

THERE ARE TWO WAYS TO CONNECT YOUR PHONE, TABLET, LAPTOP TO YOUR SPEAKER, WHETHER USING A PHYSICAL CORD OR VIA WIRELESS BLUETOOTH®. BELOW YOU WILL FIND MORE DETAILS ABOUT THE CONNECTION SOURCES, IN TWO CATEGORIES:

• WIRELESS CONNECTION VIA BLUETOOTH (SPEAKER PHONE MODE)
• CONNECTION VIA THE 3.5MM STEREO PLUG


  MAKE SURE THAT THE VOLUME IS SET TO LOW ON BOTH THE SPEAKER AND THE MUSIC PLAYER WHEN YOU START PLAYING MUSIC.

USING THE STOCKWELL WITH YOUR DEVICES

THE STOCKWELL HAS A USB POWER OUTPUT SOCKET ON THE BACK. YOU CAN PLUG IN AND CHARGE YOUR USB CHARGEABLE DEVICE. THE STOCKWELL WILL POWER YOUR USB DEVICE EVEN THOUGH IT IS PLAYING MUSIC AND RUNNING ON BATTERY POWER.

BLUETOOTH AUTO CONNECTION

WITH THE HELP OF BLUETOOTH TECHNOLOGY YOU CAN EASILY CONNECT YOUR BLUETOOTH-COMPATIBLE DEVICES TO THE STOCKWELL OVER A SHORT RANGE WIRELESS CONNECTION. THIS ALLOWS YOU TO USE THE STOCKWELL AS A SPEAKER PHONE WITH YOUR BLUETOOTH-ENABLED SMARTPHONE OR CONNECT IT WITH A TABLET OR COMPUTER AND STREAM MUSIC DIRECTLY TO IT.
FOLLOW THESE STEPS TO PAIR THE STOCKWELL WIRELESSLY TO YOUR BLUETOOTH DEVICE.

NOTE: THE STOCKWELL HOLDS THE 5 LAST PAIRED DEVICES IN ITS MEMORY AND CONNECTS AUTOMATICALLY TO THE LAST PAIRED DEVICE WHEN TURNED ON AGAIN.

1. ENSURE THAT THE STOCKWELL IS POWERED ON.
2. PUSH THE PAIR BUTTON.
3. THE RED BLUETOOTH INDICATOR STARTS TO FLASH RAPIDLY.

1. ENABLE BLUETOOTH FUNCTIONALITY ON YOUR DEVICE.
   (SMARTPHONE, TABLET, COMPUTER).
2. ON YOUR DEVICE, SELECT THE STOCKWELL FROM THE BLUETOOTH LIST AND ACCEPT PAIRING.
3. THE BLUETOOTH INDICATOR ON THE STOCKWELL TURNS TO A STEADY RED AND THE UNITS ARE NOW CONNECTED.

CONNECTING SOUND SOURCE BY CABLE

IF A BLUETOOTH CONNECTED DEVICE IS MOVED OUTSIDE THE RANGE OF THE STOCKWELL (APPROXIMATELY 10 METRES WITHOUT OBSTACLES), IT IS DISCONNECTED. THE DEVICE IS AUTOMATICALLY CONNECTED AGAIN WHEN IT IS MOVED BACK WITHIN RANGE.
THE SPEAKER STORES UP TO FIVE DEVICES AND TRIES TO CONNECT TO THE LAST CONNECTED BLUETOOTH DEVICE FIRST. FOR EXAMPLE, IF THE SPEAKER HAS BEEN CONNECTED TO THE DEVICES: A–B–C–D–E, DEVICE E IS GIVEN FIRST PRIORITY, WHILE DEVICE A IS GIVEN LAST PRIORITY. EVERY TIME THE SPEAKER STARTS UP, IT WILL DO AN AUTO CONNECTION OF DEVICES WITHIN ITS RANGE.

THERE IS ANOTHER WAY TO CONNECT TO YOUR STOCKWELL – THE OLD FASHIONED WAY, USING A DOUBLE-ENDED CORD AND THE 3.5MM INPUT.
USE A DOUBLE-ENDED CORD WITH 3.5MM PLUGS TO CONNECT TO AUDIO SOURCES THAT HAVE AUDIO OUTPUT SUCH AS A MOBILE TELEPHONE, IPHONE/ IPAD/IPOD, MP3 PLAYER, OR AIRPORT EXPRESS.

1. CONNECT THE CORD WITH THE 3.5MM STEREO PLUG TO THE INPUT ON THE STOCKWELL.
2. CONNECT THE CORD WITH THE 3.5MM STEREO PLUG TO THE MUSIC PLAYER.
3. SELECT INPUT AS SOURCE BY PUSHING THE SOURCE BUTTON UNTIL THE INPUT INDICATOR IS LIT.

CHOOSING YOUR SOURCE

THE INPUT SOURCE THAT IS CURRENTLY SELECTED IS SHOWN BY A LIT INDICATOR. TO SELECT A DIFFERENT SOUND SOURCE:

1. PUSH THE SOURCE BUTTON TO CHOOSE BETWEEN BLUETOOTH AND 3.5MM STEREO PLUG.

2. A LIT INDICATOR SHOWS WHICH SOURCE YOU HAVE SELECTED.
   • BLUETOOTH
   • INPUT - 3.5MM STEREO PLUG


USING THE STOCKWELL IN SPEAKER PHONE MODE

THE STOCKWELL CAN BE USED AS A SPEAKER PHONE. WHEN CONNECTED TO A PHONE THROUGH BLUETOOTH, YOUR RINGTONE WILL SOUND IN THE STOCKWELL.

1. ANSWER AN INCOMING CALL; PUSH THE PHONE BUTTON FOR LESS THAN 1 SECOND.
2. END AN ONGOING CALL; PUSH THE PHONE BUTTON ONCE.
3. DECLINE AN INCOMING CALL; PUSH AND HOLD THE PHONE BUTTON FOR MORE THAN 1 SECOND.

ADJUSTING THE SOUND

THE SOUND OF THE STOCKWELL CAN BE ADJUSTED BY TURNING THE RETRACTABLE VOLUME, BASS AND TREBLE KNOBS.

1. PUSH THE RETRACTABLE KNOB FOR IT TO POP UP.
2. TURN THE KNOB TO ADJUST THE SOUND TO YOUR LIKING.
3. PUSH THE KNOB BACK IN WHEN DONE.

THE STOCKWELL HAS THREE KNOBS FOR ADJUSTING THE SOUND:

1. VOLUME KNOB
2. BASS KNOB
3. TREBLE KNOB

REPLACING THE INTERNAL BATTERY

IF THE INTERNAL BATTERY IS BROKEN OR WORN OUT, YOU CAN REPLACE IT WITH A NEW ONE. THE FAULTY BATTERY PACK MUST ALWAYS BE RECYCLED ACCORDING TO LOCAL LAWS AND REGULATION.

1. UNPLUG THE POWER ADAPTER FROM THE WALL SOCKET.

   NOTE: FULLY CHARGE THE STOCKWELL BATTERY BEFORE USING IT FOR THE FIRST TIME.
2. UNPLUG THE POWER ADAPTER CORD FROM 15V POWER SOCKET ON THE LEFT HAND SIDE OF THE STOCKWELL.

3. IF THE STOCKWELL IS EQUIPPED WITH A FLIP COVER, REMOVE IT ACCORDING TO THE INSTRUCTION.
4. CAREFULLY PUT THE STOCKWELL FRONT DOWN ON A FLAT, CLEAN SURFACE.

• ONLY USE AUTHENTIC STOCKWELL BATTERY.
• DO NOT PULL ON THE BATTERY CABLE.
• THE BATTERY PLUG IS POLARITY SENSITIVE.

5. USE A TORX SCREWDRIVER (SIZE T10) TO REMOVE THE TWO SCREWS ON THE BATTERY HATCH ON THE BACK OF THE STOCKWELL.
6. OPEN THE BATTERY HATCH AND REMOVE IT FROM THE SPEAKER.
7. PULL THE BATTERY TAB AND CAREFULLY LIFT THE BATTERY WITHOUT PULLING THE CABLE CONNECTING THE BATTERY TO THE STOCKWELL.
8. CAREFULLY DISCONNECT THE BATTERY PLUG AND REMOVE THE BATTERY.
9. REVERSE THE PROCESS TO INSTALL THE NEW BATTERY.

USING THE FLIP COVER (OPTIONAL)

THE FLIP COVER IS SOLD SEPARATELY AND ALSO INCLUDED IN SOME MODELS OF THE STOCKWELL. IT CAN PROTECT YOUR STOCKWELL WHEN IT IS NOT IN USE AND CAN BE FOLDED UP NEATLY ON THE BACK OF THE STOCKWELL WHEN YOU ARE USING THE SPEAKER.

1. GRAB THE FLIP COVER, STARTING FROM THE FRONT BOTTOM OF THE STOCKWELL.

2. UNFOLD THE FLIP COVER, STARTING FROM THE FRONT BOTTOM OF THE STOCKWELL ALL THE WAY OVER THE SPEAKER.

3. FOLD THE THE FLIP COVER AND SNAP IT TO THE BACK OF THE SPEAKER.

4. THE FLIP COVER IS HELD IN PLACE WITH THE HELP OF THE MAGNETS.


THE FLIP COVER CAN BE FOLDED INTO A TILT STAND FOR THE STOCKWELL.

1. GRAB THE FLIP COVER, STARTING FROM THE FRONT BOTTOM OF THE STOCKWELL.

2. UNFOLD THE FLIP COVER ALL THE WAY OVER THE SPEAKER.

3. FOLD THE TOP OF THE FLIP COVER UNDER THE STOCKWELL.

4. TILT THE SPEAKER UNTIL IT RESTS SECURELY ON THE FLIP COVER.


REMOVING THE FLIP COVER (OPTIONAL)

1. UNFOLD THE FLIP COVER, STARTING FROM THE FRONT BOTTOM OF THE STOCKWELL ALL THE WAY OVER THE SPEAKER.

2. ON THE BACK OF THE STOCKWELL, GRAB THE FLIP COVER BY THE BOTTOM AND GENTLY PULL. THE COVER IS HELD IN PLACE BY HIDDEN MAGNETS.

3. PULL THE FLIP COVER DOWN AND OUT FROM THE SPEAKER TO REMOVE IT.

4.
   DO NOT USE EXCESSIVE FORCE WHEN REMOVING THE FLIP COVER.


ATTACHING THE FLIP COVER (OPTIONAL)

1. GENTLY SLIDE THE HOOKS OF THE FLIP COVER INTO THE MATCHING SLOTS ON THE BACK OF THE STOCKWELL.
2. THE FLIP COVER IS HELD IN PLACE WITH HIDDEN MAGNETS.
3. PUSH DOWN THE RETRACTABLE KNOBS AND FOLD THE FLIP COVER OVER THE TOP AND FRONT OF THE STOCKWELL.

TECHNICAL INFORMATION

SOUND SPECIFICATION

• ACTIVE STEREO LOUDSPEAKER WITH BASS REFLEX SYSTEM
• TONE CONTROLS:
  • BASS: 300Hz, +6dB TO -12dB
  • TREBLE: 3kHz, +6dB TO -12dB
• CLASS D AMPLIFIER: 2 X 10W
• WOOFER: 2 X 2.25"
• FULL RANGE: 2 X 2.25"
• PASSIVE RADIATORS: 2 X 3.5" X 1.5"
• MAX SPL: 90dB SPL @ 1 m
• FREQUENCY RANGE: 50 - 20000Hz

CONNECTIVITY

• BLUETOOTH: STANDARD V4.0 + EDR
• INPUT - 3.5mm STEREO PLUG

TECHNICAL INFORMATION

• POWER ADAPTER: 15V/1.8A
• MAX PEAK POWER CONSUMPTION: 60W
• STANDBY POWER CONSUMPTION:
  • BATTERY MODE: 150 μA
  • POWER ADAPTER MODE: 0.2W
• USB CHARGING OUTPUT: 5V/1A
• AUDIO OUTPUT: 27W RMS
• BATTERY TYPE: 3 X 3.7V LI-IO BATTERIES, 2200 mAh
• BATTERY PLAYING TIME:
  • MAX VOLUME: 10h
  • MID VOLUME: 25h *
• BATTERY CHARGING TIME: 3h
• WEIGHT: 1.20kg
• SIZE: 260 X 140 X 41 mm

*PLAYING TIME CALCULATED WITH THE STOCKWELL PLAYING AT VOLUME CONTROL 5 WITH RANDOMLY SELECTED MUSIC CONTENT.

NOTE: THE FRONT IS NOT REMOVABLE. THIS ILLUSTRATION INTENDS TO SHOW THE INTERNAL SPEAKER LAYOUT. DO NOT ATTEMPT TO REMOVE THE FRONT FRET FOR RISK OF DAMAGING YOUR ACTIVE LOUDSPEAKER.

TROUBLESHOOTING

NOTES:
A BLUETOOTH DEVICE COULD CAUSE SOUND-RELATED OR TECHNICAL FAULTS, DEPENDING ON USE, IN THE FOLLOWING CASES:

• WHEN SOME PART OF THE BODY IS IN CONTACT WITH THE RECEIVING/TRANSMITTING SYSTEM FOR THE BLUETOOTH DEVICE OR THE STOCKWELL.
• ELECTRICAL VARIATIONS DUE TO OBSTACLES IN THE FORM OF WALLS, CORNERS, ETC.
• EXPOSURE TO ELECTRICAL DISRUPTIONS FROM DEVICES WITHIN THE SAME FREQUENCY BAND, FOR EXAMPLE MEDICAL EQUIPMENT, MICROWAVE OVENS AND WIRELESS NETWORKS.

THIS WIRELESS DEVICE MAY CAUSE ELECTRICAL DISRUPTIONS DURING USE.

For the declaration of conformity, visit this website: www.marshallheadphones.com
Zound Industries International AB, Centralplan 15, 111 20 Stockholm, Sweden
