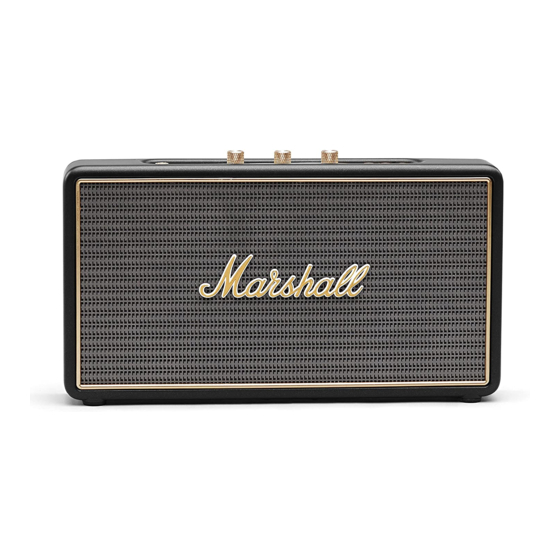

Marshall Amplification Stockwell User Manual

Portable stereo loudspeaker
Hide thumbs Also See for Stockwell:
Table of Contents

Advertisement

Quick Links

STOCKWELL - PORTABLE STEREO LOUDSPEAKER

USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Stockwell and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Marshall Amplification Stockwell

Summary of Contents for Marshall Amplification Stockwell

  • Page 1: User Manual

    STOCKWELL - PORTABLE STEREO LOUDSPEAKER USER MANUAL...

  • Page 2: Important Safety Instructions

    • WARNING – do not attempt to remove the active loudspeaker chassis, there are no user serviceable parts. • WARNING – do not plug a guitar into the Stockwell. • WARNING – do not insert body parts or objects into the bass port for risk of injury.
  • Page 3 COMPLIANCE MARKS FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 4: Table Of Contents

    CONNECTING VIA BLUETOOTH (PAIRING) 015. BLUETOOTH AUTO CONNECTION 016. CONNECTING SOUND SOURCE BY CABLE 018. CHOOSING YOUR SOURCE 019. USING THE STOCKWELL IN SPEAKER PHONE MODE 020. ADJUSTING THE SOUND 022. REPLACING THE INTERNAL BATTERY USING THE FLIP COVER (OPTIONAL) 024. 026.

  • Page 5: Box Contents

    BOX CONTENTS 001. POWER ADAPTER WITH A CORD AND REGION SPECIFIC PLUGS 002. QUICK START USER MANUAL AND SAFETY INFORMATION 003. MARSHALL STOCKWELL ACTIVE STEREO LOUDSPEAKER 004. MARSHALL FOLDABLE FLIP COVER (INCLUDED OR SOLD SEPARATELY USING THE STOCKWELL WITH DEPENDING ON MODEL) YOUR DEVICES 001.

  • Page 6: Device Layout

    DEVICE LAYOUT 001. INPUT FOR 3.5MM STEREO PLUG 006. TREBLE KNOB 002. SOURCE BUTTON 007. PHONE BUTTON 003. SOURCE INDICATORS 008. PAIR BUTTON 004. VOLUME KNOB 009. POWER BUTTON 005. BASS KNOB 010. ON/OFF INDICATOR 006. 009. 010. 007. 008. 006.

  • Page 7: Changing The Power Adapter Plug

    CHANGING THE POWER ADAPTER PLUG THE INCLUDED 15V POWER ADAPTER COMES WITH INTERCHANGEABLE PLUGS (US/EU OR UK). BEFORE USING THE STOCKWELL, ENSURE THAT THE CORRECT PLUG FOR YOUR REGION IS INSTALLED. 001. PUSH AND HOLD THE BUTTON NEXT TO THE PLUG WHILE TURNING THE PLUG SLIGHTLY ANTICLOCKWISE.

  • Page 8: Plugging In And Charging The Stockwell

    RECHARGEABLE AND CAN BE FULLY CHARGED IN 3 HOURS, WHEN COMPLETELY DISCHARGED. IF THE RED ON/OFF INDICATOR STARTS TO FLASH WHEN THE STOCKWELL IS ON BATTERY POWER, THE BATTERY HAS LESS THAN 25% CHARGE LEFT. 001. INSERT THE POWER CORD INTO THE 15V POWER SOCKET ON THE LEFT HAND SIDE OF THE STOCKWELL.
  • Page 9 PLUGGING IN AND CHARGING THE STOCKWELL 001. THE RED ON/OFF INDICATOR FLASHES WHEN THE BATTERY IS CHARGING. 002. THE RED ON/OFF INDICATOR STAYS LIT WHEN CHARGING IS DONE. 001 . 001 . 002 . NOTE: THE SPEAKER CAN BE USED WHILE CHARGING THE BATTERY.

  • Page 10: Turning The Power On/Off

    TURNING THE POWER ON/OFF 001. PUSH AND HOLD POWER BUTTON FOR 1 SECOND TO TURN ON THE SPEAKER. 002. THE RED ON/OFF INDICATOR ON TOP PANEL LIGHTS UP. 003. PUSH AND HOLD THE POWER BUTTON FOR 3 SECONDS TO TURN OFF THE SPEAKER.
  • Page 11 CONNECTING VIA BLUETOOTH (PAIRING) THERE ARE TWO WAYS TO CONNECT YOUR PHONE, TABLET, LAPTOP TO YOUR SPEAKER, WHETHER USING A PHYSICAL CORD OR VIA WIRELESS BLUETOOTH ® BELOW YOU WILL FIND MORE DETAILS ABOUT THE CONNECTION SOURCES, IN TWO CATEGORIES: •...

  • Page 12: Using The Stockwell With Your Devices

    USING THE STOCKWELL WITH YOUR DEVICES THE STOCKWELL HAS A USB POWER OUTPUT SOCKET ON THE BACK. YOU CAN PLUG IN AND CHARGE YOUR USB CHARGEABLE DEVICE. THE STOCKWELL WILL POWER YOUR USB DEVICE EVEN THOUGH IT IS PLAYING MUSIC AND RUNNING ON BATTERY POWER.

  • Page 13: Bluetooth Auto Connection

    WITH THE HELP OF BLUETOOTH TECHNOLOGY YOU CAN EASILY CONNECT YOUR BLUETOOTH-COMPATIBLE DEVICES TO THE STOCKWELL OVER A SHORT RANGE WIRELESS CONNECTION. THIS ALLOWS YOU TO USE THE STOCKWELL AS A SPEAKER PHONE WITH YOUR BLUETOOTH-ENABLED SMARTPHONE OR CONNECT IT WITH A TABLET OR COMPUTER AND STREAM MUSIC DIRECTLY TO IT.
  • Page 14 CONNECTING VIA BLUETOOTH (PAIRING) 004. ENABLE BLUETOOTH FUNCTIONALITY ON YOUR DEVICE. (SMARTPHONE, TABLET, COMPUTER). 005. ON YOUR DEVICE, SELECT THE STOCKWELL FROM THE BLUETOOTH LIST AND ACCEPT PAIRING. 006. THE BLUETOOTH INDICATOR ON THE STOCKWELL TURNS TO A STEADY RED AND THE UNITS ARE NOW CONNECTED.

  • Page 15: Connecting Sound Source By Cable

    CONNECTING SOUND SOURCE BY CABLE IF A BLUETOOTH CONNECTED DEVICE IS MOVED OUTSIDE THE RANGE OF THE STOCKWELL (APPROXIMATELY 10 METRES WITHOUT OBSTACLES), IT IS DISCONNECTED. THE DEVICE IS AUTOMATICALLY CONNECTED AGAIN WHEN IT IS MOVED BACK WITHIN RANGE. THE SPEAKER STORES UP TO FIVE DEVICES AND TRIES TO CONNECT TO THE LAST CONNECTED BLUETOOTH DEVICE FIRST.
  • Page 16 CONNECTING SOUND SOURCE BY CABLE THERE IS ANOTHER WAY TO CONNECT TO YOUR STOCKWELL – THE OLD FASHIONED WAY, USING A DOUBLE-ENDED CORD AND THE 3.5MM INPUT. USE A DOUBLE-ENDED CORD WITH 3.5MM PLUGS TO CONNECT TO AUDIO SOURCES THAT HAVE AUDIO OUTPUT SUCH AS A MOBILE TELEPHONE, IPHONE/ IPAD/IPOD, MP3 PLAYER, OR AIRPORT EXPRESS.
  • Page 17 CONNECTING SOUND SOURCE BY CABLE 001. CONNECT THE CORD WITH THE 3.5MM STEREO PLUG TO THE INPUT ON THE STOCKWELL. 002. CONNECT THE CORD WITH THE 3.5MM STEREO PLUG TO THE MUSIC PLAYER. 003. SELECT INPUT AS SOURCE BY PUSHING THE SOURCE BUTTON UNTIL THE INPUT INDICATOR IS LIT.

  • Page 18: Choosing Your Source

    CHOOSING YOUR SOURCE THE INPUT SOURCE THAT IS CURRENTLY SELECTED IS SHOWN BY A LIT INDICATOR. TO SELECT A DIFFERENT SOUND SOURCE: 001. PUSH THE SOURCE BUTTON TO CHOOSE BETWEEN BLUETOOTH AND 3.5MM STEREO PLUG. 002. A LIT INDICATOR SHOWS WHICH SOURCE YOU HAVE SELECTED. •...

  • Page 19: Using The Stockwell In Speaker Phone Mode

    USING THE STOCKWELL IN SPEAKER PHONE MODE THE STOCKWELL CAN BE USED AS A SPEAKER PHONE. WHEN CONNECTED TO A PHONE THROUGH BLUETOOTH, YOUR RINGTONE WILL SOUND IN THE STOCKWELL. 001. ANSWER AN INCOMING CALL; PUSH THE PHONE BUTTON FOR LESS THAN 1 SECOND.

  • Page 20: Adjusting The Sound

    ADJUSTING THE SOUND THE SOUND OF THE STOCKWELL CAN BE ADJUSTED BY TURNING THE RETRACTABLE VOLUME, BASS AND TREBLE KNOBS. 001. PUSH THE RETRACTABLE KNOB FOR IT TO POP UP. 002. TURN THE KNOB TO ADJUST THE SOUND TO YOUR LIKING.
  • Page 21 ADJUSTING THE SOUND THE STOCKWELL HAS THREE KNOBS FOR ADJUSTING THE SOUND: 001. VOLUME KNOB 002. BASS KNOB 003. TREBLE KNOB 002 . 001 . 003 . 003 . 001 . 002 . 021.

  • Page 22: Replacing The Internal Battery

    002. UNPLUG THE POWER ADAPTER CORD FROM 15V POWER SOCKET ON THE LEFT HAND SIDE OF THE STOCKWELL. 003. IF THE STOCKWELL IS EQUIPPED WITH A FLIP COVER, REMOVE IT ACCORDING TO THE INSTRUCTION ON PAGE 026. 004. CAREFULLY PUT THE STOCKWELL FRONT DOWN ON A FLAT, CLEAN SURFACE.
  • Page 23 REPLACING THE INTERNAL BATTERY 005. USE A TORX SCREWDRIVER (SIZE T10) TO REMOVE THE TWO SCREWS ON THE BATTERY HATCH ON THE BACK OF THE STOCKWELL. 006. OPEN THE BATTERY HATCH AND REMOVE IT FROM THE SPEAKER. 007. PULL THE BATTERY TAB AND CAREFULLY LIFT THE BATTERY WITHOUT PULLING THE CABLE CONNECTING THE BATTERY TO THE STOCKWELL.

  • Page 24: Using The Flip Cover (Optional)

    THE FLIP COVER IS SOLD SEPARATELY AND ALSO INCLUDED IN SOME MODELS OF THE STOCKWELL. IT CAN PROTECT YOUR STOCKWELL WHEN IT IS NOT IN USE AND CAN BE FOLDED UP NEATLY ON THE BACK OF THE STOCKWELL WHEN YOU ARE USING THE SPEAKER.
  • Page 25 USING THE FLIP COVER (OPTIONAL) THE FLIP COVER CAN BE FOLDED INTO A TILT STAND FOR THE STOCKWELL. 001. GRAB THE FLIP COVER, STARTING FROM THE FRONT BOTTOM OF THE STOCKWELL. 002. UNFOLD THE FLIP COVER ALL THE WAY OVER THE SPEAKER.

  • Page 26: Removing The Flip Cover (Optional)

    001. UNFOLD THE FLIP COVER, STARTING FROM THE FRONT BOTTOM OF THE STOCKWELL ALL THE WAY OVER THE SPEAKER. 002. ON THE BACK OF THE STOCKWELL, GRAB THE FLIP COVER BY THE BOTTOM AND GENTLY PULL. THE COVER IS HELD IN PLACE BY HIDDEN MAGNETS.

  • Page 27: Attaching The Flip Cover (Optional)

    001. GENTLY SLIDE THE HOOKS OF THE FLIP COVER INTO THE MATCHING SLOTS ON THE BACK OF THE STOCKWELL. 002. THE FLIP COVER IS HELD IN PLACE WITH HIDDEN MAGNETS. 003. PUSH DOWN THE RETRACTABLE KNOBS AND FOLD THE FLIP COVER OVER THE TOP AND FRONT OF THE STOCKWELL. 027.

  • Page 28: Specifications

    ILLUSTRATION INTENDS TO SHOW THE INTERNAL SPEAKER LAYOUT. DO NOT ATTEMPT TO REMOVE THE FRONT FRET FOR RISK OF DAMAGING YOUR ACTIVE LOUDSPEAKER. *PLAYING TIME CALCULATED WITH THE STOCKWELL PLAYING AT VOLUME CONTROL 5 WITH RANDOMLY SELECTED MUSIC CONTENT. 028.

  • Page 29: Trouble Shooting

    TROUBLE SHOOTING PROBLEM CAUSE ACTION Ensure that the STOCKWELL THE STOCKWELL The speaker is not connected is plugged into a working AC DOES NOT TURN to AC mains and the internal wall socket, see page battery is discharged. THE INTERNAL...
  • Page 30 STOCKWELL. STOCKWELL, see page Too much bass/treble boost on Lower the bass/treble on the the speaker. STOCKWELL, see page ERRATIC Move the STOCKWELL to Interference from another another spot. electronic device. PERFORMANCE Turn off or move the interfering electronic device.
  • Page 31 PHONE MODE The phone is not connected Connect your Bluetooth through Bluetooth. device, see DOES NOT WORK The STOCKWELL is turned off. Phone mode requires the STOCKWELL to be turned on. Turn on the speaker, see page 010. 031.
  • Page 32 IN THE FOLLOWING CASES: • WHEN SOME PART OF THE BODY IS IN CONTACT WITH THE RECEIVING/TRANSMITTING SYSTEM FOR THE BLUETOOTH DEVICE OR THE STOCKWELL. • ELECTRICAL VARIATIONS DUE TO OBSTACLES IN THE FORM OF WALLS, CORNERS, ETC. • EXPOSURE TO ELECTRICAL DISRUPTIONS FROM DEVICES WITHIN THE SAME FREQUENCY BAND, FOR EXAMPLE MEDICAL EQUIPMENT, MICROWAVE OVENS AND WIRELESS NETWORKS.
  • Page 33 WWW.MARSHALLHEADPHONES.COM 033.
