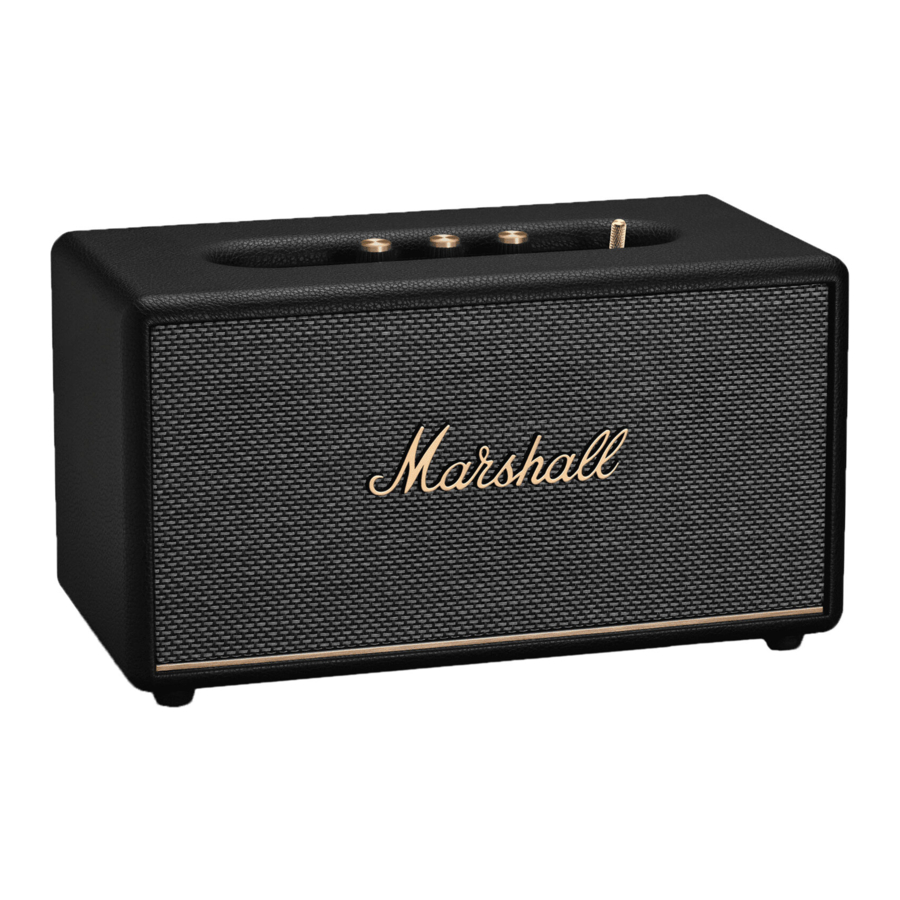

Marshall Stanmore III - Home Bluetooth Speaker Manual

DEVICE LAYOUT

1. 3.5 MM INPUT
   Plug in an analogue audio device with a 3.5 mm stereo jack.
2. SOURCE SELECTION
   Push the source button to toggle between Bluetooth^®, AUX, and RCA audio sources. A lit indicator shows which source is selected. This can also be selected from the Marshall Bluetooth app.


   Make sure that the volume is set to low on both the speaker and the audio device before using the speaker.
3. AUDIO CONTROLS
   Stanmore III includes three controls for adjusting the audio.
   1. Volume control
   2. Bass control
   3. Treble control
4. MEDIA CONTROL Control the audio directly from the top panel when playing via Bluetooth.
   1. Push to play or pause
   2. Push right to skip forward
   3. Push left to skip back
   4. Hold left or right to rewind or fast forward
      Playback can also be controlled from the Marshall Bluetooth app.
5. POWER SWITCH
   Use the power switch to turn the speaker on or off.

6. RCA INPUT (LEFT AND RIGHT)
   Plug in an RCA audio device, such as an RIAA turntable.
7. POWER INPUT
   Use the included mains lead to connect Stanmore III to the wall socket.

INSTRUCTIONS

GETTING STARTED

1. Connect the mains lead to the mains input on your speaker, then connect the mains plug to the wall socket.
2. Use the power switch to turn the speaker on.
3. Download the Marshall Bluetooth app and follow the in-app instructions to set up your speaker.

Always ensure that the mains lead, plug and speaker are compatible with your mains supply and wall socket.

Always unplug the mains lead from the wall socket before disconnecting it from the speaker.

BLUETOOTH PAIRING

1. Use the source button to select Bluetooth.
2. Push and hold the source button until the Bluetooth LED pulses red.
3. Select STANMORE III from your audio device's Bluetooth list.

Stanmore III can be connected to two Bluetooth devices at the same time. If a connected device is playing, a second connected device cannot start playing until the first device is paused.

CONNECTING AN AUX DEVICE

1. Connect a 3.5 mm stereo jack to the AUX input on the top of the speaker.
2. Connect the other end of the lead to the audio output on your audio source.
3. Use the source button to select AUX.

Note: Audio leads are not included.

CONNECTING AN RCA DEVICE

1. Connect a lead with RCA jacks to the RCA input on the back of the speaker.
2. Connect the other end of the lead to the output on your audio source.
3. Use the source button to select RCA.

Note: The turntable must be equipped with an RIAA amplifier or connected via a separate preamplifier. Audio lead and RIAA amplifier are not included.

NETWORK STANDBY MODE

Stanmore III will go into network standby if left unused for 10 minutes to save energy. Any connected Bluetooth device will be disconnected.
Interact with any control or button on the top panel, reconnect a Bluetooth device or play anything via the physical inputs to wake up the speaker.

PERFORMING A FACTORY RESET

A factory reset will return the speaker to its original settings, excluding any firmware updates.

Note: This will delete all user settings and the speaker needs to be set up again.

1. Push and hold the media control for more than 10 seconds and the speaker will reset.
2. Remove STANMORE III from your audio device's Bluetooth list before pairing again.

MARSHALL BLUETOOTH APP

Download the Marshall Bluetooth app to get the most out of your speaker and keep it up to date with the latest software.

TROUBLESHOOTING
