Marshall Stanmore Bluetooth - Stereo Loudspeaker Manual

IMPORTANT SAFETY INSTRUCTIONS

• Read these instructions – All the safety and operating instructions should be read before this product is operated.
• Keep these instructions – The safety and operating instructions should be retained for future reference.
• Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to.
• Follow all instructions – All operating and use instructions should be followed.

•
  To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not be exposed to dripping or splashing and that objects filled with liquids, such as vases, shall not be placed on apparatus.
•
  Do not cover.
•
  Only use attachments/accessories specified by the manufacturer (such as the exclusive supply adapter, battery etc).
•
  The plug is the main disconnect device and should be used as such. The disconnect device should remain readily accessible.
•
  This active loudspeaker may emit high sound pressure levels.
•
  Do not listen too close to the active loudspeaker.
•
  Do not listen for an extended period of time at a high sound pressure level.
•
  Do not attempt to remove the active loudspeaker chassis, there are no user serviceable parts.
•
  Do not plug a guitar into the Stanmore Bluetooth.
•
  Do not insert body parts or objects into the bass port for risk of injury.
•
  Of dropping the product.
•
  Of sharp corners.

MOISTURE AND HUMIDITY

• The active loudspeaker should be located in a place free from moisture and water.
• Do not use this apparatus near water. Do not expose it to rain or dripping water. Do not splash water on it.

INSTALLATION

• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
• No naked flame sources, such as lit candles, should be placed on the active loudspeaker.
• Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

CONNECTION

• Connect the active loudspeaker according to the instructions in the manual.
• Connect the active loudspeaker only to the correct mains voltage as shown on the equipment.
• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit the apparatus.
• Use only power cables of the type specified in the operating instructions or as marked on the active loudspeaker. Do not substitute the separate power cable included with this active loudspeaker with any other power supply – use only the power cable provided by the manufacturer.
• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
• Do not install in an area that impedes access to the power plug. Disconnecting the power plug is the only way to completely remove power to the product and the plug must be readily accessible at all times.

CLEANING

• Clean only with dry cloth.

MAINTENANCE

• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
•
  These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing unless you are qualified to do so.

To prevent the risk of electric shock, do not remove cover (or back plate). There are no user serviceable parts inside. Refer servicing to qualified service personnel.

BOX CONTENTS

NOTE: RCA CABLE NOT INCLUDED WITH THE STANMORE BLUETOOTH AND MUST BE PURCHASED SEPARATELY.

LIFT ACTIVE LOUDSPEAKER FROM BOTTOM. DO NOT LIFT BY PROTECTIVE BAG FOR RISK OF DROPPING THE PRODUCT.

1. QUICKSTART MANUAL AND SAFETY INFORMATION
2. DOUBLE-ENDED COIL CORD WITH 3.5MM STEREO PLUGS TO CONNECT TO YOUR MUSIC PLAYER
3. POWER CORD

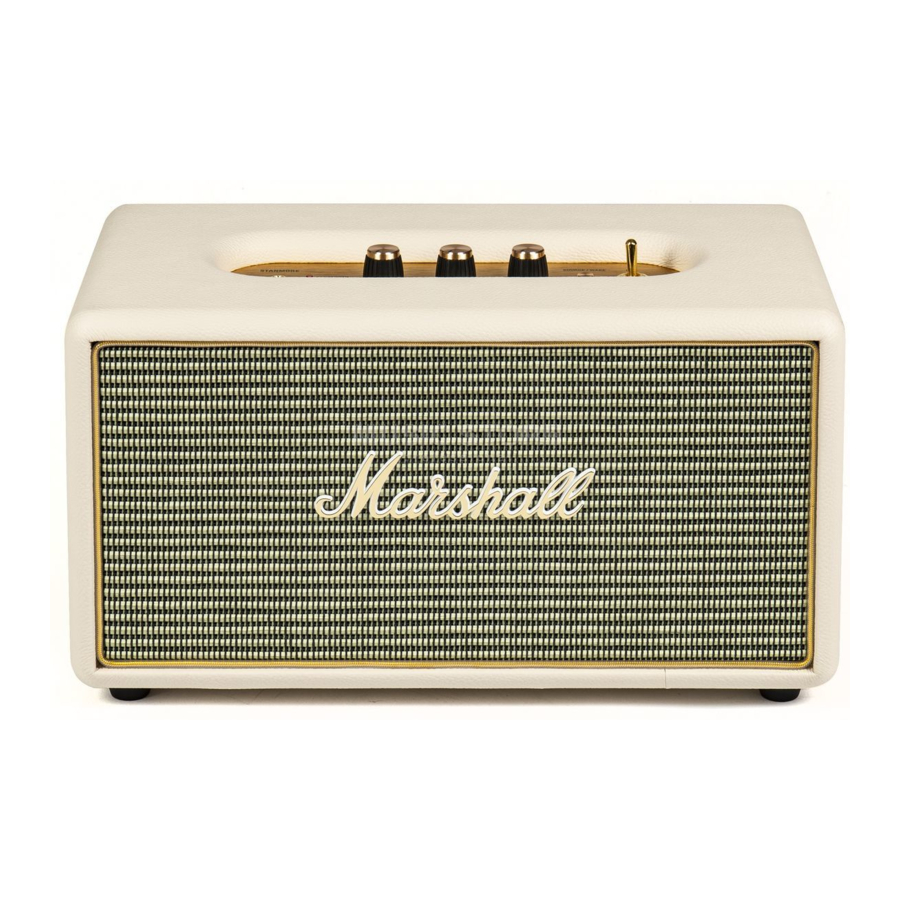

4. MARSHALL STANMORE BLUETOOTH ACTIVE STEREO LOUDSPEAKER

GENERAL DESCRIPTION

NOTE: DATE CODE AND SERIAL NUM- BER STICKER LOCATED HERE.

1. INPUT FOR 3.5MM STEREO PLUG
2. SOURCE INDICATORS
3. VOLUME KNOB
4. BASS KNOB
5. TREBLE KNOB
6. PAIR BUTTON
7. SOURCE BUTTON
8. POWER SWITCH
9. RCA INPUT (LEFT & RIGHT)
10. BACKPLATE
11. BASS PORT
12. POWER JACK
13. POWER CORD

PLUGGING IN THE STANMORE BLUETOOTH

IMPORTANT: BEFORE PROCEEDING TO POINT 001 BELOW, CHECK THE INCLUDED POWER CORD AND PLUG AND YOUR STANMORE BLUETOOTH ACTIVE STEREO LOUDSPEAKER ARE COMPATIBLE WITH YOUR MAINS ELECTRICITY SUPPLY AND ASSOCIATED WALL SOCKET.

1. INSERT THE POWER CORD INTO THE POWER JACK ON THE BACK OF THE SPEAKER.
2. CONNECT THE POWER PLUG TO THE WALL SOCKET.
3. SWITCH THE ON/OFF SWITCH TO 'ON' TO TURN ON THE SPEAKER.
4. THE RED BLUETOOTH INDICATOR STARTS FLASHING AS THE SPEAKER SEARCHES FOR A BLUETOOTH DEVICE.
5. TO TURN THE SPEAKER OFF, SWITCH THE ON/OFF SWITCH TO OFF.
6. ALL INDICATORS WILL TURN OFF.

USING THE STANMORE BLUETOOTH WITH YOUR DEVICES

THERE ARE LOADS OF WAYS TO CONNECT TO YOUR SPEAKER, WHETHER VIA YOUR PHONE, TURNTABLES, TV OR WIRELESSLY VIA WIRELESS BLUETOOTH®, FEATURING APTX® TECHNOLOGY. BELOW YOU WILL FIND MORE DETAILS ABOUT THE CONNECTION SOURCES:

• WIRELESS CONNECTION VIA BLUETOOTH
• CONNECTION VIA CABLES, THE 3.5MM OR RCA


  MAKE SURE THAT THE VOLUME IS SET TO LOW ON BOTH THE ACTIVE SPEAKER AND THE MUSIC PLAYER WHEN YOU START PLAYING MUSIC.

CONNECTING VIA BLUETOOTH (PAIRING)

FOLLOW THESE STEPS TO PAIR THE STANMORE BLUETOOTH WIRELESSLY TO YOUR BLUETOOTH DEVICE.

1. ENSURE THAT THE STANMORE BLUETOOTH IS POWERED ON.
2. PUSH THE PAIR BUTTON.
3. THE RED BLUETOOTH INDICATOR STARTS TO FLASH RAPIDLY.
4. ENABLE BLUETOOTH FUNCTIONALITY ON YOUR DEVICE. (SMARTPHONE, TABLET, COMPUTER).
5. ON YOUR DEVICE, SELECT THE STANMORE BLUETOOTH FROM THE BLUETOOTH LIST AND ACCEPT PAIRING.
6. THE BLUETOOTH INDICATOR ON THE SPEAKER TURNS TO A STEADY RED AND THE UNITS ARE NOW CONNECTED.

BLUETOOTH AUTO CONNECTION

IF A BLUETOOTH CONNECTED DEVICE IS MOVED OUTSIDE THE RANGE OF THE STANMORE BLUETOOTH (APPROXIMATELY 10 METRES WITHOUT OBSTACLES), IT IS DISCONNECTED. THE DEVICE IS AUTOMATICALLY CONNECTED AGAIN WHEN IT IS MOVED BACK WITHIN RANGE.

THE SPEAKER STORES UP TO SIX DEVICES AND TRIES TO CONNECT TO THE LAST CONNECTED BLUETOOTH DEVICE FIRST. FOR EXAMPLE, IF THE SPEAKER HAS BEEN CONNECTED TO THE DEVICES: A–B–C–D–E–F , DEVICE F IS GIVEN FIRST PRIORITY, WHILE DEVICE A IS GIVEN LAST PRIORITY. EVERY TIME THE SPEAKER STARTS UP, IT WILL DO AN AUTO CONNECTION OF DEVICES WITHIN ITS RANGE.

CONNECTING SOUND SOURCE VIA CABLE

THERE ARE TWO WAYS TO CONNECT TO YOUR STANMORE BLUETOOTH THE OLD FASHIONED WAY, USING A CABLE. USE ONE OF THE TWO AUDIO INPUTS AVAILABLE: INPUT 1 - 3.5MM STEREO PLUG, INPUT 2 - RCA ANALOGUE INPUT.

• INPUT 1 - 3.5MM STEREO PLUG
  USE THE DOUBLE-ENDED COIL CORD WITH 3.5MM PLUGS TO CONNECT TO EXTERNAL AUDIO SOURCES.
• INPUT 2 - RCA ANALOGUE INPUT
  USE THE RCA ANALOGUE INPUT TO CONNECT TO YOUR CD PLAYER, TURNTABLE (WITH RIAA) OR SONOS UNIT.

NOTE: RCA CABLE NOT INCLUDED WITH THE STANMORE BLUETOOTH AND MUST BE PURCHASED SEPARATELY.

INPUT 1 - 3.5MM STEREO PLUG

1. ENSURE THAT THE STANMORE BLUETOOTH IS TURNED OFF.
2. CONNECT THE CORD WITH THE 3.5MM STEREO PLUG TO THE INPUT LABELLED INPUT 1 ON THE SPEAKER.
3. CONNECT THE CORD WITH THE 3.5MM STEREO PLUG TO THE MUSIC PLAYER AND TURN ON THE SPEAKER.
4. SELECT INPUT 1 AS SOURCE BY PUSHING THE SOURCE BUTTON UNTIL THE INPUT 1 INDICATOR IS LIT.

INPUT 2 - RCA PORTS

NOTE: TURNTABLE MUST HAVE A BUILT IN RIAA PREAMPLIFIER, OTHERWISE A SEPARATE PREAMPLIFIER IS NEEDED.

1. ENSURE THAT THE STANMORE BLUETOOTH IS TURNED OFF.
2. CONNECT THE CORD WITH THE RCA PLUGS TO THE RCA INPUTS (LEFT AND RIGHT) ON THE BACK OF THE SPEAKER.
3. CONNECT THE OTHER END OF THE CORD TO THE RCA OUTPUT ON YOUR SOUND SOURCE AND TURN ON THE SPEAKER.
4. SELECT INPUT 2 AS SOURCE BY PUSHING THE SOURCE BUTTON UNTIL THE INPUT 2 INDICATOR IS LIT.

CHOOSING YOUR SOURCE

THE INPUT SOURCE THAT IS CURRENTLY SELECTED IS SHOWN BY A LIT INDICATOR. TO SELECT A DIFFERENT SOUND SOURCE:

1. PUSH THE SOURCE BUTTON TO CHOOSE YOUR SOURCE AND/OR TO SWITCH BETWEEN CONNECTED SOURCES.
2. A LIT INDICATOR SHOWS WHICH SOURCE YOU HAVE SELECTED.
   • BLUETOOTH DEVICE
   • INPUT 1 - 3.5MM STEREO PLUG
   • INPUT 2 - RCA PORTS

ADJUSTING THE VOLUME/BASS/TREBLE SOUND

THE STANMORE BLUETOOTH HAS THREE KNOBS FOR ADJUSTING THE SOUND:

1. VOLUME KNOB
2. BASS KNOB
3. TREBLE KNOB

TECHNICAL INFORMATION

SOUND SPECIFICATION

• ACTIVE STEREO LOUDSPEAKER WITH BASS REFLEX SYSTEM
• DIGITAL CLASS D AMPLIFIER: 2X20W + 1X40W
• ¾" DOME TWEETERS: 2X
• 5 ¼" WOOFER: 1X
• BASS AND TREBLE TONE CONTROLS
• FREQUENCY RESPONSE: 45 - 22 000Hz +-3db
• CROSSOVER FREQUENCY: 2500Hz
• CONNECTIVITY:
  • BLUETOOTH: STANDARD V4.0 + EDR APTX® CODEC
  • INPUT 1 - 3.5MM: 1X
  • INPUT 2 - RCA: 1X
  • OPTICAL INPUT: 1X
• MAX POWER OUTPUT: 80W RMS

TECHNICAL INFORMATION

• MAINS INPUT VOLTAGE: 100-240V~ /200W
• NOMINAL RATING: 100-240V~
• ABSOLUTE MIN/MAX: 90-264V~
• MAINS FREQUENCY: 50-60Hz
• MAX PEAK POWER CONSUMPTION: 200W
• WEIGHT: 5.10kg
• SIZE: 350 X 185 X 185mm

NOTE: THE FRONT IS NOT REMOVABLE. THIS ILLUSTRATION INTENDS TO SHOW THE INTERNAL SPEAKER LAYOUT. DO NOT ATTEMPT TO REMOVE THE FRONT FRET FOR RISK OF DAMAGING YOUR ACTIVE LOUDSPEAKER.

TROUBLESHOOTING

NOTES:
A BLUETOOTH DEVICE COULD CAUSE SOUND-RELATED OR TECHNICAL FAULTS, DEPENDING ON USE, IN THE FOLLOWING CASES:

• WHEN SOME PART OF THE BODY IS IN CONTACT WITH THE RECEIVING/TRANSMITTING SYSTEM FOR THE BLUETOOTH DEVICE OR THE STANMORE BLUETOOTH.
• ELECTRICAL VARIATIONS DUE TO OBSTACLES IN THE FORM OF WALLS, CORNERS, ETC.
• EXPOSURE TO ELECTRICAL DISRUPTIONS FROM DEVICES WITHIN THE SAME FREQUENCY BAND, FOR EXAMPLE MEDICAL EQUIPMENT, MICROWAVE OVENS AND WIRELESS NETWORKS.

THIS WIRELESS DEVICE MAY CAUSE ELECTRICAL DISRUPTIONS DURING USE.
