Marshall Kilburn - Portable Active Stereo Speaker Manual

IMPORTANT SAFETY INSTRUCTIONS

SAFETY INSTRUCTIONS

• Read these instructions – All the safety and operating instructions should be read before this product is operated.
• Keep these instructions – The safety and operating instructions should be retained for future reference.
• Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to.
• Follow all instructions – All operating and use instructions should be followed.
•
  To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not be exposed to dripping or splashing and that objects filled with liquids, such as vases, shall not be placed on apparatus.
•
  do not cover.
•
  only use attachments/accessories specified by the manufacturer (such as the exclusive supply adapter, battery etc).
•
  the plug is the main disconnect device and should be used as such. The disconnect device should remain readily accessible.
•
  this active loudspeaker may emit high sound pressure levels.
•
  do not listen too close to the active loudspeaker.
•
  do not listen for an extended period of time at a high sound pressure level.
•
  do not attempt to remove the active loudspeaker chassis, there are no user serviceable parts.
•
  do not plug a guitar into the Kilburn.
•
  do not insert body parts or objects into the bass port for risk of injury.
•
  of dropping the product.
•
  of sharp corners.

MOISTURE AND HUMIDITY

• The active loudspeaker should be located in a place free from moisture and water.
• Do not use this apparatus near water. Do not expose it to rain or dripping water. Do not splash water on it.

INSTALLATION

• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
• No naked flame sources, such as lit candles, should be placed on the active loudspeaker.
• Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

CONNECTION

• Connect the active loudspeaker according to the instructions in the manual.
• Connect the active loudspeaker only to the correct mains voltage as shown on the equipment.
• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit the apparatus.
• Use only power cables of the type specified in the operating instructions or as marked on the active loudspeaker. Do not substitute the separate power cable included with this active loudspeaker with any other power supply – use only the power cable provided by the manufacturer.
• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
• Do not install in an area that impedes access to the power plug. Disconnecting the power plug is theonly way to completely remove power to the product and the plug must be readily accessible at all times.

CLEANING

• Clean only with dry cloth.

MAINTENANCE

• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
• The internal battery is user replaceable according to the instructions in this manual. Only use batteries recommended by Zound Industries and intended for the KILBURN active loudspeaker.
•
  These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing unless you are qualified to do so.

OVERVIEW

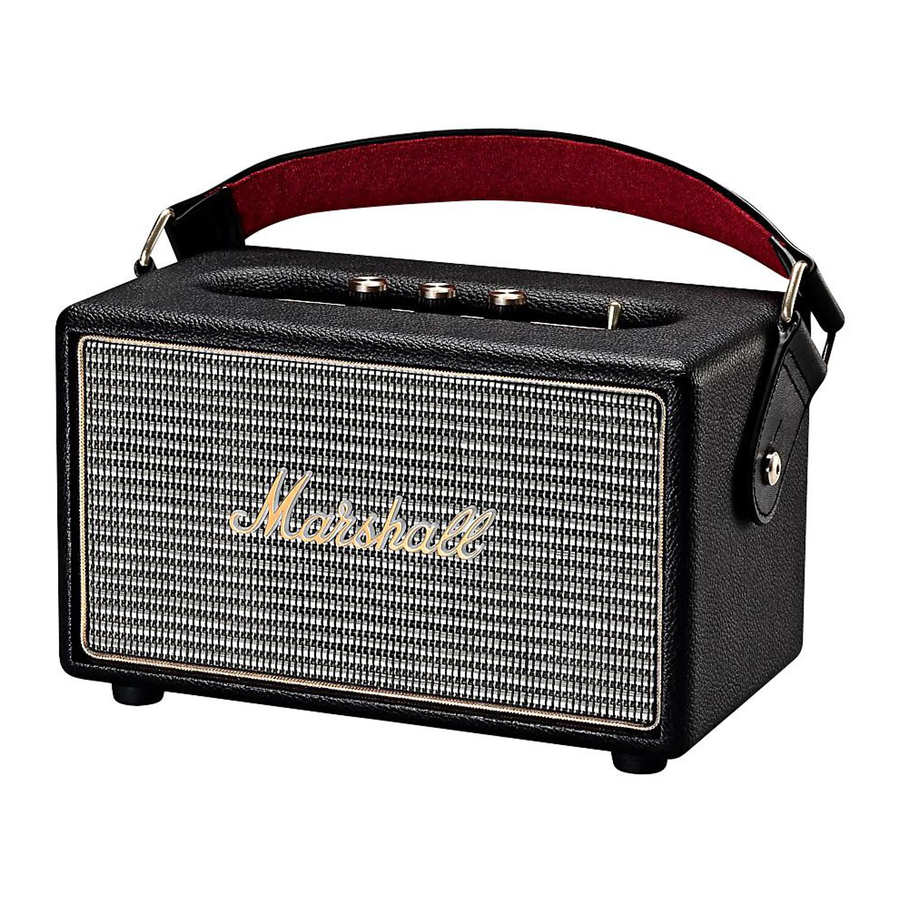

EMBODYING THE RAW, WAYWARD SPIRIT OF ROCK N ROLL, THE KILBURN PORTABLE ACTIVE STEREO SPEAKER TAKES THE UNMISTAKABLE LOOK AND SOUND OF MARSHALL, UNPLUGS THE CHORDS, AND TAKES THE SHOW ON THE ROAD.

WEIGHING IN AT A TAUT 3KG, THE KILBURN IS A LIGHTWEIGHT PIECE OF VINTAGE STYLED ENGINEERING. SETTING THE BAR AS ONE OF THE LOUDEST SPEAKERS IN ITS CLASS, THE KILBURN IS A COMPACT STOUT-HEARTED HERO WITH A WELL-BALANCED AUDIO WHICH BOASTS A CLEAR MIDRANGE AND EXTENDED HIGHS FOR A SOUND THAT IS BOTH ARTICULATE AND PRONOUNCED. THE ANALOGUE KNOBS ALLOW YOU TO FINE TUNE THE CONTROLS TO YOUR PERSONAL PREFERENCES WHILE THE GUITAR- INFLUENCED LEATHER STRAP ENABLES EASY AND STYLISH TRAVEL.

BLUETOOTH COMPATIBILITY AND THE 3,5 MM JACK INPUT MEANS EASY CONNECTIVITY, WHILE THE SIMPLE AMPLIFIER STYLED CONSTRUCTION WITH CLASSIC MARSHALL LOGO MEANS IT WILL LOOK AS GOOD AS IT SOUNDS. A BUILT-IN BATTERY LIFE OF UP TO 20 HOURS MEANS THE JAMS WILL BE KICKING FOR AS LONG AS YOUR ARE.

NOW CHARGE IT UP, PLUG IT IN, CRANK IT UP, AND TAKE PRIDE IN YOUR NEW PIECE IN A LONG LINE OF MARSHALL'S UNWAVERING LEGACY OF LOUD.

BOX CONTENTS

001. USER MANUAL AND WARRANTY INFORMATION
002. DOUBLE-ENDED COIL CORD WITH 3.5MM STEREO PLUGS TO CONNECT TO YOUR MUSIC PLAYER
003. POWER CORD
004. MARSHALL KILBURN ACTIVE STEREO LOUDSPEAKER

GENERAL DESCRIPTION

001. INPUT FOR 3.5MM STEREO PLUG
002. BATTERY LED INDICATOR
003. SOURCE LED INDICATORS
004. VOLUME KNOB
005. BASS KNOB
006. TREBLE KNOB
007. PAIR BUTTON
008. SOURCE/WAKE BUTTON
009. POWER SWITCH
010. BACK PLATE
011. BASS PORT
012. DETACHABLE CARRY STRAP
013. BATTERY HATCH
014. POWER SOCKET
015. POWER CORD

PLUGGING IN THE KILBURN LOUDSPEAKER

001. INSERT THE POWER CORD INTO THE POWER SOCKET ON THE BACK OF THE LOUDSPEAKER.
002. CONNECT THE CORRECT POWER CORD TO THE WALL SOCKET.

TURNING THE POWER ON/OFF

001. SWITCH THE POWER SWITCH TO 'ON' TO TURN ON THE KILBURN.
002. THE LED FOR THE LAST USED SOURCE WILL LIGHT UP. WHEN THE BATTERY IS CHARGING, THE BATTERY LED WILL FLASH.
003. TO TURN THE LOUDSPEAKER OFF, SWITCH OFF THE POWER SWITCH.
004. THE LED INDICATORS WILL TURN OFF.

ADJUSTING THE SOUND

TURN THE KNOB TO ADJUST THE:
001. VOLUME
002. BASS
003. TREBLE

CHARGING THE BATTERY

THE KILBURN IS EQUIPPED WITH AN INTERNAL BATTERY SUPPORTING A PLAYING TIME FOR UP TO 20 HOURS AT MID VOLUME. THE BATTERY IS RECHARGEABLE AND CAN BE FULLY CHARGED IN APPROXIMATELY 3 TO 4 HOURS, WHEN COMPLETELY DISCHARGED.

IF THE BATTERY LED STARTS TO FLASH WHEN THE LOUDSPEAKER IS ON BATTERY POWER, THE BATTERY HAS LESS THAN 20% CHARGE LEFT.

001. PLUG IN THE LOUDSPEAKER TO MAINS POWER AND SET THE POWER SWITCH TO 'ON'.
002. THE BATTERY LED STARTS FLASHING TO INDICATE THAT THE BATTERY IS CHARGING.
003. WHEN THE BATTERY LED CHANGES TO A FIXED LIGHT, THE KILBURN IS FULLY CHARGED.

NOTES:

• THE POWER SWITCH HAS TO BE SWITCHED ON FOR THE THE DEVICE TO CHARGE. IF THE UNIT IS PLUGGED IN BUT TURNED OFF THEN THE UNIT WILL NOT CHARGE.
• THE LOUDSPEAKER CAN BE USED WHILE CHARGING THE BATTERY.

USING THE KILBURN WITH YOUR DEVICES

THERE ARE TWO WAYS TO CONNECT YOUR PHONE, TABLET, LAPTOP TO YOUR LOUDSPEAKER, WHETHER USING A PHYSICAL CORD OR VIA WIRELESS BLUETOOTH®. BELOW YOU WILL FIND MORE DETAILS ABOUT THE CONNECTION SOURCES, IN TWO CATEGORIES:

• WIRELESS CONNECTION VIA BLUETOOTH
• CONNECTION VIA THE 3.5MM STEREO PLUG

CHOOSING YOUR SOURCE

ORDER OF CONNECTIONS (FROM TOP TO BOTTOM):

• BLUETOOTH
• INPUT - 3.5MM STEREO PLUG

001. PUSH THE SOURCE/WAKE BUTTON TO CHOOSE YOUR SOURCE OR TO SWITCH BETWEEN CONNECTED SOURCES.
002. A LIT LED INDICATES WHICH SOURCE YOU HAVE SELECTED.

BLUETOOTH AUTO CONNECTION

IF A DEVICE IS MOVED OUTSIDE THE RANGE OF THE KILBURN ACTIVE LOUDSPEAKER (APPROXIMATELY 10 METRES WITHOUT OBSTACLES), THAT DEVICE IS THEN DISCONNECTED. THE DEVICE IS AUTOMATICALLY CONNECTED AGAIN WHEN IT IS MOVED BACK WITHIN RANGE. THE KILBURN STORES UP TO SIX DEVICES AND ALWAYS STARTS SEARCHING FOR THE LAST DEVICE THAT HAS BEEN CONNECTED. IF THE KILBURN HAS BEEN CONNECTED TO DEVICES A-B-C-D-E-F IN THAT ORDER, DEVICE F IS GIVEN FIRST PRIORITY, WHILE DEVICE A IS GIVEN LAST PRIORITY. EVERY TIME THE KILBURN STARTS UP, IT WILL PERFORM AN AUTO CONNECTION OF DEVICES WITHIN ITS RANGE.

CONNECTING SOURCES BY CABLE

THERE IS ANOTHER WAY TO CONNECT TO YOUR KILBURN – THE OLD FASHIONED WAY, USING A CORD AND THE 3.5MM INPUT.

INPUT - 3.5MM STEREO PLUG
USE THE DOUBLE-ENDED COIL CORD WITH 3.5MM PLUGS TO CONNECT TO AUDIO SOURCES THAT HAVE AUDIO OUTPUT SUCH AS A MOBILE TELEPHONE, IPHONE/IPAD/IPOD, MP3 PLAYER, OR AIRPORT EXPRESS.

INPUT - 3.5MM STEREO PLUG

001. CONNECT THE CORD WITH THE 3.5MM STEREO PLUG TO THE INPUT ON THE LOUDSPEAKER.
002. CONNECT THE CORD WITH THE 3.5MM STEREO PLUG TO THE MUSIC PLAYER.
003. SELECT INPUT AS SOURCE BY PUSHING THE SOURCE/WAKE BUTTON UNTIL THE INPUT LED IS LIT.

STANDBY MODES

DEPENDING ON WHETHER THE KILBURN IS RUNNING ON BATTERY OR MAINS POWER IT USES TWO DIFFERENT STANDBY MODES. THIS IS IN ORDER TO COMPLY TO THE EUROPEAN UNION REGULATION THAT STATES THAT ELECTRONIC DEVICES MAY ONLY HAVE 0.5W POWER CONSUMPTION IN STANDBY MODE (THE EUROPEAN DIRECTIVE ON ENERGY RELATED PRODUCTS, OR ERP).

THE KILBURN ACTIVE STEREO LOUDSPEAKER WILL GO INTO STANDBY MODE AFTER 20 MINUTES OF NOT RECEIVING A SOUND SIGNAL OR AFTER THREE MINUTES OF NOT LOCATING ANY BLUETOOTH DEVICE WHEN IN PAIRING MODE. DEPENDING ON WHETHER THE KILBURN IS RUNNING ON BATTERY POWER OR IS CONNECTED TO MAINS POWER, THE WAKE UP BEHAVIOUR DIFFERS.

WAKING UP - BATTERY POWER

WHEN THE KILBURN GOES INTO STANDBY MODE WHILE RUNNING ON BATTERY POWER, THE LOUDSPEAKER ENTERS A LOW-POWER STATE. IT WILL NOT AUTOMATICALLY WAKE UP WHEN YOU BEGIN PLAYING MUSIC AND IT WILL ALSO NOT SHOW UP AS AN AVAILABLE DEVICE IN YOUR BLUETOOTH CONNECTION LIST.

001. TO ACTIVATE THE KILBURN AFTER THE UNIT HAS GONE TO STANDBY MODE, PUSH THE SOURCE/WAKE BUTTON ONCE. THIS WILL BRING THE KILBURN BACK TO LIFE AND READY TO PLAY AGAIN.

WAKING UP - MAINS POWER

WHEN CONNECTED TO MAINS POWER, THE KILBURN WILL AUTOMATICALLY WAKE UP WHEN THE LAST USED SOURCE IS PLAYED OR THE SOURCE/WAKE BUTTON IS PUSHED.

001. IF THE LAST SOURCE USED WAS THE 3.5MM STEREO PLUG INPUT, THE LOUDSPEAKER WAKES UP AUTOMATICALLY WHEN THE CONNECTED SOURCE BEGINS TO PLAY.
002. IF A BLUETOOTH DEVICE WAS USED AS THE LAST SOURCE, USING THE LAST USED BLUETOOTH DEVICE WILL WAKE THE KILBURN UP.

REPLACING THE INTERNAL BATTERY

IF THE INTERNAL BATTERY IS BROKEN OR WORN OUT, YOU CAN REPLACE IT WITH A NEW ONE. THE FAULTY BATTERY PACK MUST ALWAYS BE RECYCLED ACCORDING TO LOCAL LAWS AND REGULATIONS.

001. MAKE SURE THAT THE POWER CORD IS UNPLUGGED FROM THE WALL SOCKET.
002. DISCONNECTED THE POWER CORD FROM THE KILBURN POWER SOCKET.
003. CAREFULLY PLACE THE KILBURN FRONT DOWN ON A FLAT, CLEAN SURFACE.
004. USING A TORX SCREWDRIVER (SIZE T10), UNSCREW THE TWO SCREWS ON THE BATTERY HATCH ON THE BOTTOM OF THE LOUDSPEAKER.
005. OPEN THE BATTERY HATCH AND REMOVE IT FROM THE LOUDSPEAKER.
006. PULL THE BATTERY TAB AND CAREFULLY LIFT THE BATTERY WITHOUT PULLING ON THE CABLE CONNECTING THE BATTERY TO THE LOUDSPEAKER.
007. GENTLY PULL ON THE BATTERY PLUG, AWAY FROM THE LOUDSPEAKER TO DISCONNECT AND REMOVE THE BATTERY.
008. REVERSE THE PROCESS TO INSTALL THE NEW BATTERY.

ACTION
Plug the power cord into a working wall socket and plug the connector into the power socket on the back of the loudspeaker to charge the battery.

Unplug and re-plug the 3.5mm cord/input cable/signal cable into both the loudspeaker and the music player.

Turn up the volume on the loudspeaker.

Turn up the volume on the music player.

Turn down the volume.

Try another sound file (mp3) or music player.

Turn down playback level on the volume knob or reduce the sound level on the music player.

Turn down the volume control on the control panel and/or music player. Reduce the bass boost on the control panel or excessive bass boost/eq on the music player.

Turn down the volume on the loudspeaker or on the music player. Reduce the bass boost.

Move the loudspeaker to another spot or turn off or move other electronic devices.
