PERSONAL MONITOR SPEAKER
GENERAL DESCRIPTION

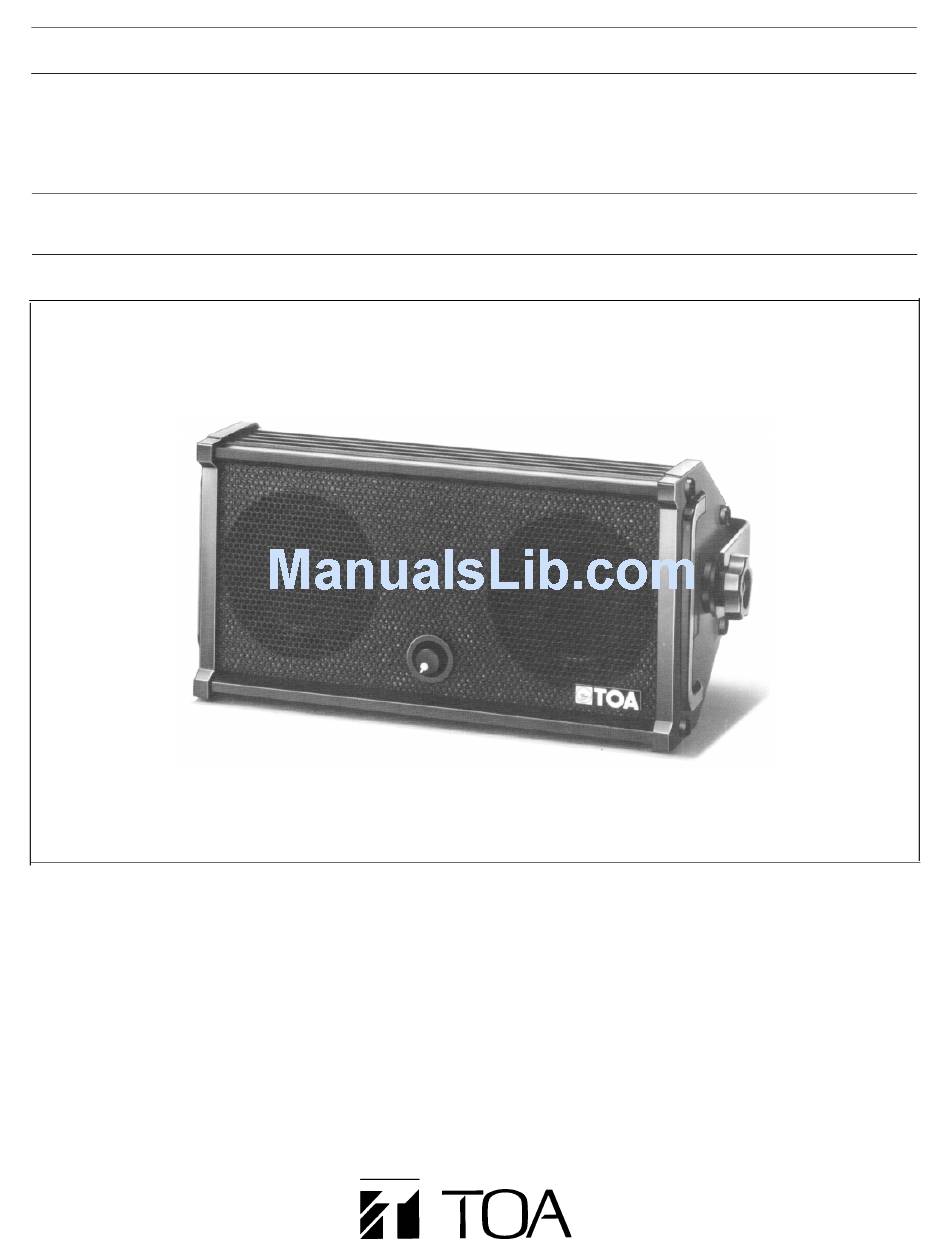

The TOA SM-68 is a full-range personal monitor speaker
system designed for professional applications. It has
a power handling capacity of 200 watts continuous
program material at an impedance of 8 ohms, and
features a variable input attenuator to adjust the volume.
The infinite baffle design incorporates two full-range
TOA SPEAKER SYSTEM
SYSTEM
SM-68
cone-type speakers (5"/12cm) in a sealed enclosure
for maximum efficiency. The cast aluminum enclosure
is both rugged and lightweight, and the adjustable
mounting bracket allows the SM-68 to be mounted to
mic stands for stage use, or to walls for permanent
installations.
