Toa SB-38W Instruction Manual

PROFESSIONAL SOUND SYSTEM
Low Frequency Enclosure
APPEARANCE
FEATURES
1. Low frequency, vented(bass-reflex) enclosure for permanent installation.
2. Creates a woofer system that reproduces low frequencies with high efficiencies when two
HLS38UL-8 woofers are mounted. The tuning frequency is 45 Hz.
3. Each speaker is mounted to the baffle board from the rear of the enclosure, facilitating
maintenance after installation.
4. Creates a wide-range, high-efficient standard speaker system(GS-3806W or GS-386W)
when used in conjunction with a LE-940 or LE-M94 CD horn, a HFD-260-8 compression
driver and two HLS38UL-8 woofers.
5. It is possible to suspend the SB-38W with the optional HY-700 suspension kit.
6. It is easy to mount the LE-940 or LE-M94 to the enclosure with the optional HY-940 or HY-
M94 horn mounting bracket when the standard speaker system is configured.
7. Large input screw terminal.
8. A protective punched-metal grille.
9. Finished with paint(dark gray).
Instruction Manual
Model SB-38W
Stands for the position of the gravity
center when two speaker units(HLS38UL-
8) are installed inside.
Note:Be sure to install each speaker unit from
the inside of the enclosure baffle board.

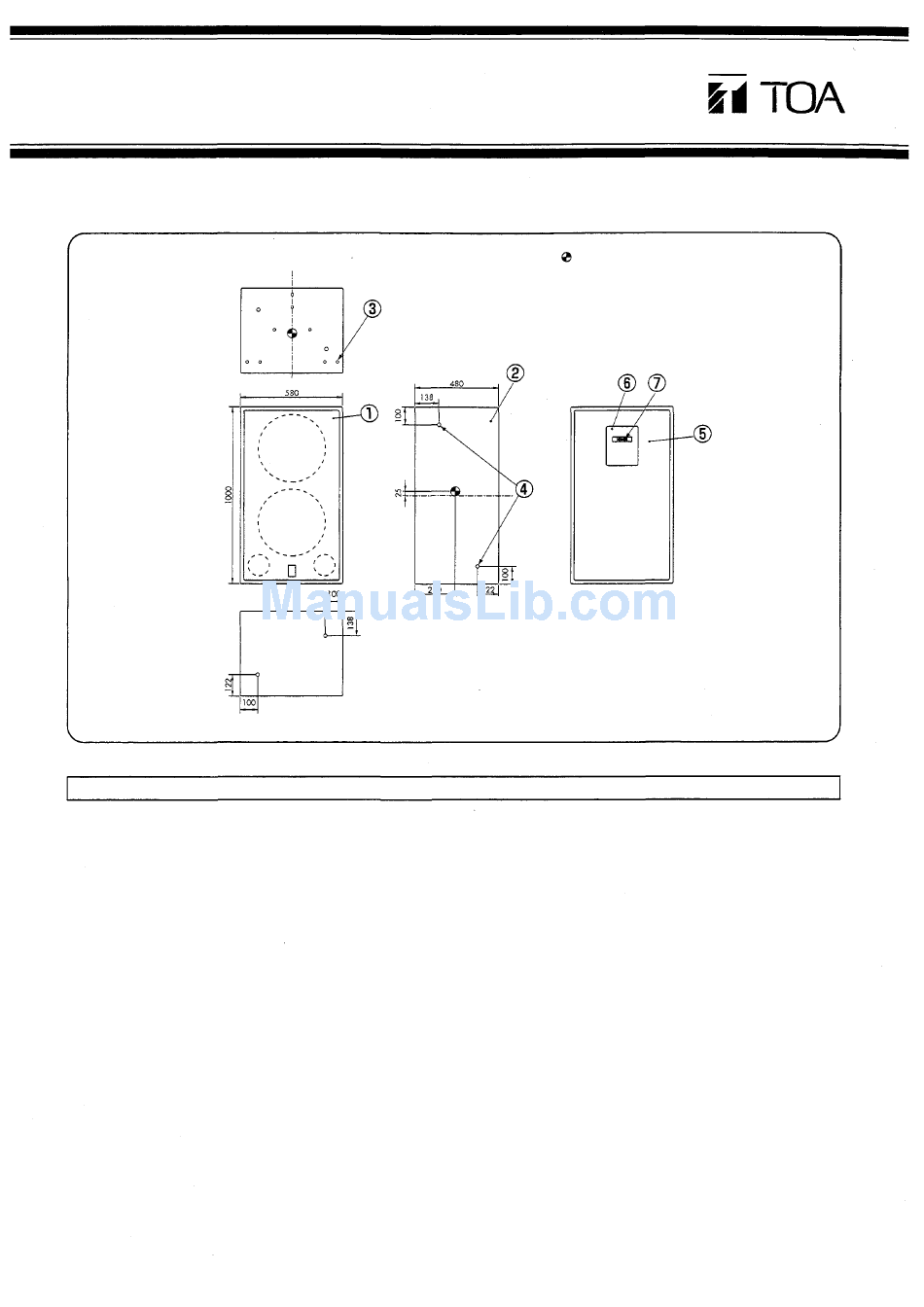

1. Punched-metal grille
2. Enclosure
3. Nut for horn mounting bracket
(HY-940/HY-M94)
4. Hole for suspension kit(HY-700)
5. Rear board
6. Terminal panel
7. Input terminal
