Toa SM-25M Instruction Manual

General Description

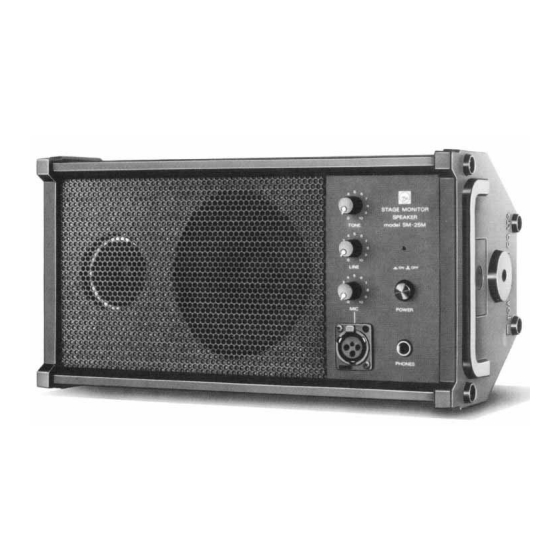

The TOA SM-25M is a self-powered personal monitor system designed around our popular SM-25A powered monitor
system. The SM-25M has a built-in 25 watt power amp, a 5-inch woofer and a 2-inch tweeter. An automatic compression
circuit is provided to ensure maximum headroom and speaker component protection. The system features a mic level XLR
input on the front panel, as well as a rotary volume control, a tone control, and headphone monitoring jack. Add to that a
back panel with both a line level ¼" input jack and a bridging jack for chaining additional speakers, and the SM-25M
becomes a portable PA/monitor system-just plug in a microphone and go. A unique bracket allows the system to be
mounted to mic stands, and even to walls in permanent installations. The cast aluminum enclosure is rugged enough to
withstand even the roughest handling. The SM-25M combines high performance, durability, and innovative design in
portable package with a wide range of applications.

Specifications

Enclosure : Sealed type
: 2 way speaker of 12cm (5-inch) and
Speakers
5cm (2-inch) diameter
Sound pressure level : 88dB (1W/1M)
: 90Hz~20kHz
Frequency response
Amplifier
Power requirements : AC Mains
Power consumption : 30W (MAX. 65W)
Rated output power : 25W
Mic input sensitivity : —55dB (1.38mV)
Mic input impedance : Open (For use with nominal 50-ohm
to 250-ohm) electronically balanced
: X L R Type, NC3F
Mic input terminal
Line input sensitivity
: —20dB (77.5mV) or+4dB (1.23V)
switchable
TOA Corporation
KOBE, JAPAN
PROFESSIONAL SOUND SPEAKER SYSTEM
model SM-25M
Line input impedance : 8k ohms, set at —20dB,
40k ohms at +4dB
Transformer isolated balance
Tone control (high cut) : —15dBat 10kHz
Line input terminal : Locked ¼" jack
Bridge terminal : Locked ¼" jack
Finish
Front panel : Metal punched net
: Cast aluminum (Black)
Body
Weight : Approx. 6.3kg (13.9 pounds)
Dimensions : 325(W) x 170(H) x 140(D) mm
12.8(W) x 6.7(H) x 5.5(D) inches
Instruction Manual
