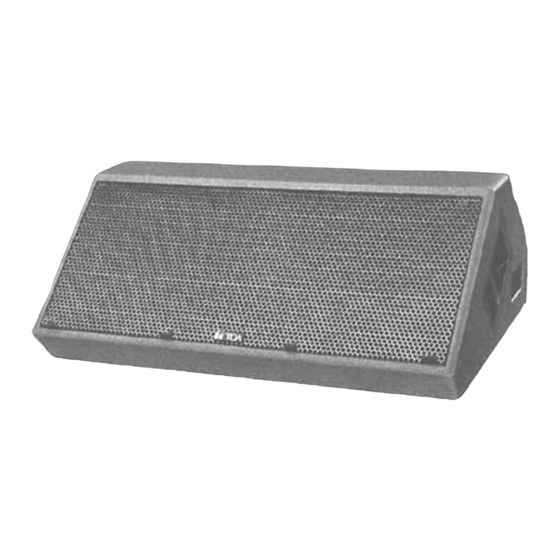

FLOOR MONITOR SPEAKER SYSTEM
SR-M1
SR-M2
AC-M1
SR-M1
FEATURES
1. 2-way, ported, bi-amplified systems.
2. 40 x 40 degree CD horn/compression driver for HF.
3. Powerful 12" (30cm) LF drivers and titanium HF compression driver.
4. Heavy duty enclosure construction.
5. Phase and driver time offset correction.
6. Active signal processing with sophisticated speaker protection.
7. "Floor Correction" circuitry.
8. Signal dependent limiting parameters.
9. Electronically-balanced inputs and outputs.
10. Neutrik Speakon (for SR's), XLR (for AC-Ml) connectors.
TOA PROFESSIONAL SOUND SYSTEM
Single -Woofer Monitor Speaker
Twin -Woofer Monitor Speaker
Electronic Control Unit
SR-M2
AC-Ml

Advertisement

loading

Related Manuals for Toa SR-M1

Summary of Contents for Toa SR-M1

  • Page 1 TOA PROFESSIONAL SOUND SYSTEM FLOOR MONITOR SPEAKER SYSTEM SR-M1 SR-M2 AC-M1 SR-M1 FEATURES 1. 2-way, ported, bi-amplified systems. 2. 40 x 40 degree CD horn/compression driver for HF. 3. Powerful 12” (30cm) LF drivers and titanium HF compression driver. 4. Heavy duty enclosure construction.

  • Page 2: Input Connector

    CD horns, plus both LF and HF limiting. DRIVERS: Both systems are two-way, but the SR-M1 has a single 12” (30cm) woofer and the SRM2 has two 12” (30cm) woofers. The 12” woofers, coupled with their 7.9” (200mm) magnets (16,200 Gauss flux density), provide high efficiency and excellent transient response for the lower frequencies.

  • Page 3: Input And Output

    Model No. AC-M1 PERFORMANCE Total Harmonic Distortion Under 0.05% (1 kHz) Noise Level Better than -85dBm (-110 below max INPUT & OUTPUT Nominal Input Level +4dB, 20k ohms I/P impedance (electronically balanced) Nominal Output Level +4dB into 600 ohms load (electronically balanced) Maximum Input Level +26dB...

  • Page 4: Connection Diagram

    CONNECTION DIAGRAM BLOCK DIAGRAM...

  • Page 5: Specifications

    390W x 439H x 662D mm Weight 32kg (71lbs.) RECOMMENDED ACCESSORY AC-Ml Electronic Control Unit NOTE OdB SPL=20uPa DIMENSIONAL DIAGRAM SR-M1 Model No. PERFORMANCE Sensitivity (pink noise 1W/1m) - Frequency Response AES Power Handling LF 24 Hour Power Handling ELECTRICAL...

  • Page 6: Architect's And Engineer's Specifications

    The loudspeaker system shall be the TOA SR-M2 [SR-Ml]. NOTE: Acoustic specifications are based on use with the TOA AC-M1 Electronic Control Unit AC-Ml Electronic Control Unit The device shall be dual channel, with each channel able to function independently as an active signal processor/crossover/ limiter for the TOA SR-M1 and SR-M2 speaker systems.

This manual is also suitable for:

Sr-m2Ac-m1
