Summary of Contents for Atag VA5511AT

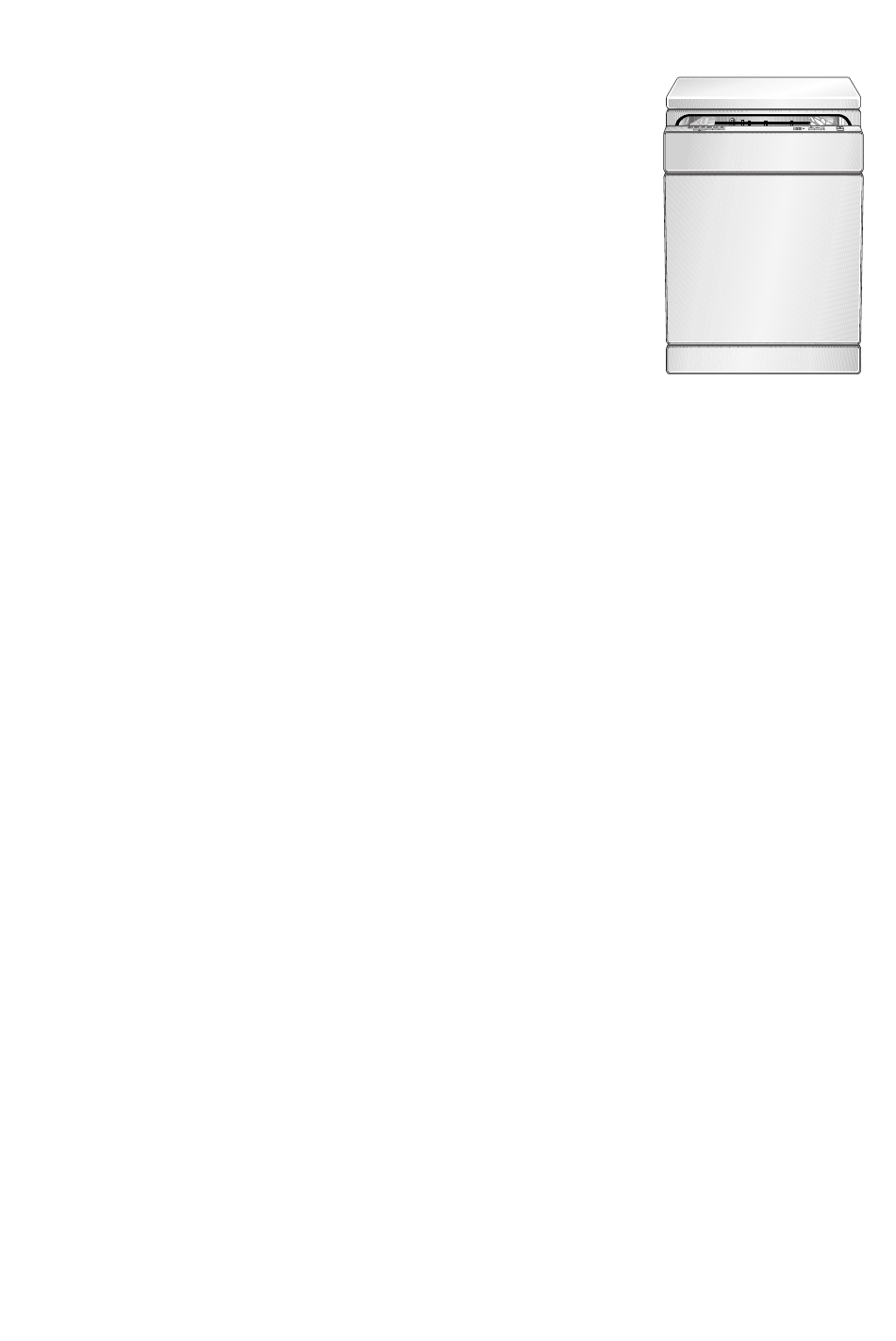

  • Page 1 VA5511AT User information Dishwasher...
  • Page 2 Dear customer, Please read this User Information carefully and keep it to refer to at a later date. Pass this User Information on to any subsequent owner of the appli- ance. The following symbols are used in the text: Safety instructions Warning: Notes that concern your personal safety.

  • Page 3: Table Of Contents

    Contents Operating Instructions ........Safety .

  • Page 4: Operating Instructions

    Operating Instructions 1 Safety Prior to using for the first time • Follow the ”Instructions for installation and connection”. Correct use • The dishwasher is only intended for washing domestic dishes. • Additions or modifications to the dishwasher are not permitted. •...

  • Page 5: Diagram Of Appliance

    Diagram of appliance Ceiling spray arm Upper basket spray arm and floor spray arm Filters Dispenser for detergent Dispenser for rinse aid Control panel Rating plate Dispenser for special salt Control panel To use the appliance, always open the dishwasher door first. ON/OFF button The ON/OFF button is used to turn the dishwasher on and off.
  • Page 6 Set delay Programme buttons Select timer 3 in1 function Control Multi-display Function buttons indicators The Programme buttons are used to select the desired dishwashing cy- cle. Function buttons: In addition to the pre-set dishwashing cycle, the following functions can also be set using these buttons: Function button 1 Sets the water softener Activates/deactivates rinse aid inflow when...

  • Page 7: Prior To Using For The First Time

    Prior to using for the first time If you wish to use 3 in 1 detergent: – First read the section “Using 3in1 detergents”. – Do not fill up with special salt or rinse aid. If you do not use 3in1 detergent, before using for the first time 1.
  • Page 8 If the water softener is set electronically to “1”, this switches off the control indicator for special salt. Water hardness Adjusting the Indication on the hardness setting multi-display in °d in mmol/l Range 51 - 70 9,0 - 12,5 43 - 50 7,6 - 8,9 37 - 42 6,5 - 7,5...

  • Page 9: Adding Special Salt

    Adding special salt To decalcify the water softener, it must be filled up with special salt. Use only special salt suitable for domestic dishwashers. If you do not use 3 in1 detergent, fill up with special salt: – Before using the dishwasher for the first time. –...

  • Page 10: Filling Up With Rinse Aid

    Filling up with rinse aid With rinse aid the rinsing water drains away better and so you get smear-free, gleaming dishes and clear glasses. If you do not use 3in1 detergent, fill up with rinse aid: – Before using the dishwasher for the first time. –...
  • Page 11 Setting the amount of rinse aid required Only change the amount dispensed, if smears, milky spots (reduce the amount) or dried on water spots (increase the amount) can be seen on glasses and dishes. (See section “If dishwashing results are not satisfac- tory”.) The dosage can be set from 1-6.
  • Page 12 Activating/deactivating the inflow of rinse aid If the 3 in1 button is pressed, you do not need to deactivate the inflow of rinse aid. 1. Press the ON/OFF button. If the only LED indicator illuminated belongs to a programme button, this means that this dishwashing cycle has been activated.

  • Page 13: Activating/Deactivating The Acoustic Signal

    Activating/deactivating the acoustic signal In addition to the optical display (e.g. indicating the end of the cycle, errors) you can also choose to set an acoustic signal. 1. Press the ON/OFF button. If the only LED indicator illuminated belongs to a programme button, this means that this dishwashing cycle has been activated.

  • Page 14: In Daily Use

    In daily use Loading cutlery and dishes Sponges, cleaning cloths and any other objects that can absorb water must not be washed in the dishwasher. Plastic and Teflon-coated dishes and pans tend to retain water droplets. These dishes and pans therefore do not dry as well as those made of china and stainless steel.
  • Page 15 Loading cutlery Warning: Sharp knives and other items of cutlery with sharp edges must be laid in the cutlery rack or in the upper basket to avoid the risk of injury. To ensure that all items of cutlery in the cutlery basket can be reached by the water, you should: 1.Place the grid insert on the cut- 2.Place forks and spoons in the...
  • Page 16 Pots, Pans, Large Plates Load large and heavily soiled dishes in the lower basket. The plate rack running right to left at the front right-hand side is most suitable for small flat plates with a diameter of 170-210 mm. A serving plate can be placed in front of the cutlery basket.
  • Page 17 3. Insert the plate rest in the other guide and press it down at the back until it snaps in. Cups, Glasses, Coffee Service Load smaller, fragile crockery and long, sharp cutlery in the upper bas- ket. Adjustable cup racks •...
  • Page 18 Glass holders For glasses with stems and tall cy- lindrical glasses, fold up the glass holder. ( Top picture) To unload or when not needed, fold the glass holders back to the right. (Middle picture) Glasses can also be placed over the bars pointing up.

  • Page 19: Adjusting The Height Of The Upper Basket

    Adjusting the height of the upper basket Maximum height of dishes in the Upper basket Lower basket with upper basket raised 19 cm 32 cm with upper basket lowered 21 cm 30 cm The height of the baskets can also be adjusted when they are loaded. Raising/lowering the upper basket 1.

  • Page 20: Adding Detergent

    Adding detergent Detergents remove the dirt from dishes and cutlery. The detergent must be added before the cycle starts. Only use detergent intended for do- mestic dishwashers. The detergent compartment is lo- cated on the inside of the door. 1. If the lid is closed: Press the release button.
  • Page 21 Concentrated detergents Today’s detergents for dishwashers are almost exclusively low-alkaline concentrated detergents with natural enzymes in tablet or powder form. Using 50°C dishwashing cycles in conjunction with these concentrated detergents reduces pollution and is good for your dishes, as these dish- washing cycles are specially matched to the dirt-dissolving properties of the enzymes in concentrated detergents.

  • Page 22: Using 3In1 Detergents

    Using 3in1 detergents These products are detergents with a combined cleaning, rinsing and salt function. When the 3in1 function is activated, – the addition of special salt and rinse aid from the respective dispenser is prevented. – If the salt and rinse aid dispensers are empty, this is not indicated. –...

  • Page 23: Selecting The Dishwashing Cycle (Cycle Table)

    Selecting the dishwashing cycle (Cycle Table) Programme Consumption sequence values Dishwashing- Suitable Type of cycle for: soiling heavily soiled, Dinner service dried-on food re- • • • • and cookware mains, in particular protein and starch normally soiled, Dinner service dried-on food re- •...
  • Page 24 Selecting a programme When your dishes look like this, select: an intensive programme. a normal or energy-saving pro- gramme.

  • Page 25: Starting A Dishwashing Cycle

    Starting a dishwashing cycle 1. Check that the spray arms can turn freely. 2. Turn the water tap on fully. 3. Press the ON/OFF button. 4. Select the desired programme. The programme indicator will illuminate. 5. Close the door. The wash programme will begin. Interrupting or aborting a dishwashing cycle Only interrupt a dishwashing cycle that is in progress if it is absolutely necessary.

  • Page 26: Switching Off The Dishwasher

    To change the delay timer: As long as the cycle has not yet started, you can still change the setting by pressing the Delay Timer button after opening the door. Cancelling the time delay: Press the Delay Timer button repeatedly until the length of the selected cycle appears in the multi-display.

  • Page 27: Care And Cleaning

    Care and cleaning Do not use furniture care products or aggressive cleaners. • When necessary, clean the dishwasher’s controls with a soft cloth and clean warm water. • Occasionally check the internal dispensers, door seal and water inlet filter (if fitted) for dirt and clean them, if necessary. Polished chromium steel surfaces Remove light dirt with a clean, damp, soft cloth –...
  • Page 28 Cleaning the filters The filters must be regularly checked and cleaned. Dirty filters will affect the dishwashing results. Coarse filter (1) The coarse filter must be checked after every dishwashing cycle. 1. Open the door and remove the lower basket. 2.
  • Page 29 Cleaning the spray arms Regularly check the nozzles in the three spray arms for blockages. If necessary, clean the nozzles with a piece of fine wire or a fine needle and a strong water jet. Do not damage the nozzle openings. Top spray arm 1.

  • Page 30: What To Do If

    What to do if... Remedying small malfunctions If the acoustic signal is activated, warning tones sound if there are faults. If one of the following fault codes is displayed in the multi-display dur- ing operation: – Fault codeÅ 10 (Problems with water inlet), –...
  • Page 31 Malfunction Possible cause Remedy 2 short warning tones The sink outlet is blocked. Clean out sink outlet. continuously repeated can be heard. The cycle indicator for the selected dishwashing cycle Water drain hose Check the position of the is flashing, has not been correctly posi- hose.

  • Page 32: If The Dishwashing Results Are Not Satisfactory

    If the dishwashing results are not satisfactory The dishes are still dirty. • The wrong dishwashing cycle was selected. • The dishes were loaded is such a way that the dishwashing water did not reach all items. The baskets for the dishes must not be overload- •...

  • Page 33: Disposal

    Disposal Packaging material The packaging materials are environmentally friendly and can be recy- cled. The plastic components are identified by markings, e.g. >PE<, >PS<, etc. Please dispose of the packaging materials in the appropriate container at the community waste disposal facilities. Old appliance The symbol on the product or on its packaging indicates that this...

  • Page 34: Technical Data

    Technical data Capacity: 11 place settings including serving dishes Permitted water pres- 1-10 bar (=10-100 N/cm = 0.1-1.0 MPa) sure: Electrical connection: 230 V, 10 A, also see the rating plate on the right-hand side of the dishwasher’s interior door. Total output 2250 W Dishwashers that can be integrated and built-in...

  • Page 35: Notes For Test Institutes

    Notes for Test Institutes Testing in accordance with EN 60704 must be carried out with the appliance fully loaded and using the test cycle (see "Cycle Table"). Tests in accordance with EN 50242 must be carried out when the salt dispenser in the water softener and the rinse aid dispenser have been filled with salt and rinse aid respectively, and using the test cycle (see "Cycle Table").

  • Page 36: Installation And Connection Instructions

    Installation and connection instructions 1 Safety information for the installation • Only transport the dishwasher in an upright position, otherwise salt water may run out. • Before using the dishwasher for the first time, check for any damage caused in transport. Do not under any circumstances connect an ap- pliance that is damaged.

  • Page 37: General

    General • The dishwasher is supplied ready to be connected to the electrical sup- ply, i.e. with electrical cable, in- stalled drain hose and inlet hose with filter. • The dishwasher may be built into recesses made of flammable mate- rials without additional measures being taken.

  • Page 38: Connecting To The Water Supply

    Connecting to the water supply Inlet • Water pressure: 1–10 bar (flow pressure) • The appliance can be connected to cold and hot water, maximum temperature 65 °C. • The site must provide a regulating tap with G 3/4” outlet. •...

  • Page 39: Installing And Fitting The Hinged Door

    Installing and fitting the hinged door A normal kitchen unit door with the following dimensions can be used as a hinged door: • Max width 596 mm • Max. height 720 mm • Max. depth 20 mm • Weight (including handle) 3 kg to max.
  • Page 40 Fitting the hinged door 1. Fit the two lateral bars A as shown in the figure opposite. Align bars at the top so that the upper hole lies over the pre-mounted aligning disk. With a width of 568 mm first fix the additionally supplied aligning disks B on the already pre-mounted aligning disks.
  • Page 41 6. Place the hinge supports evenly spaced on the floor of the recess and align flush with the front of the floor of the recess. Fasten with the 6 wood screws supplied. 7. Using the drilling template supplied, mark out and drill two holes a (ø35 mm, 11 mm deep) for the hinges at the bottom of the hinged door.
  • Page 42 9. Screw the hinges using 4 countersunk head wood screws and the guides us- ing 8 Spax screws (4.0 x 20, pozidrive) to the hinged door. 10. Snap the hinges on the hinged door into the bottom units of the hinges. Hold the hinged door carefully, so that the hinges are not bent.
  • Page 43 13. Fix the guiders with screws to the right and the left on the appliance door. 14. Adjust the depth of the appliance, open the appliance door carefully, without changing the position found. Fix the appliance laterally at the top using wood screws.

  • Page 44: Connection To The Electrical Supply

    Connection to the electrical supply Installation must be via a mains cable with a plug. The plug must be ac- cessible after the installation, or a separation device with at least a 3 mm contact gap must be provided in the permanent house wiring that gives the appliance simultaneous all-pole separation from the electrical supply.

  • Page 47: Service

    Service In the event of technical faults, please first check whether you can remedy the problem yourself with the help of the operating instruc- tions (section “What to do if…”). If you were not able to remedy the problem yourself, please contact the Customer Care Department or one of our service partners.
  • Page 48 Nederland Home Produkt Service (ATAG) Postbus 249 6920 AE DUIVEN tel: 0900 - 5550001 fax: 026 - 8821444 België ATAG België NV 9420 Erpe-Mere tel: 053 - 806208 fax: 053 - 806057 Postbus 1033 • 6920 BA Duiven • Nederland...
