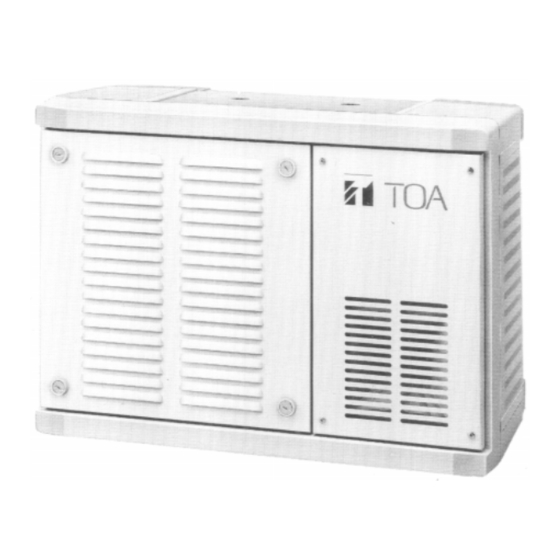

Toa F-500WP Instruction Manual

SPEAKER SYSTEM
Important: READ RULE FOR SAFE INSTALLATION, OPERATION AND INSTRUCTIONS CAREFULLY.
Handlin g precautions
1. The speaker system is rainproofed for outdoor applications. However, do not dash water intentionally over unit for
the cleaning purpose as this can cause damage to the internal speaker components.
2. Do not loosen any fixing screws of this speaker for disassembly or modification. This impairs the speaker's rain-
proof capability, involving a risk of accidents or breakdowns.
3. Sea breezes shorten the life of this speaker. Do not install the speaker in the seaside areas.
4. Toa can accept no responsibility for accidents or unit's breakdowns resulting from improper installations or dis-
assemblies or modifications performed for purposes other than legitimate maintenance or repair services.
Features
1. Rain- and weather-proof construction that makes the
speaker most ideal for outdoor applications.
2. 2-way, sealed speaker incorporating a woofer with
high power handling
directivity (CD) horn tweeter with a high-efficiency driv-
er.
3. Uniform frequency response within the range of 60°
horizontal × 40° vertical thanks to the CD horn.
4. Enclosure is made from polypropylene resin that
assures high sound performance.
5. Designed for high efficiency, extended range and high
durability as well as for easy installation, the speaker
can be used in wide applications.
capacity and a constant-
F-500WP, F-500WP-L
F-600WP, F-600WP-L
Specifications
F-500WP F-500WP-L F-600WP F-600WP-L
Type ...
Woofer
20cm con e
Tweeter
Rated power or
60W*
Power handling capacity
Impedance
Output SPL
93dB (1W/1m)
Frequency ... 80~20000Hz
Crossover ... 3000Hz
Ambient ...
Material ...
Color
452x282x210 mm
Dimensions
(W×H×D) 17.8x11.1x8.3 inches
Weight Approx. 11 kg Approx. 9.5kg
* Rated power input ** Continuous pink noise input *** Continuous
program input
The above specifications are subject to change without notice.
Instruction Manual
Sealed typ e
30cm con e
CD hor n + drive r
80W" 120W** *
120W*
240W***
98dB(1W/1m)
80~20000Hz
2000HZ
-15°C ~ +50°C
Polypropylene resin
Ivory
552×392x250 mm
21.7x15.4x9.8 inches
Approx. 20kg | Approx. 17.5kg
