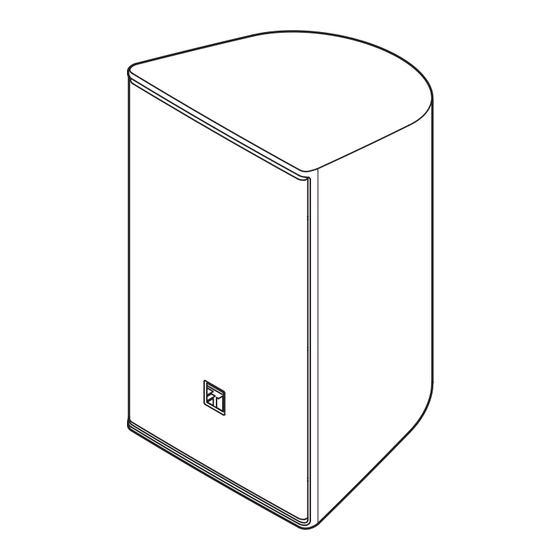

SPEAKER SYSTEM
F-03BT, F-03WT
Thank you for purchasing TOA's Speaker System.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
F-05BT, F-05WT
INSTRUCTION MANUAL
F-03BT, F-03WT
F-05BT, F-05WT
F-08BT, F-08WT
F-08BT, F-08WT
Advertisement
Related Manuals for Toa F-08WT
Summarization of Contents
SAFETY PRECAUTIONS
Safety Symbol and Message Conventions
Explains symbols and messages to prevent injury and property damage.
GENERAL DESCRIPTION AND FEATURES
Model and Speaker Unit Details
Table detailing models F-03BT/WT, F-05BT/WT, F-08BT/WT and their speaker components.
IMPEDANCE CHANGE
Impedance Adjustment for Models
Instructions and diagrams for changing speaker impedance using a rotary switch.
DIMENSIONAL DIAGRAM
Dimensions for F-03BT, F-03WT
Technical drawings showing front, side, rear, and bracketed dimensions in mm and inches.
Dimensions for F-05BT, F-05WT
Technical drawings showing front, side, rear, and bracketed dimensions in mm and inches.
Dimensions for F-08BT, F-08WT
Technical drawings showing front, side, rear, and bracketed dimensions in mm and inches.
SPEAKER CABLE CONNECTIONS
Input Terminal and Cable Stripped Conductor
Diagram showing speaker terminal polarity and required stripped conductor length for connection.
INSTALLATION
Using Supplied Brackets
Details on base brackets and speaker brackets provided with the system for mounting.
Base Bracket Installation Location
Diagrams and tables showing minimum distances for wall and ceiling mounting of the base bracket.
Base Bracket Installation Dimensions
Specifies dimensions for 3-point wall and 2/4-point ceiling installation using M6 bolts.
Speaker Installation Angle Range
Details the horizontal and vertical adjustment ranges for wall and ceiling installations.
Installation Angle for F-03BT, F-03WT
Specific horizontal and vertical angle adjustment ranges for F-03BT and F-03WT models.
Installation Angle for F-05BT, F-05WT
Specific horizontal and vertical angle adjustment ranges for F-05BT and F-05WT models.
Installation Angle for F-08BT, F-08WT
Specific horizontal and vertical angle adjustment ranges for F-08BT and F-08WT models.
Wall Mounting Procedure
Step-by-step guide for mounting speakers securely to a wall, including safety wires and brackets.
Ceiling Mounting Procedure
Step-by-step guide for securely mounting speakers to a ceiling using base brackets and safety wires.
INSTALLATION EXAMPLES USING OPTIONAL ADAPTER PLATES
Adapter Plate Compatibility
Table listing speaker models and their corresponding optional adapter plates for installation.
SPECIFICATIONS
Specifications for F-03BT, F-03WT
Detailed technical specifications including enclosure, power, impedance, sensitivity, and dimensions.
Specifications for F-05BT, F-05WT
Detailed technical specifications including enclosure, power, impedance, sensitivity, and dimensions.
Specifications for F-08BT, F-08WT
Detailed technical specifications including enclosure, power, impedance, sensitivity, and dimensions.
