GenInterlock SYL-200 Manual

Model 

Main Breaker 

Generator Breaker 

Only qualified personnel should be working on the panel box

An amateur should NEVER open the panel box

Please follow all rules and regulations of the National Electric Code

Step 1: Disassemble the interlock. Place the bottom plate (holes only) parallel to the breaker on the left and the

side of the panel, as in the picture. And mark holes.

Step 3: Drill holes as marked on panel cover with supplied 3/16 drill bit and remove all burs from drilling cover.

Step 4: Insert screws from rear of cover, install bottom plate, and install top plate (slotted) with retaining nuts.

Ensure proper movement.

Step 5: Install 2 pole Generator breaker on top left side and place Generator Warning Sticker on Generator

breaker.

SYL-200 Pat. Pending

150 or 200 amp single handle Vertical throw down (off), up (on)

Spacing from lower part of main to first breaker 3 ¼"

Top left side 2 positions

WARNING

Table of Contents

Do you have a question about the SYL-200 and is the answer not in the manual?

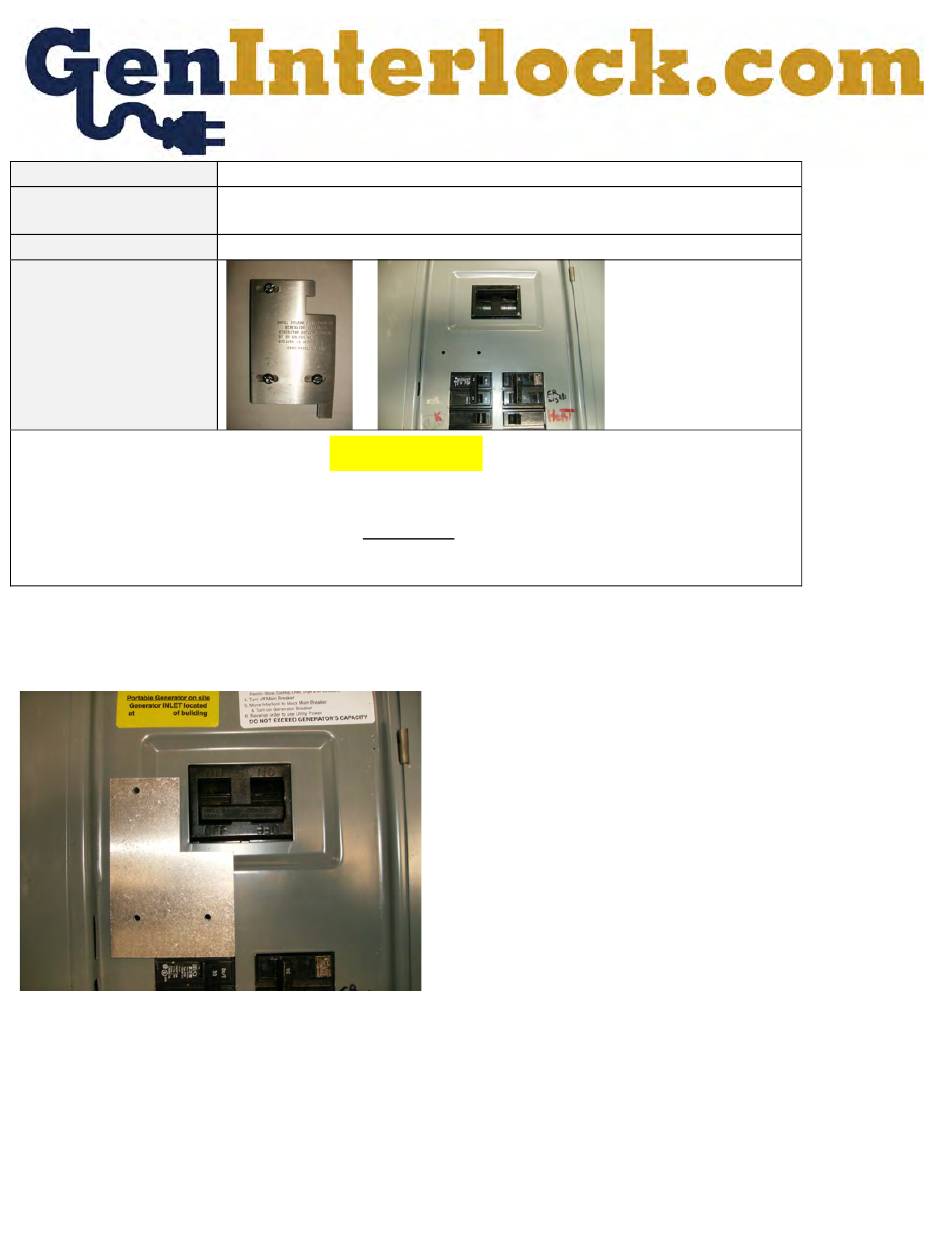

Page 1 SYL-200 Pat. Pending Model  150 or 200 amp single handle Vertical throw down (off), up (on) Main Breaker  Spacing from lower part of main to first breaker 3 ¼” Top left side 2 positions Generator Breaker    WARNING Only qualified personnel should be working on the panel box...
