Overview of product
LCD temperature controller T24-DM1 provides the foundation for modern
single room concepts.
Features
- LCD with white backlight
- Proportional output(s), DC 0...10V or 2...10V
- Adjustable P-band, I-time and setpoint range
- Display selection
- Unoccupancy mode
- Memory function after power failure
- Suits 2-pipe(T24-DM1) system
- External sensor TG-M10000(probe type) or TG-M10002(duct type)(optional)
Technical data
Model
Norminal voltage
Power consumption
Output(s)
Built-in sensor
External sensor
Temperature range
Mode
Proportional band
Integral time
Display offset
Switching differential
Upper setpoint limit (USP)
Lower setpoint limit (LSP)
Unoccupancy setpoint range
Unoccupancy contact input
Connection
Ambient humidity
Body material
Weight
Dimensions (LxWxH)
Mounting
Degree of protection
Agency approval
Installation and dimensions
T24-DM1(2-pipe)
AC 24V 50/60Hz (±15%, AC 20.4V...27.6V)
1VA@AC 24V
DC 0...10V or 2...10V by jumper setting
NTC thermistor, 10kΩ@25°C
TG-M10000(probe type) or TG-M10002(duct type)(optional)
Display
: 0...40°C
Setpoint : 5...40°C, 0.5K per step
On / standby
Cooling / heating
1K...10K adjustable (factory default 5K)
0...300 seconds adjustable (factory default 60 seconds)
±2K adjustable (-2, -1, 0, +1, +2) (factory default 0)
1K
9...40°C, adjustable (factory default 40°C)
5...35°C, adjustable (factory default 5°C)
Cooling
: 5...36°C (factory default 26°C)
Heating
: 9...40°C (factory default 16°C)
Voltage free contact input
Screw terminals, maximum 1.0mm² or 18 AWG
Max. 90% RH, non-condensing
Self-extinguishing, molded ABS
120g
86 x 86 x 28.5mm
Wall mounted, holes separate 60mm vertically, 2x screws provided
IP30
CE mark compliant to EMC Directive
28.5mm

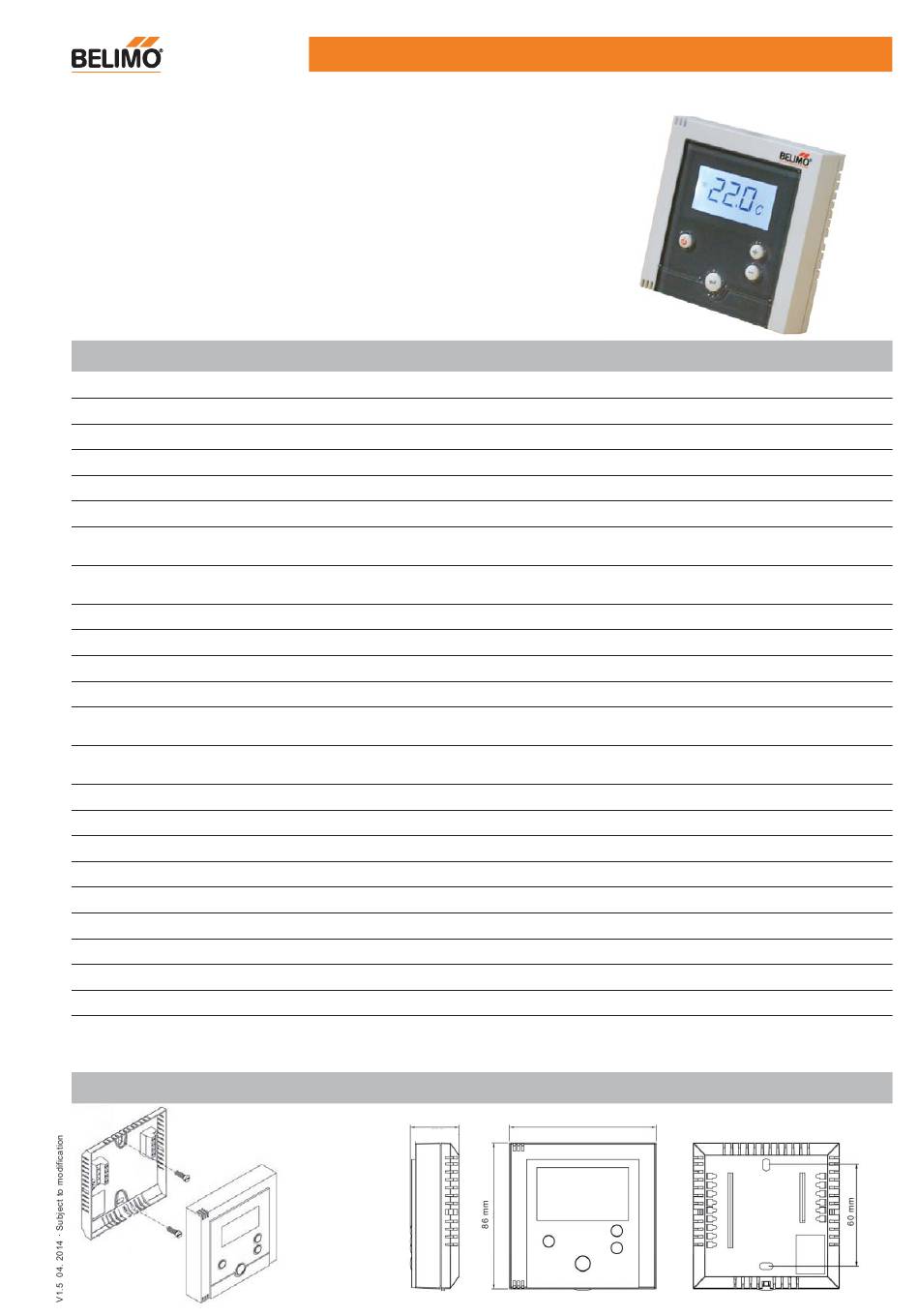

T24-DM1 LCD Temperature Controller
86 mm
1
