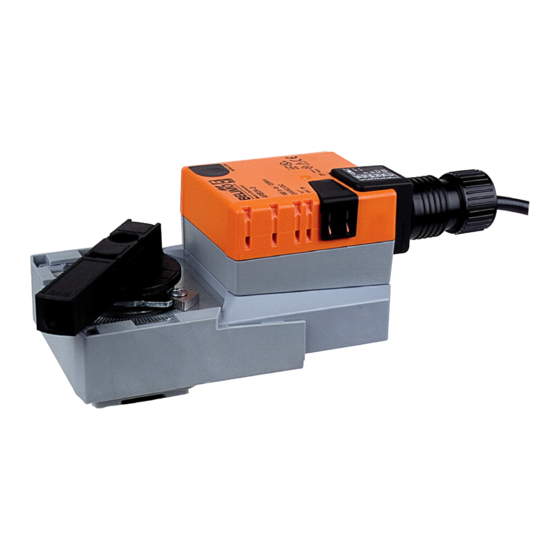

ARX24-3-5
On/Off, Floating Point, Non-Spring Return, 24 V

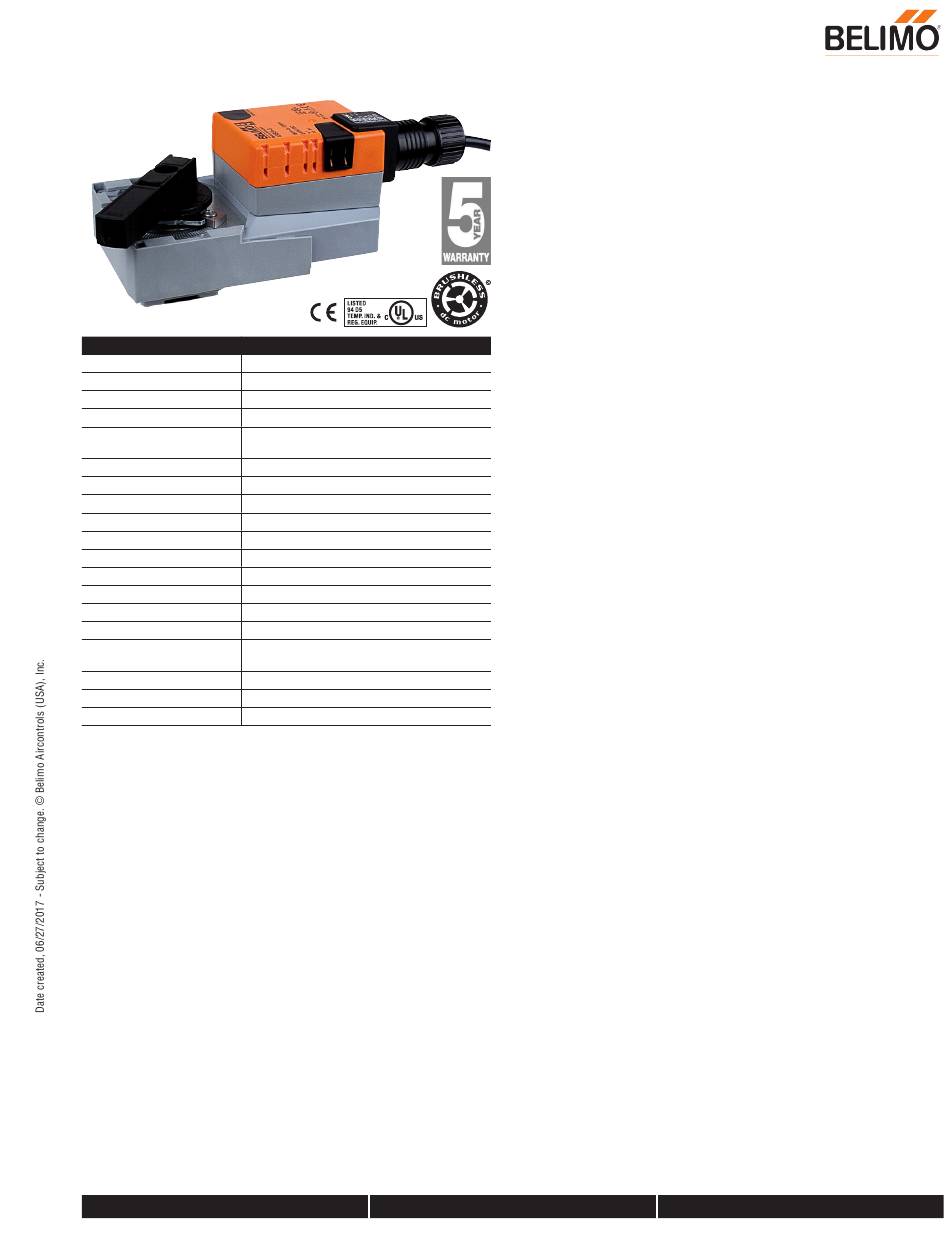

Technical Data

Power Supply
24 VAC ± 20%, 50/60 Hz, 24 VDC ± 10%
Power Consumption Running 2.5 W
Power Consumption Holding 0.5 W
Transformer Sizing
5.5 VA (class 2 power source)
Electrical Connection
(2) 3ft [1m], 10ft [3m] or 16ft [5m] 18 GA
appliance cables, with 1/2" conduit connectors
Overload Protection
electronic thoughout 0° to 90° rotation
Input Impedance
600 Ω
Angle of Rotation
90°
Direction of Rotation (Motor) reversible with built-in switch
Position Indication
integrated into handle
Manual Override
external push button
Running Time (Motor)
90 sec (default), Optional (90 or 150 sec)
Ambient Temperature Range
-22°F to 122°F [-30°C to 50°C]
Storage Temperature Range
-40°F to 176°F [-40°C to 80°C]
Housing
NEMA 2, IP54
Agency Listings†
cULus acc. to UL60730-1A/-2-14, CAN/CSA
E60730-1:02, CE acc. to 2004/108/EC
Noise Level (Motor)
<45 dB (A)
Servicing
maintenance free
Quality Standard
ISO 9001
†Rated Impulse Voltage 800V, Type action 1.B , Control Pollution Degree 3.
