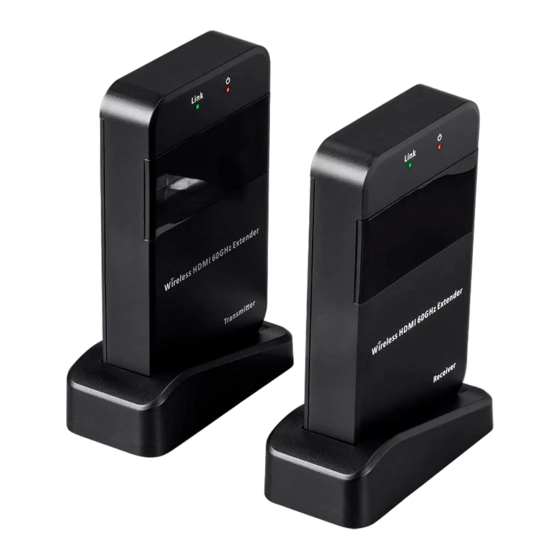

- Page 1 Blackbird™ Pro WiHD™ 60GHz Uncompressed Wireless Professional HDMI® Extender P/N 16049 User's Manual...
-
Page 2: Table Of Contents
CONTENTS SAFETY WARNINGS AND GUIDELINES ...........................3 INTRODUCTION ....................................4 FEATURES ....................................... 4 CUSTOMER SERVICE ..................................5 PACKAGE CONTENTS ................................... 5 PRODUCT OVERVIEW .................................. 5 Front View ....................................5 Side View ....................................6 LINK LED ........................................6 MULTIFUNCTION BUTTON ................................ 7 INSTALLATION .................................... -
Page 3: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. This device is intended for indoor use only. ... -
Page 4: Introduction
This device has no user serviceable parts. Do not attempt to open, service, or modify this device. INTRODUCTION This Blackbird™ WiHD™ Wireless HDMI® Extender uses a 60GHz carrier frequency and can transmit uncompressed HDMI signals to distances up to 98 feet (30 meters) with near zero latency. -
Page 5: Customer Service
If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com or via email at support@monoprice.com. Check the website for support times and links. -
Page 6: Side View
Side View 1. HDMI IN/OUT: HDMI® connector for connecting an HDMI video source device to the transmitter and an HDMI display to the receiver. 2. POWER: Micro USB connector for attaching the included USB power adapters using the included USB to Micro USB cables. -
Page 7: Multifunction Button
MULTIFUNCTION BUTTON The Multifunction Buttons on the Transmitter and Receiver perform the following functions, depending on the adapter's status and the way that the button is pressed. Wakeup Function: If the adapter is in Sleep mode, a momentary press of the Multifunction Button will wake the adapter and start normal operation. - Page 8 5. Using one of the included USB to Micro USB cables, plug one end into the POWER port on the Receiver, then plug the other end into the USB power adapter. Plug the USB power adapter into a nearby AC power outlet. The Power LED on the Receiver should illuminate and the Link LED should start blinking slowly.
-
Page 9: Supported Formats
SUPPORTED FORMATS 2D Video Resolution Refresh Rate (Hz) Color Depth 640 x 480p (VGA) RGB 4:4:4 (8-bit) 848 x 480 (WVGA) RGB 4:4:4 (8-bit) 800 x 600 (SVGA) RGB 4:4:4 (8-bit) 1024 x 768 (XGA) RGB 4:4:4 (8-bit) 1280 x 1024 (SXGA) RGB 4:4:4 (8-bit) 1680 x 1050 (WSXGA+) RGB 4:4:4 (8-bit) -
Page 10: Video
Resolution Refresh Rate (Hz) Color Depth RGB 4:4:4 (8/10/12-bit) 1080p 24/50/60 YCbCr 4:4:4 (8/10/12-bit) YCbCr 4:2:2 (8-bit) 24/30 YCbCr 4:2:2 (8-bit) 3D Video Type Resolution Refresh Rate (Hz) 1080p Frame Packing 720p 50/60 1080p Top-Bottom 720p 50/60 Side-by-Side 1080i 50/60 Audio Format # of Channels... -
Page 11: Specifications
SPECIFICATIONS Model 16049 Inputs 1x HDMI® Outputs 1x HDMI Maximum Input Resolution 4K@30Hz Maximum Output Resolution 4K@30Hz Maximum Number of Audio Channels Maximum Audio Sampling Rate 192kHz HDMI Version 1.4b HDCP™ Version WiHD™ Version Maximum Transmission Distance 98 feet (30 meters) Input Power USB (5 VDC, 1A) USB Power Adapter Input Power... -
Page 12: Technical Support
TECHNICAL SUPPORT Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. If you ever need assistance with your new product, please come online to talk to one of our friendly and knowledgeable Tech Support Associates. -
Page 13: Radio Notice For Fcc
This FCC Part 15 radio device operates on a non-interference basis with other devices operating at this frequency. Any changes or modification to said product not expressly approved by Monoprice, including the use of non-approved antennas, could void the user’s authority to operate this device. -
Page 14: Eu Conformity With Applicable Directives
Monoprice, including the use of non-approved antennas, could void the user’s authority to operate this device. This device complies with IC RSS-210. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
