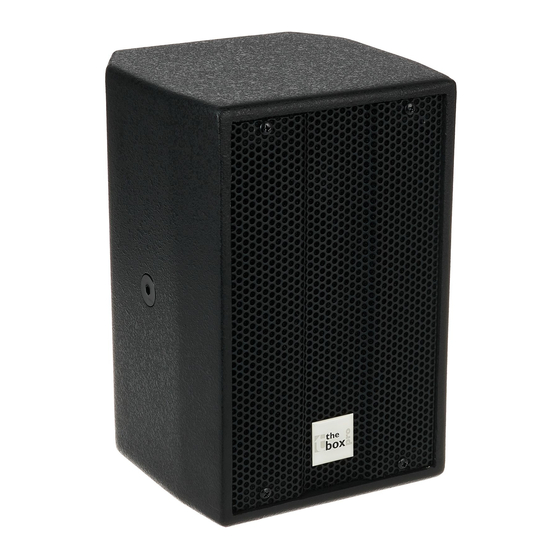

Summary of Contents for thomann the box Achat 115M
- Page 1 Achat 115M full-range speaker user manual...
- Page 2 Musikhaus Thomann e.K. Treppendorf 30 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 email: info@thomann.de Internet: www.thomann.de 26.01.2012...
-
Page 3: Table Of Contents
Table of contents Table of contents General notes............................... 4 Safety instructions............................. 7 Features................................9 Installation..............................10 4.1 Tips on handling speakers......................12 4.2 Hanging the speaker box......................13 4.3 Connections............................14 Technical specifications........................15 Protecting the environment......................16 Achat 115M... -
Page 4: General Notes
General notes General notes This user manual contains important information on the safe operation of the device. Read and follow all safety notes and all instructions. Save this manual for future reference. Make sure that it is available to all persons using this device. If you sell the device to another user, be sure that they also receive this manual. - Page 5 General notes Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a possible dangerous situation that can result in death or serious injury if it is not avoided.
- Page 6 General notes Warning signs Type of danger Warning – suspended load. Warning – danger zone. full-range speaker...
-
Page 7: Safety Instructions
Safety instructions Safety instructions Intended use This device is intended to be used in a sound reinforcement system. Use the device only as described in this user manual. Any other use or use under other operating conditions is consid‐ ered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use. - Page 8 Safety instructions CAUTION! Possible hearing damage The device can produce volume levels that may cause temporary or permanent hearing impairment. Over an extended period of time, even levels that seem to be uncritical can cause hearing damage. Decrease the volume level immediately if you experience ringing in your ears or hearing impairment.
-
Page 9: Features
Features Features Special features of the device: Connections: 4 lockable NL4 sockets (SpeakON) For use with ‘Achat Amprack’, various products are available. Appropriate subwoofers, for example, are: ‘the box pro Achat 115Sub’ or ‘the box pro TP118/800’. Flying tracks on top side and an eyelet on the back to tilt the box. Required attachment for vertical mounting ‘the box Achat Flying Track Attachment’... -
Page 10: Installation
Installation Installation Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. - Page 11 Installation CAUTION! Risk of injury due to heavy weight Due to the heavy weight of the device, at least two persons are required for trans‐ port and installation. NOTICE! Possible property damage by magnetic fields Loudspeakers produce a static magnetic field. Therefore, maintain an appropriate distance to devices that can be adversely affected or damaged by an external magnetic field.
-
Page 12: Tips On Handling Speakers
Installation 4.1 Tips on handling speakers We recommend you to set up the speakers in a way, that the sound signals can reach the audi‐ ence unobstructedly. It will often be helpful to mount the speakers on tripods. Thus, the sound will be evenly spread with maximum range throughout the audience area. -
Page 13: Hanging The Speaker Box
Installation 4.2 Hanging the speaker box To hang the speaker box on special mounting devices (aka ‘flying’) both sides of the box offer built-in Aeroquip or fly tracks. In these tracks safety eyelets (double studs) can be screwed or latched. Check the secure connection of the safety eyelets with the box carefully, before you use it in ‘flying mode’. -
Page 14: Connections
Installation 4.3 Connections 1, 2 2 NL4 connections wired in parallel on the rear panel (SpeakON) Additional NL4 connections are located on the top and bottom side of the cabinet. Find more information about the wiring of the NL4 connections on the rear panel of the cab‐ inet. -
Page 15: Technical Specifications
Technical specifications Technical specifications System 2-way full-range speaker box with built-in crossover 1 × 15" woofer, 1.4" mid-high driver (with 3" voice coil) Speakers Power handling 350 W (RMS), 1400 W (peak) 8 Ω Impedance Maximum SPL 131 dB 60 Hz … 17 kHz (–3 dB) Frequency response Dispersion (V ×... -
Page 16: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose these materials with your normal household waste, but make sure that they are fed to a recovery. - Page 17 Notes Achat 115M...
- Page 18 Notes full-range speaker...
- Page 20 Musikhaus Thomann e.K. · Treppendorf 30 · 96138 Burgebrach · Germany · www.thomann.de...
