- Page 1 Achat 115 SUB passive subwoofer user manual...
- Page 2 Musikhaus Thomann e.K. Treppendorf 30 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 email: info@thomann.de Internet: www.thomann.de 14.02.2012...
-
Page 3: Table Of Contents
Table of contents Table of contents General notes............................... 4 Safety instructions............................. 6 Features................................8 Installation..............................9 4.1 Tips on handling speakers......................11 4.2 Connections............................12 Technical specifications ........................15 Protecting the environment......................16 Achat 115 SUB... -
Page 4: General Notes
General notes General notes This user manual contains important information on the safe operation of the device. Read and follow all safety notes and all instructions. Save this manual for future reference. Make sure that it is available to all persons using this device. If you sell the device to another user, be sure that they also receive this manual. - Page 5 General notes Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. CAUTION! This combination of symbol and signal word indicates a possible dangerous situation that can result in minor injury if it is not avoided.
-
Page 6: Safety Instructions
Safety instructions Safety instructions Intended use This device is intended to be used in a sound reinforcement system. Use the device only as described in this user manual. Any other use or use under other operating conditions is consid‐ ered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use. - Page 7 Safety instructions CAUTION! Possible hearing damage The device can produce volume levels that may cause temporary or permanent hearing impairment. Over an extended period of time, even levels that seem to be uncritical can cause hearing damage. Decrease the volume level immediately if you experience ringing in your ears or hearing impairment.
-
Page 8: Features

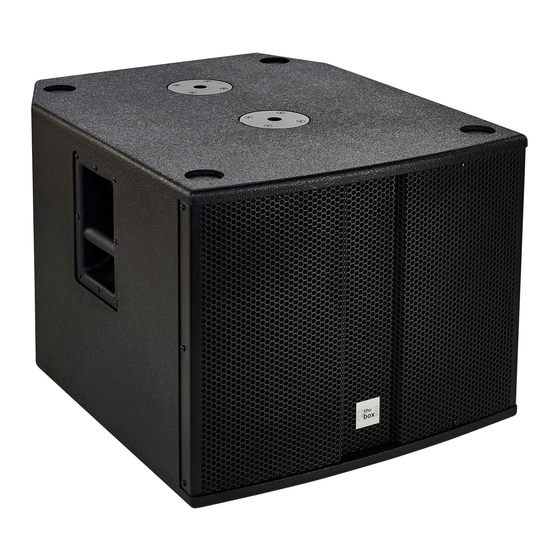

Features Features Special features of this passive subwoofer: Connections: 3 lockable NL4 sockets (1+/1–) 2 × pole mount flanges, (M20), on topside Black textured coating passive subwoofer... -
Page 9: Installation
Installation Installation Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. - Page 10 Installation NOTICE! Possible property damage by magnetic fields Loudspeakers produce a static magnetic field. Therefore, maintain an appropriate distance to devices that can be adversely affected or damaged by an external magnetic field. passive subwoofer...
-
Page 11: Tips On Handling Speakers
Installation 4.1 Tips on handling speakers We recommend you to set up the speakers in a way, that the sound signals can reach the audi‐ ence unobstructedly. It will often be helpful to mount the speakers on tripods. Thus, the sound will be evenly spread with maximum range throughout the audience area. -
Page 12: Connections
Installation 4.2 Connections passive subwoofer... - Page 13 Installation 1 FULL RANGE INPUT Lockable NL4 connector for signal input (1+/1–). 2 X-OVER INPUT Lockable NL4 input connector (1+/1–) for using the built-in low pass filter. Do not connect another speaker box when using this input. 3 FULL RANGE THRU Lockable NL4 connector (1+/1–) for signal output to another speaker, wired in par‐...
- Page 14 Installation NL4 mounting connectors for The drawing alongside shows the pin assignment of the lockable NL4 mounting connectors. speaker connections passive subwoofer...
-
Page 15: Technical Specifications
Technical specifications Technical specifications Speakers 1 × 15" woofer Power handling 500 W (RMS), 2000 W (peak) Impedance 8 Ω Maximum SPL 129 dB Frequency response 45 Hz … 200 Hz (–3 dB) Dimensions (W × H × D) 550 mm × 435 mm × 680 mm Weight 30 kg Achat 115 SUB... -
Page 16: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose these materials with your normal household waste, but make sure that they are fed to a recovery. - Page 17 Notes Achat 115 SUB...
- Page 18 Notes passive subwoofer...
- Page 20 Musikhaus Thomann e.K. · Treppendorf 30 · 96138 Burgebrach · Germany · www.thomann.de...
