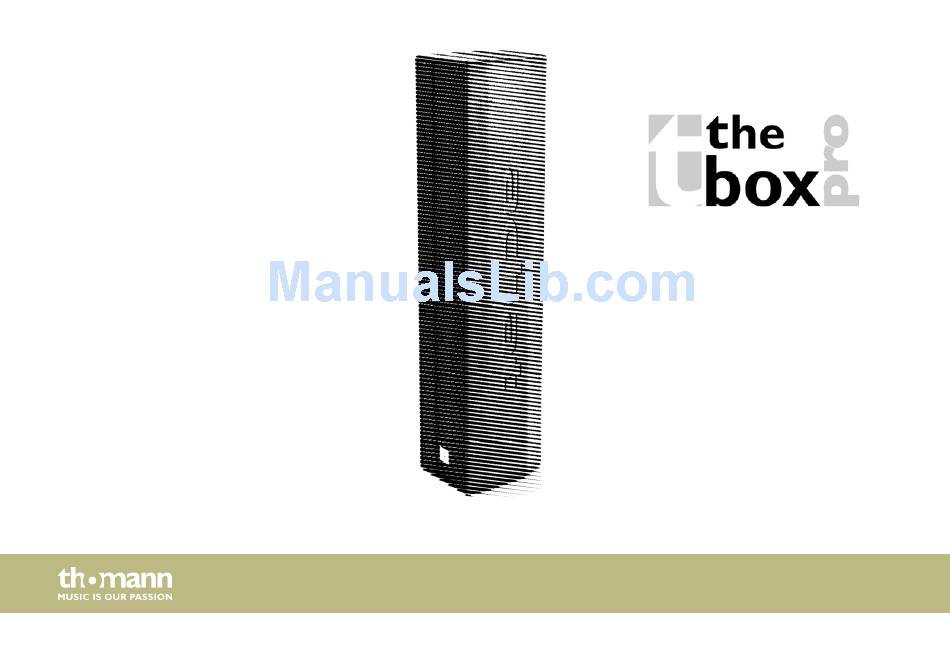

- Page 1 Achat 404 MKII passive full-range speaker user manual...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 28.08.2015, ID: 268594...
-
Page 3: Table Of Contents
Table of contents Table of contents General notes............................... 4 Safety instructions............................. 6 Features ................................. 8 Installation..............................9 4.1 Tips on handling speakers......................11 4.2 Connections............................12 Technical specifications........................14 Protecting the environment......................15 Achat 404 MKII... -
Page 4: General Notes
General notes General notes This user manual contains important information on safe operation of the device. Read and follow all safety notes and all instructions. Save this manual for future reference. Make sure that it is available to all persons using this device. If you sell the device to other users, be sure that they also receive this manual. - Page 5 NOTICE! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in material and environmental damage if it is not avoided. Warning signs Type of danger Warning – danger zone. Achat 404 MKII...
-
Page 6: Safety Instructions
Safety instructions Safety instructions Intended use This device is intended to be used in a sound reinforcement system. Use the device only as described in this user manual. Any other use or use under other operating conditions is consid‐ ered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use. - Page 7 If this is not possible, keep a greater distance or use suffi‐ cient ear protectors. NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. Achat 404 MKII...
-
Page 8: Features
Features Features Special features of this high-grade speaker box: Connections: 2 lockable NL4 sockets (1+/1–), screw terminals 36 mm attachable tripod mounting flange optionally available Wall mount optionally available Black textured coating passive full-range speaker... -
Page 9: Installation
NOTICE! Possible property damage by magnetic fields Loudspeakers produce a static magnetic field. Therefore, maintain an appropriate distance to devices that can be adversely affected or damaged by an external magnetic field. Achat 404 MKII... - Page 10 Installation NOTICE! Use of stands When mounting the device onto a stand, ensure that the stand is in a safe and stable position and that the weight of the device does not exceed the maximum permissible load capacity of the stand. passive full-range speaker...
-
Page 11: Tips On Handling Speakers
If you notice distortion during operation, either the amp or the speaker is overloaded. This may permanently damage the amp or the speaker. Always reduce the volume when you hear dis‐ tortion. Achat 404 MKII... -
Page 12: Connections
Installation 4.2 Connections 1 FULL RANGE INPUT Lockable NL4 signal input connector (1+/1–) 2 FULL RANGE THRU Lockable NL4 output connector (1+/1– interconnected) for the connection of another speaker 3 Screw terminals for signal input passive full-range speaker... - Page 13 Installation NL4 mounting connectors for The drawing alongside shows the pin assignment of the lockable NL4 mounting connectors. speaker connections Achat 404 MKII...
-
Page 14: Technical Specifications
Technical specifications Technical specifications Speakers 4 × 4" speakers, 1 × 1" BMS driver Power handling 150 W (RMS), 600 W (peak) 8 Ω Impedance Maximum SPL 124 dB Frequency response 160 Hz … 20 kHz Dispersion (H × V) 150°... -
Page 15: Protecting The Environment
Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. Achat 404 MKII... - Page 16 Notes passive full-range speaker...
- Page 17 Notes Achat 404 MKII...
- Page 18 Notes passive full-range speaker...
- Page 20 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
