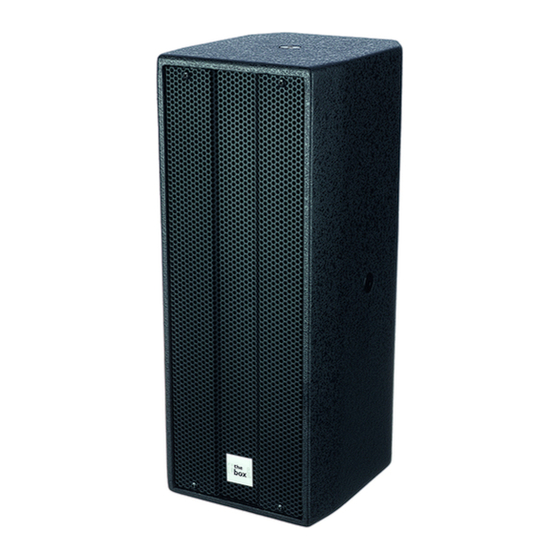

- Page 1 Achat 204 A Active Speaker...
- Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 18.03.2024, ID: 375150 (V3)
-
Page 3: Table Of Contents
Table of contents Table of contents General information..........................5 1.1 Symbols and signal words....................... 5 Safety instructions............................. 7 Features............................... 10 Installation..............................11 4.1 Tips on handling speakers......................13 Connections and controls........................14 Technical specifications........................16 Plug and connection assignment....................21 Protecting the environment...................... - Page 4 Achat 204 A Active Speaker...
-
Page 5: General Information
Our products and documentation are subject to a process of continuous development. They are therefore subject to change. Please refer to the latest version of the documentation, which is ready for download under www.thomann.de. 1.1 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this document. - Page 6 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in death or serious injury if it is not avoided.
-
Page 7: Safety Instructions
Safety instructions Safety instructions Intended use This device is designed as a PA system. The device is designed for professional use only and is not suitable for use in households. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. - Page 8 Safety instructions DANGER! Danger to life due to electric current! A short circuit could lead to a fire hazard and risk of death. Always use proper ready-made insulated triple-core mains cable with a safety plug. Do not modify the mains cable or the plug. In case of isolation damage, disconnect immediately the power supply and arrange repair.
- Page 9 Safety instructions NOTICE! Damage to the device if operated in unsuitable ambient conditions! The device can be damaged if it is operated in unsuitable ambient conditions. Only operate the device indoors within the ambient conditions specified in the “Technical specifications” chapter of this user manual. Avoid operating it in environments with direct sun‐ light, heavy dirt and strong vibrations.
-
Page 10: Features
Features Features Active mini speaker with two 4-inch woofers and 1-inch tweeter 3/8-inch thread for stands Optional wall mount available (item no. 269439, item no. 269440) Black textured paint Power-saving mode Achat 204 A Active Speaker... -
Page 11: Installation
Installation Installation Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. - Page 12 Installation WARNING! Risk of injury from falling speakers that were inadequately secured! If speakers are not properly secured when mounted, they can cause severe injury and considerable damage by falling. Always secure portable sound systems (speakers) with two independent safety devices, for example with safety cables.
-
Page 13: Tips On Handling Speakers
Installation 4.1 Tips on handling speakers We recommend you to set up the speakers in a way, that the sound signals can reach the audi‐ ence unobstructedly. It will often be helpful to mount the speakers on tripods. Thus, the sound will be evenly spread with maximum range throughout the audience area. -
Page 14: Connections And Controls
Connections and controls Connections and controls 1 Rubber panel plug with fuse holder for the power supply 2 [ON/STANDBY/OFF] | Use this toggle switch (mains switch) to turn the device on (ON), put it into power-saving mode (STANDBY) or turn it off (OFF). &... - Page 15 Connections and controls 6 [LINE IN] | Line signal input, designed as XLR chassis socket, 3-pin 7 [LINE OUT] | Line output for connecting further speakers, designed as XLR plug, 3-pin Achat 204 A Active Speaker...
-
Page 16: Technical Specifications
Technical specifications Technical specifications Configuration 2 × 4-inch woofer, 1 × 1-inch textile dome tweeter Input connections LINE IN 1 × XLR panel socket, 3-pin AUX IN 1 × cinch socket (unbalanced) Power supply Rubber panel plug C14 Input impedance XLR socket: 20 kΩ... - Page 17 Technical specifications Power consumption 4.7 W Supply voltage 100 - 240 V 50/60 Hz Fuse 5 mm × 20 mm, 2 A, 250 V, slow blow Dimensions (W × H × D) 144 mm × 360 mm × 172 mm Weight 4.6 kg Ambient conditions...
- Page 18 Technical specifications Further information Multifunctional housing Flange for stand Truss-capable Yes, M6 thread Housing material Wood Media player Effect Monitor inclination Remote control Low Cut Achat 204 A Active Speaker...
- Page 19 Technical specifications Frequency response Amplitude Phase Achat 204 A Active Speaker...
- Page 20 Technical specifications 86 mm 106,5 mm 144 mm 60° 16° 144 mm Achat 204 A Active Speaker...
-
Page 21: Plug And Connection Assignment
Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment in such a way that a perfect sound experience is ensured. Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or ‘just’... - Page 22 Plug and connection assignment XLR plug (balanced) Ground, shielding Signal (in phase, +) Signal (out of phase, –) Shielding on plug housing (option) XLR plug (unbalanced) Ground, shielding Signal Bridged to pin 1 RCA connection Drawing and table indicate the pin assignment of an RCA plug. Signal Ground, shielding Achat 204 A...
-
Page 23: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packing material Environmentally friendly materials have been chosen for the packaging. These materials can be sent for normal recycling. Ensure that plastic bags, packaging, etc. are disposed of in the proper manner. Do not dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 24 Repairing a device or passing it on to another user is an ecologically valuable alternative to disposal. You can return your old device to Thomann GmbH at no charge. Check the current conditions on www.thomann.de. If your old device contains personal data, delete those data before disposing of it.
- Page 25 Notes Achat 204 A Active Speaker...
- Page 26 Notes Achat 204 A Active Speaker...
- Page 28 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
