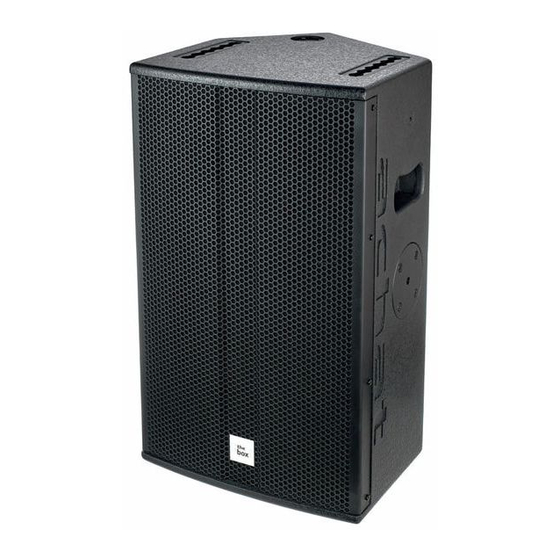

- Page 1 Achat 112 MA Achat 112 MA WH active speaker user manual...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 17.06.2021, ID: 230513, 354548 (V2)
-
Page 3: Table Of Contents
Table of contents Table of contents General information..........................4 1.1 Further information........................... 5 1.2 Notational conventions........................6 1.3 Symbols and signal words....................... 6 Safety instructions............................. 9 Features............................... 13 Installation..............................14 4.1 Pin assignment..........................15 4.2 Tips on handling speakers......................18 4.3 Hanging the speaker box...................... -
Page 4: General Information
Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. active speaker... -
Page 5: Further Information
General information 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly. -
Page 6: Notational Conventions
General information 1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. - Page 7 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in death or serious injury if it is not avoided.
- Page 8 General information Warning signs Type of danger Warning – suspended load. Warning – danger zone. active speaker...
-
Page 9: Safety Instructions
Safety instructions Safety instructions Intended use This device is designed for sound reinforcement. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use. - Page 10 Safety instructions DANGER! Electric shock caused by short-circuit Always use proper ready-made insulated mains cabling (power cord) with a protective contact plug. Do not modify the mains cable or the plug. Failure to do so could result in electric shock/death or fire. If in doubt, seek advice from a registered electrician. DANGER! Electric shock caused by high voltages inside Within the device there are areas where high voltages may be present.
- Page 11 Safety instructions NOTICE! Risk of fire Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked flames. NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations.
- Page 12 Safety instructions NOTICE! Possible staining The plasticiser contained in the rubber feet of this product may possibly react with the coating of your parquet, linoleum, laminate or PVC floor and after some time cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the floor, but use felt-pad floor protectors or a carpet.
-
Page 13: Features
Features Features Special features of the device: Active 2 way-full-range-loudspeaker with built-in crossover Connection options: XLR / 1/4" jack combo socket for signal input, XLR panel plug for signal output. Power supply switch Flying tracks on top of the housing and an eye on the back for tilting. Mounting for vertical hanging optionally available 36 mm pole flange on the bottom Rotatable horn... -
Page 14: Installation
Installation Installation Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. -
Page 15: Pin Assignment
Installation NOTICE! Possible property damage by magnetic fields Loudspeakers produce a static magnetic field. Therefore, maintain an appropriate distance to devices that can be adversely affected or damaged by an external magnetic field. NOTICE! Use of stands When mounting the device onto a stand, ensure that the stand is in a safe and stable position and that the weight of the device does not exceed the maximum permissible load capacity of the stand. - Page 16 Installation XLR connections for signal XLR panel sockets are provided for signal inputs. XLR panel plugs are provided for signal out‐ inputs/outputs puts. The figure and the table show the XLR pin assignment. Balanced pinout: Ground Positive signal (+) Negative signal (–) Unbalanced pinout: Ground Signal...
- Page 17 Installation Jack plug for signal in and out‐ The figure and the table show the pin assignment for ¼-inch jack plugs. puts Unbalanced wiring (jack plug, mono): Signal Ground Unbalanced wiring (jack plug, stereo): Signal 2, 3 Ground Achat 112 MA Achat 112 MA WH...
-
Page 18: Tips On Handling Speakers
Installation Balanced wiring (jack plug, stereo): 1 (tip) Positive signal (+) 2 (ring) Negative signal (–) 3 (sleeve) Ground 4.2 Tips on handling speakers We recommend you to set up the speakers in a way, that the sound signals can reach the audi‐ ence unobstructedly. -
Page 19: Hanging The Speaker Box
Installation 4.3 Hanging the speaker box To hang the speaker box on special mounting devices (aka ‘flying’), the top of the box offers built-in Aeroquip or fly tracks. In these tracks safety eyelets (double studs) can be screwed or latched. Check the secure connection of the safety eyelets with the box carefully, before you use it in ‘flying mode’. -
Page 20: Operating Elements
Operating elements Operating elements & ' ö active speaker... - Page 21 Operating elements 1 [ON] / [OFF] Use this switch (power switch) to turn the unit on and off. 2 IEC chassis plug for power supply with fuse holder 3 Fuse Should the fuse have blown, disconnect the unit from the power supply and replace the fuse with a new fuse of the same type.
- Page 22 Operating elements 7 [VOLUME] Overall volume control 8 [CLIP] Indicates overload (clipping). In this case, the level of the line input signal is too high. active speaker...
-
Page 23: Technical Specifications
Technical specifications Technical specifications Speaker 1 × 12" woofer, 1" mid-range neodymium transducer (with 3" voice coil) Input connections Line 1 × XLR / 1/4" jack combo socket (Line In) Power supply IEC chassis plug C14 Input impedance 10 kΩ Output connections 1 ×... - Page 24 Technical specifications Distortion Line: 0.02% Load impedance 8 Ω Dispersion angle (V × H) 60° × 40° (horn) Supply voltage (selectable) 115 V 60 Hz or 230 V 50 Hz Fuse 115 V: 5 mm × 20 mm, 5 A, 250 V, slow-blow 230 V: 5 mm ×...
- Page 25 Technical specifications Further information Monitor inclination Bluetooth® USB player Housing Wood Colour black (item no. 230513) or white (item no. 354548) Protective cover Suitable protective cover optionally available (item no. 243017) Achat 112 MA Achat 112 MA WH...
-
Page 26: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 28 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
